- Page 1 PIT js2/PIT js2 bc Control and signal devices Operating Manual-21130-EN-06...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Wiring ............................Assignment ..........................Connection to evaluation device....................Dimensions in mm ......................... PIT js2/PIT js2 bc........................PIT js holder..........................Technical Details ........................Safety characteristic data ......................Order reference ........................Product ............................. Accessories ..........................Operating Manual PIT js2/PIT js2 bc 21130-EN-06... -
Page 4: Introduction
PIT js2/PIT js2 bc Introduction Validity of documentation This documentation is valid for the product PIT js2/PIT js2 bc. It is valid until new docu- mentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: For Your Safety

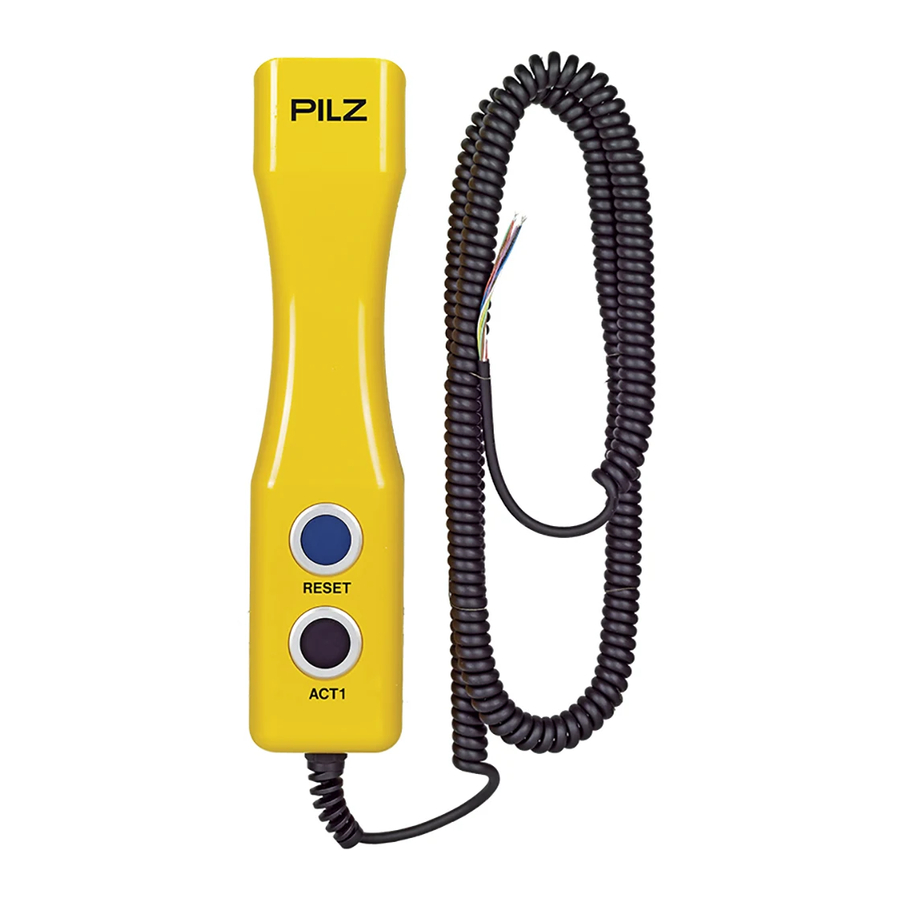

(at least annually). Intended use The PIT js2/PIT js2 bc is a manually operated command device that can be used as an en- abling device. It allows authorised personnel to monitor processes in the danger zone of automated manufacturing facilities when movable guards are open. -
Page 6: Device Description
PIT js2: You can connect the Reset button to the control system such that, after releasing one or both pushbuttons ACT1 and ACT2, a subsequent enabling signal can only be gen- erated once the Reset pushbutton has been actuated. -
Page 7: Connection To Evaluation Device
P2HZX3 (Contact fuse protection, see grey blue technical details) black ACT1 yellow-grey black-red ACT2 yellow white PNOZmulti (with blue two-hand module) grey ACT1 black white ACT2 yellow RESET brown 24 V Operating Manual PIT js2/PIT js2 bc 21130-EN-06... -
Page 8: Dimensions In Mm
S12 (+) S22 (-) Dimensions in mm PIT js2/PIT js2 bc Legend Pushbutton ACT2 Cable bend protection Pushbutton ACT1 Reset pushbutton (only with 401 100) Operating Manual PIT js2/PIT js2 bc 21130-EN-06... -
Page 9: Pit Js Holder
PIT js holder Technical Details General 401100 401101 Certifications Self-monitored Electrical data 401100 401101 Supply voltage Voltage 24 V 24 V Kind AC/DC AC/DC Max. switching current, safety con- tacts 0,75 A 0,75 A Operating Manual PIT js2/PIT js2 bc 21130-EN-06... -
Page 10: Safety Characteristic Data
60 mm Weight 837 g 823 g Safety characteristic data Safety characteristic data B10d in accordance with EN ISO 13849-1:2015 20.000.000 and EN 62061 Lambda /Lambda in accordance with EN 62061 0,10 Operating Manual PIT js2/PIT js2 bc | 10 21130-EN-06... -
Page 11: Order Reference
401 100 PIT js2 bc Manually operated command device (without Reset 401 101 pushbutton) Accessories Bracket Type Features Order no. PIT js holder Wall bracket for PIT js2/PIT js2 bc 401 200 Operating Manual PIT js2/PIT js2 bc | 11 21130-EN-06... - Page 12 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
