USER'S MANUAL
TwinFresh Expert RW1-50 V.2
TwinFresh Expert RW1-50C1 V.2
TwinFresh Expert RW1-85 V.2
TwinFresh Expert RW1-100 V.2
TwinFresh Expert RW1-100C1 V.2
TwinFresh Expert Duo RW1-30 V.2

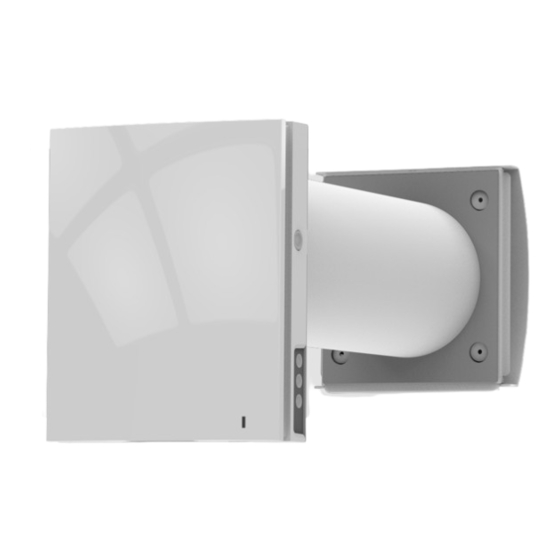

Single-room reversible energy recovery ventilator
TwinFresh Expert RMW1-50 V.2
TwinFresh Expert RMW1-50C1 V.2
TwinFresh Expert RMW1-85 V.2
TwinFresh Expert RMW1-100 V.2
TwinFresh Expert RMW1-100C1 V.2
Advertisement
Table of Contents
Related Manuals for Vents-us TwinFresh Expert RW1-50 V.2
Summary of Contents for Vents-us TwinFresh Expert RW1-50 V.2

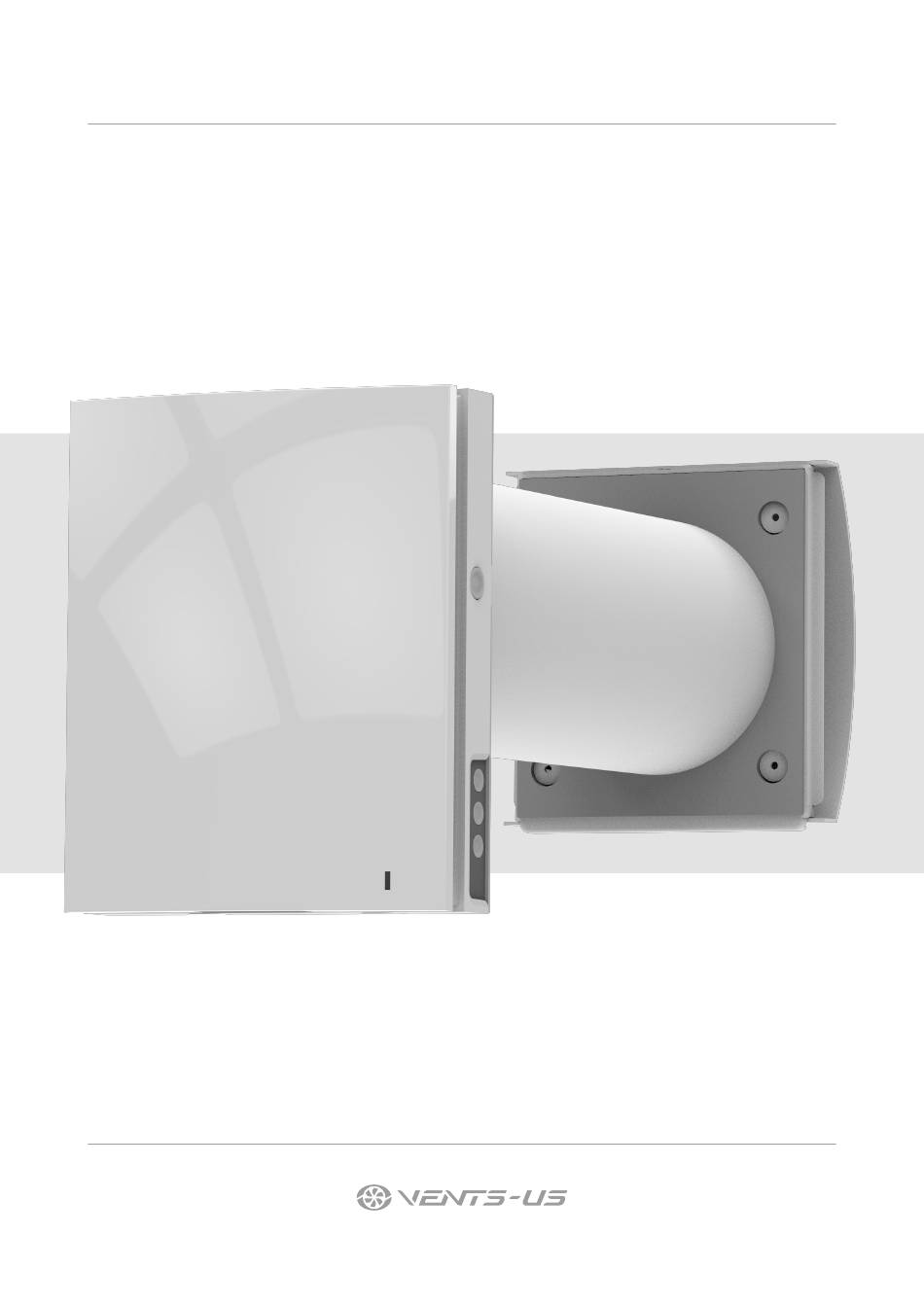

- Page 1 USER’S MANUAL TwinFresh Expert RW1-50 V.2 TwinFresh Expert RMW1-50 V.2 TwinFresh Expert RW1-50C1 V.2 TwinFresh Expert RMW1-50C1 V.2 TwinFresh Expert RW1-85 V.2 TwinFresh Expert RMW1-85 V.2 TwinFresh Expert RW1-100 V.2 TwinFresh Expert RMW1-100 V.2 TwinFresh Expert RW1-100C1 V.2 TwinFresh Expert RMW1-100C1 V.2 TwinFresh Expert Duo RW1-30 V.2...
-
Page 2: Table Of Contents
Ensure that the unit is switched off from the supply mains before removing the guard. Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. www.vents-us.com... - Page 3 Never touch the unit with wet or damp hands. Never touch the unit when barefoot. BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE www.vents-us.com...
-
Page 4: Purpose
M – model without automatic shutters, with manual blocking of air flow Air duct section shape R: round Ventilator series Expert: series of reversible ventilators with unidirectional air flow Expert Duo: series of reversible ventilators with bidirectional air flow www.vents-us.com... -
Page 5: Technical Data
TwinFresh Expert Duo " " " " " " " " " " " Wi-Fi technical data Длина воздуховода (толщина стены) Standard IEFE 802,11, b/g/n Frequency band [GHz] Transmission power [mW] (dBm) 100(+20) Network DHCP WLAN safety WPA, WPA2 www.vents-us.com... -
Page 6: Design And Operating Principle
Fulfils the decorative function. The design enables to TwinFresh Expert Duo shut off the air duct in case of an extended downtime of the ventilator. The front part of the TwinFresh Expert Duo unit is used for air filtration. www.vents-us.com... - Page 7 Opening of the air duct is made in the reverse order. The fan starts operating according to the actual speed setting. The front panel incorporates an operating LED indicator. During the dark time the indicator light intensity drops down. www.vents-us.com...
- Page 8 When simultaneously activating several operation modes that exclude each other, the ventilator selects the mode according to the following priority: 1. Night mode timer or Party mode timer. 2. Standby. 3. Boost. 4. Weekly Schedule. 5. Standard operation mode. www.vents-us.com...
-
Page 9: Mounting And Set-Up
The air duct can be cut by calculating preliminary the required length min 3 mm or after fixing the air duct on the wall (in this case, it is necessary to have access to the outside part of the wall). www.vents-us.com... - Page 10 6. Route the power cable as figured below and connect the ventilator to power mains in compliance with the external wiring diagram. Fix the power cable and the signal cables with a cable clamp. After completion of the electrical connection re-install the transparent cover in site. Cable clamp www.vents-us.com...
- Page 11 Insert the ready sound absorbing roll into the air duct. Install the dimensionally corrected separators into the air duct. 10. Install the outer ventilation hood. The mounting sequence of the outer ventilation hood is described in the installation instruction for the ventilation hood. www.vents-us.com...
-
Page 12: Connection To Power Mains
120 V~60 Hz Power supply to the next ventilator NO contact of an external unit (relay sensor) +12V + 12V Input for 0-10 V analogue sensor Input for 0-10 V NO contact of an analogue sensor external unit (relay sensor) www.vents-us.com... - Page 13 Restore factory default settings OFF – standard operation of the unit. ON - restore factory default settings. For this purpose, move the switch on the operating ventilator to the ON position, after the sound signal turn the switch to the OFF position. www.vents-us.com...
- Page 14 The air direction is not changed. Party mode. Activation of the speed III according to the timer (the default setting is 4 hours). Night mode. Activation of the speed I according to the timer (the default setting is 8 hours). www.vents-us.com...
- Page 15 No glowing of the lamp indicator means that this ventilation unit is a Slave ventilation unit and it is connected Master to a unit. Synchronous blinking of all the lamp indicators on the casing of the ventilator indicates that the Setup mode is enabled. www.vents-us.com...
- Page 16 To connect, follow the instructions in the mobile app. In the app, you can configure the ventilator to connect via your home Wi-Fi network and via a cloud server. CONTROLLING THE VENTILATOR USING THE SMART HOME SYSTEM The ventilators must be connected to the Smart home system in compliance with user’s manual for this application. www.vents-us.com...
- Page 17 If any of the sensors in the TwinFresh Expert Duo are triggered, only that ventilator goes to the maximum speed in the humidity control scenario, while the other ventilators in the network continue to run without increasing the speed. www.vents-us.com...
- Page 18 Several Master units can optionally be connected to the network for arranging a zone control. Mobile device Mobile device Master Slave No. 1 Slave No. N Extra wireless access point Mobile device Mobile device Slave No. N+1 Slave No. N+N www.vents-us.com...
- Page 19 The battery is located on the control board. To replace the battery, power off the ventilator, remove the front panel and the cover protecting the control circuit board. Remove the battery and install the new one. The battery type is : CR1220. www.vents-us.com...
-
Page 20: Technical Maintenance
Do not remove the connector by pulling the wires. Use a flat screwdriver to uplift it, if required. TwinFresh Expert TwinFresh Expert Duo Disconnect the socket Disconnect the socket connector from the control connector from the control board board www.vents-us.com... - Page 21 The battery type is CR2025. Remove the holder with the battery from the lower part of the remote control. CR2025 Replace the battery and install the holder with a new battery back to the remote control. CR2025 www.vents-us.com...
-
Page 22: Storage And Transportation Regulations
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. www.vents-us.com... -
Page 23: Manufacturer's Warranty
If proof of sales date is absent, warranty period is calculated from the production date. The unit can be exchanged at the following address: Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 E-mail: support@ventsus.com... - Page 24 TwinFresh Expert (Duo) R(M)W1-30/50/85/100(C1) V.2 www.vents-us.com...
- Page 25 www.vents-us.com...
- Page 26 TwinFresh Expert (Duo) R(M)W1-30/50/85/100(C1) V.2 www.vents-us.com...
-
Page 27: Certificate Of Acceptance
The unit has been installed in accordance with the provisions of all the applicable local and national construction, electrical and technical codes and standards. The unit operates normally as intended by the manufacturer. Signature: WARRANTY CARD Unit Type Single-room reversible energy recovery ventilator Model Serial Number Manufacture Date Purchase Date Warranty Period Seller Seller’s Stamp www.vents-us.com... - Page 28 VUSA133-4EN-08...
