Using the Touch Panel Display (Optional:PA-TDU-003) (P950NW Only)

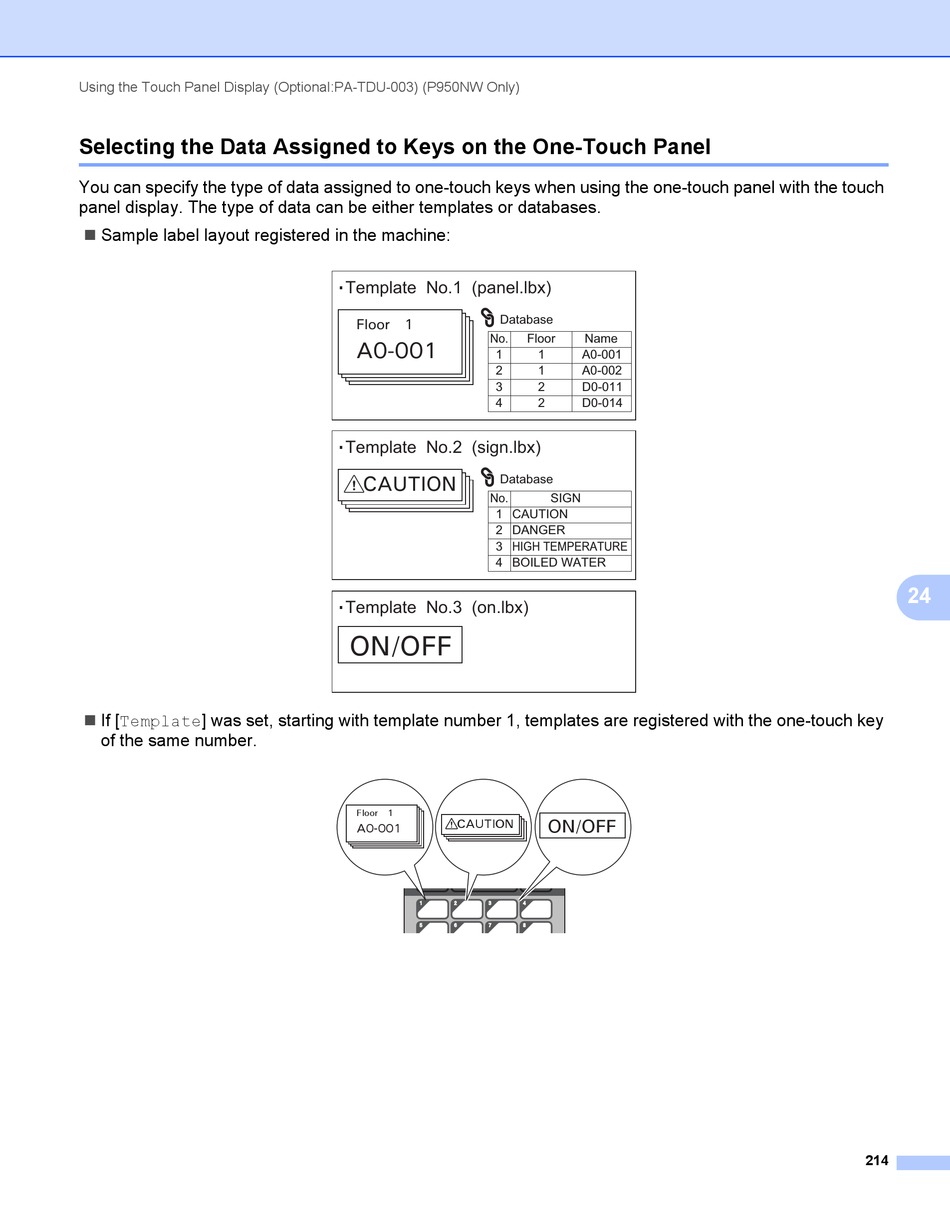

Selecting the Data Assigned to Keys on the One-Touch Panel

You can specify the type of data assigned to one-touch keys when using the one-touch panel with the touch
panel display. The type of data can be either templates or databases.
 Sample label layout registered in the machine:
 If [Template] was set, starting with template number 1, templates are registered with the one-touch key
of the same number.
Template No.1 (panel.lbx)
Floor 1 Database
No.
A0-001
1
2
3
4
Template No.2 (sign.lbx)
CAUTION
Database
No.
1 CAUTION
2 DANGER
3 HIGH TEMPERATURE
4 BOILED WATER
Template No.3 (on.lbx)
ON/OFF
Floor 1
CAUTION
A0-001
Floor Name
1 A0-001
1 A0-002
2 D0-011
2 D0-014
SIGN
ON/OFF
24
24
214
