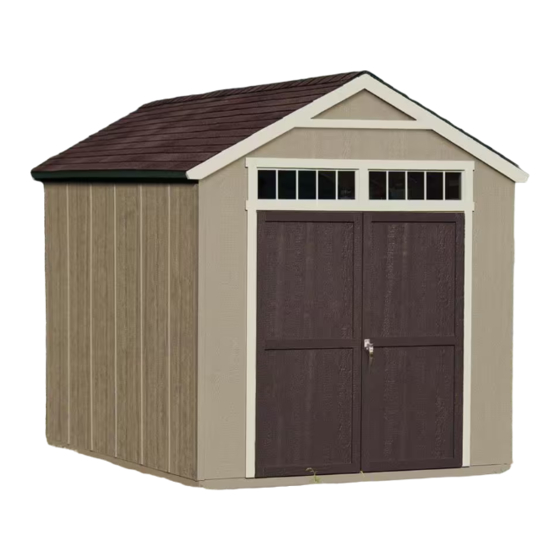

Backyard Products HANDY HOME PRODUCTS MAJESTIC Assembly Manual

Backyard Products HANDY HOME PRODUCTS MAJESTIC Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
!
DO NOT RETURN
TO THE STORE!
If you discover missing or damaged parts,
or if you have questions about the building process,
please reach out to us directly for the fastest service.
24/7 Support
help.backyardproducts.com
Call a Recruiter Today! 734-365-7000
Flexible schedule
*based on number of completed installations
STOP
Answers to frequently
asked questions
Technical assistance and
how-to videos
Submit a help request
Request replacement parts
Did you enjoy building your shed?
JOIN OUR TEAM
AND MAKE UP TO $1,500/WEEK*
No selling,
just building
Business Hours
(734) 242-6900
Monday - Friday ........... 8:00am - 6:00pm EST
Saturday - Sunday .................................Closed
Bonus incentives
available
16566

Advertisement

loading

Related Manuals for Backyard Products HANDY HOME PRODUCTS MAJESTIC

Summary of Contents for Backyard Products HANDY HOME PRODUCTS MAJESTIC

  • Page 1 16566 STOP DO NOT RETURN TO THE STORE! If you discover missing or damaged parts, or if you have questions about the building process, please reach out to us directly for the fastest service. 24/7 Support Business Hours help.backyardproducts.com (734) 242-6900 Answers to frequently Monday - Friday ...
  • Page 2 (This page intentionally left blank.)

  • Page 3: Assembly Manual

    16566 11/11/2022 ASSEMBLY MANUAL A Backyard Products Company MAJESTIC 8' x 12' (244 x 366 cm) ACTUAL FLOOR SIZE IS 96" x 144" (244 x 366 cm) KEEP THIS MANUAL FOR FUTURE REFERENCE I M PO RTANT! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
  • Page 4 TOOLS Required Optional Phillips Tool Belt/ Utility Knife Screwdriver Nail Pouch Shingle Blades Drill / Driver 1/4" Drill Bit Tin Snips Caulk Gun (for drip edge) 3/8" Drill Bit 1/2" Drill Bit #2 Philips Drive Bit Chalk Line Paint Tools Hammer Nail Gun •...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS • This kit includes a complete floor. • This shed kit does not include ANY leveling materials. • See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your floor, as this will vary depending on your specific site.

  • Page 6: Parts List

    PARTS IDENTIFICATION AND SIZES WOOD SIZE CONVERSION CHART Part identification Treated lumber is stamped: letters are stamped on some parts. Nominal Board Size Actual Size 2 x 4 ....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4 ....3/4" x 3-1/2" (1,9 x 8,9 cm) 2 x 3 ....1-1/2"...
  • Page 7 PARTS LIST continued... 6" x 24" (15 x 61 cm) 2 x 4 x 55-3/16" (5 x 10 x 140 cm) 1 x 4 x 60" (2,5 x 10 x 152 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 7,6 x 175,3 cm) 2 x 3 x 28-5/8"...
  • Page 8 WALL PANEL & DOORS PARTS LIST NOTE: Panel parts are not stamped. LEFT DOOR RIGHT DOOR 3/8 x 48 x 84" (1 x 122 x 213 cm) FASTENER/HARDWARE BAG (Shown Actual Size) x133 1-1/2" (3,8 cm) NOTE: If you are using a nail gun, nails x120 2"...
  • Page 9 FLOOR LEVELING OPTIONS There are multiple ways to level your floor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS • 3" Screws angled into 4x4. • (2) at each point frame •...
  • Page 10 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Treated Sill Plate Caulk between sill plate and concrete. 3-1/2" (8,9 cm) 4" (10,2 cm) Building Size Actual Size 8' x 12' (243,2 x 365,8 cm) 96"...
  • Page 11 FLOOR FRAME PARTS REQUIRED: Look for TREATED 3" (7,6 cm) TREATED Stamp 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) TREATED 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm) TREATED 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) BEGIN Arrange parts as shown on a fl at surface.
  • Page 12 LEVEL AND SQUARE FLOOR FRAME Before attaching fl oor decking, it is important to level and square the fl oor frame. A level and square fl oor frame is required to correctly construct your shed. BEGIN See page 8 for the preferred fl oor leveling method. Ensure that the frame is level before installing fl oor panels.
  • Page 13 FLOOR PANELS PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 5/8 x 48 x 96" (1,6 x 121,9 x 243,2 cm) Ensure your wall frame is square by installing one panel and squaring frame. Install panels with rough side up (painted grid lines). BEGIN Install (1) 48"...
  • Page 14 FLOOR PANELS PARTS REQUIRED: x110 2" (5 cm) 5/8 x 48 x 96" (1,6 x 122 x 244 cm) Install next 48" x 96" panel fl ush to installed panel. Install middle panel fi rst. Secure with 2" nails 6" spaced apart on edges and 12" apart inside panels. Install last 48"...
  • Page 15 IMPORTANT! Ensure that the floor frame is level after installing floor panels. Re-level if necessary. • Use the floor as a stable work surface for wall construction. • Organize your assembly procedure during the build process HINT: to avoid over-handling of the walls. Back Wall Side Wall Side Wall...
  • Page 16 SIDE WALL FRAMES PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 48" (5 x 7,6 x 122 cm) 2 x 3 x 78-1/2" (5 x 7,6 x 199 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) Build two identical side wall frames.
  • Page 17 LEFT SIDE WALL PANELS PARTS REQUIRED: 2" (5 cm) 48 x 84" 122 x 213 cm) 3/4" GAUGE BLOCK 2 x 3 x 13" (5 x 7,6 x 33 cm) as SPACER Install all panels with the primed side facing up. Ensure your wall frame is square by installing one panel and squaring frame.
  • Page 18 LEFT SIDE WALL PANELS PARTS REQUIRED: 2" (5 cm) 3/4" GAUGE 48 x 84" BLOCK 122 x 213 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) as SPACER Install the middle 48"x 84" panel fl ush to installed panel.
  • Page 19 RIGHT SIDE WALL PANELS PARTS REQUIRED: 2" (5 cm) 48 x 84" 122 x 213 cm) 3/4" GAUGE BLOCK SPACER 2 x 3 x 13" (5 x 7,6 x 33 cm) as Square your right wall frame as shown on page 16. BEGIN Install (1) 48 x 84"...
  • Page 20 RIGHT SIDE WALL PANELS PARTS REQUIRED: 2" (5 cm) 48 x 84" 3/4" GAUGE 122 x 213 cm) BLOCK 2 x 3 x 13" (5 x 7,6 x 33 cm) as SPACER Install the middle 48"x 84" panel fl ush to installed panel.
  • Page 21 BACK WALL PARTS REQUIRED: 48 x 96" (122 x 244 cm) 1-1/2" (3,8 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) 2 x 3 x 35-1/4" (5 x 7,6 x 89,5 cm) 2 x 3 x 91" (5 x 7,6 x 231 cm) Install all panels with the primed side facing up.
  • Page 22 BACK WALL PARTS REQUIRED: TEMPORARY SUPPORT 5/8 x 3 x 9" (1,6 x 7,6 x 23 cm) 1-1/2" (3,8 cm) 2 x 3 x 35-1/4" (5 x 7,6 x 89,5 cm) 2 x 3 x 31" (5 x 7,6 x 79 cm) 2 x 3 x 91"...
  • Page 23 BACK WALL PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) 48 x 96" (122 x 244 cm) Install right panel onto frame. Secure with 1-1/2" nails spaced 6" apart on edges and 12" apart inside panel. Flush 6"...
  • Page 24 BACK WALL PARTS REQUIRED: 1-1/2" (3,8 cm) 3/8 x 12 x 24" (1 x 30,5 x 61 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) 3/8 x 12 x 24" (1 x 30,5 x 61 cm) Install left and right 12"...
  • Page 25 FRONT WALL FRAME PARTS REQUIRED: 2" (5 cm) 2 x 4 x 64" (5 x 10 x 162,5 cm) 2 x 3 x 9" (5 x 7,6 x 23 cm) 1 x 3 x 12" (2,5 x 7,6 x 30,5 cm) BEGIN Arrange NA and UX on flat on floor as shown.
  • Page 26 FRONT WALL FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 82-1/2" (5 x 7,6 x 210 cm) Temporary 2 x 3 x 84" (5 x 7,6 x 213 cm) Support Pre-Assembled 7/16 x 25-3/4 x 48" (1,1 x 65,4 x 122 cm) BEGIN Arrange parts on edge on fl oor, as shown.
  • Page 27 FRONT WALL FRAME PARTS REQUIRED: Temporary 3" (7,6 cm) Support 2 x 3 x 23" (5 x 7,6 x 58 cm) 3" (7,6 cm) 7/16 x 25-3/4 x 48" (1,1 x 65,4 x 122 cm) Secure NA with (2) 3" nails (Fig. A). Use (2) roof panels as temporary supports above frame.
  • Page 28 FRONT WALL PANELS PARTS REQUIRED: Temporary 1-1/2" (3,8 cm) Support 7/16 x 25-3/4 x 48" (1,1 x 65,4 x 122 cm) Install all panels with the primed side facing up. Handle panels with care to avoid breakage. BEGIN Install left panel on front wall frame, as shown. 1-1/4"...
  • Page 29 FRONT WALL PANELS PARTS REQUIRED: 1-1/2" (3,8 cm) x30 12 x 24" (30,5 x 61 cm) 12 x 24" (30,5 x 61 cm) Install right wall panel on front wall frame. Secure with 1-1/2" nails spaced 6" apart. Maintain 64" (162,5 cm) measurement between studs and square frame. Install right and left 12"...

  • Page 30: Back Wall Installation

    BACK WALL INSTALLATION PARTS REQUIRED (TEMPORARY): 3" (7,6 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) 3" (7,6 cm) 2" (5 cm) BEGIN Center back wall assembly on the fl oor. Install PT as a temporary brace. Secure with (2) 3" screws. 3"...
  • Page 31 SIDE WALLS INSTALLATION 3" (7,6 cm) 3" (7,6 cm) 2" (5 cm) BEGIN Center side wall on fl oor front to back. Secure the lower back wall corner to the side wall frame with (1) 2" nail (Fig. A). 2" (5 cm) Nail DOOR Fig.
  • Page 32 FRONT WALL INSTALLATION 3" (7,6 cm) 3" (7,6 cm) 2" (5 cm) BEGIN Center front wall on fl oor side-to-side. Secure the wall panels to the fl oor with 2" nails spaced 6" apart. Angle nails into fl oor frame (Fig. A). Secure the lower front wall corner to the side wall stud with (1) 2"...
  • Page 33 LOFT SUPPORTS PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 96" (5 x 10 x 244 cm) BEGIN Measure from the top of back wall loft support to the fl oor. Measure and mark the same measurement on the back side of side wall studs at each side, as shown. Install (2) loft supports TP level against back side of studs at marked locations.
  • Page 34 SHELF FRAME PARTS REQUIRED: 3" (7,6 cm) 3" (7,6 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) BEGIN Install PT flush to top of loft support (Fig A). and level against studs and with top edge of loft support. Secure PT with (2) 3"...
  • Page 35 SHELF FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) Assistance may be required to install PT. Install 2nd PT fl ush against loft support (Fig. A). Secure with (2) 3" screws. Ensure that PT is level.
  • Page 36 WORKBENCH PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) BEGIN Measure the top of back wall workbench support from floor. Transfer that measurement and mark the same measurement on the back side of side wall studs at each side. Install PT to back side of studs at marks.
  • Page 37 WORKBENCH PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 28-5/8" (5 x 7,6 x 73 cm) 2" (5 cm) 7/16 x 23-7/8 x 91" (1,1 x 61 x 231 cm) Insert workbench panel into the gap in back wall upright. Secure with 2"...
  • Page 38 LOFT PANELS PARTS REQUIRED: 2" (5 cm) 7/16 x 44-1/4 x 48" (1,1 x 112 x 122 cm) BEGIN Install loft panels onto the (3) loft supports, centered from side-to-side and fl ush with the back wall panel. Fit panels into gap. IMPORTANT! Secure loft panels with only (4) 2"...
  • Page 39 SHELF PANELS PARTS REQUIRED: 2" (5 cm) 7/16 x 11-7/8 x 96" (1,1 x 30 x 244 cm) BEGIN Place shelf panel onto the left wall shelf frame, fl ush to shelf support and loft panel. Secure with 2" nails, as shown. Repeat on opposite side.
  • Page 40 RAFTERS PARTS REQUIRED: x120 2" (5 cm) 6" x 24" (15 x 61 cm) 2 x 4 x 55-3/16" (5 x 10 x 140 cm) Build 5 rafter assemblies. BEGIN Place (2) rafter-halves in the corner of back and side walls. Flush rafter at peak.
  • Page 41 RAFTERS PARTS REQUIRED: 3" (7,6 cm) 2" (5 cm) x 10 Preassembled BEGIN Install rafters directly over studs and fl ush to wall panel. Check that you have the measurements shown. Secure ends of rafters with one 2" screw Into rafter ends (Fig. A). Secure rafters to top plates with (2) 3"...
  • Page 42 GABLE TRIM PARTS REQUIRED: 2 x 4 x 59-1/8" (5 x 10 x 150,2 cm) Temporary Straight Edge 2 x 3 x 69" (5 x 7,6 x 175,3 cm) ¸ BEGIN Arrange HTA on floor as shown. Using OO as a straight edge, mark a line 1-1/4" (3,2 cm) down length of HTA (Fig. A). Repeat the process to mark all trim.
  • Page 43 GABLE TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 4 x 59-1/8" (5 x 10 x 150 cm) Install (1) HTA 1-1/4" up from front panel edge and center with panel seam (Fig. A). Secure the trim with (7) 1-1/4" screws from inside. Secure with (2) screws at seam (Fig.
  • Page 44 GABLE TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 41-7/8" (5 x 7,6 x 106 cm) BEGIN Install AWR level over seam of front wall panels with 1-1/4" screws from inside, as shown. Repeat to install AWR on back gable. FINISH Your horizontal gable trim is now installed.
  • Page 45 ROOF PANELS PARTS REQUIRED: 2" (5 cm) 7/16 x 11-1/4 x 96" (1,1 x 28,6 x 244 cm) 3/4" GAUGE BLOCK 7/16 x 48 x 96" (1,1 x 122 x 244 cm) 7/16 x 11-1/4 x 25-3/4" 7/16 x 25-3/4 x 48" (1,1 x 29 x 65,4 cm) (1,1 x 65,4 x 122 cm) Install roof panels with the rough side facing up (painted grid lines).
  • Page 46 ROOF PANELS PARTS REQUIRED: x174 2" (5 cm) 3/4" GAUGE BLOCK Secure the lower edge of the 48"x 96" panel and secure with (1) 2" nail into each rafter (Fig. E). Move to the top of the 48"x 96" panel and maintain the spacing between the center of the rafters.
  • Page 47 COLLAR TIES PARTS REQUIRED: 2" (5 cm) 1 x 4 x 60" (2,5 x 10 x 152 cm) BEGIN Install and level (3) collar ties JF on fi rst (3) rafters past door opening. Do not install collar ties over loft. Secure with 2"...
  • Page 48 LOFT PANELS (continued...) PARTS REQUIRED: 2" (5 cm) BEGIN Continue securing loft panels with 2" nails evenly spaced, as shown. Attention: Load not to exceed 250 lbs evenly distributed across loft. FINISH Your loft panels are now installed.
  • Page 49 SOFFIT TRIM PARTS REQUIRED: 3" (7,6 cm) 1-1/4" (3,2 cm) 2 x 4 x 48-3/4" (5 x 10 x 124 cm) 2 x 4 x 96" (5 x 10 x 244 cm) BEGIN Install soffi t trim fl ush to side wall panels and under roof panels (Fig. A). Secure with 1-1/4"...
  • Page 50 CORNER TRIM PARTS REQUIRED: 2" (5 cm) 3/8 x 1-3/4 x 82-1/4" (0,9 x 4,4 x 209 cm) 3/8 x 1-3/4 x 80-7/8" (0,9 x 4,4 x 205,4 cm) 3/8 x 1-3/4 x 80-7/8" (0,9 x 4,4 x 205,4 cm) BEGIN Install 82-1/4"...
  • Page 51 DOORS PARTS REQUIRED: 3" (7,6 cm) 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 7,6 x 175,3 cm) 1-1/4" (3,2 cm) TEMPORARY SUPPORT HINT: Look for 3/8" SPACER attached to doors. Left Door Right Door BEGIN...
  • Page 52 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 7,6 x 175,3 cm) TEMPORARY SUPPORT Install temporary support OO fl ush under wall panels. Secure with (2) 3" screws (Fig. A). Flush against wall panels. Fig. A Center doors on panel seam, as shown (Fig.
  • Page 53 DOOR PARTS REQUIRED: 3/4" (1,9 cm) BEGIN Secure door trim with 3/4" screws from behind, as shown. Door Panel Install 3/4" screws from inside. Fig. A Door Trim CENTER CENTER No screws in CENTER this area of RIGHT DOOR. Door hardware will be installed here later.
  • Page 54 WINDOWS PARTS REQUIRED: 1-1/4" (3,2 cm) 10-1/2 x 32-1/2" (27 x 82,5 cm) BEGIN Install windows in front panel opening. Ensure window are level. Secure with (2) screws at top of windows. Caulk behind frame near edge before installing. Do not fully tighten screws. Adjust gap between windows to approximately 1/2". Apply high quality exterior-grade caulk to seal window.
  • Page 55 WINDOWS TRIM PARTS REQUIRED: 2" (5 cm) 5/8 x 2-1/2 x 72" (1,6 x 6,3 x 183 cm) Center ZJ over doors. Secure with (14) 2" finishing nails into framing. Do not nail into window flange. HINT: Mark edge of window frame on ZJ. Inside Framing Do not nail into window flange.
  • Page 56 WINDOW TRIM PARTS REQUIRED: 2" (5 cm) 5/8 x 2-1/2 x 9" (1,6 x6,3 x 23 cm) Install (3) EY with 2" nails into framing as shown. NOTE: Use marks on ZJ for locating window flange. Do not nail into window flange. Remove temporary screws after installing trim.
  • Page 57 WINDOWS PARTS REQUIRED: 2" (5 cm) 3/4" (1,9 cm) 5/8 x 3 x 72" (1,6 x 7,6 x 183 cm) Install ZJ centered over windows. Secure with (7) 2" fi nishing nails into framing. Do not nail into window fl ange. OUTSIDE OF SHED Flush Flush...
  • Page 58 DOOR WEATHERSTRIP PARTS REQUIRED: 2" (5 cm) 2 x 3 x 69" (5 x 7,6 x 175 cm) BEGIN With left door closed, center (1) weatherstrip OO vertically on the left door in the door opening (Fig. A). OO will offset the left door 1" past the door trim by 1" (Fig. B). Secure OO with (7) 3"...

  • Page 59: Door Hardware

    DOOR HARDWARE PARTS REQUIRED: 1" (2,5 cm) 5/16" (0,8 cm) Drill Bit BEGIN Place spring bolt onto OO in open position with bolt end 3/8" down from frame. Bolt is open when loop is contacting base (Fig A). Mark and pre-drill holes for screws. Install bolt with screws supplied and drill 5/16"...
  • Page 60 LEFT WALL WINDOW FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 22-1/2" (5 x 7,6 x 56 cm) 2" (5 cm) BEGIN Install window frame parts LV fl ush along 1-1/2" (3,8 cm) window opening cutout. Secure parts LV with (2) 3" nails at each Flush connection.
  • Page 61 WINDOW AND WINDOW TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 11-3/8" 11-3/8" BEGIN (28,9 cm) (28,9 cm) Mark center of window frame as shown. Measure over 11-3/8" and mark. CENTER Seal window with high-quality exterior-grade caulk before installing (Fig. A). Secure window with (4) 1-1/4" screws, as shown. Ensure window is level.
  • Page 62 WINDOW TRIM PARTS REQUIRED: 2" (5 cm) 19/32 x 2-1/2 x 28-1/8" (1,5 x 6,3 x 71,4 cm) 19/32 x 2-1/2 x 30-1/8" (1,5 x 6,3 x 76,5 cm) CENTER OF Place the inside edge of AZ 11-3/8" apart WINDOW Fig.
  • Page 63 DOOR HARDWARE PARTS REQUIRED: 1-1/4" (3,2 cm) 1" (2,5 cm) 1/2" (13 mm) Drill Bit 1/4" (6 mm) Drill Bit BEGIN Measure and mark location of hole on outside of right door as shown (Fig. A). Pre-drill hole with 1/4" drill. Re-drill hole with 1/2"...
  • Page 64 VENTS PARTS REQUIRED: 1/2" (1,3 cm) 8" x 16" (20,3 x 35,6 cm) ¸ BEGIN Install (1) vent near the fl oor and (1) vent near the eave. Install vents on opposing walls. Mark locations for vents in side walls. Caulk behind vent fl ange.
  • Page 65 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 66 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip 1" (1,3 cm) (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS.
  • Page 67 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 68 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 69 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Cut shingles into three pieces. Hint: use cut-off pieces first. 2" 2" (5 cm) (5 cm 2" 2" 2"...
  • Page 70 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10 cm) Trim cap off fl ush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 71 16566 8' x 12' Order Form CATEGORY PART DESCRIPTION PART SIZE PART ITEM # BUILDING QTY. PART ID Door side studs 2 X 3 X 82 1/2" DOOR STUD Q 82080000000 Over transom header LUM SPF 2X3X84 #2&BTR 12105 Top & Btm Plates "A" \ Horz. Supp. LUM SPF 2X3X96 #2&BTR 12115 Top / Bottom Plates "B"...
  • Page 72 LIMITED CONDITIONAL WARRANTY* Backyard Storage Solutions, LLC warrants the following: Every product is warranted from defects in workmanship and manufacturing for 1 year. All accessories, hardware and metal components are warranted for 2 years. All Oriented Strand Board (OSB) is warranted for 2 years Siding and Trim is warranted for 10 years.
