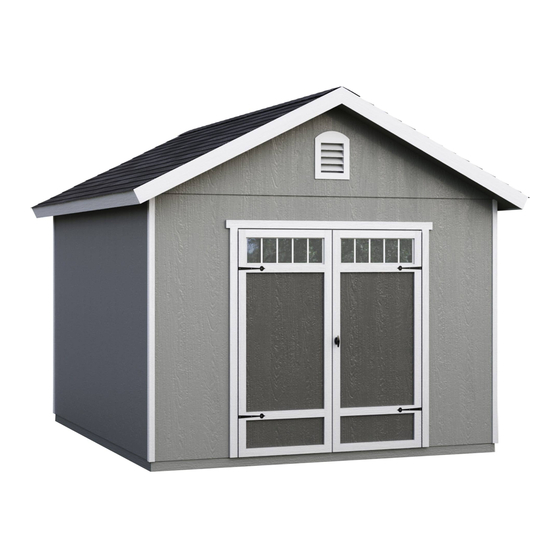

Backyard Products YardLine SOMERFIELD GABLE Manual
  1. Manuals
  2. Brands
  3. Backyard Products Manuals
  4. Outdoor Storage
  5. YardLine SOMERFIELD GABLE
  6. Manual

Backyard Products YardLine SOMERFIELD GABLE Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

16575
STOP!
STOP!
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-800-844-9273
or email:
customerservice@backyardproductsllc.com
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YardLine SOMERFIELD GABLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Products YardLine SOMERFIELD GABLE

Summary of Contents for Backyard Products YardLine SOMERFIELD GABLE

  • Page 1 16575 STOP! STOP! Call Us First! DO NOT RETURN TO STORE. For immediate help with assembly or product information call our toll free number: 1-800-844-9273 or email: customerservice@backyardproductsllc.com Our staff is ready to provide assistance April through October M-F 8:00 AM to 4:30 PM EST Saturday 8:30 AM to 4:30 PM EST November through March M - F 8:00 AM to 5:00 PM EST...
  • Page 2 (This page intentionally left blank.)

  • Page 3: Before You Begin

    16575 02/06/2015 A Backyard Products Company SOMERFIELD GABLE 8' x 12' (244 x 366 cm) ACTUAL FLOOR SIZE IS 96 x 144" (243,8 x 365,8 cm) KEEP THIS MANUAL FOR FUTURE REFERENCE OPTIONAL: DOOR LOCATED ON EAVE WALL (toward right) OPTIONAL: DOOR LOCATED ON EAVE WALL (toward left) IMPO RTA N T! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
  • Page 4 TOOLS Required Optional ❑ Phillips ❑ ❑ Tool Belt/ Utility Knife Screwdriver Nail Pouch ❑ Shingle Blades ❑ Drill / Driver ❑ Caulk Gun ❑ 1/8" Drill Bit ❑ Tin Snips ❑ 1/4" Drill Bit (for drip edge) ❑ 5/16" Drill Bit ❑...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS • This shed does not include any floor or leveling materials. • See the FLOOR LEVELING section on page 8 for recommended methods and suggested materials to properly level your floor, as this will vary depending on your specific site. WOOD FLOOR FRAME MATERIAL REQUIRED: Use only wood treated for ground contact and fasteners approved for use with treated wood.

  • Page 6: Parts List

    PARTS IDENTIFICATION AND SIZES Part identification WOOD SIZE CONVERSION CHART Treated lumber is stamped: letters are stamped on some parts. Nominal Board Size Actual Size 2" x 4"....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1" x 4"....3/4" x 3-1/2" (1,9 x 8,9 cm) 2" x 3"....1-1/2" x 2-1/2" (3,8 x 6,3 cm) Check these locations for 1"...
  • Page 7 PARTS LIST continued... 2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm) 1 x 4 x 96" (2,5 x 10,2 x 243,8 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) PANEL PARTS LIST Roof panels are 7/16" (1,1 cm) thick. 7/16 x 11-7/8 x 96" (1,1 x 30,2 x 243,8 cm) 7/16 x 13-7/8 x 32-5/8"...

  • Page 8: Fasteners & Hardware

    FASTENERS & HARDWARE NAIL BOXES 3" (7,6 cm) BOXES BOXES 2" (5,1 cm) FASTENER/HARDWARE BAG 1-1/2" (3,8 cm) x280 2" (5,1 cm) x140 3" (7,6 cm) 2" (5,0 cm) 1-5/8" (4,1 cm) 3/4" (1,9 cm) 1" (2,5 cm) VENT/ DOOR HARDWARE/ WINDOW 3-Point Door Locking Mechanism Handle (locking) with Screws...
  • Page 9 FLOOR LEVELING OPTIONS There are multiple ways to level your floor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS • 3" Screws angled into 4x4. • (2) at each point frame •...
  • Page 10 CONCRETE FOUNDATION Your kit contains all materials to construct a wooden floor. If you choose to install your kit on a concrete slab refer to the diagram below. Treated Sill Plate Caulk between sill plate and concrete. 3-1/2" (8,9 cm) 4" (10,2 cm) Building Size Actual Size 8'x 12' (243,8 x 365,8 cm) 96" x 144" (243,8 x 365,8 cm)

  • Page 11: Parts Required

    FLOOR FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm) Look for TREATED 2 x 4 x 144" (5,1 x 10,2 x 265,8 cm) Stamp BEGIN Orient parts as shown on flat surface. Measure and mark. HINT: Use two 3"...
  • Page 12 LEVEL AND SQUARE FLOOR FRAME Before attaching floor decking, it is important to level and square the floor frame. A level and square floor frame is required to correctly construct your shed. BEGIN See page 7 for the preferred floor leveling method. Use level and check the frame is level before applying floor panels.
  • Page 13 FLOOR PANELS PARTS REQUIRED: 2" (5,1 cm) 5/8 x 48 x 96" (1,6 x 121,9 x 243,8 cm) Ensure your floor frame is square by installing one panel and squaring frame. BEGIN Attach the 48 x 96" panel with the rough side up (painted-grid lines side) with the 48" edge and corner flush to the floor frame (Fig A). Secure panel with two 2" nails in the corners.
  • Page 14 FLOOR PANELS PARTS REQUIRED: x124 2" (5,1 cm) 5/8 x 48 x 96" (1,6 x 121,9 x 243,8 cm) Continue installing panels with rough side up (painted grid lines). Use grid lines on panel for 2" nails 6" apart on edges, and 12" apart inside panels. FINISH You have finished attaching your floor panels.
  • Page 15 IMPORTANT! Check the floor frame is level after installing floor panels. Re-level if needed. • The floor should be used as a stable work surface for wall construction. • Organize your assembly procedure during the build process HINT: to avoid over-handling of the walls. GABLE END EAVE SIDE WALL WALL EAVE SIDE WALL GABLE DOOR WALL (Your door location may vary.)

  • Page 16: Rafter Assembly

    RAFTER ASSEMBLY PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 5-7/8" (5,1 x 10,2 x 14,9 cm) It is very important to assemble your rafters using the following method for an even and flat roof. You will build a rafter jig using the floor and three PVA parts as shown. ¸ BEGIN Secure one PVA flush to the floor deck using two 3" screws. Measure over 96-3/4"...
  • Page 17 RAFTER ASSEMBLY PARTS REQUIRED: x 10 x 70 2" (5,1 cm) 1-5/8" (4,1 cm) OSB OR WOOD GRAIN 6 x 24" (15,2 x 61 cm) 2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm) ¸ BEGIN Place two rafters CNA into the jig as shown. Keep CNA firm against outside PVA's as shown (Fig.A) and push rafters tight to the middle PVA.
  • Page 18 STOP CHOOSE YOUR DOOR LOCATION AT THIS TIME AS YOU WILL ASSEMBLE YOUR DOOR WALL FIRST. GABLE END WALL WITH DOOR: IF YOU CHOOSE THE GABLE END WALL FOR DOOR LOCATION GO TO Next Page TO BEGIN BUILDING YOUR WALLS OPTIONAL: DOOR LOCATED ON EAVE SIDE WALL (toward right) EAVE SIDE WALL WITH DOOR: IF YOU CHOOSE TO LOCATE THE DOOR TOWARD THE RIGHT GO TO Page 20 TO BEGIN BUILDING YOUR WALLS OPTIONAL: DOOR LOCATED ON EAVE SIDE WALL (toward left) EAVE SIDE WALL WITH DOOR: IF YOU CHOOSE TO LOCATE THE DOOR TOWARD THE LEFT GO TO Page 24 TO BEGIN BUILDING YOUR WALLS...

  • Page 19: Front Wall

    FRONT WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 8-1/2" (5,1 x 10,2 x 21,6 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) 2 x 4 x 80" (5 x 10,2 x 203,2 cm) 2 x 4 x 89" (5 x 10,2 x 226,1 cm) BEGIN Orient parts on edge on floor.
  • Page 20 FRONT WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 68-1/2" (5 x 10,2 x 174 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) 2 x 4 x 80" (5 x 10,2 x 203,2 cm) Orient parts on edge. Use two 3" nails at each location. HINT: For easier nailing stand on frame.
  • Page 21 FRONT WALL PARTS REQUIRED: 2" (5,1 cm) 48 x 84" (121,9 x 213,4 cm) x1 LEFT + 1 RIGHT Place left 48" x 84" panel onto wall frame flush to top of SZ with primed side up as shown. Secure panel with two 2" nails 6" (15,2 cm) apart. Repeat step 5 to attach the right 48" x 84"...
  • Page 22 EAVE SIDE WALL WITH DOOR RIGHT PARTS REQUIRED: 2 x 4 x 8-1/2" (5,1 x 10,2 x 21,6 cm) 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) 2 x 4 x 80"...
  • Page 23 EAVE SIDE WALL WITH DOOR RIGHT PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 68-1/2" (5 x 10,2 x 174 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) HINT: For easier nailing stand on frame. Orient parts on edge on floor as shown. Use two 3" nails as shown. Two nails at each location.
  • Page 24 EAVE SIDE WALL WITH DOOR RIGHT PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 84" (121,9 x 213,4 cm) Ensure your wall frame is square by installing one panel and squaring frame. Place 48 x 84" panel onto wall frame flush to top of frame with primed side up as shown. Use the gauge block to mark the 3/4" measurement on the wall stud. Secure panel with two 2" nails in the corners (Fig. A).
  • Page 25 EAVE SIDE WALL WITH DOOR RIGHT PARTS REQUIRED: 2" (5,1 cm) 48 x 84" 48 x 84" (121,9 x 213,4 cm) (121,9 x 213,4 cm) x1 LEFT 1 RIGHT For squareness maintain flush and 3/4" measurement along panel edges. Place center 48" x 84" panel on frame as shown with primed side facing up. Flush Nail using 2"...
  • Page 26 EAVE SIDE WALL WITH DOOR LEFT PARTS REQUIRED: 2 x 4 x 8-1/2" (5,1 x 10,2 x 21,6 cm) 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) 2 x 4 x 80"...
  • Page 27 EAVE SIDE WALL WITH DOOR LEFT PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 68-1/2" (5 x 10,2 x 174 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) HINT: For easier nailing stand on frame. Orient parts on edge on floor as shown. Use two 3" nails as shown. 3" (7,6 cm) Nails Two nails at...
  • Page 28 EAVE SIDE WALL WITH DOOR LEFT PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 84" (121,9 x 213,4 cm) Ensure your wall frame is square by installing one panel and squaring frame. Place 48 x 84" panel onto wall frame flush to top of frame with primed side up as shown. Use the gauge block to mark the 3/4" measurement on the wall stud. Secure panel with two 2" nails in the corners (Fig. A).
  • Page 29 EAVE SIDE WALL WITH DOOR LEFT PARTS REQUIRED: 2" (5,1 cm) 48 x 84" 48 x 84" (121,9 x 213,4 cm) (121,9 x 213,4 cm) x1 LEFT 1 RIGHT For squareness maintain flush and 3/4" measurement along panel edges. Place center 48" x 84" panel on frame as shown with primed side facing up. Flush Nail using 2"...
  • Page 30 EAVE SIDE WALL FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 2 x 4 x 80" (5,1 x 10,2 x 203,2 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) IF YOUR DOOR IS ON THE GABLE SIDE YOU WILL BUILD IDENTICAL WALLS.
  • Page 31 EAVE SIDE WALL PANELS PARTS REQUIRED: 2" (5,1 cm) 48 x 84" 3/4" GAUGE (121,9 x 213,4 cm) BLOCK Ensure your wall frame is square by installing one panel and squaring frame. Place 48 x 84" panel onto wall frame flush to top of frame with primed side up as shown. Use the gauge block to mark the 3/4" measurement on the wall stud. Secure panel with two 2"...
  • Page 32 EAVE SIDE WALL PANELS PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 84" (121,9 x 213,4 cm) For squareness maintain flush and 3/4" measurement along panel edges. Place center 48" x 84" panel on frame as shown with primed side facing up. Flush 3/4" (1,9 cm) Nail using 2" nails 6" apart on edges and 12"...
  • Page 33 GABLE END WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 80" (5 x 10,2 x 203,2 cm) 2 x 4 x 89" (5 x 10,2 x 226,1 cm) IF YOU CHOSE THE GABLE END WALL FOR DOOR LOCATION ASSEMBLE ONLY GABLE END WALL. HINT: IF YOU CHOSE THE EAVE SIDE WALL FOR DOOR LOCATION For easier nailing ASSEMBLE IDENTICAL GABLE END WALLS. stand on frame. BEGIN Orient parts on edge on floor.
  • Page 34 GABLE END WALL PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 84" (121,9 x 213,4 cm) Place panel with primed side up onto frame flush at top and with a 3/4" gap along right side. Maintain 3/4" measurement along edge. Secure panel to frame using 2" (5,1 cm) nails 6" (15,2 cm) apart along edges. Flush BEGIN HERE 3/4"...
  • Page 35 GABLE END WALL PARTS REQUIRED: 2" (5,1 cm) 48 x 84" (121,9 x 213,4 cm) Place right panel flush to left panel with primed side up. Secure using 2" (5,1 cm) nails 6" (15,2 cm) apart on edges and 12" (30,5 cm) apart on inside of panel. Flush 3-1/2"...
  • Page 36 RIGHT EAVE WALL INSTALLATION PARTS REQUIRED (TEMPORARY): 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) 3" (7,6 cm) 2" (5,1 cm) BEGIN Stand right sidewall on floor. Center right sidewall assembly on the 144" (365,8 cm) floor dimension. Use OO as a temporary brace.
  • Page 37 GABLE END WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 1-1/2" (3,8 cm) 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 2" (3,8 cm) BEGIN Flush Screw Flush Stand wall on floor. STEP FIRST Fig. A SCREW It is important to secure the gable end wall 2"...
  • Page 38 LEFT EAVE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) 2" (5,1 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) BEGIN Stand eave wall on floor. Center EAVE WALL assembly on the 144" (365,8 cm) Panel Flush floor dimension.
  • Page 39 LEFT EAVE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) Nail lower edge of panels to floor frame using 2" nails 6" apart. Angle nail to hit floor frame (Fig. D). Secure eave wall bottom plates to floor using 3" nails (Fig. D). 3" (7,6 cm) Nails 6"...
  • Page 40 GABLE DOOR WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) BEGIN Remove Temporary Supports and stand gable door wall on floor. It is important to secure the front wall in the following order: Set second gable wall on floor and secure using one 2"...
  • Page 41 GABLE DOOR WALL INSTALLATION PARTS REQUIRED: Nail lower edge of panels to floor using 2" nails 6" apart. Angle nail to hit floor frame (Fig. C). 2" (5,1 cm) Nails 6" (15,2 cm) Angle nail to hit floor frame. 6" (15,2 cm) Fig. C 3" (7,6 cm) Screw Fig. F Nail gable wall panels to eave wall studs Fig. E...
  • Page 42 GABLE PANELS PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 3 x 61-3/4" (5,1 x 7,6 x 156,8 cm) TEMPORARY SUPPORT 2 x 4 x 6-1/2" (5,1 x 10,2 x 18,4 cm) 2 x 4 x 4" (5,1 x 10,2 x 10,2 cm) BEGIN Orient parts on flat as shown.
  • Page 43 GABLE LADDERS PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm) 2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm) BEGIN Orient parts as shown (Fig. A). You will build FOUR assemblies (Fig. B). Arrange, measure and mark locations of four CLA as shown place CMA on top.
  • Page 44 GABLE ASSEMBLIES PARTS REQUIRED: 3" (7,6 cm) 1-5/8" (4,1 cm) 2 x 4 x 5-7/8" x2 Gable Assemblies x2 Ladder Assemblies (5,1 x 10,2 x 14,9 cm) Orient gable and ladder assemblies as shown (Fig. E). You will build TWO complete assemblies. Ensure gable panels are flush at peak of ladder and flush along top edge of 1-5/8"...
  • Page 45 GABLE UNITS PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) x2 Gable Units BEGIN Attach gable unit on front wall top plate. It is important to secure the gable unit in the following order: Measure 1-1/2" down from top plate and mark at each side as shown. Set gable unit on top plate. Hold secure with one 2"...
  • Page 46 TRUSSES PARTS REQUIRED: 3" (7,6 cm) Preassembled Truss ¸ BEGIN Locate first truss on top plate, aligned over studs at each side and tight to side wall (Fig. A). Rest notch on top plate. Secure rafter to top plate with two 3" screws above notch and one 3" screw from under top plate (Fig. B, C). Place remaining rafters on top plate, aligned over studs as shown and secure with 3"...
  • Page 47 ROOF PANELS PARTS REQUIRED: x234 2" (5,1 cm) 7/16 x 13-7/8 x 32-5/8" (1,1 x 35,2 x 82,9 cm) 3/4" GAUGE BLOCK 7/16 x 13-7/8 x 96" 7/16 x 48 x 80" (1,1 x 35,2 x 243,8 cm) (1,1 x 121,9 x 203,2 cm) Roof panels may cause serious injury until securely fastened.
  • Page 48 ROOF PANELS PARTS REQUIRED: Attach another 13-7/8" x 32-5/8" roof panel, rough side up, flush with the installed 13-7/8 x 96" panel (Fig. C) and flush with the rafter ends (Fig. B). Secure panel with two 2" (5,1 cm) nails in the corners. Two Nails Flush Flush Fig. C 7/16 x 13-7/8 x 32-5/8"...
  • Page 49 ROOF PANELS PARTS REQUIRED: Place a 48 x 80" upper roof panel with the rough side up and flush to lower panels. Ensure 5/8" gap at gable end overhang (Fig.D) and 3/4" measurement on the rafter (Fig. A). 3/4" (1,9 cm) Secure the lower edge of roof panel using two 2"...
  • Page 50 ROOF PANELS PARTS REQUIRED: Nail the roof panels using 2" nails 6" apart on edges and 12" apart inside panel. 6" (15,2 cm) 12" (30,5 cm) Repeat process to attach roof panels on the opposite side. FINISH You have finished installing your roof panels.
  • Page 51 GABLE END SOFFITS PARTS REQUIRED: 2" (5,1 cm) 3/8 x 7-7/8 x 59-15/16" (1 x 20 x 152,2 cm) Ensure soffit boards are flush at seam (Fig. B) and flush at peak (Fig. D). BEGIN Position right 59-15/16" overhang board Primed Side Down flush to front wall (Fig A) and gable panel seam (Fig B). Secure using twelve 2" finish nails. Fig. B Fig. A 8"...
  • Page 52 EAVE SIDE SOFFITS PARTS REQUIRED: 2" (5,1 cm) 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,8 cm) Ensure soffit boards are flush at rafter ends (Fig. B) and flush at seams. BEGIN Position 72-3/4" soffit boards primed side down flush to gable soffits and rafter ends (Fig A). Toenail at center seam (Fig. C). Secure using eight 2" finish nails, two in each rafter. Fig. A Fig. B Flush...
  • Page 53 GABLE FASCIA PARTS REQUIRED: 2" (5,1 cm) Painted Red 3/8 x 4-3/4 x 62-7/16" (1 x 12,1 x 158,6 cm) Painted Green 3/8 x 4-3/4 x 62-7/16" (1 x 12,1 x 158,6 cm) BEGIN Position fascia with primed side out and flush to peak and roof panels as shown (Fig. A, Fig B). Secure using 2"...
  • Page 54 EAVE SIDE FASCIA PARTS REQUIRED: 2" (5,1 cm) 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm) BEGIN Position two 4-3/4" x 80-5/8" fascia boards with primed side out, flush with roof panels and gable fascia as shown (Fig. A). Secure using 2" finish nails into rafter ends. Repeat Step 1 on opposite eave.
  • Page 55 DOORS PARTS REQUIRED: 3/4" (1,9 cm) 15235 10-1/2 x 32-1/2" (26,7 x 82,6 cm) Left Door Right Door ¸ BEGIN Lay doors face down on a clean flat surface. Apply high quality exterior-grade caulk behind frame near edge before installing to seal window. From back side of door, position window in opening and ensure square with door edge.
  • Page 56 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) 1-5/8" (4,1 cm) 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Left Door Assembled Right Door Assembled Orient parts as shown on flat surface. 3/8" offset is to top. Look for red (right) and green (left) on hinge board.
  • Page 57 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) Attach temporary support OO as a ledger board flush under wall panels for doors to rest on, using three 3" screws (Fig. A) . Carefully cut bottom wall frame 2 x 4 flush with door frame using a saw (Fig. F).
  • Page 58 DOOR PARTS REQUIRED: 3/4" (1,9 cm) x11 2" (5,1 cm) Bagged seperately / special coating 19/32 x 3 x 26-5/8" (1,5 x 7,6 x 67,6 cm) 64" Metal Threshold 3/4" (1,9 cm) 5/8 x 3 x 72" (1,6 x 7,6 x 183 cm) BEGIN Secure hinge boards from inside using 3/4"...
  • Page 59 DOOR STIFFENERS PARTS REQUIRED: 2" (5,1 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) BEGIN Center OO vertically on the left door in the door opening flush with the edge of door (Fig. A). Secure using (7) 3" screws through outside trim into OO (Fig. B) Repeat Steps 1-2 to install OO on right door.

  • Page 60: Door Hardware

    DOOR HARDWARE PARTS REQUIRED: 1/2" (13 mm) Drill Bit 1/4" (6 mm) Drill Bit 3/4" (1,9 cm) BEGIN Measure and mark location of hole on outside of right door as shown (Fig. A) . Pre-drill hole with 1/4" drill. Re-drill hole with 1/2" drill (Fig. B) . Keep drilled hole square to trim to avoid breaking edge of 1-1/2"...

  • Page 61: Right Door

    DOOR HARDWARE PARTS REQUIRED: 3-Point Door Locking Mechanism Handle (locking) with Screws 1-1/4” x2 3/4” Tech Screw with drill point 1-1/4” x8 1/2" (13 mm) Drill Bit 1-1/4” x2 1/4" (6 mm) Drill Bit Secure backplate with 1" screws and handle with 1-1/4" screws as shown. RIGHT DOOR Backplate Screw 1/2” DRILL THROUGH 1-1/4" Wood Screw 1-1/4" Pre drill for screws. Pan Head Screw 1-3/4" (4,4 cm) 1/2"...
  • Page 62 DOOR HARDWARE See following pages for mounting locations of brackets and plates. Washer UPPER BRACKET 3/4" Tech (with offset) Screw Orient bracket as shown. Washer 3/4" Tech Screw Washer 1-1/4" Pan Head Screw Washer LOWER BRACKET (without offset) Orient bracket as shown.
  • Page 63 DOOR HARDWARE TOP of Door 2-1/4" IMPORTANT! This rod to edge of door RIGHT DOOR LEFT DOOR Make sure rods are straight up and down when locating brackets. 2-1/4" BOTTOM of Door...
  • Page 64 DOOR HARDWARE Drill with 3/8" bit FRAMING PLATE to 2" depth. Align Plates with vertical rod points. Drill-thru with 3/8" drill bit to 2" depth into header and floor. VERTICAL RODS PLATE FLOOR...
  • Page 65 CORNER TRIM PARTS REQUIRED: 2" (5,1 cm) 3/8 x 1-3/4 x 82-1/2" (1 x 4,4 x 209,6 cm) 3/8 x 1-3/4 x 81-7/8" (1 x 4,4 x 208 cm) ¸ BEGIN Attach one 81-7/8" trim board flush under soffit panel and against eave wall (Fig. A, B) using one 2"...
  • Page 66 SHELVING PARTS REQUIRED: 2" (5,1 cm) 3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm) 2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm) NOTE: Build the shelf and loft on the gable wall farthest from the door location. BEGIN Secure AE to bracket panels using three 2" (5,1 cm) nails. Assemble 5 shelf supports as shown;...
  • Page 67 SHELVING PARTS REQUIRED: 2" (5,1 cm) 7/16 x 11-7/8 x 96" (1,1 x 30,2 x 243,8 cm) 1 x 4 x 96" (2,5 x 10,2 x 243,8 cm) Install shelf panels centered over shelf supports. Secure with two 2" (5,1 cm) nails at each support. Flush 96"...
  • Page 68 LOFT PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) 2" (5,1 cm) 48" x 44-1/4" (112,4 x 104 cm) BEGIN Locate TP loft joists flush to bottom of top plate and secure with 3" (7,6 cm) nails at wall studs, as shown. Flush 3" (7,6 cm) Nails...
  • Page 69 COLLAR TIE PARTS REQUIRED: 2" (5,1 cm) 1 x 3 x 60" (2,5 x 7,6 x 152,4 cm) BEGIN Position and level collar tie on second rafter from loft. HINT: For best appearance install collar tie on rafter facing away from door opening. Attach with 2"...
  • Page 70 GABLE VENTS PARTS REQUIRED: #8 x 1" (2,5 cm) Pan Head Screws #15021 ¸ BEGIN Locate vent in the gable wall as shown. Secure using 1" (2,5 cm) screws. Repeat Steps 1-2 to install on the other gable wall. #8 x 1" (2,5 cm) Pan Head Screws FINISH You have finished installing your vents.
  • Page 71 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 72 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip (1,3 cm) 1" (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS. BEGIN Install first starter row upside down and color up with a 1" overhang at back and bottom of roof panel. Use (4) nails per shingle. Starter row must be straight and level all the way across with lower edge of roof deck.
  • Page 73 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 74 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 75 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Hint: Use cut-off pieces first. Cut shingles into THREE pieces. 2" 2" (5 cm) (5 cm 2" 2" 2"...
  • Page 76 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10 cm) Trim cap off flush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 77 WARRANTY B a cky a rd S tor a ge S ol u tion s , LLC w a rr a nt s the following: Limited Conditional Every prod u ct i s w a rr a nted from defect s in workm a n s hip a nd m a n u f a ct u ring for one ye a r. Warranty * All h a rdw a re a nd met a l component s a re w a rr a nted for two ye a r s .
