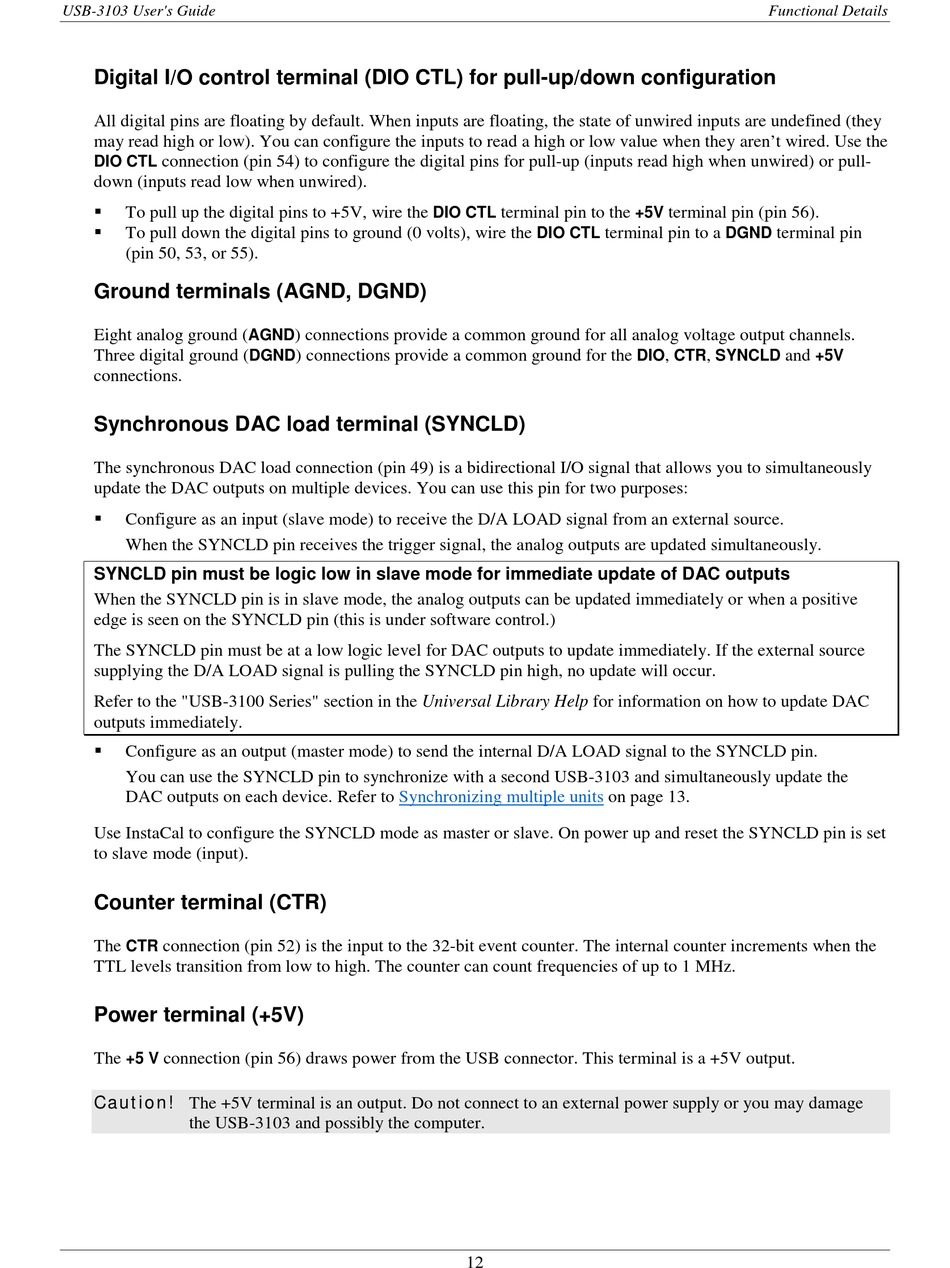

USB-3103 User's Guide

Digital I/O control terminal (DIO CTL) for pull-up/down configuration

All digital pins are floating by default. When inputs are floating, the state of unwired inputs are undefined (they
may read high or low). You can configure the inputs to read a high or low value when they aren't wired. Use the
DIO CTL connection (pin 54) to configure the digital pins for pull-up (inputs read high when unwired) or pull-
down (inputs read low when unwired).

To pull up the digital pins to +5V, wire the

To pull down the digital pins to ground (0 volts), wire the
(pin 50, 53, or 55).

Ground terminals (AGND, DGND)

Eight analog ground (
Three digital ground (
connections.

Synchronous DAC load terminal (SYNCLD)

The synchronous DAC load connection (pin 49) is a bidirectional I/O signal that allows you to simultaneously
update the DAC outputs on multiple devices. You can use this pin for two purposes:

Configure as an input (slave mode) to receive the D/A LOAD signal from an external source.
When the SYNCLD pin receives the trigger signal, the analog outputs are updated simultaneously.
SYNCLD pin must be logic low in slave mode for immediate update of DAC outputs
When the SYNCLD pin is in slave mode, the analog outputs can be updated immediately or when a positive
edge is seen on the SYNCLD pin (this is under software control.)
The SYNCLD pin must be at a low logic level for DAC outputs to update immediately. If the external source
supplying the D/A LOAD signal is pulling the SYNCLD pin high, no update will occur.
Refer to the "USB-3100 Series" section in the Universal Library Help for information on how to update DAC
outputs immediately.

Configure as an output (master mode) to send the internal D/A LOAD signal to the SYNCLD pin.
You can use the SYNCLD pin to synchronize with a second USB-3103 and simultaneously update the
DAC outputs on each device. Refer to
Use InstaCal to configure the SYNCLD mode as master or slave. On power up and reset the SYNCLD pin is set
to slave mode (input).

Counter terminal (CTR)

The connection (pin 52) is the input to the 32-bit event counter. The internal counter increments when the
CTR
TTL levels transition from low to high. The counter can count frequencies of up to 1 MHz.

Power terminal (+5V)

The +5 V connection (pin 56) draws power from the USB connector. This terminal is a +5V output.
Caution! The +5V terminal is an output. Do not connect to an external power supply or you may damage
the USB-3103 and possibly the computer.
AGND ) connections provide a common ground for all analog voltage output channels.
) connections provide a common ground for the
DGND
Synchronizing multiple units
DIO CTL terminal pin to the
DIO CTL terminal pin to a
on page 13.
12
Functional Details
+5V terminal pin (pin 56).
DGND terminal pin
, , and
DIO CTR SYNCLD +5V
