Summary of Contents for DIG LEIT-2
- Page 1 2-Way Radio Controller Operating Instructions English...
-
Page 2: Table Of Contents
4. Using a sensor ………………………………………………………… 19 4.1 Sensor installation ………………………………………………… 19 4.2 Compatible sensors ………………………………………………… 19 5. Troubleshooting ……………………………………………………… 19 5.1 Troubleshooting controller ………………………………………… 19 5.2 Troubleshooting solenoids ………………………………………… 20 5.3 Troubleshooting hydraulic valves …………………………………… 21 5.4 Troubleshooting control valves ……………………………………… 21 5.5 Troubleshooting LEIT-2, LEIT-2ET ………………………………… 22-25 6. Record chart …………………………………………………………… 26 7. Programming Quick Reference Chart …………………………………… 27 7. Warranty ……………………………………………………………… 28... -
Page 3: Introduction
IMPORTANT: Communication between the LEIT RC2 handset and the LEIT-2 controllers are automatically limited to daylight hours when there is sufficient light energy. Longer bright light days will enable the radio to operate automatically over longer parts of the day, including through the night. -
Page 4: Technical Assistance
Technical Assistance Should you encounter any problem(s) with this product or if you do not understand its many features, please refer to this operating manual first. If further assistance is required DIG offers the following customer support: Technical Assistance USA DIG’s Technical Service Team is available to answer questions from 8:00 AM to 5:00 PM (PST), Monday-Friday (except holidays) at 1-800-322-9146. Questions in can be emailed to questions@digcorp.com or faxed to 760-727-0282. Specification documents and manuals are available for download at www.digcorp.com. Customer Assistance Outside the USA Contact your local distributor. -
Page 5: Copyright And Compliance
Copyright and Compliance Copyright 2010 DIG Corporation. All rights reserved. LEIT-2 and LEIT RC2 are each trademarks of DIG Corporation. Patent pending. FCC, CE, IC, Canada and Australia compliance. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter is installed to provide a separation distance of at least 8 inches (20 cm) from all persons (not including hands, wrist, feet and ankles) and must not be co-located or operating in conjunction with any other antenna or transmitter. This device is required to comply with FCC RF exposure requirements for mobile and fixed transmitting devices. This model transceiver generates and uses radio frequency energy. If not installed and used in accordance with the manufacturer’s instructions, it may cause interference to radio and television reception. CONTROLLER FCC ID: UJV-LEIT01 IC: 6694A-LEIT01 HANDSET FCC ID: UJV-LEIT02 IC: 6694A-LEIT02 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, the remote may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • C onnect the equipment into an outlet on a circuit different from that to which the receiver is connected. -
Page 6: Features
• All power is provided by an internal photovoltaic module and microelectronic energy management system fueled by ambient light • Multilingual software in English, Spanish, Italian, French, German and Portuguese • Controller has a 2-way radio with operating range of up to 350 ft (100 meters) line of sight • Radio frequency is in the ISM band 902-928 MHz (868 MHz international & 868 MHz Hong Kong) CE and FCC certified • Default program; if not programmed the controller defaults to 5 minutes per day (if ID has been entered) • Manual run via the RC2 handset • Client ID enables the user to have a unique identity code for the controllers and handset; this is a security feature, which locks out unauthorized users • The LEIT-2 operates up to 2 Unimax S-305DC solenoids installed on most valves using one of DIG’s solenoid valve adapters • Dedicated Rain Sensor input allows for a sensor connection promoting better water efficiency • Electrical protection for up to 50 volts; resistant to damage from lightning and currents from power lines • Non-volatile memory retains program integrity indefinitely (excludes time) • Built from tough, rugged material - resistant to harsh environmental conditions • Environmentally friendly: Certified lead free, uses light as a source of energy • Waterproof, complies with IP68 requirements • Mounting configurations include valve mounting, valve box mounting and... -
Page 7: System

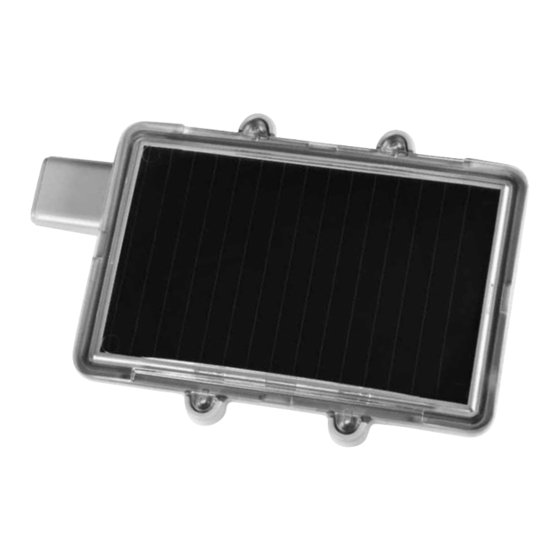

1. System 1.1 Parts Identification 1. P VM Photovoltaic module harnesses the energy of light and generates the electricity to power the unit day and night in any of weather condition 2. Antenna 3. Stations and sensor wires 1.2 System Components To properly install the LEIT-2 controller, the following components are needed: 1. Control unit: LEIT-2 two station ambient light (solar) powered wireless controller. 2. T he controller is installed using one (1) of the mounting configurations available: a. Model 30-830: Valve box mounting dome, color green b. Model 30-835: Valve box mounting dome, color tan i, ii c. Model 30-836: Valve box mounting dome, color purple d. Model 30-831*: Mounting column plastic attachment used with galvanized mounting column; i. MCOL2S: 25” (63 cm) a, b, c galvanized mounting column ii. MCOL2L: 50” (123 cm) galvanized mounting column e. Model 30-832: Valve clip attachment with four (4) screws... - Page 8 200-012 200-021 200-015 model #30-494 model #30-494 model #30-494 model #03-077 model #30-495 model #30-926 model #30-494 E2 Short sleeve A2 Sleeve C2 Long sleeve D2 Sleeve model #30-422 model #30-424 model #30-423 model #30-424 5. L EIT RC2 remote handset (version SW U:1.XX.XX EE 1.XX.XX) to communicate with up to 99 LEIT-2 controllers.
-
Page 9: Tools And Supply Requirements
3. C oncrete: approximately 1, 90 lb (40 kg) bag (if using mounting column). NOTE: Only needed with the mounting column. 4. WATERPROOF WIRE CONNECTORS (not included). 1.4 Quick Installation Setup and Operation Review In order to establish communication for the first time between a LEIT RC2 handset and LEIT-2 controller the following steps must be taken: 1. Charge the LEIT RC2 handset (see LEIT RC2 instruction). 2. Setup the LEIT RC2 handset (see LEIT RC2 instruction). 3. I nstall the LEIT-2 controller following the LEIT–2 installation instructions, see Section 2, then set it out in the light for initial charge a. I n bright light conditions (full sun) charging the controller will take under 30 min. b. In shaded conditions charging the controller could take up to 2 hours. c. C ommunication will only initiate when the controller is fully charged. 4. F ollow the instructions steps of how to establish initial communication between a LEIT-2 controller and LEIT RC2 handset. STEp 1: Splice the two, yellow and yellow with black stripe sensor wires together using waterproof connectors. This splice will distinguish... -
Page 10: Installation
S TEp 4: After setting up the controller, program the controller (See RC2 handset operating instruction). The handset and controller should now be available for communication. Installation 2.1 Solenoid and Valve Installation NOTE: Maximum operating pressure is up to 150 PSI (10.5 BAR). Use DIG’s 305DC-XXX 3/4” to 2” valves or Model S-305DC solenoid and select the appropriate conversion adaptor for the valve(s) that will be used with the S-305DC solenoid (see list 1.2, #4 on page 8). 1. Shut off the mainline to the valve. 2. I nstall the valve (model 305DC-XXX) or unscrew the conventional solenoid from the valve installed and remove the solenoid housing, solenoid stem, plunger, spring, and O-ring (if necessary). 3. S elect the appropriate conversion adapters for the valve(s) (see list 1.2, #4 on page 8). IMPORTANT: Do not remove existing O-ring on BUCKNER and SUpERIOR valves. - Page 11 components 7. S plice the solenoid hot wires (red) to the controller’s incoming red station wire with stripe (V1). Splice the solenoid white wire to the single incoming white wire with stripe (V1). If needed, repeat for the second valve. USE 2 CONVENTIONAl DRy-SPlICE WATERPROOF CONNECTORS WITH CRIMP SlEEVE. Leave slack on each side of the wires so that repairs can be carried out easily. NOTE: The solenoid operates only with 2-way normally closed valves. NOTE: Station one red and white controller wires are identified by the black stripes. IMPORTANT: If a valve remains open in manual operation, you may need to examine the solenoid and the solenoid adaptor to see that they are installed correctly and the adaptor is firmly secured.
-
Page 12: Controller Installation
2.2 Controller Installation Option A: Valve Box Mounting Dome, color: green (model 30-830), tan (model 30-835) or purple (model 30-836) 1. L ay the template on top of the rectangular or round irrigation box cover and drill 4-8 holes, make sure to review the template position on the valve box before drilling (see drilling instruction on the template) using 1/4” drill (.250”) (6 mm). The holes are used to hold the mounting dome to the irrigation box cover. Using the same template, drill 1 hole using a 1/2” (.500”) (12 mm) drill bit to allow the wires from the controller into the valve box cover (see - ). 2. I nsert the controller into the mounting dome (see ). 3. I nsert the controller wires into the valve box cover (see ). 4. U se #2 Philips screwdriver to attach the mounting dome to the valve box cover with the #10 Philips head screws included with the mounting dome (see ). - Page 13 5. T here are 6 wires or three sets of wires from the controller, one pair for each valve and one pair for sensor connection (yellow). Connect the controller’s station #1 output red wire #1 (striped red and white) to the red wire on valve #1. Then connect the controller’s output station common wire (V1 stripe) to the white wire on the solenoid USINg CONVENTIONAl DRy- SPlICE WATERPROOF CONNECTORS WITH CRIMP SlEEVE. Repeat the same steps for station #2. Leave slack in the wires on each side so repairs can be carried out easily (see ). NOTE: Station #1 is identified with striped wires. 6. R eattach the valve box cover on top of the valve box and if available lock the cover to the box (recommended) (see ). Detailed Installation...
-
Page 14: Mounting Column
Option B: Mounting Column (model 30-831) 1. E xcavate a trench from the valve to the column location and then, pull a set of colored wires from the valve area to the mounting column location (one pair for each valve). Each pair should consist of one white wire, and one red or colored wire, preferably of differing colors. Each pair should be taped and marked separately at both ends, so that the wires do not get cross-connected (see ). 2. I nsert the pairs of wires through the bottom of the mounting column and push the wires up through the column until at least 6” (15 cm) of wire extends from the top of the mounting column (see ). 3. I nstall the mounting column, setting the curved bottom of the mounting column in an 8” x 8” x 6” (20 x 20 x 15 cm) frame and pour in the 90 lb (40 kg) sack of cement (see detailed illustration). Make sure the column is Column mounting (phase 1) vertical and the opening in the curved bottom is accessible and unclogged (see ). Column mounting (phase 2) IMPORTANT: Make sure the cement pad is dry before continuing installation. - Page 15 4. P ull the 2 pairs of field wires from the valves through the center hole in the bottom of the mounting plastic bracket (see ). There are three sets of wires from the controller, 1 pair for each valve and 1 pair for sensor connection (labeled V-1, V-2 and S on the housing where the wires enter the controller). First, trim the controller valve wires to about 3-4” (7-10 cm) from the controller and then, connect the controller’s station #1 output red wire #1 (striped red and white) to the red wire on valve #1 using 2 small waterproof wire nuts. If necessary, repeat the same procedure for valve #2 using the wires labeled V2 (see ). Next, bring the two yellow sensor wires through the small hole on the Column mounting (phase 1) side of the mounting bracket (see ). Finally, place wires with nut inside the bracket body and secure the plastic bracket into the controller using the 4 small Phillips screw provided (see - ). 5. N ext, apply a thin layer of cement glue (included with the column) to the top on the outside area of the column and slide the controller-mounting bracket into place on top of the column (see ). 6. A t the valves, connect the incoming station #1 wire (striped red) to the hot wires (red) on the solenoid USINg CONVENTIONAl DRy-SPlICE WATERPROOF CONNECTORS WITH CRIMP SlEEVE. Connect the controller incoming station common wire (striped white) to the white wire on the solenoid USINg CONVENTIONAl DRy-SPlICE WATERPROOF CONNECTORS WITH CRIMP SlEEVE and if needed...
-
Page 16: Valve Mounting
Column mounting (phase 2) Option C: Valve Mounting (model 30-832) 1. S lide the wires from the controller into the valve-mounting bracket and connect the valve-mounting bracket to the controller using the 4 screws included (see ). 2. C onnect the incoming station wire (V1 red) to the hot wires (red) on the solenoid USINg CONVENTIONAl DRy-SPlICE WATERPROOF CONNECTORS WITH CRIMP SlEEVE. Connects the controller incoming station common wire (V1 white) to the white wire on the solenoid USINg CONVENTIONAl DRy-SPlICE WATERPROOF CONNECTORS WITH CRIMP SlEEVE and if needed repeat for the second valve and sensor. Leave slack on each side of the wires so that repairs, if needed can be carried out easily (see ). NOTE: Station #1 wires are identified with striped wires. 3. Attach the controller into place on the top of the solenoid (see ). -
Page 17: Maximum Wire Run
NOTE: When more than one lEIT-2 controller is to be installed on site, connect the yellow wires and ID each controller one at a time. 3.2 Connecting to the lEIT-2 Controller for the First Time Using the lEIT RC2 Handset In the LEIT RC2 handset’s main menu press and highlight the RADIO UPLINK... - Page 18 > CONTROL ID: CONTROL ID: XX NO DESCRIPTION NO DESCRIPTION CLIENT ID: CONNECT CONNECTED TO: CONNECT CONT. SETUP YES / NO 10:00 10:00 10:00 CONNECTING UPDATE SUCCESSFUL CONNECT CONNECT CONTROLLER MENU The controller is ready to program: Repeat the steps for additional controllers. NOTE: When connecting to a LEIT-2 controller, the controller and handset CLIENT ID must be the same.
-
Page 19: Using A Sensor
ATTENTION: The two yellow (or yellow and black) sensor wires are left connected so the RAIN OFF alert will not appear. If a rain sensor needs to be added, see Section 4 – Using a Sensor. Using a Sensor NOTE: Do not install sensor until after the controller has been given an ID # by the RC-2 handset. 4.1 Sensor Installation Remove the WATERPROOF CONNECTOR from the controller’s two yellow wires and splice them to the sensor’s two normally closed (N/C) black wires. Connect 1 of each yellow wire from the controller with 1 of each black wire from the sensor USINg WATERPROOF CONNECTORS (if sensor is connected, the sensor will override the program when triggered). 4.2. Compatible Sensors Sensors compatible with LEIT-2 controllers: Rain sensors: ………………… HUNTER MINI-CLIK and the RAIN BIRD RSD Moisture sensors: ………………………………… IRROMETER WEM-B Freeze sensor: ………………………………… HUNTER FREEZE-CLICK Troubleshooting The LEIT-2 wireless irrigation control system is a series of components consisting of LEIT-2 ambient light powered 2 station controller, the RC2 handset, S-305DC solenoids, solenoid adapters, hydraulic control valves, and wires/splices. It is best to troubleshoot this DC system (like an AC system) by a process of elimination; the goal being to determine which component(s) has failed. The following facts and tips may be helpful to eliminate certain components and facilitate faster troubleshooting. It is assumed that these are installed controllers that are receiving the proper amount of light. Keep in mind that the problem may be with more than one component. -
Page 20: Troubleshooting Solenoids
CONNECTORS. 2. T he LEIT-2 controllers function only with S-305DC solenoids or 305DC-XXX valves. 3. T he LEIT-2 controllers function only with compatible normally closed sensors (HUNTER MINI-CLICK or RAIN BIRD RSD). 5.2 Troubleshooting Solenoids 1. V erify that the correct solenoid and adapters are being used for the valve in question. 2. V erify that the white and red wires from the solenoid are connected to the white and red wire pair on the controller and that these splices are tight, and corrosion free. 3. V erify that no water is leaking externally near the adapter, stem, or bonnet. 4. V erify that all O-rings and/or rubber hoses are in place, if in doubt, check the adaptor and the solenoid. -
Page 21: Troubleshooting Hydraulic Valves
5. I f the valve is weeping or not closing completely, the adapter being used with the S-305DC solenoid may be loose, cross-threaded, missing an O-ring, or the adaptor sleeve could be damaged, or the valve diaphragm inside the valve could be in need of cleaning or replacement. 6. I f the valve is not opening completely, the adapter Spring being used with the S-305DC solenoid may be to tight, 30-906 or the adaptor sleeve may be damaged, or the valve water passage down stream may be plugged and in Plunger Assembly need of cleaning. 30-905 7. Solenoid parts list (see A). Retainer 30-907 5.3 Troubleshooting Hydraulic Valves 1. V erify that the valve opens and closes. If it does not, the problem is with the valve. a. V erify that the static mainline pressure at the valve is below 150 PSI (10.5 BAR) and above 10 PSI (.7 BAR). b. Verify that the valve size is correct for the flow rate of the system. c. T he S-305DC solenoid should be installed only on normally closed 2-way valves. -
Page 22: Troubleshooting Leit-2, Leit-2Et
5.5 Troubleshooting lEIT-2, lEIT-2ET Problem: Handset will not connect to controller Cause: Handset and controller do not share the same client ID Solution: Change the handset client ID to AAA. If the controller client ID and the handset client ID are not the same, the handset will not connect to the controller. The client ID code on both the controller and the handset are set on AAA at the factory. First check the handset clients ID- go to the MAIN MENU and select SETUP, then in the SETUP MENU select HANDSET SETUP. Then press the up arrow and the HANDSET ID and the CLIENT ID will appear. If the CLIENT ID is not AAA, change it to AAA on this screen by pressing the right arrow button and then the up or down arrow buttons. Then press the center button and exit back to the main menu and try again to connect through radio uplink. If the handset and controller will still not connect, please see below. Solution: Change the controller client ID to AAA. First follow the preceding steps to set the handset client ID to AAA. The controller client ID and control # can now be accessed by connecting to the controller through the default setup 00- but first the controller must be temporarily re-set by using the following procedure: 1 . Disconnect the two yellow sensor wires from each other. 2. Simultaneously touch one wire to the positive battery terminal and the other wire to the negative terminal on the battery. 3. Reverse the polarity and simultaneously touch the wires to the opposite terminals. 4. Splice the two yellow sensor wires back together again. 5. Try to connect again to the controller in radio uplink through default setup 00. 6. If connection is successful, push the center button again to view... - Page 23 7. To change the controller ID # and/or client ID, press the right arrow button and then the up or down arrows, and enter the two digit ID #, and then press the center button to send the changes to the controller. Cause: The wrong control ID number is entered Solution: If the current control ID number is not known, follow the preceding steps to temporarily re-set the controller. Cause: The controller has been in a box for too long Solution: Follow the preceding steps to temporarily re-set the controller. Cause: LEIT-2 controller is faulty Solution: Replace controller. Problem: O/ C ALERT (open circuit) appears in MANUAL TEST or MANUAL TEMP Cause: Faulty or corroded wire splice Solution: Check and re-splice solenoid wire splices for the alerted valve with waterproof wire connectors. Cause: Faulty solenoid Solution: To verify that the solenoid is faulty by touching the two solenoid wires to the two terminals on the battery. Simultaneously touch the red wire to the positive terminal, and white to the negative terminal. The solenoid should click and the valve should open. Next, reverse the polarity and touch the wires to the opposite terminals. The valve should make a soft click and close. If the solenoid does not click or only clicks once, it should be replaced.
- Page 24 Problem: S/C ALERT (short circuit) appears in MANUAL TEST or MANUAL TEMP Cause: Faulty solenoid Solution: To verify that the solenoid is faulty by touching the two solenoid wires to the two terminals on the battery. Simultaneously touch the red wire to the positive terminal, and white to the negative terminal. The solenoid should click and the valve should open. Next, reverse the polarity and touch the wires to the opposite terminals. The valve should make a soft click and close. If the solenoid does not click or only clicks once, it should be replaced. Problem: Date/time conflict ALERT appears on the RC-2 display after connection to a LEIT-2 controller Cause: Current time on handset and controller are more than 10 minutes apart Solution: First, verify that the current time is correct on the handset, if it is not, go into the setup menu and set the correct current time and date on the handset (see RC2 Handset manual). Next, connect to the LEIT-2 controller in the RADIO UPLINK menu and then go into the SETUP menu and select SET TIME/DATE and then press the center button and send the current time from the handset to the controller. When the update successful screen appears, the current time has been received by the controller. Problem: Valves function during manual run but are not opening automatically by the the program Cause: Current time/date is not correct on LEIT-2 controller Solution: Connect to the LEIT-2 controller with the RC-2 handset and set the correct current time on the LEIT-2 controller.
- Page 25 Problem: Inconsistent connection, intermittent connectivity Cause: Multiple controllers within range share the same control ID number Solution: Follow the to re-set procedure (see RC2 Handest manual) and assign different control ID numbers to the controllers, one at a time. Problem: S ensor alert prevents automatic watering by program Cause: The two yellow sensor wires are disconnected, or the splice has failed Solution: Re-splice the two yellow sensor wires together. Cause: Sensor is connected and tripped Solution: L et sensor dry out or remove sensor and re-splice yellow wires.
-
Page 26: Record Chart
RECORD CHART Customer ID Controller ID Handset ID Location / Address Keep this information in a safe place for your records. -
Page 27: Programming Quick Reference Chart
PROgRAMMINg QUICK REFERENCE CHART... -
Page 28: Warranty
Warranty DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three years from date of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modification or improper installation. This warranty shall extend only to the original purchaser of the product for use by the purchaser. The obligation of DIG CORPORATION under this warranty is limited to repairing or replacing at its factory this product which shall be returned to the factory within three years after the original purchase and which on examination is found to contain defects in material and workmanship. DIG CORPORATION SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND; THE SOLE OBLIGATION OF DIG BEING LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. Unattended use for prolonged periods without inspection to verify proper operation is beyond the intended use of this product, and any damage resulting from such use shall not be the responsibility of DIG CORPORATION. There are no warranties which extend beyond the description on the face hereof. In the case of purchase of the product for use other than, for irrigation purposes, DIG CORPORATION hereby disclaims any implied warranties including any warranties of merchantability and fitness for a particular purpose. In the case of the purchase of the product for personal, family or household purposes, DIG CORPORATION disclaims any such warranties to the extent permitted by law. To the extent that any such disclaimer or implied warranties shall be ineffectual, then any implied warranties shall be limited in duration to a period of three years from the date of the original purchase for use by the purchaser. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. In order to obtain performance under this warranty, the unit must be returned to the factory, along with proof of purchase indicating original date of purchase, shipping prepaid, addressed as follows: DIG CORPORATION, 1210 Activity Drive, Vista, CA 92081-8510. Repaired or replaced units will be shipped prepaid to the name and address supplied with the unit returned under warranty. Allow four weeks for repairs and shipping time. Repair of damaged units not otherwise within warranty may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Website: www.digcorp.com e-mail: dig@digcorp.com 020210 DIG CORP 26-061 1210 Activity Drive Printed in the USA Vista, CA 92081-8810, USA DIG is a Registered Service Mark of DIG Corp.
