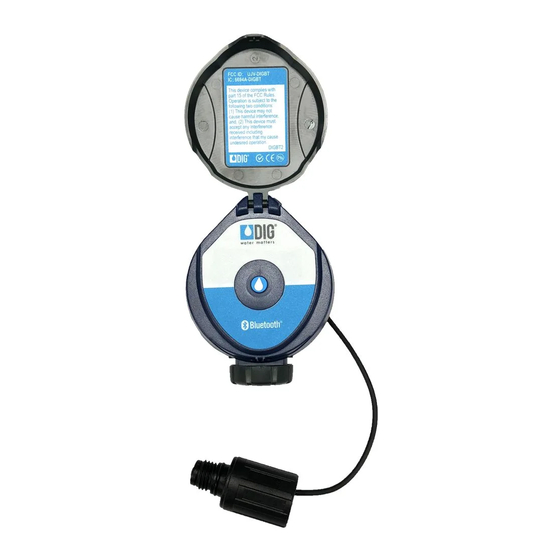

- Page 1 410BT Series Bluetooth ® Battery Powered Irrigation Controller 410BT-ASV | 410BT-MVA I N S T R U C T I O N M A N U A L FCC certifi ed | Bluetooth® certifi ed | Waterproof | 3-year Limited Warranty...
-
Page 2: Installing The Batteries
1. INTRODUCTION Thank you for purchasing DIG’s 410BT Single Station Battery Operated Controller. This manual describes how to get the 410BT series controller up and running quickly. After reading this manual and becoming familiar with the basic functionality of the controller, use the FCC label manual as a reference for less common tasks in the future. - Page 3 Additional control valves must not be installed downstream of the anti- Figure 5a Figure 5b siphon valve. The valve must not be operated continuously for more than 12 hours in any 24-hour period. Consult local codes for specifi c details. 1.
- Page 4 5. Install the 1 in. threaded adapter 6. MVA INSTALLATION Figure 6d by pushing it onto the actuator 6.1 CHANGING ACTUATOR ADAPTERS stem and making sure the notch on the adapter lines up with The 410BT-MVA timer is factory set to fit a 3/4 in. brass manual anti- the notch on the stem of the siphon valve.
- Page 5 6.2 MANUAL VALVE ACTUATOR INSTALLATION 6. Turn on main water supply. Rated operating pressure: 20 to 125 PSI 7. Activate the solenoid through the timer manual button, a click will Recommended operating pressure: 20 to 80 PSI be heard indicating the valve is open. 1.
- Page 6 APP SCREENS OVERVIEW The DIG BTT app automatically scans for nearby controllers after installation. Any DIG Bluetooth® controllers within 50′ (15 meters) line of sight will appear on screen. Information icon • Your new controller will appear as the BT Controller. Its...
-
Page 7: Home Screen
HOME SCREEN Once connected, the Home screen will appear. This screen has everything needed to program the controller. Picture of controller By default, the controller’s Program is off. To turn it on, push the switch under the “Program” area. It will turn green and the Program area will Schedule Overview: light up indicating that the program is active and can now be modified. -
Page 8: Controller Settings
CONTROLLER SETTINGS The controller’s Settings screen contains everything else needed to fully control your irrigation system. It can be reached by selecting the Controller Settings button on the bottom of the screen. On this screen you can turn on or off the entire system through the System Active switch, add a rain delay to shut off the controller for a limited time, budget each month to modify the watering duration based on the season, set specific dates on which the timer should not run, and view... -
Page 9: Manual Run
MANUAL RUN The Manual Run screen allows for manual operation of the controller. It can be reached by selecting the Manual Run button on the bottom right of the screen. To manually run the controller, tap the button on the right of the screen. -
Page 10: Reset To Factory Defaults
This is the only way to remove a password so try not to forget it! must not be collocated or operating in conjunction with any other antenna or transmitter. I. Changes or modifications not expressly approved by DIG Corporation could TECHNICAL ASSISTANCE void the user’s authority to operate the equipment. -
Page 11: Warranty
Repair of damaged units not otherwise within warranty may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
