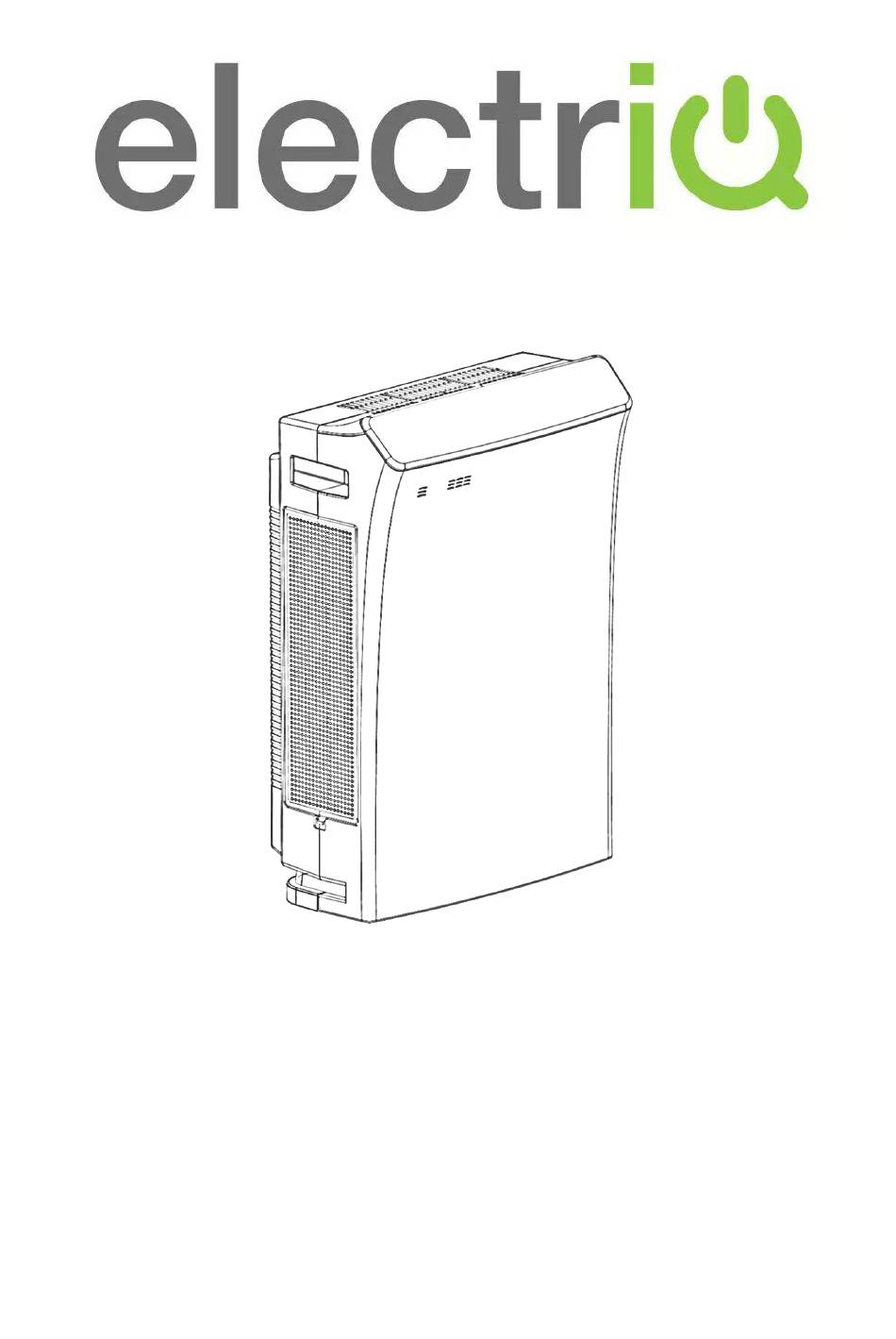

- Page 1 USER MANUAL EAP500HCUV-WIFI Thank you for choosing electriQ Please read this user manual before using this innovative Air Purifier and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS AIR PURIFIER DIAGRAM ABOUT YOUR AIR PURIFIER INFORMATION ON INDOOR POLLUTANTS OPERATION INSTRUCTIONS BEFORE FIRST USE HOW TO USE ESSENTIAL OIL DIFFUSER CONNECTING THE APPLIANCE TO WIFI CONTROLLING YOUR APPLIANCE THROUGH THE APP CARE AND MAINTENANCE CHANGING THE FILTER CLEANING THE AIR QUALITY SENSOR CLEANING THE CASE CLEANING THE FILTERS AND FILTER HOLDING AREA... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit. • This appliance is for indoor use only. • This unit must only be connected to a 220-240V / 50Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used. - Page 4 • The use of accessory attachments that have not been approved by the appliance manufacturer is not recommended, as this may result in fire, cause an electric shock and/or cause personal injury. • Ensure hands are fully dried before plugging or unplugging the appliance. •...
-
Page 5: Air Purifier Diagram
AIR PURIFIER DIAGRAM Control Panel Handle Filter Cover Air Inlet Air Outlet Data Label Power Cord Activated Carbon HEPA Filter Filter Cover Filter Cover Activated Carbon Photo Catalyst Filter Photo Catalyst HEPA Filter Filter Pictures for reference only Product design may vary from images. -
Page 6: About Your Air Purifier
ABOUT YOUR AIR PURIFIER The EAP500HCUV-WIFI provides multiple stages of air purification using professional air filtration and intelligent sterilisation technologies. This unit features advanced HEPA and photocatalytic and activated carbon filters for improved air filtration. • Primary filter, made of non-woven materials, are used for removing large particles like hair and dust. -
Page 7: Information On Indoor Pollutants
INFORMATION ON INDOOR POLLUTANTS VOC (Volatile Organic Compound): VOCs come from motor vehicle exhausts, gasoline vapour, pollutants such as formaldehyde, ammonia and many other common and chemical solvents such as paints and glues, or can be a by-product of mould growth. VOCs cause irritation to the eyes and or nose as well as causing headaches, nausea and even potential damage to the central nervous system. -
Page 8: Operation Instructions
OPERATION INSTRUCTIONS USING THE TOUCH CONTROLS The controls respond to touch, so you • don’t need to apply any pressure. Use the ball of your finger, not its tip. • Make sure the controls are always • clean, dry, and that there is no objects covering them. -
Page 9: How To Use
HOW TO USE: Filter Replacement Auto Digital Indicators Button Power Display Timer Reset Ioniser Button Button Button Indicator Air Quality Indicator Fan Speed Indicator Button Fan Speed WIFI Settings Indicator Indicator Button POWER Press to turn the appliance on and off. Allows the Ioniser and UVC light functions to be turned on and SETTINGS off. - Page 10 Press to activate auto mode, the fan speed will be automatically adjusted based on the air quality. Please note: • The extra features (Ioniser and UV light cannot be used in AUTO BUTTON auto mode. • After selecting Auto mode the unit will take approx. 3 minutes to monitor the air before the mode becomes active.
-
Page 11: Essential Oil Diffuser
ESSENTIAL OIL DIFFUSER The air purifier also contains an essential oil diffuser. To use the diffuser, slide the diffuser tray out of the rear of the unit, and add a few drops of your favourite essential oil. Close the diffuser box, and the unit will gently diffuse the aroma during operation. -
Page 12: Connecting The Appliance To Wifi
CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the ”TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android CONNECTION METHODS AVAILABLE FOR SETUP The air purifier has two different setup modes, Quick Connection and AP (Access Point). - Page 13 REGISTER THE APP 1. Press on the register button Read the Privacy policy 3. Enter your email address or and press the Agree phone number and press at the bottom of the screen. Button. continue to register. 4. A verification code will be 5.
- Page 14 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses As such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices.
- Page 15 CONNECTING USING QUICK CONNECTION Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the wifi network. (We advise turning mobile data off during setup) 1.
- Page 16 CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with the wifi light flashing once per second. If not follow the instructions for changing the wifi connection mode. Also ensure your phone is connected to the wifi network. (We advise turning mobile data off during setup) 1.
-
Page 17: Controlling Your Appliance Through The App
CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Add Device: Add a device to the app, and go through the setup process. Change Home: If you have a number of units at different houses, you can change between them Room Management: Allows rooms to be added, Environmental... - Page 18 DEVICE SCREEN The device screen is the main control screen for the air purifier, providing access to the controls to amend the functions and settings Edit Name: Use to Back: Returns to the change the name of the Home Screen air purifier.
- Page 19 SMART SCENES Smart Scenes is a powerful tool providing the option to customise the operation of the air purifier based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two catagories Scene and Automation.
- Page 20 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, air quality of the room, weather conditions, and a range of other influences. 1. Press on the Smart Scene 2. Press on the Plus in the top 3.
- Page 21 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. CHANGING THE NAME OF YOUR DEVICE When in any of the device screens further settings for the device can be accessed, by pressing on the three dots in the top right hand corner.
-
Page 22: Care And Maintenance
CARE AND MAINTENANCE • Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. • When the unit is not in use for long periods, it is advisable to remove the plug from the power socket. •... -
Page 23: Technical Specification
TECHNICAL SPECIFICATION Input power 220-240 / 50Hz Power Rating Weight 6.3Kg Dimensions 360 x 206 x 536mm Fan speeds Low / Medium / High Airflow 280 m Approx. Lifetime HEPA Filter 12 Months Activated carbon and photo catalyst 6 Months 6W UV Lamp (254nm) 8000 Hours TROUBLESHOOTING... -
Page 24: Support
Please contact the local council for details of your local household waste recycling centres. DECLARATION OF CONFORMITY Hereby, electriQ declares that this Portable air conditioner is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity...
