ElectrIQ EAP400D User Manual

Multistage air purifier
Hide thumbs Also See for EAP400D:
Table of Contents

Advertisement

Quick Links

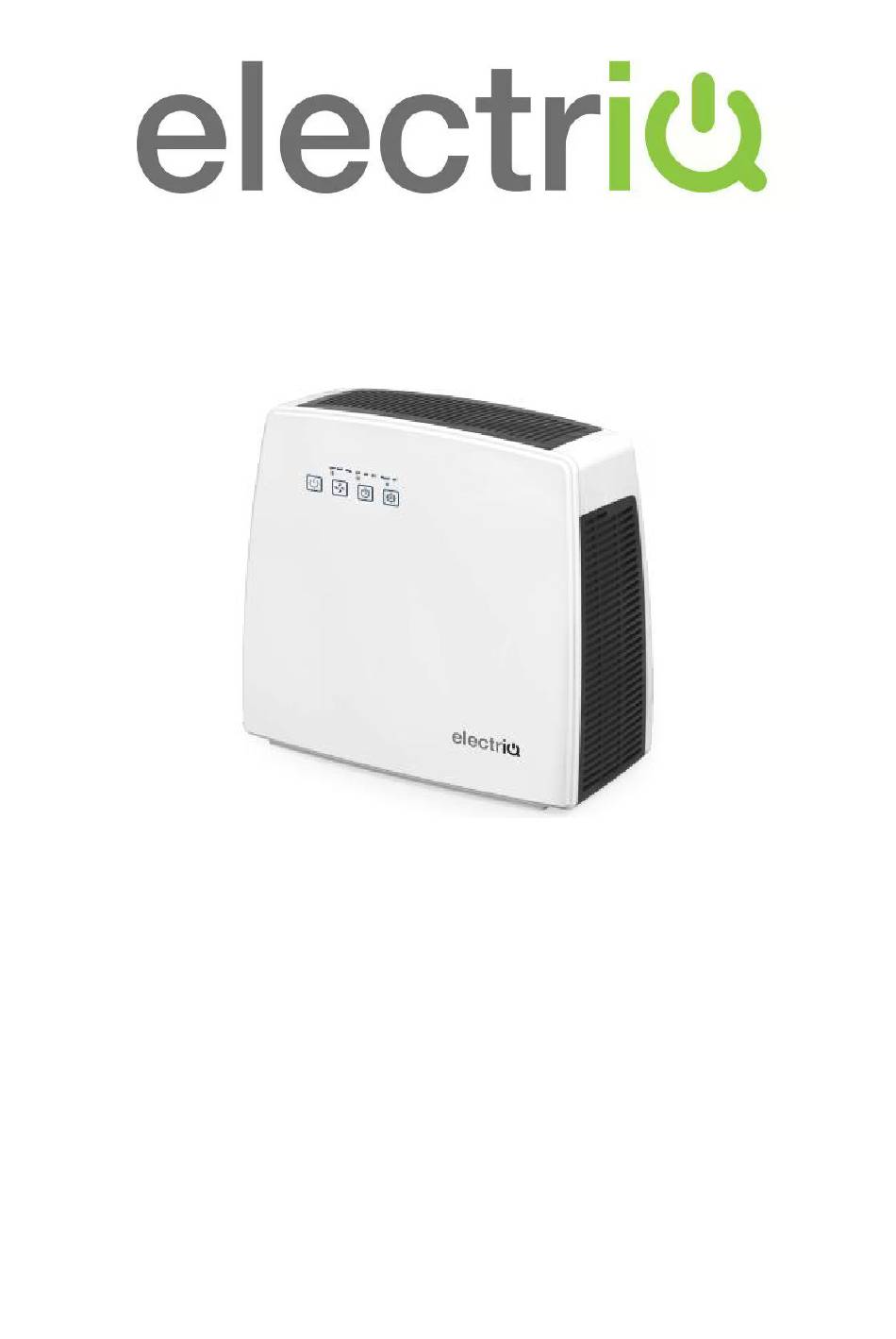

EAP400D
Multistage Air Purifier
True HEPA, VOC filter, UV lamp,
TiO
photo catalyst (PCO),
2
Plasma ioniser and advanced activated carbon filter
USER MANUAL
Thank you for choosing this innovative ElectriQ Air Purifier.
Please read this user manual before using the product and
keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAP400D and is the answer not in the manual?

Questions and answers

Related Manuals for ElectrIQ EAP400D

Summary of Contents for ElectrIQ EAP400D

  • Page 1 Plasma ioniser and advanced activated carbon filter USER MANUAL Thank you for choosing this innovative ElectriQ Air Purifier. Please read this user manual before using the product and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS................. 3 INTRODUCTION..................4 INDOOR POLLUTANTS................4 OPERATION..................5 FILTER INSTALLATION................5 FILTER REPLACEMENT REMINDER INDICATOR........6 DIAGRAM.................... 7 CONTROLS AND SETTINGS............... 8 CARE AND MAINTENANCE..............9 TECHNICAL DATA.................. 10 TROUBLESHOOTING................10 UK PRODUCT SUPPORT................ 11...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Important!  Carefully read the instructions before operating the unit  This appliance is for indoor use only.  Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.  Installation must be in accordance with regulations of the country where the unit is used. ...

  • Page 4: Introduction

    INTRODUCTION The EAP400D features an easy to use touch control panel, and provides 6 stages air purification using professional air filtration and sterilisation.  Advanced activated carbon filter - Removes unpleasant odours and absorbs harmful substances such as formaldehydes and benzenes ...

  • Page 5: Operation

    OPERATION BEFORE FIRST USE Installing or replacing the Filters The EAP400D uses a combination of two filter units, which should be installed in the air purifier before operating it for the first time. When inserting the filters the “AIR FLOW” Label should be pointing outwards.

  • Page 6: Filter Replacement Reminder Indicator

    FILTER REPLACEMENT REMINDER INDICATOR When the “Speed” indicator is flashing, this indicates that the installed filters are coming to the end of their useful life and should be replaced. Once the filters have been replaced following the steps in “Installing and replacing the filters”, hold down the“ Timer”...

  • Page 7: Diagram

    DIAGRAM OF THE AIR PURIFIER ACTIVATED CARBON: Absorb formaldehyde, benzene and other noxious gases. PHOTO CATALYST: When photo catalyst titanium dioxide (TiO2) absorbs Ultraviolet (UV) radiation, it will produce a chemical reaction that help oxidise and remove VOCs, odours, and kill germs. Note: for maximum efficiency the UV lamp cover is coated with TiO2 VOC / ANTIMICROBIAL: Captures Pollutants and mould spores HEPA: Captures dust, smoke, pollen and other allergens.

  • Page 8: Controls And Settings

    CONTROL AND SETTINGS “POWER” BUTTON: “TIMER” BUTTON: By pressing this button, the purifier can Press this button to turn on or switch off the be timed to operate for intervals of 2 unit. hours, 4 hours and 8 hours, stopping automatically when the selected Child Lock: Hold the “Power”...

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. When it is not in use for long periods it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit.

  • Page 10: Technical Data

    TECHNICAL DATA Model EAP400D Fan Speed Medium High Airflow (m /hr) Noise level (db) Power rating 36 Watts / 220-240 V, 50 hz Ions 5x10 ions/cm Power cord length ≥ 1.4 meters Net Size (wxdxh) 329x170x300 mm Net Weight 3.2 kgs...

  • Page 11: Uk Product Support

    Please contact the local council for details of your local household waste recycling centres. UK PRODUCT SUPPORT www.electriQ.co.uk Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1.
