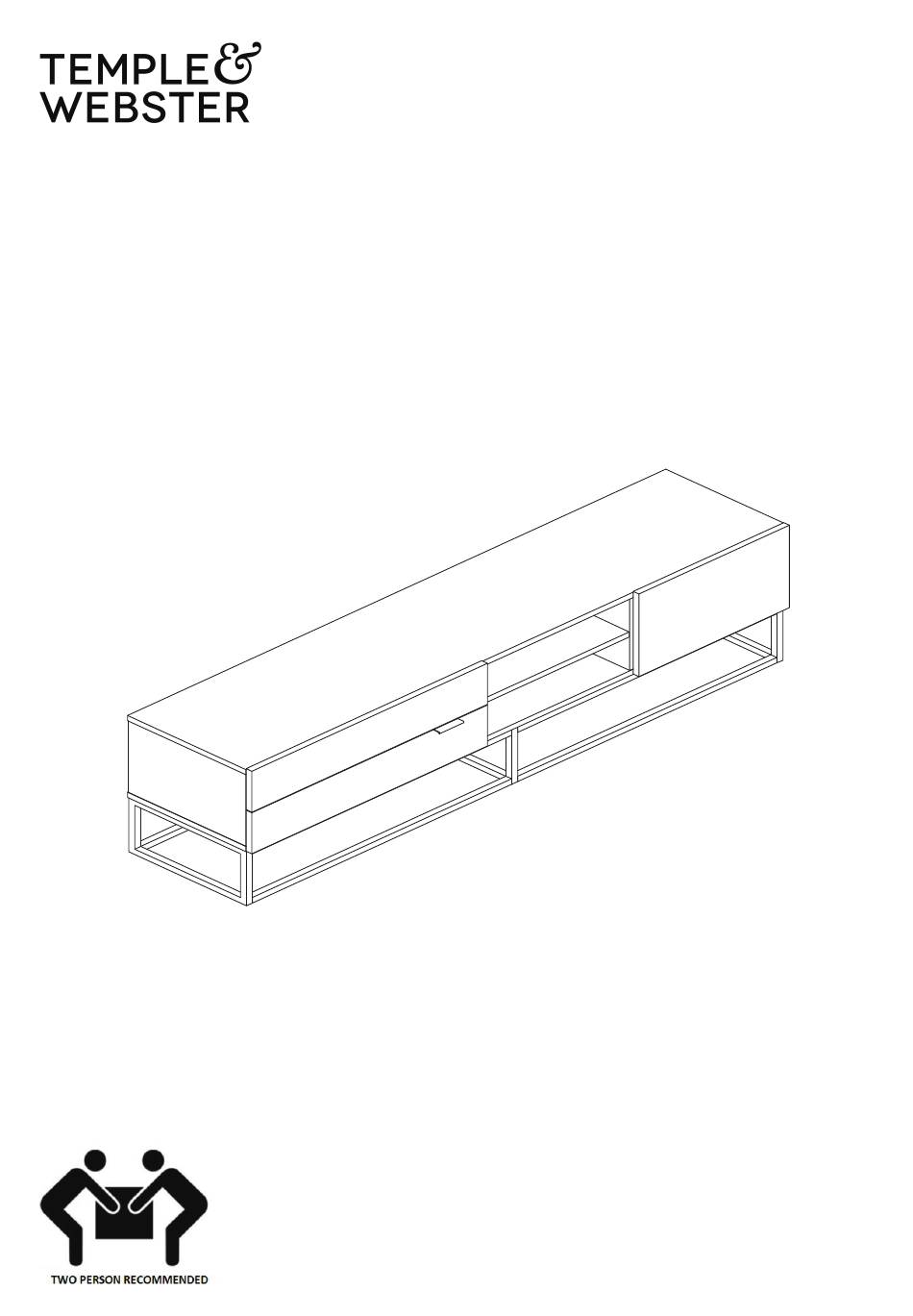

- Page 1 SBEMTVOA SBEMTVBK ASSEMBLY INSTRUCTION Melis Entertainment Unit www.templeandwebster.com.au...
- Page 2 Keep these instructions for future reference Read these instructions and follow steps carefully to ensure you assemble the product correctly and avoid damages. Check that all parts and hardware have been provided before assembling the product. Place all contents on a clean, soft-flat surface to avoid scratching the product.
- Page 3 WARNING： It is STRONGLY RECOMMENDED that you ANCHOR this product. Toppling furniture can cause serious injuries and death. This product has been s with a strap. To prevent your furniture from tipping forward it is strongly recommended that you securely attach this product to a wall or other solid surface, using the straps provided and appropriate fixings.
-
Page 4: Tools Required
Tools Required Time Required DO NOT USE 45 min Parts List 1. Top panel, x1 2. Bottom panel, x1 3. Left side panel, x1 4. Right side panel, x1 5. Left divider, x1 6. Right divider, x1 7. Shelf, x1 8. -
Page 5: Fittings List
Fittings List Hinge 2pcs Handle: 80x30mm Screw: M4x12mm 22pcs 20pcs Cam bolt Cam nut Dowel: 8x30mm 20pcs 16pcs Screw: M4x16mm 12pcs Screw: M5x38mm 20pcs Bolt: M6x10mm 24pcs 6pcs Back panel holder 8sets Drawer runner 2sets Adjustable feet: M6x15mm Fabric wall strap 2pcs Washer 4pcs... - Page 6 L(CL) L(CL) L(CR) L(CR) Fix 2 x Slide Tracks L (CL) onto Left side panel (3) with 6 x Screws (C) using a screwdriver. Fix 2 x Slide Track L (CR) onto Left divider (5) with 6 x Screws (C) using a screwdriver.
- Page 7 Screw 8 x Cam bolts (D) into Top panel (1) using a screwdriver as shown. This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 8 Insert 8 x Dowels (F) into Left side panel (3), Right side panel (4), Left divider (5) and Right divider (6) as shown. Insert Back panel (8) into the grooves of Left side panel (3), Right side panel (4) and Top panel (1).
- Page 9 Position Bottom panel (2) to the assembled frame, making sure the edge of the back panel (8) is inserted into the groove of Botto panel (2). Attach Bottom panel (2) to the assembled frame with 8 x Screws (H) using a screwdriver as shown. Attach 2 x Metal support rails (19) and 2 x Metal support rails (20) to Metal leg frame (17) and Middle metal frame (18) with 8 x Bolts (I) using Allen key (P) as shown.
- Page 10 Attach 2 x Metal support rails (19) and 2 x Metal support rails (20) and Metal leg frame (17) to the other end of the Middle metal frame (18) with 8 x Bolts (I) using Allen key (P) as shown. Attach the assembled metal base frame onto the assembled cabinet with 8 x Bolts (I) with Allen key (P).
- Page 11 Screw 6 x Cam bolts (D) into Drawer front (10) using a screwdriver as shown. Screw 6 x Cam bolts (D) into Drawer front (16) using a screwdriver as shown Fix Drawer back panel (13) onto Left drawer side (11) and Right drawer side (12) with 4 x Screws (H) using a screwdriver as shown.
- Page 12 Position Drawer fronts (10) and (16) onto Drawer sides (11) and (12), and Drawer bottom support slats (15). Insert 12 x Cam nuts (E) into Drawer sides (11) and (12), and Drawer bottom support slat (14). Use a screwdriver to turn clockwise to lock. Attach 1 x Handle (B) to Drawer front (16) with 2 x Bolts (C) using a screwdriver as shown.
- Page 13 L(DL) L(DR) Fix Slider runner L (DL) onto the Left drawer side (11) with 2 x Screws (C) using a screwdriver. Fix Slider runner L (DR) onto the Right drawer side (12) with 2 x Screws (C) using a screwdriver as shown. Repeat with the remaining Drawer.
- Page 14 Slide drawer with Drawer Front (10) onto the top two slide tracks as shown. Slide drawer with Drawer Front (16) onto the bottom two slide tracks as shown. Insert 4 x Shelf pins (Q) into desired positions. Place Shelf (7) onto shelf pins carefully.
- Page 15 Attach 2x Hinges (A) to Door (9) with 4x Screws (G) using a screwdriver. Attach Door (9) to Right side panel (4) with 8 x Screws (G) using a screwdriver as shown. If necessary, adjust the Hinges (A) using a Screwdriver.
- Page 16 Fix 8 x Back panel holders (K) to assembled unit with 8 x Screws using a screwdriver. wall Fix the 2 x Wall straps (M) with 2 x Screws (O) and 2 x Washers (N) to the backside of Top panel as shown. Move the Entertainment Unit into position against a wall.
