Summary of Contents for TEMPLE & WEBSTER ATLRSTOK

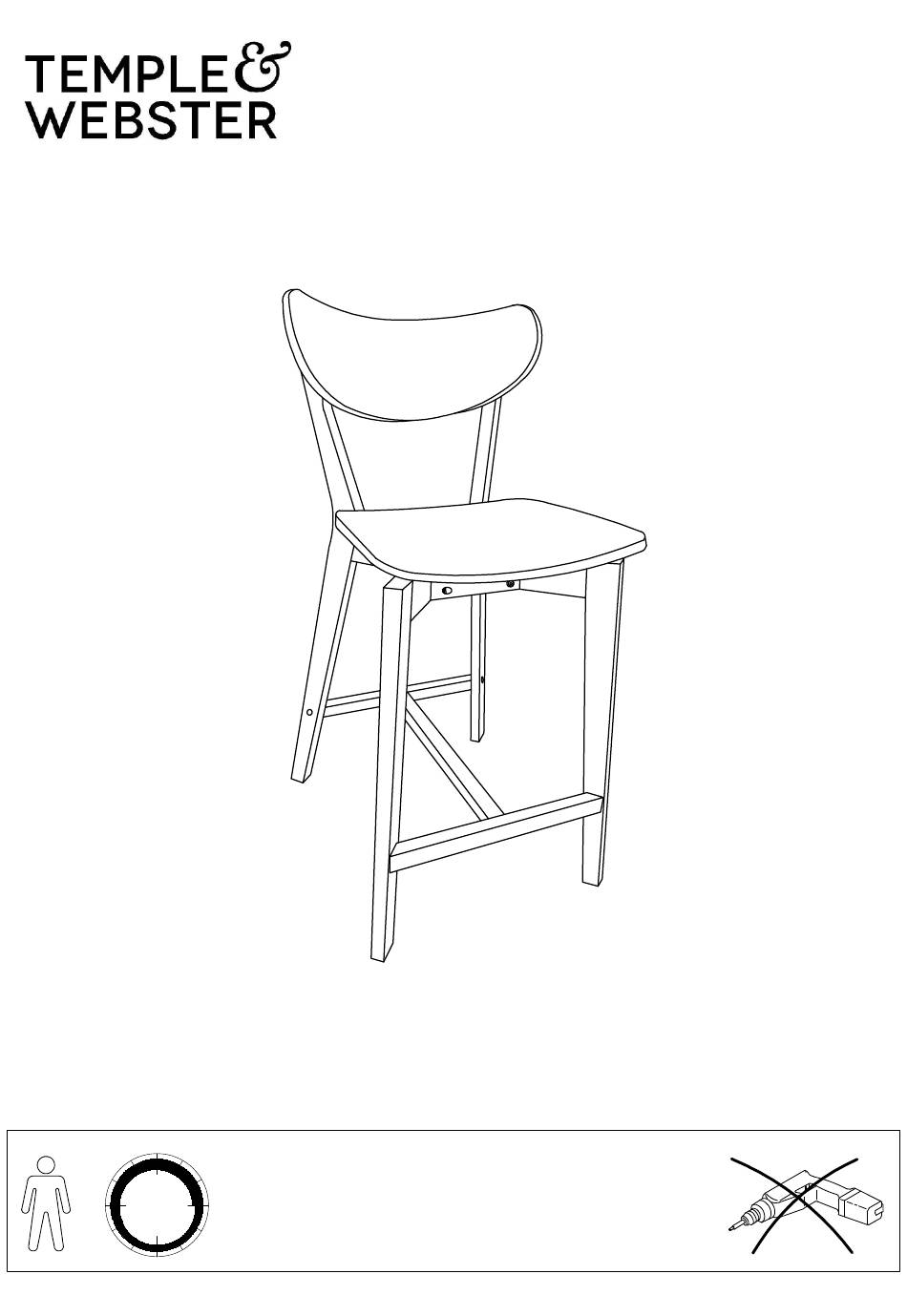

- Page 1 ATLRSTOK 0,5 H...
- Page 2 ASSEMBLY INSTRUCTIONS: Read these instructions and follow the steps carefully to ensure you assemble the product correctly and avoid damage Check that all parts and hardware have been provided before assembling the product Place the product on a clean, soft, flat surface to avoid scratching the product Caution: Only tighten bolts to 80% at first unless otherwise specified in the instructions.
- Page 3 Step 1 Step 2 A x 4 B x 1 M6x60 mm 4 mm Screw the Bolts only 80% of the way and do not over tighten...
- Page 4 Step 3 B x 1 C x 4 D x 4 E x 4 4 mm M6x25 mm M6x25 mm M6x30 mm M6x35 mm Screw the Bolts only 80% of the way and do not over tighten Step 4 B x 1 C x 4 F x 4 4 mm...
- Page 5 Step 5 H x 4 Attach the Felt Pads to the Legs Step 6 B x 1 G x 4 4 mm M6x35 mm Screw the Bolts only 80% of the way and do not over tighten...
- Page 6 Step 7 Step 8 B x 1 4 mm 100% Tighten all Bolts 100% but do not over tighten...
- Page 7 Step 9 B x 1 4 mm 100% Tighten all Bolts 100% but do not over tighten Step 10...
