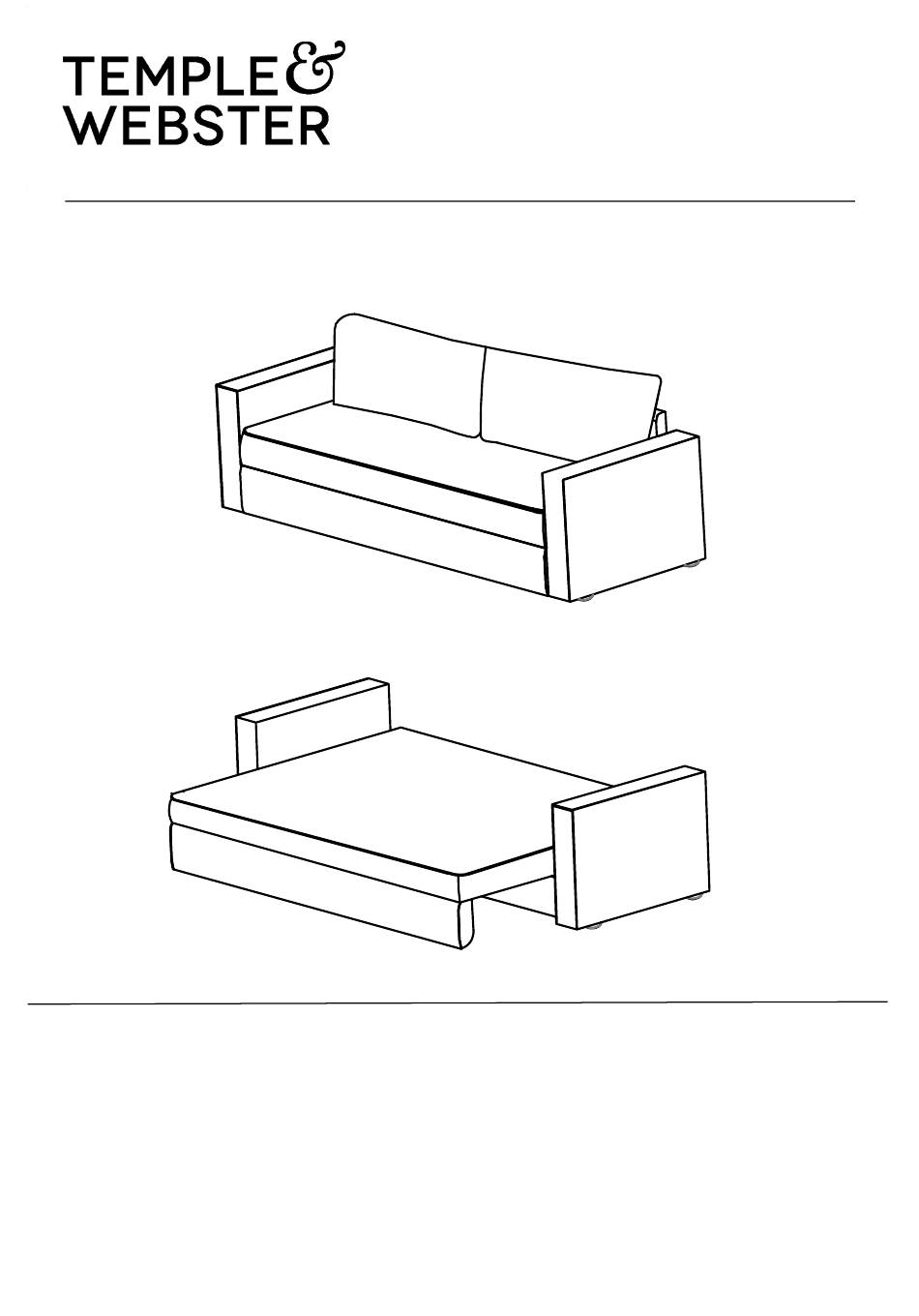

- Page 1 ASSEMBLY INSTRUCTIONS Sunday 3 Seater Sofa bed S u n d a y 3 S e a t e r S o f a b e d...
- Page 2 Read first, enjoy forever Assembly tips Assemble your product on a level surface and lay something soft underneath to ● protect potential floor damage. Don’t over tighten screws. During assembly we recommend tightening to ● approximately 70% tightness. Only tighten hardware 100% when fully assembled. Keep children away from assembly area as bags and small parts can pose a ●...
-
Page 3: Parts List
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Parts list Parts list Sunday 3 Seater Sofa bed Sunday 3 Seater Sofa bed XISQSBNT XISQSBNT NUMBER OF PEOPLE REQUIRED FOR NUMBER OF PEOPLE REQUIRED FOR ASSEMBLY: ASSEMBLY: ① ② ② ① ③ TOOLS REQUIRED FOR TOOLS REQUIRED FOR ③... - Page 4 Install the 4x Wooden Legs (A) on the 2x Armrests (1) and (2). You will need: 4 Wooden Legs Install the 2x Plastic Legs (B) on the 1x Front (3) and 1x Rear (4) Panels. You will need: 2 Plastic Legs Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 5 Assemble the 1x Front (3) and 1x Rear (4)Panels with the 1x Middle Panel (7) using 6x Screws (F). You will need: 3 Small Angle Irons 100% 6 M6 * 15 Screws 1 #4 Wrench Assemble the 2x Armrests (1) and (2), 1x Front (3) and 1x Rear (4) Panels using 8x Screws (G).
- Page 6 Zip up the 1x Fabric (8) around the sides; it can be used for storage afterwards. Insert the 1x Backrest (6) downwards and secure it with 2x Perforated Pins (D) and 2x R-Clips (E). You will need: 2 Perforated Pins 2 R-Clips Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 7 Return female buckle A1 to its original position and then fold down the backrest.Please note: If your backrest is against the wall, there is no need to perform this step. Push in the seat frame and place the cushions; the sofa assembly is complete. Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 8 Remove the cushions, pull out the seat frame. Rotate female buckle A1 to male buckle A2 to secure the backrest. Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
- Page 9 Unzip the seat frame and turn it over. Expands into a sofa bed. Damaged or missing parts? Or just need help? Contact us on service@templeandwebster.com.au...
