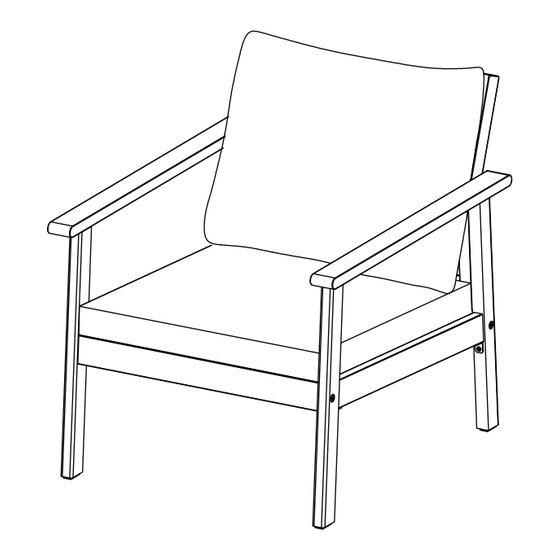

TEMPLE & WEBSTER SMHRTSS-1OF2 Assembly Instructions

Read these instructions and follow steps carefully to ensure you assemble
the product correctly and avoid damages. Check that all parts and
hardware have been provided before assembling the product. Place all
contents on a clean, soft-flat surface to avoid scratching the product.
CAUTION:
Only tighten bolts to 80% at first. Once all parts have been assembled, fully tighten all hardware.
To prevent damage to threads, do not use a power tool and do not overtighten bolts.
Use two people to lift and turn the product when assembling.
Do not attempt with only one person and do not roll onto legs.
Keep all hardware and small parts away from children.
2 PERSON RECOMMENDED

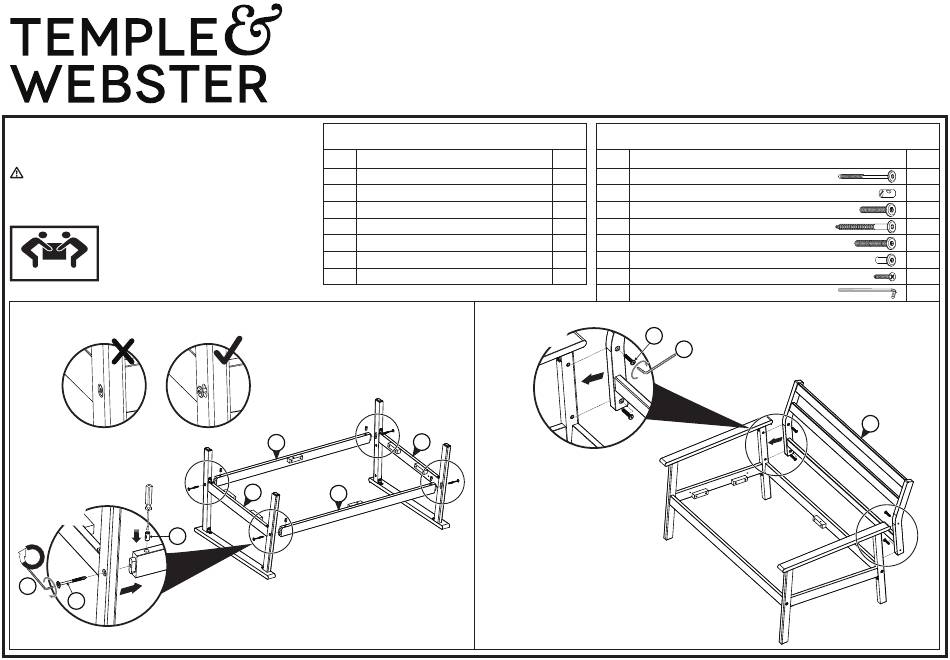

STEP 1:
Remark:
Phillips head screwdriver
is required for assembly.
4x 4x
2
80%
8
1
ASSEMBLY INSTRUCTIONS
PART LIST
ITEM DESCRIPTION
A LEG FRAME
B LEG FRAME
C CROSS BAR
D BACK FRAME
E SEAT FRAME
F SEAT CUSHION
G BACK CUSHION
C A
B
C
SMHRTSS-1OF2
QTY ITEM DESCRIPTION
1PC 1 JCBC SCREW M6 x 65mm
1PC 2 CROSS NUT DIA 10 x 20mm
2PCS 3 JCBC SCREW M8 x 40mm
1PC 4 PAN HEAD WOOD SCREW M7 x 60mm
2PCS 5 JCBC SCREW M6 x 45mm
2PCS 6 SLEEVE NUT M6 x 20mm
2PCS 7 PAN HEAD WOOD SCREW M4 x 35mm
8 M4 ALLEN KEY (BALL SHAPE) LONG
STEP 2:
2x 2x
3
HARDWARE LIST
8
QTY
4PCS
4PCS
4PCS
4PCS
2PCS
2PCS
2PCS
2PCS
D
