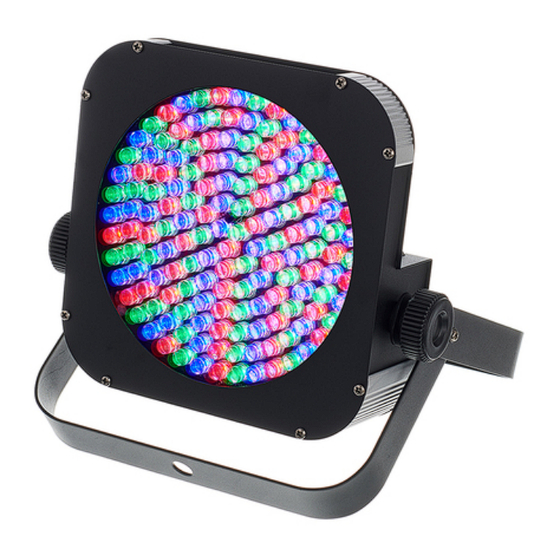

Stairville LED Flood Panel 150 20 User Manual

Led floodlight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED Flood Panel 150 20°,
LED Flood Panel 150 40°
LED Floodlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Flood Panel 150 20 and is the answer not in the manual?

Questions and answers

Related Manuals for Stairville LED Flood Panel 150 20

Summary of Contents for Stairville LED Flood Panel 150 20

  • Page 1 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 30.01.2023, ID: 253358, 253359 (V5)

  • Page 3: Table Of Contents

    7.1 Operating on the unit........................26 7.2 Remote control..........................32 7.3 DMX mode............................34 7.4 Menu overview..........................41 Technical specifications........................42 Plug and connection assignments....................45 Troubleshooting............................46 Cleaning............................... 49 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 4 Table of contents Protecting the environment......................50 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 5 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 8: Symbols And Signal Words

    NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 9 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 10: Safety Instructions

    Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 11 Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 12 Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 13 Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 14: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 15: Installation

    The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 16 Always work from a stable platform whenever installing, moving or servicing the device. In doing so, the area underneath the device must be cordoned off. The safety cable must be attached to the bracket. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 17 Installation Please note that this device must not be connected to a dimmer. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 18 Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 19: Starting Up

    Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 20 DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 21: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front and rear panel ö & Mode Setup Up Down DMX In Power Out Power In DMX Out 240V/50Hz 240V/50Hz LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 22 3 Infrared sensor for the remote control signals 4 Vents 5 Control panel and connections Control panel and connections Mode Setup Up Down DMX In DMX Out Power Out Power In LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 23 13 [DMX Out] | DMX output 14 [Power Out] | IEC chassis socket for the voltage supply of a further device 15 [Power In] | IEC chassis plug for the mains cable LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 24 354223, optionally avail‐ Since the universal remote control can be used for several device types, some buttons able) may not be assigned and therefore have no function. & ö LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 25 10 [0 … 9] | numeric buttons for direct selection of a fixed colour. 11 [R], [G], [B], [A], [W] | buttons to select the colour shade in dimmer mode. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 26: Operating

    Press any button to turn the display back on again. The previously called menu is displayed again. The set values are retained during a power supply interruption. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 27 ‘Pr.04’ Rapid change seven colours ‘Pr.05’ Rapid change three colours ‘Pr.06’ Random 1 ‘Pr.07’ Random 2 ‘Pr.08’ Fading red only ‘Pr.09’ Fading green only ‘Pr.10’ Fading blue only LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 28 Depending on the mode, the display shows one of the following values: ‘rxxx’ , ‘gxxx’ , ‘bxxx’ or ‘FSxx’ . Use [Up] and [Down] to select a value between ‘FS00’ (slow) and ‘FS99’ (fast). LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 29 This setting is only relevant if the device is working as Slave in a Master / Slave configuration and is not controlled via DMX. Press [Mode] until the display shows ‘SLAv’ . LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 30 Press [Mode] until the display shows ‘SU xx’ . This activates the sound controlled automatic show. Press [Setup] and use [Up] and [Down] to adjust the sensitivity for the sound control in a range from ‘SU.00’ … ‘SU.31’ . LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 31 Highest possible DMX address 3-channel 4-channel 8-channel Press [Setup]. Use [Up] and [Down] to select one of the following DMX operating modes: ‘3-ch’ (three channels) ‘4-ch’ (four channels) ‘8-ch’ (eight channels) LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 32: Remote Control

    Press [SOUND]. This activates a sound controlled automatic show. Use [+] and [–] to adjust the sensitivity of the sound control in a range from ‘SV.00’ to ‘SV.31’ . LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 33 Use the coloured buttons to select a colour tone in any mode. The following assignment applies: Button Colour Button Colour Button Colour Cyan Light red Purple Light green Green Magenta Light blue Blue Orange Yellow Amber Cold white Warm white White LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 34: Dmx Mode

    Functions in 4-channel DMX mode Channel Value Function 0…255 Dimmer (0 %…100 %) 0…255 Intensity red (0 %…100 %) 0…255 Intensity green (0 %…100 %) 0…255 Intensity blue (0 %…100 %) LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 35 36…44 Red: 200, Green 255 45…53 Red: 100, Green: 255 54…62 Red: 40, Green: 255 63…71 Green: 255 72…80 Green: 255, Blue: 50 81…89 Green: 255, Blue: 150 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 36 Red: 50, Green: 220, Blue: 100 189…197 Red: 150, Green: 220 198…206 Red: 150, Blue: 220 207…215 Green: 180, Blue: 220 216…224 Green: 220, Blue: 50 225…233 Red: 220, Green: 100, Blue: 50 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 37 RGB mix, constant, colour setting via channel 2…4 1…24 Constant colour, setting via channel 2 25…49 Programme Pr02, fading seven colours 50…74 Programme Pr03, fading three colours 75…99 Programme Pr04, rapid change seven colours LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 38 You can directly control single or multiple devices of a group via channel 7 by assigning the same ID. 0…9 ID1…ID66 10…19 20…29 30…39 40…49 50…59 60…69 70…79 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 39 Function 80…89 90…99 100…109 ID10 110…119 ID11 120…129 ID12 130…139 ID13 140…149 ID14 150…159 ID15 160…169 ID16 170…179 ID17 180…189 ID18 190…199 ID19 200…209 ID20 ID21 ID22 ID23 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 40 Operating Channel Value Function … … ID65 ID66 0…250 No function 251…255 Delayed LED power-up LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 41: Menu Overview

    Operating 7.4 Menu overview Pr.01 Pr.01 SP.00 d.001 SLAu SU.25 SU.00 3-ch Pr.10 SP.99 d.512 SU.31 4-ch SP.FL 8-ch Id.01 FS00 Id.66 FS99 Fd00 Fd99 LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 42: Technical Specifications

    IEC chassis socket C13 DMX control XLR chassis socket, 3-pin Power consumption 18 W Supply voltage 100 – 240 V 50/60 Hz Battery remote control Lithium-ion button cell CR2025, 3 V LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 43 Dimensions (W × H × D) 260 mm × 210 mm × 68 mm Weight 1.8 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 44 Item no. 235358 Item no. 235359 Design Flat PAR Flat PAR Colour mixture LED type Uni-coloured Uni-coloured Floor housing Fanless Remote control optional optional Wireless DMX Housing colour black black LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 45: Plug And Connection Assignments

    XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 46: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 47 1. Try using the remote control at a different angle to the trol IR sensor on the front panel of the device. 2. Move the remote control closer to the unit. 3. Check the remote control battery. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 48 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...

  • Page 49: Cleaning

    Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 50 Protect used lithium batteries against short circuits, for example by covering the poles with adhesive tape. Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 51 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 52 Notes LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 53 Notes LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 54 Notes LED Flood Panel 150 20°, LED Flood Panel 150 40° LED Floodlight...
  • Page 56 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
