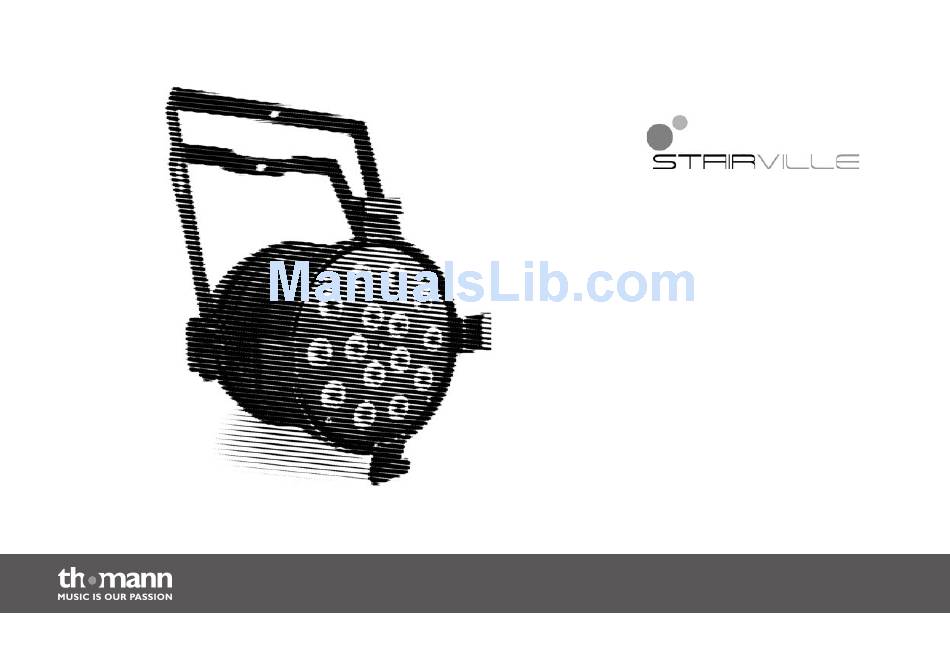

- Page 1 PAR64 CX-2 RGBAW LED PAR user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.12.2014, ID: 281408_281409 (V2)
-
Page 3: Table Of Contents
Starting up..............................19 Connections and controls........................22 Operating..............................25 7.1 Starting up the device........................25 7.2 Main menu............................25 7.3 Menu overview..........................32 7.4 Functions im 3-channel DMX mode..................33 7.5 Functions im 5-channel DMX mode..................34 PAR64 CX-2 RGBAW... - Page 4 Table of contents 7.6 Functions im 7-channel DMX mode..................35 7.7 Functions im 8-channel DMX mode..................36 Technical specifications........................37 Plug and connection assignments....................38 Troubleshooting............................39 Cleaning............................... 41 Protecting the environment......................42 LED PAR...
-
Page 5: General Notes
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. PAR64 CX-2 RGBAW... -
Page 6: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. PAR64 CX-2 RGBAW... - Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 9 General notes Warning signs Type of danger Warning – danger zone. PAR64 CX-2 RGBAW...
-
Page 10: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 11 Do not use the device if covers, protectors or optical components are missing or damaged. DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. PAR64 CX-2 RGBAW...
- Page 12 Safety instructions WARNING! Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not cover the device nor any ventilation slots.
- Page 13 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. PAR64 CX-2 RGBAW...
-
Page 14: Features
Features Features The CX series brings all-new colour creations in the line of LED lights. The multi-chip LEDs pro‐ vide an unprecedented colour mixing in all spectra. Pastel colours, vivid and vibrant colours and white shades can be displayed extremely accurately with the headlights of the CX series. Special features of the device: 10 ×... -
Page 15: Installation
Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. PAR64 CX-2 RGBAW... - Page 16 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 17 Work from a stable platform whenever you install or move the device or when you perform any kind of maintenance. Block access under the work area. The safety cable must be attached to the bracket. PAR64 CX-2 RGBAW...
- Page 18 Installation Please note that this device must not be connected to a dimmer. LED PAR...
-
Page 19: Starting Up
Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. PAR64 CX-2 RGBAW... - Page 20 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
- Page 21 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. PAR64 CX-2 RGBAW...
-
Page 22: Connections And Controls
Connections and controls Connections and controls Rear panel LED PAR... - Page 23 Confirms a selected value. 4, 5 button Increases / decreases the displayed value by one. 6 [M] button Calls the main menu or a submenu. 7 Bracket for floor placement or hanging. 8 Locking screws for the mounting bracket. PAR64 CX-2 RGBAW...
- Page 24 Connections and controls 9 [DMX IN] DMX input. 10 [DMX OUT] DMX output. LED PAR...
-
Page 25: Operating
Immediately after turning on, the device displays the main menu. Use the arrow keys to select the desired operating mode. Use the arrow keys to change the respectively displayed value. When the display shows the desired value, press [OK]. PAR64 CX-2 RGBAW... - Page 26 Operating DMX mode Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MODE’ . Press [OK]. Now use the arrow keys to select one of the following DMX operating modes: ‘3CH’...
- Page 27 To return to the parent menu without any changes, press [M]. Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the various DMX modes. Mode Highest possible DMX address 3-channel 5-channel 7-channel 8-channel PAR64 CX-2 RGBAW...
- Page 28 Operating Operating mode ‘Show/Master’ Press [M]. Press one of the arrow keys repeatedly until the display shows ‘LINE’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MA’ . Press [OK]. Now you can select one of the 42 preprogrammed automatic shows. Use the arrow keys to select a value between 1 and 42 (display shows ‘P-01’...
- Page 29 This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection, and then [M] to return to the parent menu. To return to the parent menu without any changes, press [M]. PAR64 CX-2 RGBAW...
- Page 30 Operating Manual test Press [M]. Press one of the arrow keys repeatedly until the display shows ‘TEST’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘RED’ , ‘GREE’ , ‘BLUE’ , ‘AMBE’ , ‘WHIT’ or ‘STRO’ . Press [OK]. Now you can adjust the brightness of the red, green, blue, amber- coloured or white LEDs, each in a range of 0 to 255, or select the flashing speed in a range of 0 to 24.
- Page 31 This setting is only relevant if the unit is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection and to return to the main menu. To return to the main menu without any changes, press [M]. PAR64 CX-2 RGBAW...
-
Page 32: Menu Overview
Operating 7.3 Menu overview LED PAR... -
Page 33: Functions Im 3-Channel Dmx Mode
Operating 7.4 Functions im 3-channel DMX mode Channel Value Function 0…007 Manual control 008…255 Fixed colour mixings (macros) 0…255 Dimmer (0 % to 100 %) Colouring 1…10 Sound control 11…255 Strobe effect PAR64 CX-2 RGBAW... -
Page 34: Functions Im 5-Channel Dmx Mode
Operating 7.5 Functions im 5-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity amber colour (0 % to 100 %), outer LED circle 0…255 Intensity white (0 % to 100 %), inner LED circle LED PAR... -
Page 35: Functions Im 7-Channel Dmx Mode
Intensity amber colour (0 % to 100 %), outer LED circle 0…255 Intensity white (0 % to 100 %), inner LED circle 0…255 Dimmer (0 % to 100 %) Manual control 1…10 Sound control 11…255 Strobe effect PAR64 CX-2 RGBAW... -
Page 36: Functions Im 8-Channel Dmx Mode
Operating 7.7 Functions im 8-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %), outer LED circle 0…255 Intensity green (0 % to 100 %), outer LED circle 0…255 Intensity blue (0 % to 100 %), outer LED circle 0…255 Intensity amber colour (0 % to 100 %), outer LED circle 0…255... -
Page 37: Technical Specifications
Number of DMX channels 3, 5, 7, 8 Mains power supply 230 V (AC), 50 Hz Power consumption 107 W Dimensions (W × H × D) 270 mm × 270 mm × 330 mm Weight 3,4 kg PAR64 CX-2 RGBAW... -
Page 38: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 39: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: PAR64 CX-2 RGBAW... - Page 40 Troubleshooting Symptom Remedy The unit does not work, no Check the mains connection and the fuse. light. No response to the DMX con‐ 1. Check the DMX ports and cables for proper connection. troller. 2. Check the address settings and the DMX polarity. 3.
-
Page 41: Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. PAR64 CX-2 RGBAW... -
Page 42: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 44 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
