Summary of Contents for Stairville DJ Lase Pro 1000 RGB
- Page 1 ‘ wner anual DJ l DJ l 1000 rGB...
-
Page 2: Table Of Contents
The device does not work, no light and the fan does not work ..........17 No response to the DMX controller ..................17 Cleaning ............................17 Technical data ...........................18 Protecting the environment .......................19 Disposal of the packaging material ..................19 Disposal of your old device ...................... 19 DJ Lase Pro 1000 RGB... -
Page 3: General Notes On Safety
General notes on safety Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in elec- tric shock, fire or serious injury. Save all warnings and instructions for future reference. DANGER Electric shock caused by high voltages inside! Within the unit there are areas where high voltages may be present. -
Page 4: Laser Safety
Laser radiation – fire hazard! Keep the laser area free of flammable objects. Intended use This device has been designed for show applications only. Any compensation claims caused by inappropriate or unintended use are always excluded. DJ Lase Pro 1000 RGB... -
Page 5: Installation
Installation DANGER Laser radiation! During installation follow the instructions specified in section “Laser safety” on page 4. DANGER When using additional components! Additional components can cause dangerous laser beam diffusion when they are not properly connected. Notice Safety switch required! We strongly recommend to install a remote manual safety switch to the device. -
Page 6: Ilda Connectors
A female 3-pin XLR connector is used for the DMX output, a male 3-pin XLR connector for the DMX input. The figure below and the following table show the pin assignment. Ground DMX data (–) DMX data (+) DJ Lase Pro 1000 RGB... -
Page 7: Setup
Setup DANGER Laser radiation! During setup follow the instructions specified in section “Laser safety” on page 4. The required connections depend on the operation mode of the device. Notice Malfunction or damage to equipment! For failure-free operation of the DMX chain, use dedicated DMX cables. Never use ordinary microphone cables. -

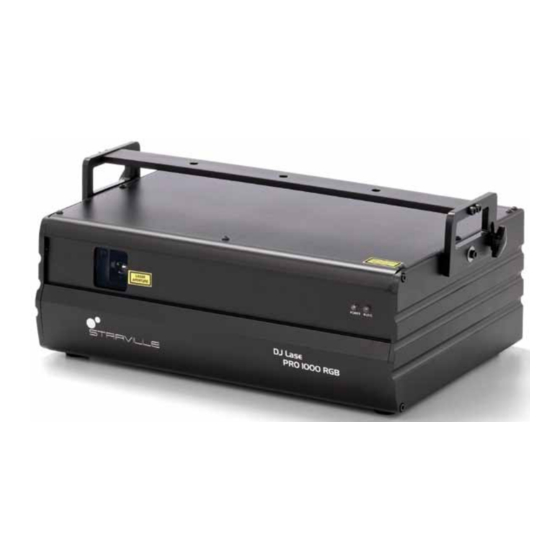

Page 8: Components And Functions
LASER APERTURE DJ Lase PRO 1000 RGB POWER: Shows that the device is turned on ö MUSIC: Shows that a sound or music signal is being detected Laser aperture Hanging bracket Bracket adjustment knobs & DJ Lase Pro 1000 RGB... -
Page 9: Rear Side
Rear side LCD MONITOR COOLING FAN OUTPUT: KEEP THE OUTPUT FREE !!! SAFETY EYE ATTACH SAFETY LOCK REMOTE CABLE HERE FUNC DOWN ENTER MUSIC ILDA THROUGH OUTPUT INPUT X-Size Y-Size ILDA INPUT COOLING FAN INPUT: RISK OF ELECTRIC SHOCK CLEAN THE FILTER REGULARLY AND DON'T USE WITHOUT FILTER!!! DISCONNECT INPUT POWER BEFORE OPENING SERIAL N°. -
Page 10: Operation Panel
X-Size: Controls the horizontal size of the laser output MUSIC: Controls the microphone sensitivity FUNC: Opens the main menu UP: Increases the displayed value by one DOWN: Decreases the displayed value by one < ENTER: Chooses between the options of the selected mode DJ Lase Pro 1000 RGB... -
Page 11: Operation
Operation Start the device Perform the following steps to start the operation: 1. Verify that all required laser safety precautions have been taken. Make sure that there is no one in the reach of the laser beam. 2. Insert the safety key (7) and turn it to the “OFF” position. 3. -
Page 12: Settings Mode
The following image shows the contents of the file “ANIMA.PRG”. That pre-programmed show calls the ILD files “ANIMA1.ILD”, “ANIMA2.ILD”, “ANIMA3.ILD”. The first number after the file name indicates the scanner speed to be used, the second number indicates how often the ILD file should be repeated. ANIMA.PRG: ANIMA1.ild,12,3 ANIMA2.ild,20,1 ANIMA3.ild,18,4 DJ Lase Pro 1000 RGB... -
Page 13: Menu Diagram
Menu diagram MODE: MODE: MODE: MODE: AUTO SHOW 1 AUTO SHOW 2 MUSIC SHOW 1 MUSIC SHOW 2 MODE:SD SHOW MODE: MODE: dir: ILD SHOW MODE: MODE: PRG SHOW MODE: MODE: signal MODE: signal DMX ADD:001 DMX ADD:512 MODE: signal SLAVE MODE: SETTING MODE: SETTING... -
Page 14: Functions In Dmx Mode
No rotation 11…110 Fixed X axis position 111…255 Rolling effect, speed increasing Z axis rotation (rolling) No rolling 1…180 Fixed Z axis position 181…217 Clockwise rolling effect, speed increasing 218…255 Anti-clockwise rolling effect, speed increasing DJ Lase Pro 1000 RGB... - Page 15 Channel Value Function Clipping effect 0…10 Original pattern, no clipping effect 11…74 Fixed clipping, size of clipped pieces increasing 75…104 Clipping-out effect, speed increasing, sequence: dark → paint pattern clockwise → dark 105…144 Clipping-in effect, speed increasing, sequence: full pattern → clip pattern anti-clockwise → full pattern 145…184 Clipping-in and clipping-out effect, speed increasing, sequence: dark →...
-
Page 16: Pattern List
Pattern list DJ Lase Pro 1000 RGB... -
Page 17: Troubleshooting
Troubleshooting DANGER Laser radiation! During troubleshooting follow the instructions specified in section “Laser safety” on page 4. DANGER Laser radiation inside! Only qualified personnel may carry out service activities when the covers of the device are open. DANGER Laser radiation! Suitable laser protection glasses are required for any activities at the device. -
Page 18: Technical Data
5 mm × 20 mm, 1.6 A, 250 V, slow characteristic Dimensions (W × D × H) 515 mm × 358 mm × 204 mm (20.3 in. × 14.1 in. × 8.0 in.) Weight 12 kg (26.5 lbs) DJ Lase Pro 1000 RGB... -
Page 19: Protecting The Environment
Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed and are not in the reach of babies and young children. - Page 20 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
