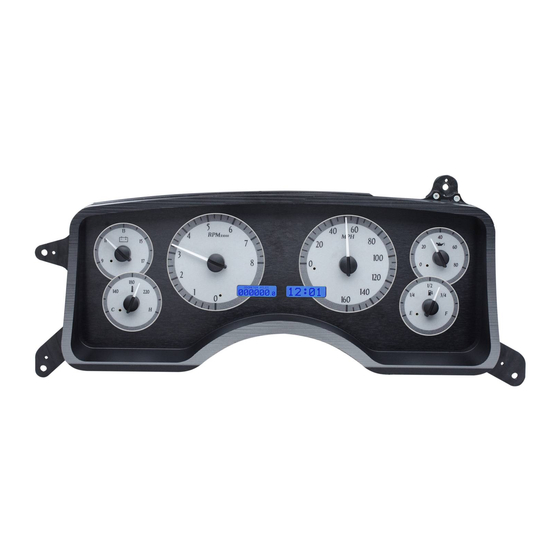

VHX-90F-MUS
Dakota Digital VHX Instrument Installation
For 1990-'93 Ford Mustang

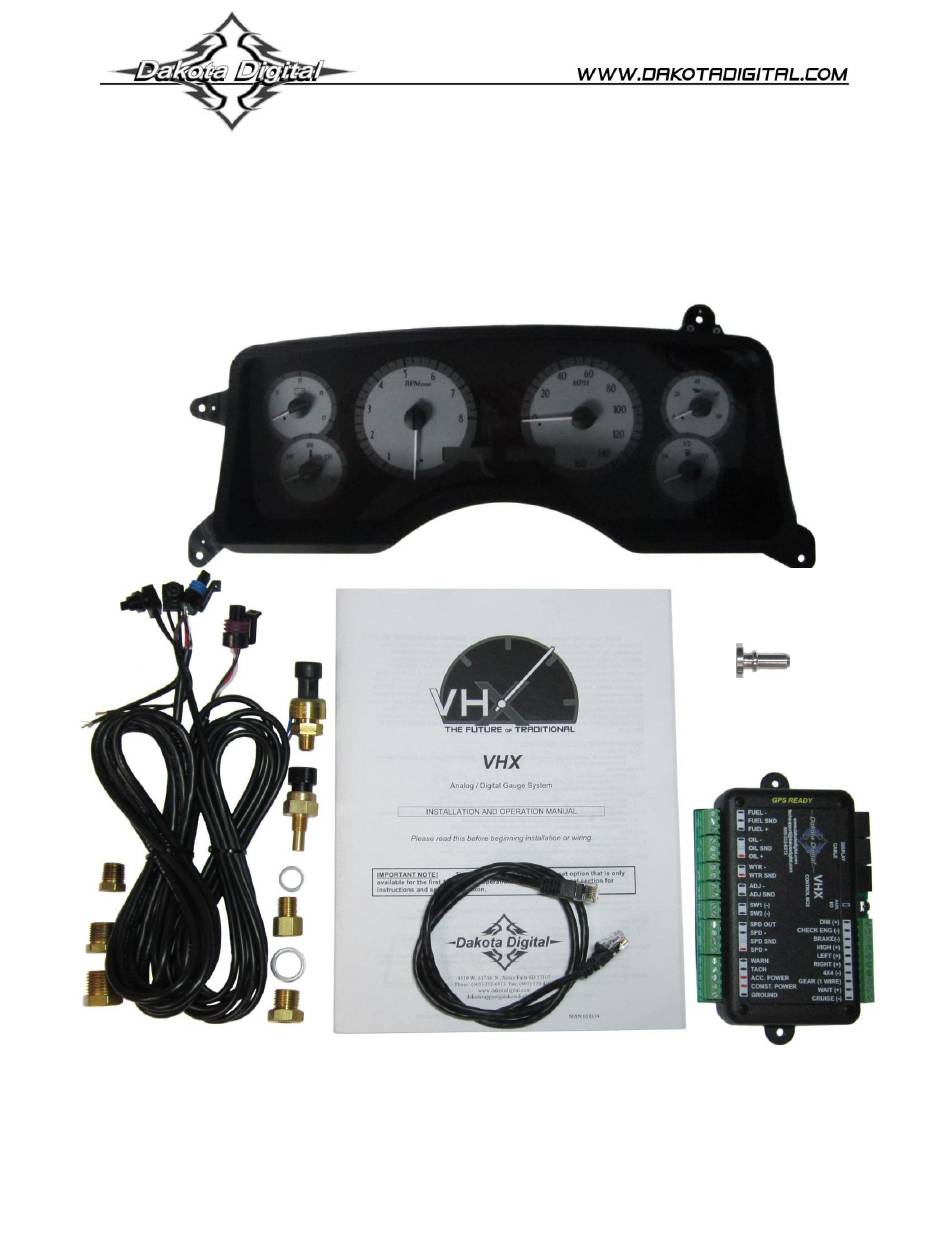

Your new VHX-90F-MUS kit includes:
VHX Display
Installation Manuals
Ford Speed
Sensor Plug
Control Box
(1) 36" CAT5 Cable
Universal Sender Pack
Manual # 650475A
Advertisement
Table of Contents
Related Manuals for Dakota Digital VHX-90F-MUS
Summary of Contents for Dakota Digital VHX-90F-MUS
- Page 1 VHX-90F-MUS Dakota Digital VHX Instrument Installation For 1990-’93 Ford Mustang Your new VHX-90F-MUS kit includes: VHX Display Installation Manuals Ford Speed Sensor Plug Control Box (1) 36” CAT5 Cable Universal Sender Pack Manual # 650475A...
- Page 2 Installation 1. Remove the stock gauge bezel from the dash and save all hardware for reassembly. 2. Remove the stock gauge cluster by removing the four screws holding the system to the dash structure; be sure to keep these screws as they will be re-used. Now is a good time to clean the bezel and dash pads.
- Page 3 4. Refer to the main manual for wiring instructions to complete the VHX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650475A...
