W/ CURRENT SENSING AUTO REVERSE
Switch 1
(safety disable, page 3 for more detail)
ON
-
Disables preset buttons and external presets when key is ON
OFF -
Buttons work the entire time key ON/OFF
Note: the external manual UP/DOWN will work all of the time
Switch 2
(auto move feature, page 3 for more detail)
ON
OFF
Switch 3
(auto reverse sensitivity, page 3 for more detail)
ON
OFF
Switch 4
(auto reverse enable, page 3 for more detail)
SW4 ON
SW4 OFF
Switch 5
Switch 6

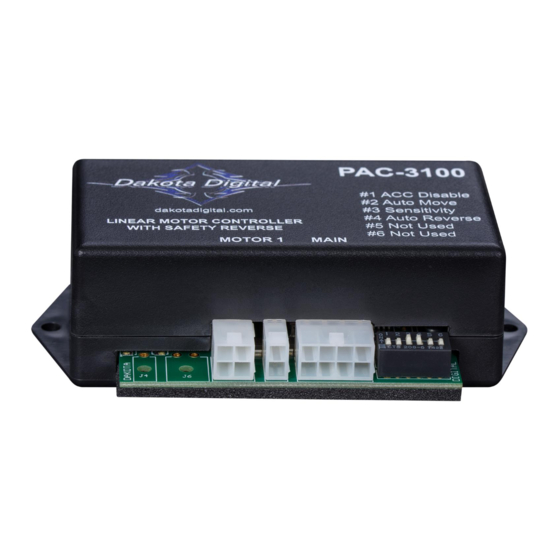

PAC-3100
LINEAR MOTOR CONTROLLER
-
Enable auto move: when key ON move to position 1
-
Disable auto move feature
-
High sensitivity
-
Low sensitivity
-
Auto reverse enabled
-
Auto reverse disabled
-
NOT USED
-
NOT USED
when key OFF move to position 2
MAN#650128
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital PAC-3100
Summary of Contents for Dakota Digital PAC-3100
- Page 1 PAC-3100 LINEAR MOTOR CONTROLLER W/ CURRENT SENSING AUTO REVERSE Switch 1 (safety disable, page 3 for more detail) Disables preset buttons and external presets when key is ON OFF - Buttons work the entire time key ON/OFF Note: the external manual UP/DOWN will work all of the time...
- Page 2 Features The PAC-3100 is designed to control a single linear actuator/motor. It is intended to be used to lift trunk lids and toppers/tanneau covers. The PAC-3100 has many convenient features which include: Three user programmable heights Stylish, lighted push button control ...
- Page 3 Safety Disable (SWITCH 1) The safety disable feature will only allow the system to operate when the key is off. For proper operation the yellow wire should be connected to a keyed +12 V source, or ignition terminal. Turn switch 1 ON to enable safety feature ...
- Page 4 Hooking one side of a push button switch to the momentary up/down wire of the PAC-3100 and the other side to ground will allow the linear actuators to move as long as the push button is held. This can be use as an emergency open feature by mounting a push button switch outside the vehicle and connecting it to the Manual up (white/red) wire.
- Page 5 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
