6. Mounting the ArcSource Submersible II into the wallmount
installation sleeve

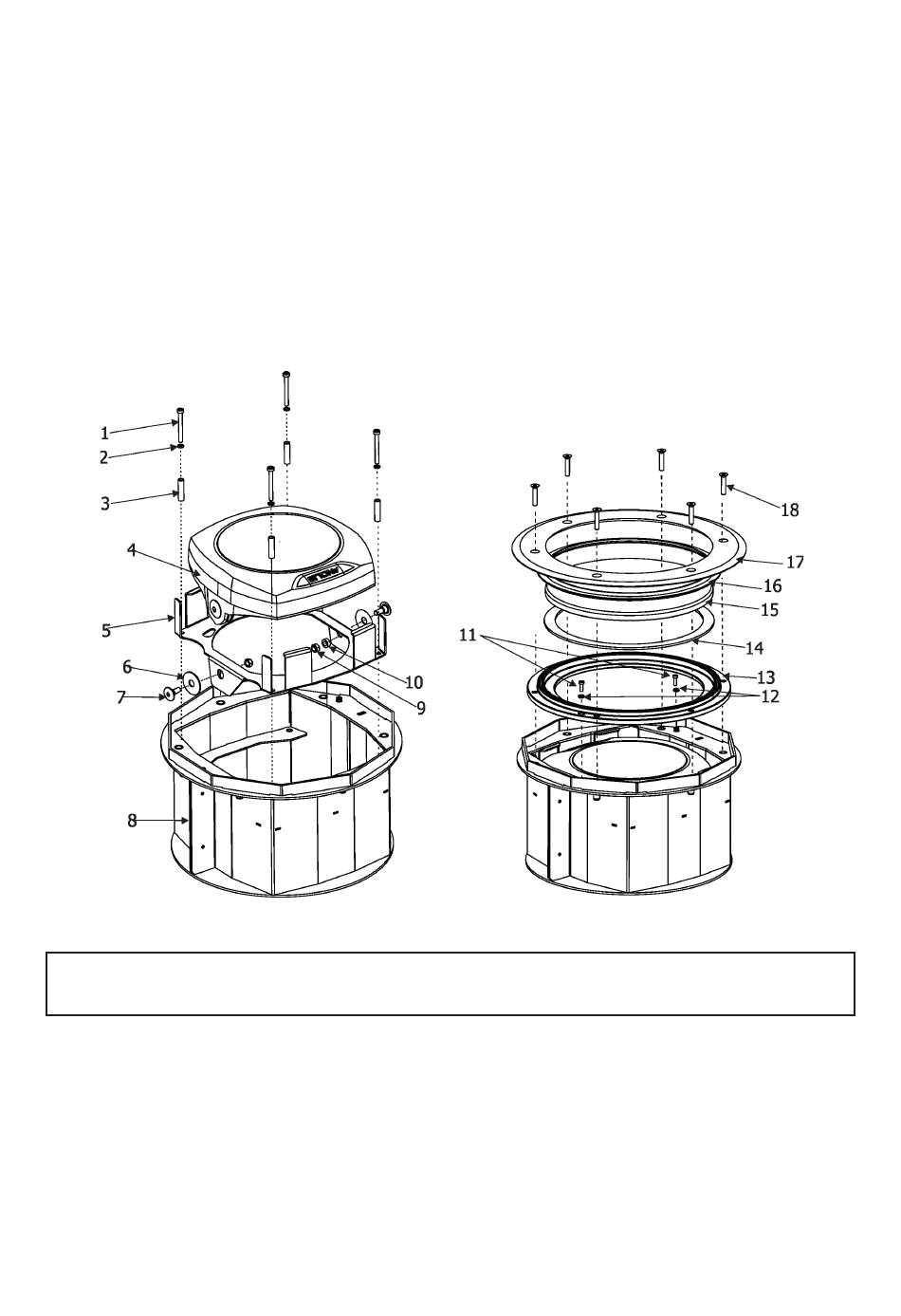

1. Unscrew the bracket from the ArcSource Submersible II.
2. Insert the ArcSource Submersible II (4) into chassis (5) and fasten it on both sides it by means of two
bolts (7) with rubber washers (6), 6 mm long spacers ( 10) and nuts M8 (9). These parts (6,7,9,10) are
components of the wallmount installation sleeve (8).
3. Insert Allen bolts M5x45 (1) with spring washers (2) to the 30mm spacers (3) and used them to screw
the chassis (5) to the installation sleeve (8) (before inserting chassis, pull the ArcSource Submersible II´s
cable through the aperture in the wallmount installation sleeve.
4. Screw the metal collar (13) to the chassis (5) with two Allen keys M4x12 (11) and washers (12).
5. Insert the flat rubber gasket (14) into metal collar (13).
6. Put the glass (15) on the rubber gasket (14).
7. Put the shaped rubber gasket (16) on the glass (15).
8. Screw the top metal flange (17) by means of the six flat head screws M6x30 (18) to the wallmount installation
sleeve.
9. Connect the ArcSource Submersible II to the SubDrive 1 (SubDrive 4).

7. Cleaning and maintenance

Disconnect from the mains before starting any maintenance work
Maintenance and service operations are only to be carried out by a qualified person.
Should you need any spare parts, please use genuine parts.
