Summary of Contents for Robe ANOLIS Eminere Remote 1

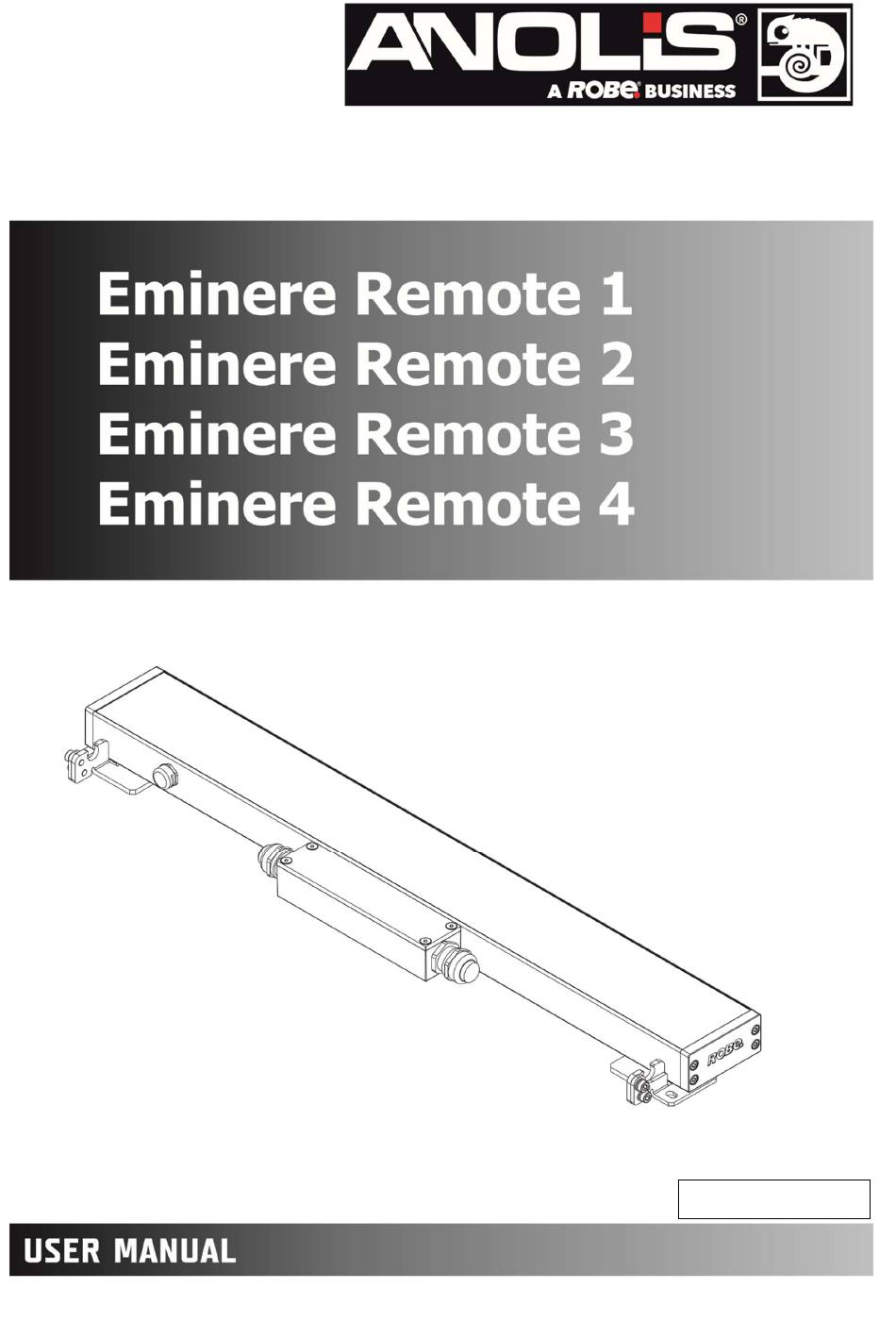

- Page 1 Version 1.4...
-
Page 2: Table Of Contents
Eminere Remote Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to driver ............................. 5 3.3 Wiring of the junction box ............................ 7 4. -
Page 3: Safety Instructions
Eminere Remote FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Eminere Remote ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. -
Page 4: Fixture Exterior View
Eminere Remote Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons! Please use the original packaging if the fixture is to be transported. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 5: Installation
Eminere Remote 3. Installation 3.1 Mounting the fixture The Eminere Remote can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5) which can be tilted by 30°. 3.2 Connection to driver The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. - Page 6 Eminere Remote The table below states max. number of Eminere Remote modules connected to the E-box Remote/E-box Remote Basic. Max. number of Emineres Remote connected to the E-box Remote/E-box Remote Basic Cable length * Eminere Eminere Eminere Eminere Remote 1 Remote 2 Remote 3 Remote 4...
-
Page 7: Wiring Of The Junction Box
Eminere Remote 3.3 Wiring of the junction box 1. Unscrew the four screws (9) on the cover (8) of the junction box (7), remove the cover (8) and the gasket (10). 2. Remove the end cap (11) from cable glands before passing cables throw cable glands M20 (3,6). The cable glands M20x1.5 can be used for cables of a diameter of 7-13mm. - Page 8 Eminere Remote US version Connector Function LEDs + Data + Data - LEDs - Ground Colour of wire Orange Black White Green Note for E-box Remote Basic. If the Emineres Remote are connected to the LED output of the E-box Remote Basic, the last Eminere Remote has to be terminated by a terminator.
- Page 9 Eminere Remote To keep declared IP rating of the fixture, every cable gland has to be covered with the end cap (11) if the cable gland is not used for cable passing. We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the body of gland (if the cable gland was screwed out).
-
Page 10: Technical Specifications
Eminere Remote 4. Technical specifications Power supply • Input voltage: 48 V • Power consumption: Eminere Remote 1: 20W Eminere Remote 2: 40W Eminere Remote 3: 60W Eminere Remote 4: 80W Optic • Light source: Eminere Remote 1: 12 x high power LEDs Eminere Remote 2: 24 x high power LEDs Eminere Remote 3: 36 x high power LEDs Eminere Remote 4: 48 x high power LEDs... - Page 11 Eminere Remote Dimensions (All dimensions in mm [inch]) Eminere Remote 1 Eminere Remote 2/3/4...
-
Page 12: Cleaning And Maintenance
Rinse it. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use ROBE OEM parts. 5.1 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local... -
Page 13: Changelog
Eminere Remote 6. ChangeLog This section summarizes changes in the user manual. Version of Date of issue Description of changes the manual 08/10/2021 Technical specification changed 26/11/2021 Optional accessories changed 01/12/2021 Information about 120 Ohm terminator added 12/01/2021 Procedure Wiring junction box changed Specifications are subject to change without notice. - Page 14 Eminere Remote Copyright © 2020-2022 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
