Summary of Contents for Robe Anolis UVinere 2

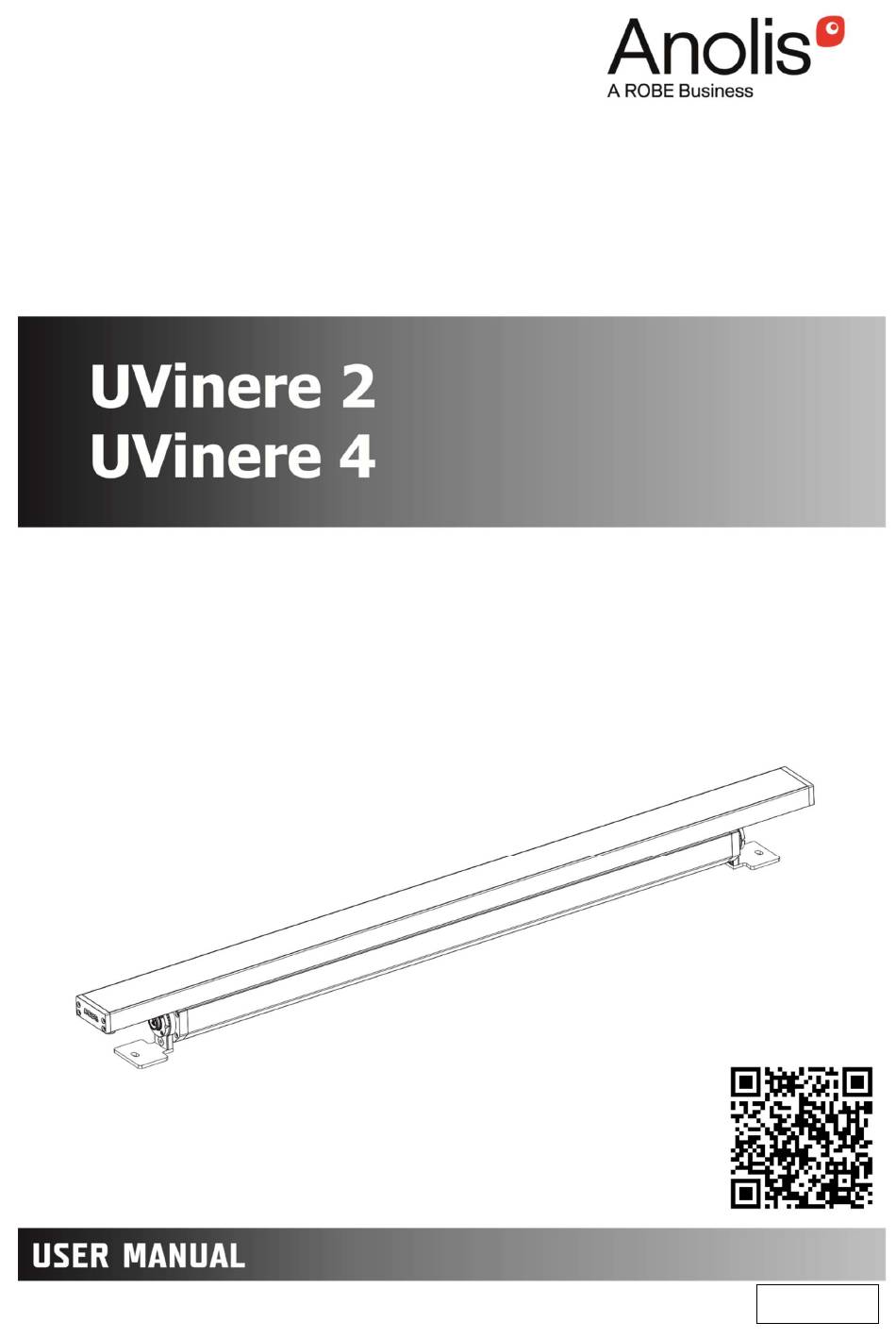

- Page 1 QR code for user manual Version 1.3...
-
Page 2: Table Of Contents
UVinere Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 6 3.3 The Booster box ..............................9 3.4 The Booster box installation ..........................10 3.5 Jumper cable assembling ............................ -
Page 3: Safety Instructions
UVinere FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR UVinere ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 UVinere DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT! This fixture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company. Always disconnect the fixture from AC power before cleaning, servicing or installing.
-
Page 5: Fixture Exterior View
UVinere 2. Fixture exterior view 1. Transparent glass cover 2. LED module 3. Output connector 4. Input connector 5. Mounting brackets 6. Aluminium base 3. Installation 3.1 Mounting the fixture The UVinere can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5). -
Page 6: Connection To Mains
UVinere 3.2 Connection to mains The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. This device falls under class one and must be grounded! The UVinere is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 120-277 Volts. - Page 7 UVinere E-box Daisy E-box Star E-box Lite Number of connected Emineres UV to one E-box output depends on a cable length, power voltage, type of UVinere and E-box and operation mode.
- Page 8 UVinere The tables below state max. theoretical number of Emineres UV connected to the one LED output of the E-box without Booster boxes. The following tables apply for the Standard mode of E-boxes. UVINERE 2 Voltage Cable length * 120V 190V 230V 277V...
-
Page 9: The Booster Box
UVinere 3.3 The Booster box To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of Emineres UV at every LED output of the E-box. The following tables give numbers of Emineres UV after which the Booster box has to be installed in the chain of Emineres UV (at one LED output of the E-box). -
Page 10: The Booster Box Installation
UVinere Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=UVinere 2 The Booster box has to be connected after every 45th UVinere 2 (fixture 45 and fixture 90) from 94 fixtures. 3.4 The Booster box installation ALWAYS DISCONNECT THE UVINERES FROM MAINS BEFORE CONNECTING/DISCONNECTING THE BOOSTER BOX. - Page 11 UVinere Power connection (earth) Core (EU) Braun Blue Green/yellow Core (US) Black White Green We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the gland body.
-
Page 12: Jumper Cable Assembling
UVinere 3.5 Jumper cable assembling 1. Dismantle the connector and slide its parts onto the cable (6). Use the seal with inner diameter of 14.5 mm for the Anolis cable (P/N 13053138 or P/N 13053139). The seal with inner diameter of 14.5 mm serves for cable of diameter 10-14.5mm. The seal with inner diameter of 10 mm serves for cable of diameter 8-10mm. - Page 13 UVinere US version 4. Put parts of the connector on the cable (6) and connect wires to the connector. First connect power wires (L,N, Earth) and after that data wires (D+, D-, 0V). Avoid excessive torsion of data wires! CE version Male Female US version...
- Page 14 UVinere 5. After connecting wires to the connector, tighten the three data wires (D+,D-, 0V) by means of the cable binder (7). 6. Screw the clamp ring (3) to the connector (1), insert the seal (4) to the clamp ring (3) and tighten the sealing nut (5) enough.
-
Page 15: Software Update
Emineres UV including the E-box: 1. Set the E-box to the Standard mode and switch it off/on. Only E-box will be shown in the ROBE Uploader. You have to use the file EminereEbox.lib in the ROBE Uploader for software update of the E-box and connected LED modules. -
Page 16: Technical Specifications
UVinere 5. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50/60 Hz • Power consumption: UVinere 2: 45W UVinere 4: 85W • Inrush current: UVinere 2: <70A/250µs UVinere 4: <100A/200µs Optic • Light source: UVinere 2: 16 x UV LEDs UVinere 4: 32 x UV LEDs •... - Page 17 UVinere Sizes • UVinere 2 (600mm / 2ft) • UVinere 4 (1200mm / 4ft) Housing • Aluminium extruded body with die-casted end caps • Tempered glass Cooling system • Convection Total heat dissipation • UVinere 2: 113 BTU/h (calculated) • UVinere 4: 214 BTU/h (calculated) Protection factor •...
- Page 18 UVinere Dimensions (All dimensions in mm [inch])
- Page 19 UVinere • Booster box Included items • 1 x UVinere • 1 x User manual Optional accessories CE Leader Cables FF: Leader Cable FF 2m (P/N 13053005) Leader Cable FF 5m (P/N 13053006) Leader Cable FF 10m (P/N 13053007) Leader Cable FF 25m (P/N 13053008) Leader Cable FF 50m (P/N 13053009) US Leader Cables FF: Leader Cable FF 2m (P/N 13053010)
-
Page 20: Cleaning And Maintenance
Rinse it. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use ROBE OEM parts. 6.1 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local... -
Page 21: Changelog
Eminere UV update added 18/01/2023 Device renamed to UVinere Specifications are subject to change without notice. January 18, 2023 Copyright © 2019-2023 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici... - Page 22 (21-1800K, 66-2700K, 91-3200K,141-4200K, 211-5600K, 255- 6500K) Dimmer 0 - 255 Light intensity coarse (0-100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 1...
- Page 23 Dimmer 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 2...
- Page 24 DMX protocol DMX protocol for: Eminere 1/2/3/4; Eminere Side 1/2/3/4; Eminere Inground 2/4; Eminere Remote 1/2/3/4; Version: 3.1 (23 modes in total) Mode/Channels in all Mode 16: RGBW(A) pixels, Mode 17 RGB pixels, Mode 18: TW pixels, 21-23 Mode 19- PW dimmer pixels Reserved Pixel modes Mode/channels...
- Page 25 Dimmer 4 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 4 0 - 255 Light intensity fine proportional Copyright © 2022 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
