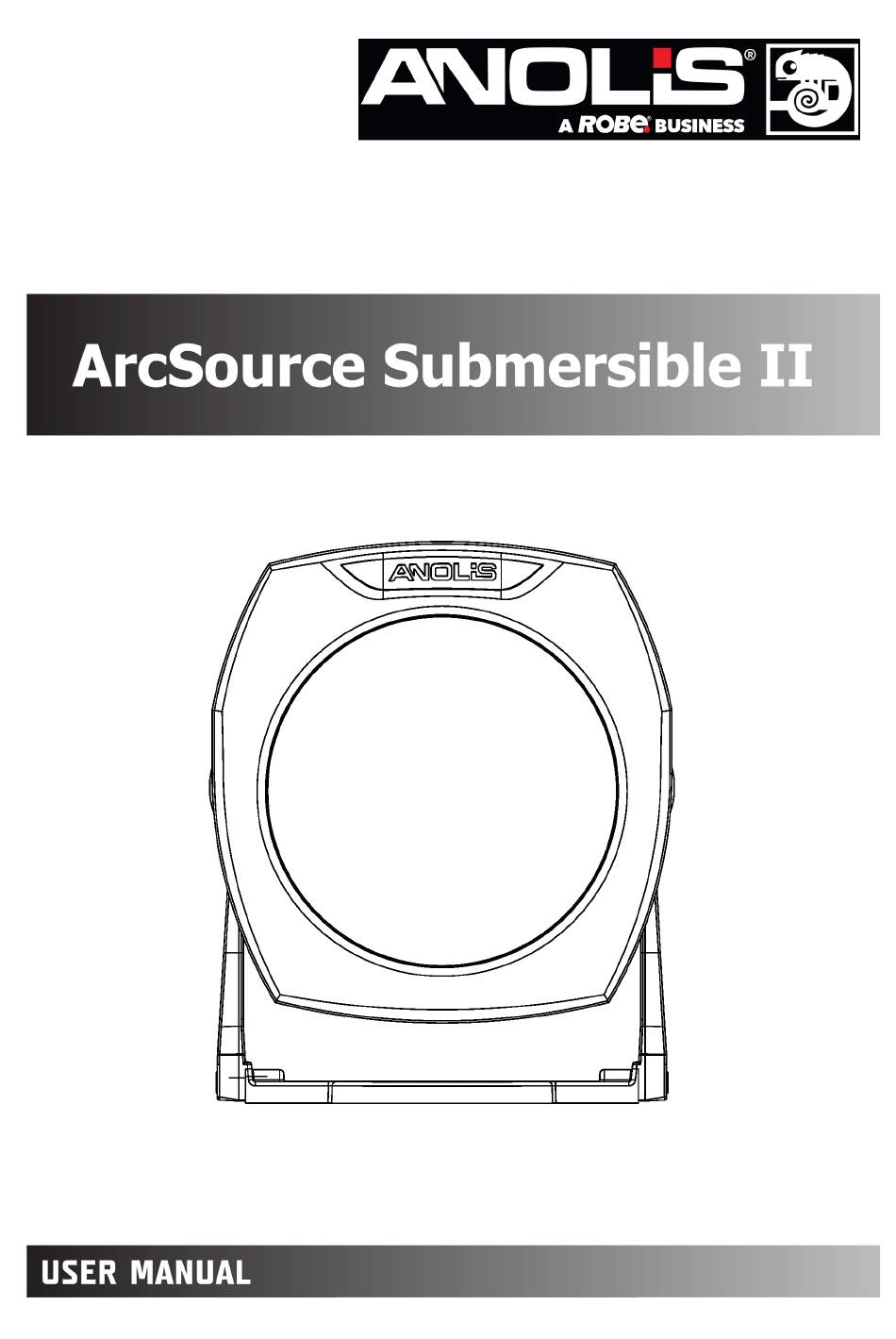

- Page 1 Version 1.4...
- Page 2 ArcSource Submersible II Table of contents 1. Introduction ........................3 2. Safety information ......................3 3. Mounting ......................... 3 4. ArcSource Submersible II connection with a control unit .......... 4 5. Technical specifications ....................5 6. Mounting the ArcSource Submersible II into the installation sleeve ......7 7.

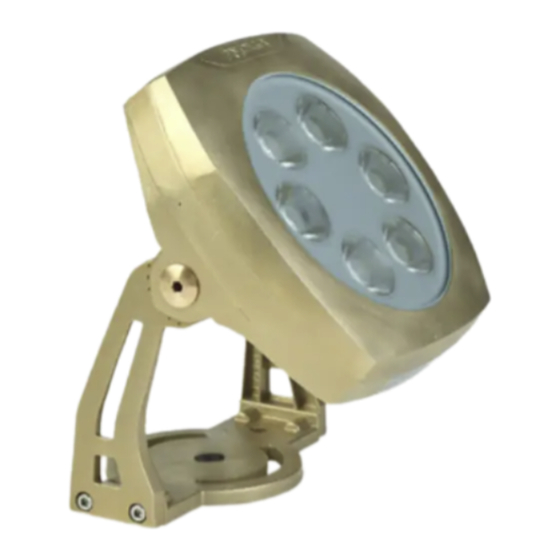

- Page 3 1. Introduction The ArcSource Submersible II has a housing crafted from the highest quality marine grade bronze meaning its is capable to withstand the very harshest environmental conditions. The ArcSource Submersible II can easily operate constantly submersed up to 10 m and offers more than 10 different beam options for positioning free- dom.
- Page 4 Wiring of the ArcSource Submersible II: Wire Red wire Blue wire Orange wire Function +24V Ground Communication 4. ArcSource Submersible II connection with a control unit Maximum cable length between the ArcSource Submersible II and the SubDrive 1 (Subdrive 4) depends on the operating mode: Minimum mode: 100 m Medium mode: 50 m Maximum mode: 25 m...
- Page 5 5. Technical specifications ELECTRICAL Input voltage :24 V DC Typical Power Consumption: 35 W (@ 350 mA), 70 W (@ 700 mA), 100 W (@ 1000 mA) Max. Input Current: 1000 mA (max. per channel) OPTICAL Light Source: 6 x 15 W Multichip LED Colour Variants: RGBW (W - 6500 K), RGBA, PW (W - 3000 K) Beam Angle: Symmetrical: 7°, 13°, 20°, 30°, 40°, 60°, 90°...
- Page 6 DIMENSIONS mm [inch] ArcSource Submersible II Installation sleeve...
- Page 7 Should you need any spare parts, please use genuine parts. June 14, 2021 Copyright © 2021 Robe Lighting - All rights reserved All Specifications subject to change without notice Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
