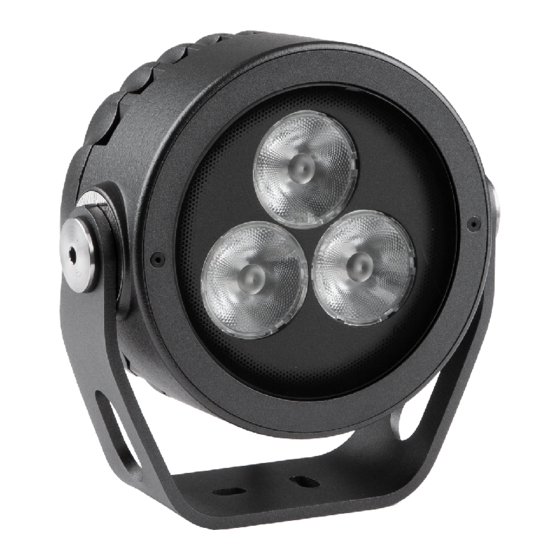

Robe Anolis Calumma S MC User Manual
Hide thumbs Also See for Anolis Calumma S MC:

Advertisement

Quick Links

QR code for user manual
Version 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anolis Calumma S MC and is the answer not in the manual?

Questions and answers

Summary of Contents for Robe Anolis Calumma S MC

  • Page 1 QR code for user manual Version 1.6...
  • Page 2: Table Of Contents

    Calumma S Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 8 4. Control and connection options ..........................10 4.1 DMX or DALI................................ 10 4.2 Power On/Off ..............................
  • Page 3: Safety Instructions

    Calumma S FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Calumma ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual.
  • Page 4 Calumma S Please use the original packaging if the fixture is to be transported. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock etc.
  • Page 5: Fixture Exterior View

    Calumma S 2. Fixture exterior view 1. Transparent glass cover 2. Mounting yoke 3. Tilt adjusting lock 4. LED module with heat sink 3. Installation 3.1 Mounting the fixture The Calumma S can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2).
  • Page 6 Calumma S Mounting the fixture via the pole clamp adaptor The pole clamp adaptor serves as a fastening element for Calumma S on a pole of diameter of 76-116mm or on the flat pole. The Calumma S has to be equipped with a modified mounting yoke (P/N 11418772 ) intended for this way of installation.
  • Page 7 Calumma S 3. Screw the pole clamp adaptor (4) on the pole by means of two screws (5) with spring washers or use a steel clamping tape for fastening the pole clamp adaptor on the pole. In case of screwing the pole clamp adaptor (7) on a flat surface (pole), two pole spacers have to be inserted under two mounting holes of the pole clamp adaptor (on fastening screws (5)) to fill up space between the pole and the pole clamp adaptor 4.
  • Page 8: Connection To Mains

    Calumma S 3.2 Connection to mains The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. This device falls under class one and must be grounded! The Calumma is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 120-277 Volts.
  • Page 9 Calumma S Cable gland M20x1.5: 4. Screw the cover (2) back on the junction box.
  • Page 10: Control And Connection Options

    Calumma S 4. Control and connection options 4.1 DMX or DALI Example DMX connection (CE) IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and connection among junction boxes: Core Connection Core...
  • Page 11: Dmx Or Ethernet Via E-Box

    Calumma S 4.3 DMX or Ethernet via E-box Example with junction boxes Pass Through mode is intended for this connection. Max. 32 fixtures can be connected to one LED output of the E- Box (Star, Daisy, Lite) in this mode. CE version IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and connection among junction boxes:...
  • Page 12 Calumma S US version IF the 6-cored cable SJTW 6x 14AWG, (P/N 1305 3480) is used for Calumma connection and connection among junction boxes: Core Connection Core Connection Black Live (L) Data + (+) White Neutral (N) Orange Data – (-) Yellow/Green Blue Data ground (0V)
  • Page 13: Software Update

    5. Software update Software update of Calumma S modules has to be done by means of the software ROBE Uploader running on PC. The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches Calummas S to the update mode automatically.
  • Page 14 Calumma S 2. By means of the Ethernet connection. Connection via junction boxes. DMX connection For updating of Calumma modules, use the file Calumma.lib.
  • Page 15: Technical Specifications

    Calumma S 6. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50/60 Hz • Power consumption: Calumma S MC: 30 W Calumma S SC: 30 W • Inrush current: Calumma S MC: 60A/230VAC, 30A/115VAC Calumma S SC: 60A/230VAC, 30A/115VAC Optic •...
  • Page 16 Calumma S Mounting method • Via yoke • Adjustability: -180°/+180° Housing • High pressure die-cast aluminium body • Tempered glass Cooling system • Convection Total heat dissipation • Calumma S MC: 77 BTU/h (calculated) • Calumma S SC: 77 BTU/h (calculated) Protection factor •...
  • Page 17 Calumma S Interconnecting cables: SJTW 6x 14AWG ,(P/N 1305 3480) Junction box (P/N 1098 0714) Weight • Calumma S SC: 3.44 kg (7.6 lbs) • Calumma S MC: 3.68 kg (8.11 lbs) Dimensions (All dimensions in mm [inch])
  • Page 18 Calumma S Calumma S with Pole clamp adaptor Pole clamp adaptor for Calumma...
  • Page 19 Calumma S Junction box Included items • 1 x Calumma S MC / Calumma S SC • 1 x User manual Optional accessories Junction Box for Calumma, 1x Output, Ral 9006 (P/N 10980757) Junction Box for Calumma, 1x Output, Ral 9011 (P/N 10980714) Top Hat Calumma S RAL9011 (P/N 10980733) Half Top Hat Calumma S RAL9011 (P/N 10980737)
  • Page 20: Cleaning And Maintenance

    Power ON/Off connection description changed 17/03/2023 EMC notes added Specifications are subject to change without notice. March 16, 2023 Copyright © 2022-2023 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
  • Page 21 DMX protocol DMX protocol for Calumma - All sizes - MC and SC Version: 1.2 (16 modes in total) Mode/Channels in all Mode 1- RGBW(A)-8bit, Mode 2- RGB 8-bit, Mode 3- full RGBW(A) 8-10 Mode 4- White-full control, Mode 5- Reduced RGBW(A) Reserved Mode 6- Reduced RGBW(A)+white control RGBW/RGBA/RGB modes...
  • Page 22 DMX protocol Mode/channels Function DMX Value Type of control White 4200 K step 9-10 White 5600 K step 11-12 White 6500 K step Blue (Blue=full, Red+Green+White/Amber=0) step 14-23 proportional Red=0, Green->up,Blue =full, White/Amber=0 step Cyan (Red=0, Green=full, Blue =full, White/Amber=0) 25-34 Red=0, Green=full, Blue->down, White/Amber=0 proportional...
  • Page 23 224-255 Shutter open step Dimmer 0 - 255 Light intensity coarse (0-100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 3...
  • Page 24 Dimmer 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
