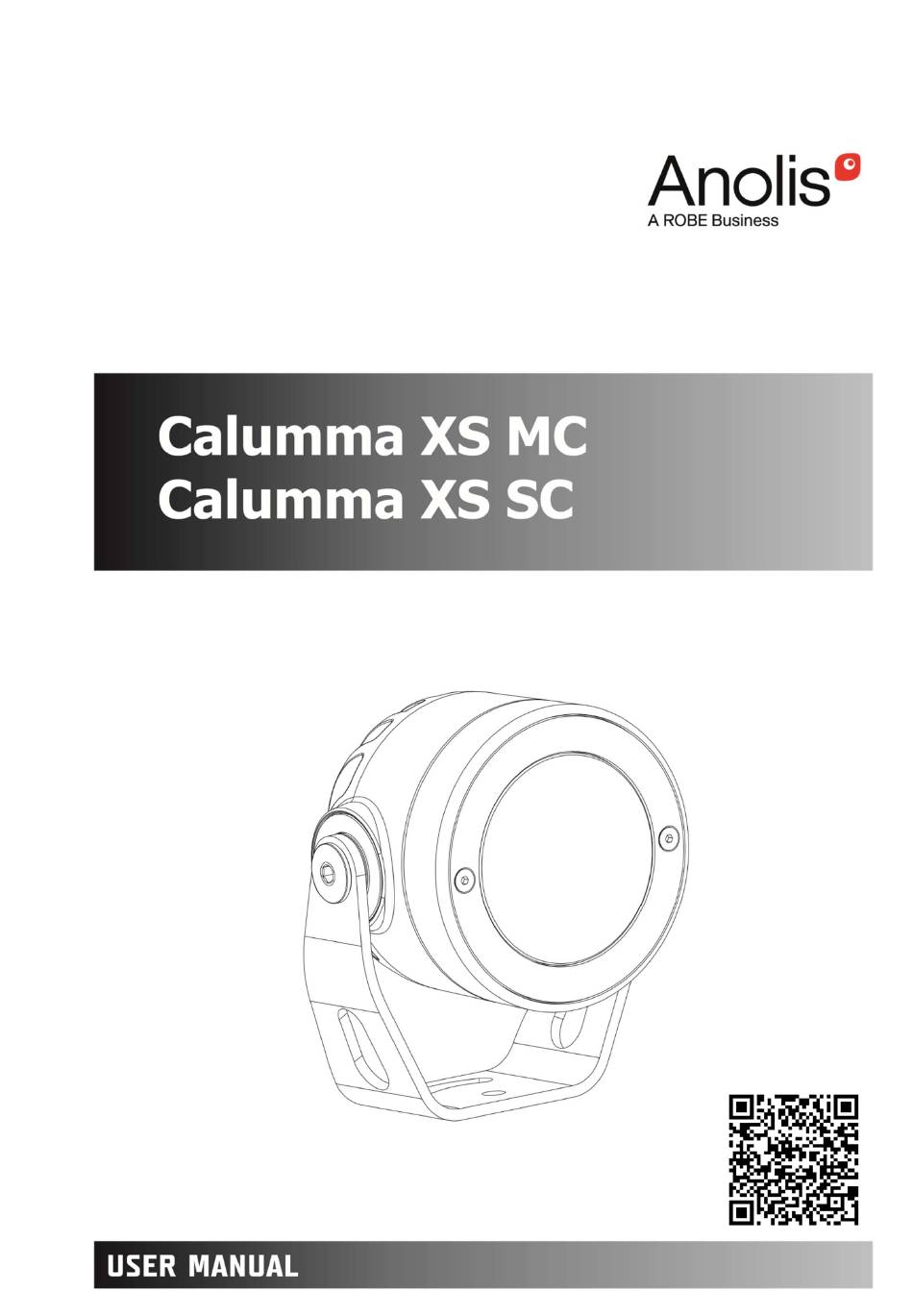

- Page 1 QR code for user manual Version 1.8...
-
Page 2: Table Of Contents
Calumma XS Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Control and connection .............................. 5 4. Installation .................................. 8 4.1 Mounting the fixture ............................8 4.2 Connection to power ............................9 5. Software update ............................... 14 6. -
Page 3: Safety Instructions
Calumma XS FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Calumma ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 Calumma XS If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock etc. The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
-
Page 5: Fixture Exterior View

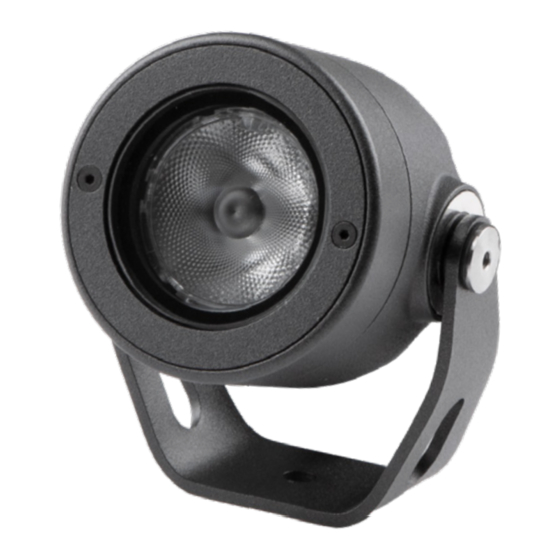

Calumma XS 2. Fixture exterior view 1. Transparent glass cover 2. Mounting yoke 3. Tilt adjusting lock 4. LED module with heat sink 3. Control and connection The Calumma modules should be connected to the E-Box Remote or E-Box Remote basic via junction boxes. The E-box Remote has to be switched to the Pass-Through mode. - Page 6 Calumma XS Example of connection with E-box Remote Basic Note. Combination of Calummas XS and Emineres Remote is also possible. Example: From point of view of driver load (E-box Remote/E-box Remote Basic), max. number of Calummas connected to one E-box Remote/E-box Remote Basic is 40 but Calummas XS have to be operated in the Pass-through mode, it means that max.
- Page 7 Calumma XS E-box Remote Basic Cable length * Max. number of Calummas XS 50 m 100 m * Cable length is a total cable length between one output of the E-box Remote (E-box Remote Basic) and last connected Calumma XS. Example: Total cable length(output 1)=L1+L2+L3+L4 Total cable length(output 2)=L5+L6+L7+L8+L9...
-
Page 8: Installation
Calumma XS 4. Installation 4.1 Mounting the fixture The Calumma can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2). The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position. Ensure that the structure to which you are attaching the fixture is secure. -
Page 9: Connection To Power
Calumma XS 4.2 Connection to power The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. Junction box installation Junction box with one output Junction box with four outputs 1.Unscrew the four screws (1) from the cover (2) on the junction box to get access to the DPS with terminal blocks (3) and two mounting holes (4). - Page 10 Calumma XS 3. Connect cables to terminal blocks. Two cable glands M20 x 1.5 serves for a power/data cable. One (or four) cable gland M12 x 1.5 serves for Calumma XS connection cable. Remove the end cap from the cable gland before passing the cable. We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland before inserting it into the body of the gland.
- Page 11 Calumma XS Wiring of connection blocks on DPS RB4233 in the junction box with four LED outputs. Fuse F1-F4: 2A/500V AC. Calumma XS connection: Connector Function LEDs + Data + Data - LEDs - Not connected Colour of wire Orange White Black Colours of wires apply to the 5-cored cable UL 20969 5x 20AWG (P/N 13053481)
- Page 12 Calumma XS Examples Termination via 120 Ohm resistor...
- Page 13 Calumma XS Termination via RDM: 4. Screw the cover (2) back on the junction box.
-
Page 14: Software Update
5. Software update Software update of Calumma XS modules has to be done by means of the software ROBE Uploader running on PC. The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches Calummas XS to the update mode automatically. - Page 15 Calumma XS 2. By means of the Ethernet connection...
-
Page 16: Technical Specifications
Calumma XS 6. Technical specifications Power supply • Input voltage: 48 V • Power consumption: Calumma XS MC: 10 W Calumma XS SC: 10 W Optic • Light source: Calumma XS MC: one high power multichip LEDs Calumma XS SC: 4 x high power single chip LED •... - Page 17 Calumma XS Connection • Via E-box Remote/E-box Remote Basic UL 20969 5x 20AWG (P/N 13053481), length 1m standard Calumma IN: cable Interconnecting cable between junction boxes: SJTW 5x 14AWG (P/N 13053336) Junction Box for Calumma XS, (1x Output) Junction Box for Calumma XS, (4x Output) Weight •...
- Page 18 Calumma XS Junction box with one output Junction box with four outputs...
-
Page 19: Cleaning And Maintenance
Rinse it. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use ROBE OEM parts. 7.1 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local... -
Page 20: Changelog
Beam angle 12°added at MC version 17/03/2023 EMC notes added Specifications are subject to change without notice. March 17, 2023 Copyright © 2022-2023 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici... - Page 21 DMX protocol DMX protocol for Calumma - All sizes - MC and SC Version: 1.2 (16 modes in total) Mode/Channels in all Mode 1- RGBW(A)-8bit, Mode 2- RGB 8-bit, Mode 3- full RGBW(A) 8-10 Mode 4- White-full control, Mode 5- Reduced RGBW(A) Reserved Mode 6- Reduced RGBW(A)+white control RGBW/RGBA/RGB modes...
- Page 22 DMX protocol Mode/channels Function DMX Value Type of control White 4200 K step 9-10 White 5600 K step 11-12 White 6500 K step Blue (Blue=full, Red+Green+White/Amber=0) step 14-23 proportional Red=0, Green->up,Blue =full, White/Amber=0 step Cyan (Red=0, Green=full, Blue =full, White/Amber=0) 25-34 Red=0, Green=full, Blue->down, White/Amber=0 proportional...
- Page 23 224-255 Shutter open step Dimmer 0 - 255 Light intensity coarse (0-100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 3...
- Page 24 Dimmer 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
