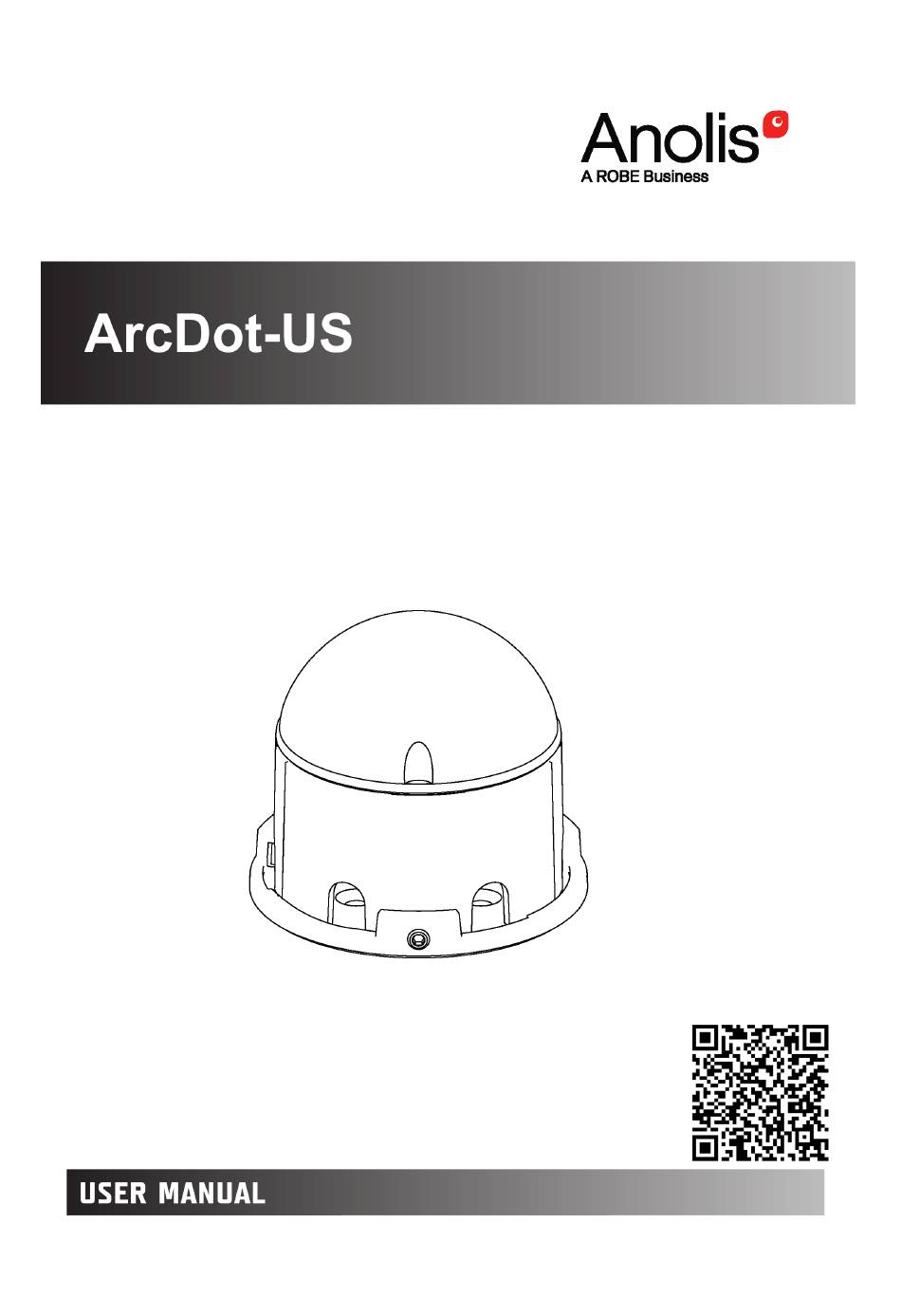

- Page 1 QR code for user manual Version 2.2...
- Page 2 ArcDot-US The Anolis ArcDot-US is a Cree MC-E RGBW multichip based high powered multicolored LED fixture. The unit´s high light output can be pixel mapped and therefore can be controlled and used for large scale matrix applications, as well as used for individual illuminating needs. Cast aluminium housing with frosted UV stable polycarbonate dome allows flexible solutions to both interior and exterior environments.
- Page 3 2. Put the housing on the base, turn it to the right and secure with the screw M5 (4). 3. Connect ArcDots each other and to the power supply. Use the following ways for connecting ArcDots with two supply cables(example for matrix of 4x4). Horizontal sorting Vertical sorting 3.
- Page 4 (P/N 13052738) Cable Connection DRS/RU Pixel (CGR-F/bare,3pin,0.2m)* * quantity depends on size of installation Version 2.2 June 22, 2019 Specifications are subject to change without notice. Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
