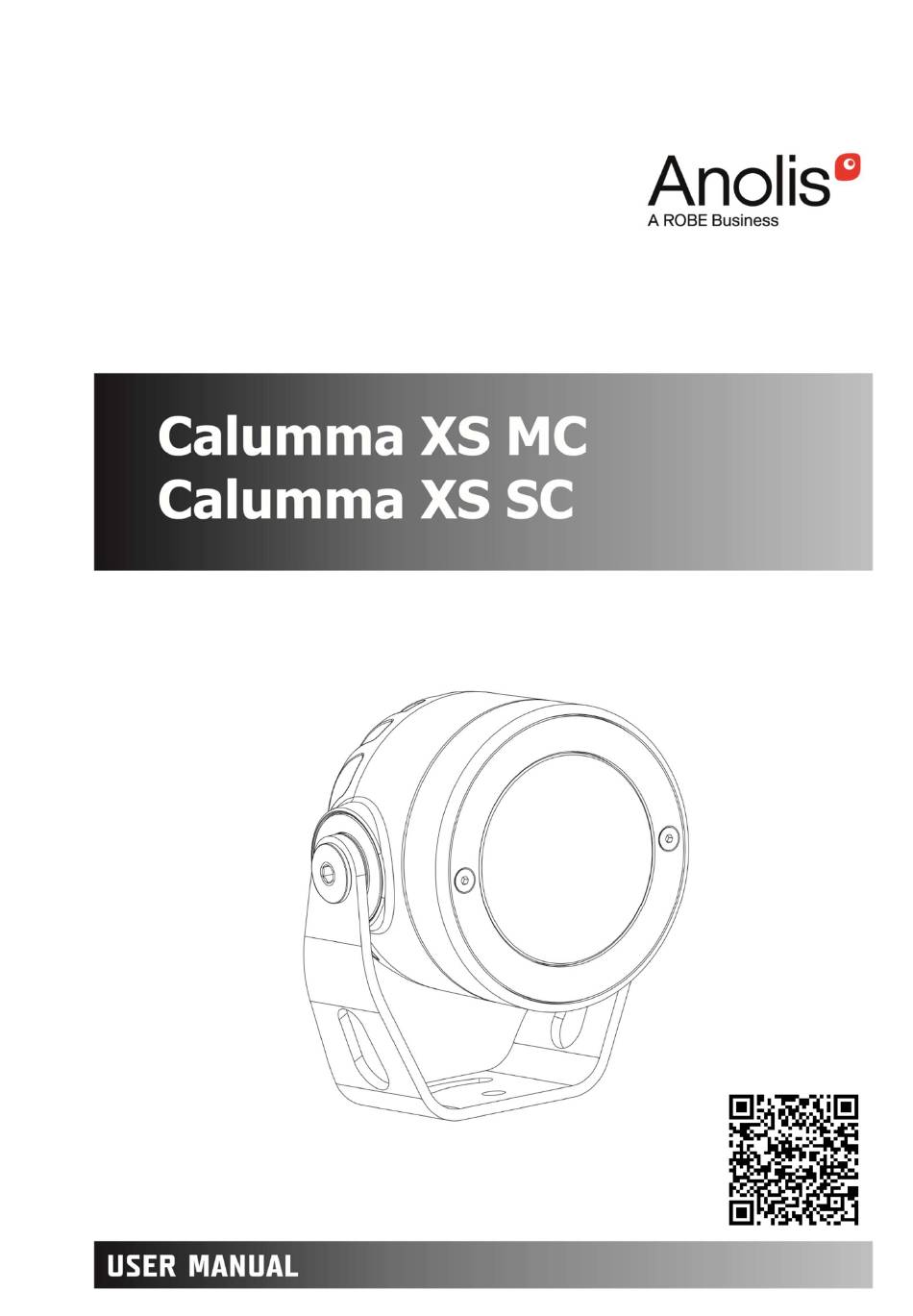

- Page 1 QR code for user manual Version 1.0...
-
Page 2: Table Of Contents
Calumma XS Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Control and connection .............................. 5 4. Installation .................................. 7 4.1 Mounting the fixture ............................7 4.2 Connection to power ............................8 5. Software update ............................... 13 6. -
Page 3: Safety Instructions
Calumma XS FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Calumma ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. -
Page 4: Fixture Exterior View
Calumma XS Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and entertainment lighting control apparatus for professional use. Part 2: Immunity. The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m. -
Page 5: Control And Connection
Calumma XS 3. Control and connection The Eminere Remote modules should be connected to the E-Box Remote or E-Box Remote basic via junction boxes. The E-box Remote has to be switched to the Pass-Through mode. Example of connection with E-box Remote Example of connection with E-box Remote Basic... - Page 6 Calumma XS Note. Combination of Calummas XS and Emineres is also possible. Example: The table below states max. number of Calumma XS modules connected to the E-box Remote/E-box Remote Basic. Cable length * Calumma XS 25 m 50 m 75 m 100 m * Cable length is a total cable length between E-box Remote (E-box Remote Basic) and last connected Eminere Remote.
-
Page 7: Installation
Calumma XS 4. Installation 4.1 Mounting the fixture The Calumma can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2). The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position. Ensure that the structure to which you are attaching the fixture is secure. -
Page 8: Connection To Power
Calumma XS 4.2 Connection to power The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. 3.2.1 Junction box installation Junction box with one output Junction box with four outputs 1.Unscrew the four screws (1) from the cover (2) on the junction box to get access to the DPS with terminal Blocks (3) and two mounting holes (4). - Page 9 Calumma XS 3. Connect cables. Two cable glands M20 x 1.5 serves for a power/data cable. One (or four) cable gland M12 x 1.5 serves for Calumma XS connection cable. Remove the end cap from the cable gland before passing the cable. We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the gland body.
- Page 10 Calumma XS Wiring of connection blocks on DPS RB4233 (3) in the junction box with four LED outputs. Fuse F1-F4: 2A/500V AC. Calumma XS connection: Connector Function LEDs + Data + Data - LEDs - Colour of wire Orange White Black Colours of wires apply to the 5-cored cable UL 20969 5x 20AWG (P/N 13053481) Connection between junction box and E-box Remote and among junction boxes:...
- Page 11 Calumma XS Examples Termination via 120 Ohm rezistor...
- Page 12 Calumma XS Termination via RDM: 4. Screw the cover (2) back on the junction box.
-
Page 13: Software Update
Calumma XS 5. Software update Software update of Calumma module has to be done by means of the software ROBE Uploader running on PC. The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches Calummas to the update mode automatically. - Page 14 If the option Pass-Through is selected from the menu E-box Remote mode, the E-box will not be updated, only connected Calumma modules. You have to use the file Calumma.lib in the ROBE Uploader for this operating mode. If the option Standard is selected from the menu E-box Remote mode, the E-box will be updated including connected Calumma modules.
-
Page 15: Technical Specifications
Calumma XS 6. Technical specifications Power supply • Input voltage: 48 V • Power consumption: Calumma XS MC: 10 W Calumma XS SC: 10 W Optic • Light source: Calumma XS MC: one high power multichip LEDs Calumma XS SC: 4 x high power single chip LED •... - Page 16 Calumma XS Connection • Via E-box Remote/E-box Remote Basic UL 20969 5x 20AWG (P/N 13053481), length 1m standard Calumma IN: cable Interconnecting cable between junction boxes: SJTW 5x 14AWG (P/N 13053336) Junction Box for Calumma XS, (1x Output) Junction Box for Calumma XS, (4x Output) Weight •...
- Page 17 Calumma XS Junction box with one Calumma output Junction box with four Calumma outputs...
-
Page 18: Cleaning And Maintenance
Version of manual Date of issue Description of changes Specifications are subject to change without notice. August 16, 2022 Copyright © 2019-2022 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
