Summary of Contents for Robe Anolis UVinere Remote 1

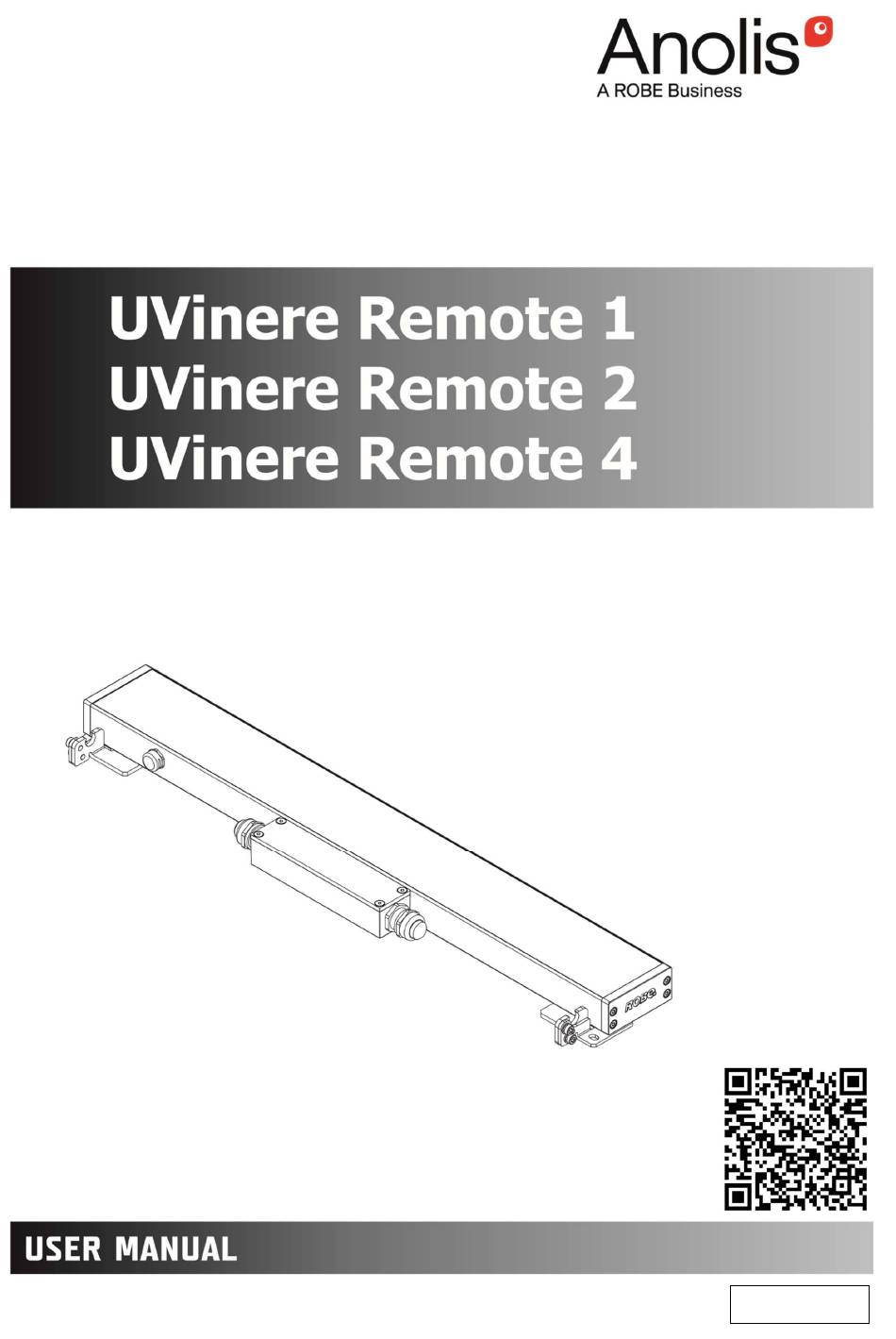

- Page 1 QR code for user manual Version 1.3...
-
Page 2: Table Of Contents
UVinere Remote Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 6 3.1 Mounting the fixture ............................6 3.2 Connection to driver ............................. 6 3.3 Wiring of the junction box ............................ 8 4. -
Page 3: Safety Instructions
UVinere Remote FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR UVinere Remote ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 UVinere Remote DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT! Always disconnect the fixture from power before cleaning, servicing or installing. The fixture was designed for outdoor use. This fixture must not be used for underwater installation. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
-
Page 5: Fixture Exterior View
UVinere Remote 2. Fixture exterior view 1. Transparent glass cover 2. Gore tex valve 3. Cable gland M20 (IN) 4. Housing 5. Mounting brackets 6. Cable gland M20 (OUT) 7. Junction box... -
Page 6: Installation
UVinere Remote 3. Installation 3.1 Mounting the fixture The UVinere Remote can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5) which can be tilted by 30°. 3.2 Connection to driver The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. - Page 7 UVinere Remote The table below states max. number of UVinere Remote modules connected to the E-box Remote/E-box Remote Basic. Max. number of UVineres Remote UV connected to the E-box Remote/E-box Remote Basic Cable length * UVinere Remote 1 UVinere Remote 2 UVinere Remote 4 25 m 50 m...
-
Page 8: Wiring Of The Junction Box
UVinere Remote 3.3 Wiring of the junction box 1. Unscrew the four screws (9) on the cover (8) of the junction box (7), remove the cover (8) and the gasket (10). 2. Remove the end cap (11) from cable glands before passing cables throw cable glands M20 (3,6). The cable glands M20x1.5 can be used for cables of a diameter of 7-13mm. - Page 9 UVinere Remote US version Connector Function LEDs + Data + Data - LEDs - Ground Colour of wire Orange White Black Green NOTE: Each line of UVineres Remote connected to the LED output of the E-box Remote/E-box Remote Basic has to be terminated at the last fixture.
-
Page 10: Software Update
UVinere Remote 4. Software update Software update of UVinere Remote has to be done by means of the software ROBE Uploader running on PC. The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches Emineres Remote UV to the update mode automatically. -
Page 11: Technical Specifications
UVinere Remote 5. Technical specifications Power supply • Input voltage: 48 V • Power consumption: UVinere Remote 1: 20W UVinere Remote 2: 40W UVinere Remote 4: 80W Optic • Light source: UVinere Remote 1: 8 x UV LEDs UVinere Remote 2: 16 x UV LEDs UVinere Remote 4: 32 x UV LEDs •... - Page 12 UVinere Remote Dimensions (All dimensions in mm [inch]) Protection factor • CE: IP 67 • US: Suitable for wet location Impact rating • CE: IK06 Operating ambient temperature range • -20°C /+40°C (-4°F /+104°F) Operating temperature • +67°C (+153°F @ Ambient +40°C @ Ambient +104°F Connection •...
-
Page 13: Cleaning And Maintenance
Eminere Remote 1 added 18/01/2023 Device renamed to UVinere Remote Specifications are subject to change without notice. January 18, 2023 Copyright © 2020-2023 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici... - Page 14 (21-1800K, 66-2700K, 91-3200K,141-4200K, 211-5600K, 255- 6500K) Dimmer 0 - 255 Light intensity coarse (0-100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 1...
- Page 15 Dimmer 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 2...
- Page 16 DMX protocol DMX protocol for: Eminere 1/2/3/4; Eminere Side 1/2/3/4; Eminere Inground 2/4; Eminere Remote 1/2/3/4; Version: 3.1 (23 modes in total) Mode/Channels in all Mode 16: RGBW(A) pixels, Mode 17 RGB pixels, Mode 18: TW pixels, 21-23 Mode 19- PW dimmer pixels Reserved Pixel modes Mode/channels...
- Page 17 Dimmer 4 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 4 0 - 255 Light intensity fine proportional Copyright © 2022 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
