4.2 Application example(s)

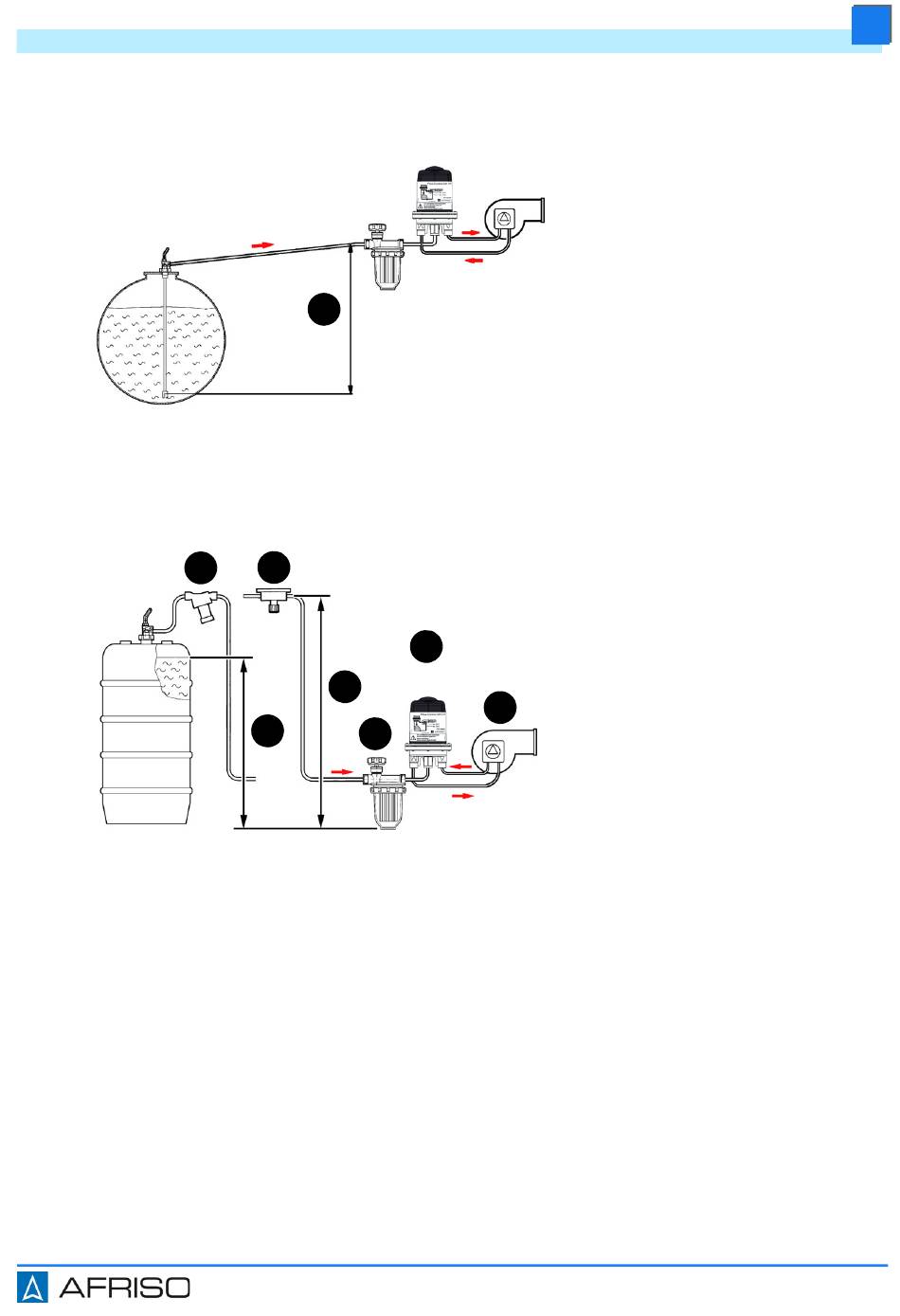

Fig. 3: Installation of Flow-Control 3/K HT above the tank level with self-securing suc-
tion line (steady gradient to the tank). The check valves in the withdrawal fitting and
at the end of the suction hose must be removed.
Fig. 4: Installation of Flow-Control 3/K HT below the tank level. Protection equipment
against siphoning (anti-siphon valve) must be installed to keep fuel oil from escaping
in the case of a defective suction line and a higher oil level in the tank is higher.

Product description

A
C
A
D
B
F
G
E
A. Maximum 4.50 m
A. Piston type anti-siphon
valve "KAV"
B. Static inlet pressure for
sizing "KAV"
C. Diaphragm type anti-
siphon valve "MAV"
D. Static inlet pressure for
sizing "MAV"
E. Filter
F. Flow-Control
G. Burner
Flow-Control
