Spudnik 1110 Operator's Manual

Open dirt conveyor
Hide thumbs Also See for 1110:
Table of Contents

Advertisement

Quick Links

Download this manual

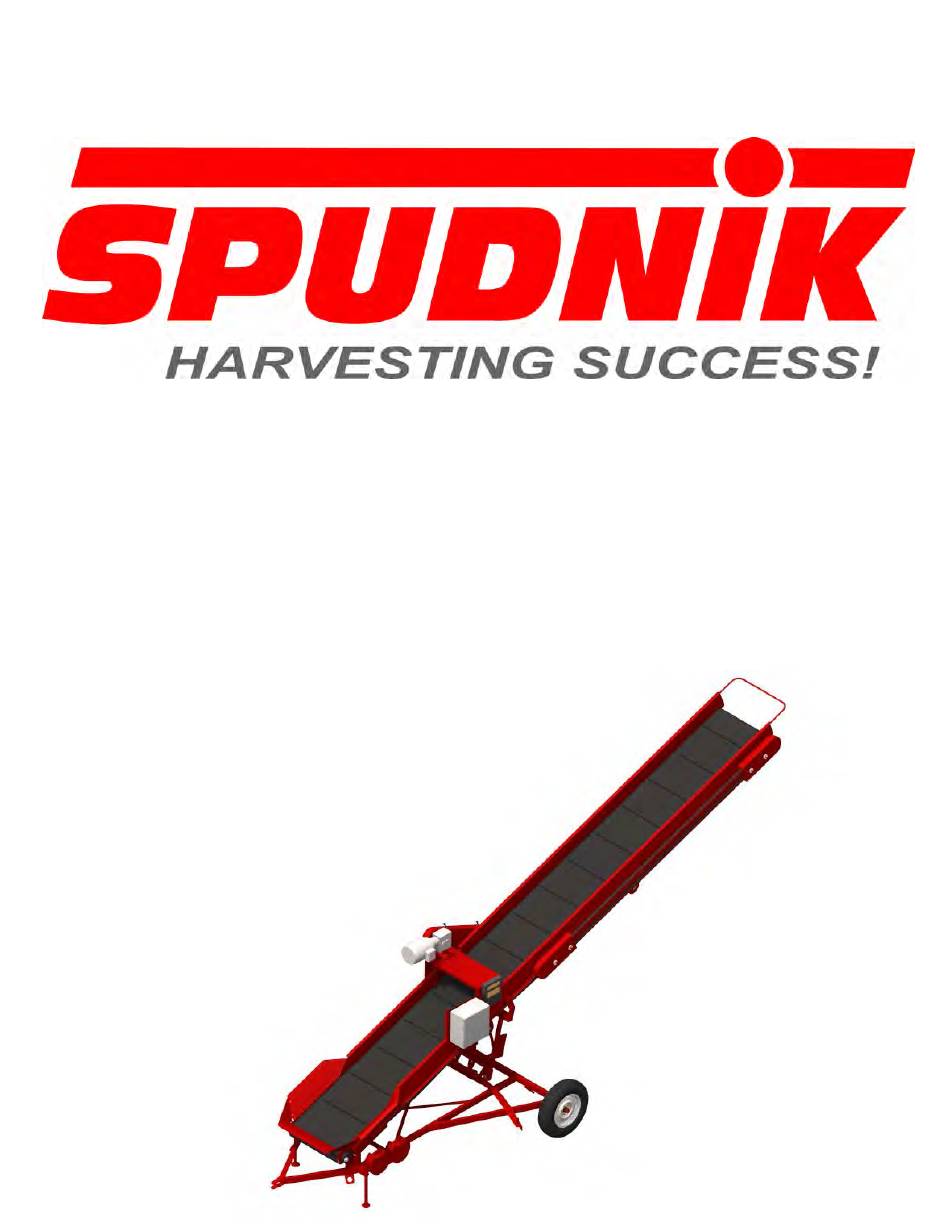

OWNER'S / OPERATOR'S MANUAL
PART # 290215
MODEL 1110
OPEN DIRT CONVEYOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spudnik 1110

Summary of Contents for Spudnik 1110

  • Page 1 OWNER’S / OPERATOR’S MANUAL PART # 290215 MODEL 1110 OPEN DIRT CONVEYOR...
  • Page 2 Our mission is to consistently provide high quality, reliable, safe, and well-designed products and services to meet and exceed the needs of our customers. Service Centers Phone: (208) 785-0480 spudnik@spudnik.com E-Mail: www.spudnik.com Web Site: BLACKFOOT 584 West 100 North P.O. Box 1045...

  • Page 3: Table Of Contents

    Operator's manual MODEL 1110 Table Of Contents Description Page # Introduction ……………………………………………………………………………... Foreword to the operation manual ...………………………………………………...… Warranty …...…………………………………………………………………………… General …..……………………………………………………………………………… Product Characteristics …..…….……………………………………………………… Dangers, operation errors and exemption from liability ………………………….. Safety ……………...………………………………………………………………….. General safety and accident prevention regulations ………………………………...

  • Page 4: Introduction

    Operator's manual MODEL 1110 Introduction Welcome to the SPUDNIK line of potato handling equipment. We appreciate your decision to make our equipment a part of your operation, and look forward to a long term partnership. We strive to put the best quality and workmanship into each of our machines, and hope as you use your MODEL 111 , that you will find this to be true.

  • Page 5: Foreword To The Operation Manual

    Operator's manual MODEL 1110 Foreword to the Operating Manual This operating manual is intended to familiarize the user with the 1110 Open Dirt Conveyor and its designated use. This operating manual contains important information on how to operate the machine safely, properly and efficiently.

  • Page 6: Warranty

    The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limi- tations of this warranty in any way.

  • Page 7: General

    Particular attention should be paid to the section entitled “Safety”. And instructions which are not understood must be clarified before initial operation of the machine. In such cases, please consult your SPUDNIK agent or contact us directly.

  • Page 8: Product Characteristics

    Operator's manual MODEL 1110 Product Characteristics Manufacturer’s address SPUDNIK EQUIPMENT COMPANY LLC 584 W 100 N PO Box 1045 Blackfoot, ID 83221 Phone: (208) 785-0480 Fax: (208) 785-1497 www.spudnik.com E-mail: spudnik@spudnik.com Advice concerning inquiries and orders Please quote the type designation and the machine number when ordering accessories and spare parts.

  • Page 9: Dangers, Operation Errors And Exemption From Liability

    The results produced by the machine must be constantly monitored and checked. 4. SPUDNIK shall not be liable for any damage to agricultural produce and other items which occurs as a result of operating and adjustment errors or others incorrect usage.

  • Page 10: Safety

    The use of spare parts, accessories and auxiliary equipment not supplied and/or not approved by SPUDNIK can have det- rimental effect on the construction of the SPUDNIK machine or on its functions and hence impair the active and/or passive driven and/or operational safety (accident prevention).

  • Page 11: General Safety And Accident Prevention Regulations

    10. Stay clear of the turning and pivoting areas of the machine! 11. The primary responsibility for safe operation of the Spudnik machine lies with the owner/operator. 12. OSHA (Occupational Safety and Health Administration) requires that all operators be trained at the time of initial assignment, and annually thereafter by the employer, in the safe operation of the machine.

  • Page 12: Bulk Bed Setup

    Operator's manual MODEL 1110 SAFETY You are responsible for the safe operation and maintenance of your SPUDNIK PLANTER FILLER CONVEYOR. All operators and anyone doing work or maintenance on the Planter Filler must be trained in the operation, maintenance procedures, and related SAFETY information contained in this manual.

  • Page 13: Belt Replacement Procedure

    Operator's manual MODEL 1110 SAFETY SAFETY ALERT SYMBOL THE SAFETY ALERT SYMBOL MEANS: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! The SAFETY ALERT SYMBOL identifies important safety information on the safety labels and in this manual. When you see this symbol be alert to the possibility of personal injury or death.

  • Page 14: Lubrication And Maintenance

    Operator's manual MODEL 1110 SAFETY PRACTICES GENERAL SAFETY PRACTICES • The primary responsibility for safe operation of the Spudnik Planter Filler lies with the owner/operator. • OSHA (Occupational Safety and Health Administration) requires that all operators be trained at the time of initial assignment, and annually thereafter by the employer, in the safe operation of the Planter Filler.

  • Page 15: Machine Parts Breakdown

    Operator's manual MODEL 1110 SAFETY PRACTICES HYDRAULIC SAFETY PRACTICES • Before applying pressure to the system make sure all components, fittings, steel lines, and hoses are tight, and undamaged. • When working on any machine part that is supported by a hydraulic cylinder, ALWAYS, support the structure by some other means than the hydraulic cylinder.
  • Page 16 Operator's manual MODEL 1110 MAINTENANCE • The hydraulic system used to power auxiliary functions uses Dexron III E ATF (automatic transmission fluid) for prime mover. Hydraulic reservoir fill level should be checked at start of each season, and filled as needed. (# 991421 - OIL,HYD,AW 32 •...
  • Page 17 Operator's manual MODEL 1110 MAINTENANCE • To avoid contamination of product all hydraulic fittings should be checked daily for leaks and replaced or tightened as necessary. • Drive chains should be kept clean and tensioned correctly to prolong chain life. Ideal chain tension should allow ½”...
  • Page 18 Operator's manual MODEL 1110 MACHINE OPERATION The Model has been designed to be used as a seed loader in filling planters, a dirt conveyor for filling trucks with tare dirt, and for piling potatoes in small piles or loading trucks over the side.
  • Page 19 Operator's manual MODEL 1110 SAFETY LABELS • Keep safety labels and signs clean and legible at all times. • Replace safety labels and signs that are missing or have become illegible. • When replacing parts that display a safety sign, make sure that the new parts also display the safety sign.
  • Page 20 Operator's manual MODEL 1110 STICKERS AND SAFETY LABEL PLACEMENT DETAIL A Page 19...
  • Page 21 Operator's manual MODEL 1110 STICKERS AND SAFETY LABEL PLACEMENT Item # DESCRIPTION PART #: CASE, OPERATORS MANUAL 981360 LABEL,CAUTION,MACHINE STARTS WITHOUT/SML 300112 LABEL,CAUTION,MOVING,DRIVES,CAN CAUSE 300086 LABEL,DANGER,HIGH,VOLTAGE,WILL CAUSE/SML 300107 LABEL,OPERATOR INSTRUCTIONS ENCLOSED 300131 LABEL,WARNING,EXPOSED,DRIVE,CAN CAUSE 300087 LABEL,WARNING,POWER,DRIVEN,MACHINERY,CAN 300101 LABEL,WARNING,UNGROUNDED MACHINE CAN/SML...
  • Page 22 Operator's manual MODEL 1110 STICKERS AND SAFETY LABEL PLACEMENT DETAIL B Page 21...
  • Page 23 Operator's manual MODEL 1110 STICKERS AND SAFETY LABEL PLACEMENT Item # DESCRIPTION PART #: CASE, OPERATORS MANUAL 981360 LABEL,CAUTION,MACHINE STARTS WITHOUT/SML 300112 LABEL,CAUTION,MOVING,DRIVES,CAN CAUSE 300086 LABEL,DANGER,HIGH,VOLTAGE,WILL CAUSE/SML 300107 LABEL,OPERATOR INSTRUCTIONS ENCLOSED 300131 LABEL,WARNING,EXPOSED,DRIVE,CAN CAUSE 300087 LABEL,WARNING,POWER,DRIVEN,MACHINERY,CAN 300101 LABEL,WARNING,UNGROUNDED MACHINE CAN/SML...
  • Page 24 Operator's manual MODEL 1110 ELEVATOR / BELT Page 23...
  • Page 25 231042 BRNG,2BOLT,FLNG,1-1/4" BORE VF2S-120 231082 BRNG,PB,1-7/16"BORE,TTB,1/7/16,FAFNIR 231241 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 ELEV,30"x24',W/PIPE ROLLER MDL1110,2007 194582 GUIDE, CHAIN, 132 INCH MODEL 1110 171746 HOPPER,CHAIN,30",BOLT ON FRONT 192333 KNOB,CONTROL,DIE CAST DT 5/8"-11UNC 981255 PLATE,SWIVEL,30" DIRT CONV,MDL 1110 131544 PSC,TL,29-1/2",6-3/16" OD 781180 RCB,30",HD,28"...
  • Page 26 Operator's manual MODEL 1110 ELECTRIC - GAS DRIVE Item # DESCRIPTION PART #: CASE, OPERATORS MANUAL 981360 CLUTCH,V-PULLEY,1"BORE COMET #202312A 781199 ENCL,16Hx16Wx8D C-SD16168 402152 ENG,GAS,8HP BRIGGS W/GAS TANK HORZ SHFT 651075 GRBX,ELECTRA,L/F,C-FACE,26AKV 15: 1 2.77 571115 MANUAL OWNER'S/OPERATOR'S MDL 1110(2013) 290215 SPRCKT,H60BS18x1-1/4"...
  • Page 27 Operator's manual MODEL 1110 Page 26...
  • Page 28 Operator's manual MODEL 1110 BASE ASSEMBLY MANUAL LIFT OPTION Page 27...
  • Page 29 Operator's manual MODEL 1110 BASE ASSEMBLY Item # DESCRIPTION PART #: FRAME,LIFT,ASSY,HYDTIPOUT,30,1110,2007 132967 FRAME,SUPPORT,DIRT CONVEYOR,MDL1110 131543 HUB,COMPLETE,5 HOLE #H545LBS 951029 JACKSTAND,TUBE,MDL1110 191397 PLATE,SWIVEL,30" DIRT CONV,MDL 1110 131544 RIM,15"x6" 5HOLE 4.5"BC MODULAR T 951019 TIRE,670x15 IMPLEMENT RIB 4PLY TUBLESS 951007 UHMW,ELEVATOR,SWIVEL,1/4"x12"x12"...
  • Page 30 Operator's manual MODEL 1110 BASE ASSEMBLY Item # DESCRIPTION PART #: FRAME,LIFT,BOTTOM SECTION MDL 1110, 2007 194294 NUBBIN,1-1/4"ODx2" LONG D 1/2" 181048 RLR,CAST,3-1/2" FLANGE STD STACKING RLR 321023 WHEEL,V-GROOVE,4"ODx2"Wx3/4"BORE,W/BRNG 951170 TOP LIFT FRAME FOR STRAIGHT BOOM FRAME,LIFT,TOP SECTION,30,MDL1110 171701 TOP LIFT FRAME FOR HYDRAULIC TIPDOWN...
  • Page 31 RLR,LDG 5 OD X 29-1/2 TL, P1 781203 SHFT,SK, 1-7/16 x 37-1/2, (10) 821210 SHLD,BEARING/CARRY BACK RLR 7"x8" 14GA 841184 SHLD,OPEN,END,3"x9"x50",HYD,TIPOUT,1110 194568 SHLD,TAKEUP BEARING,#981572 TAKEUP 841286 SPRCKT,H60BS18x1-1/4" HNG PNT DBL W/BRNG 881155 SPRCKT,H60BS18x1-7/16" BORE 881112 TIP DOWN,30"x4' MDL 1110 BARE,2007 194580 Page 30...
  • Page 32 261758 BRNG,2BOLT,FLNG,1"BORE VF2S116 BROWING 231042 BRNG,PB,1-7/16"BORE,TTB,1/7/16,FAFNIR 231241 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 GUIDE, CHAIN, 132 INCH MODEL 1110 171746 KNOB,CONTROL,DIE CAST DT 5/8"-11UNC 981255 RCB,30",HD,28" ROD,1" x 34" SHT, 1" CLEAT 181119 RLR,LDG 5 OD X 29-1/2 TL, P1 781203...
  • Page 33 Operator's manual MODEL 1110 Page 32...
  • Page 39                                                                                  ...
