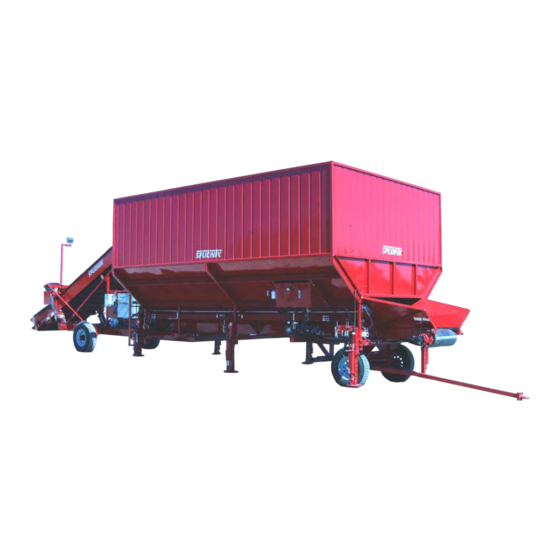

Spudnik EVENFLOW 1800 Owner's/Operator's Manual
  1. Manuals
  2. Brands
  3. Spudnik Manuals
  4. Farm Equipment
  5. EVENFLOW 1800
  6. Owner's/operator's manual

Spudnik EVENFLOW 1800 Owner's/Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

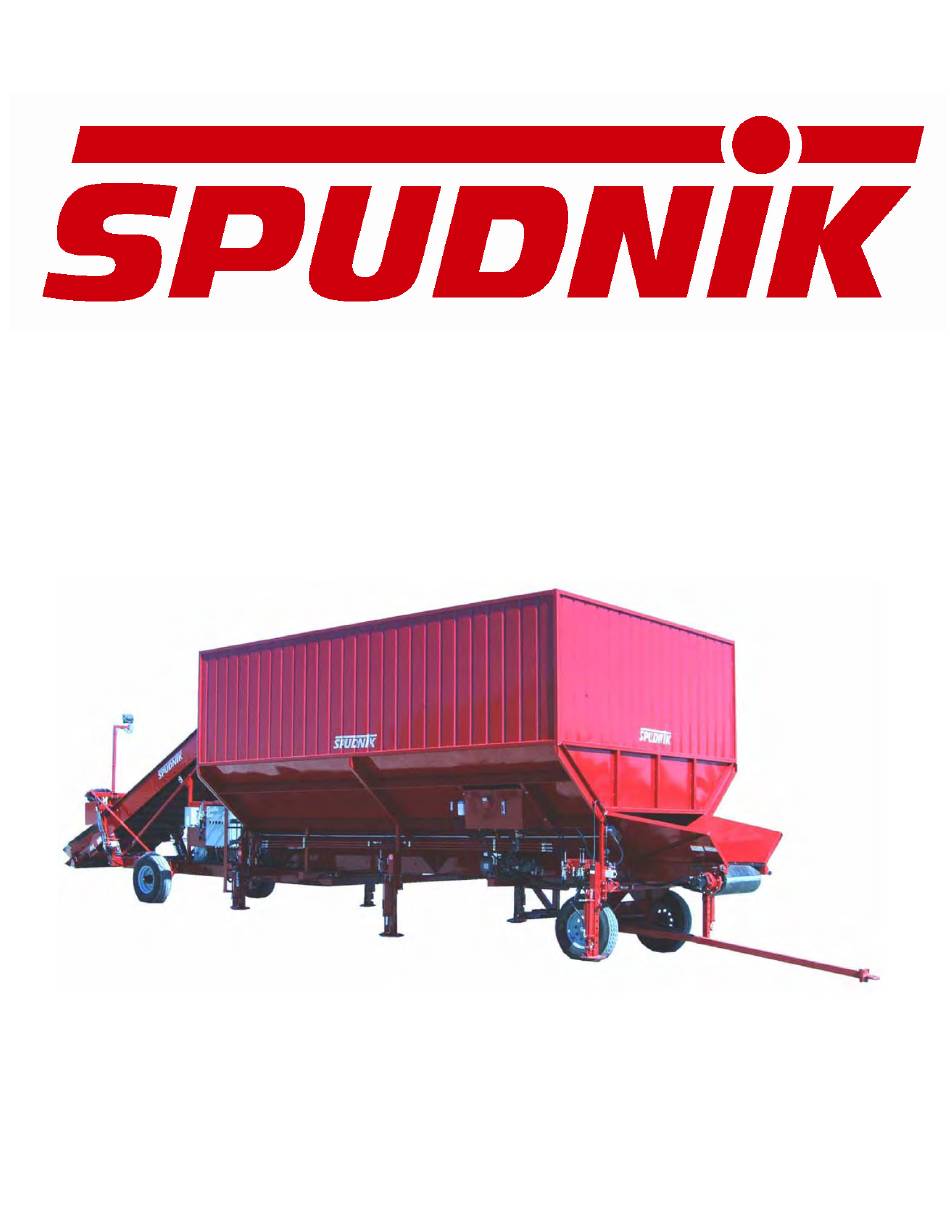

OWNER'S / OPERATOR'S MANUAL
MODEL 1800
EVENFLOW
Part # 290179


Advertisement

loading
Need help?

Need help?

Do you have a question about the EVENFLOW 1800 and is the answer not in the manual?

Questions and answers

Related Manuals for Spudnik EVENFLOW 1800

Summary of Contents for Spudnik EVENFLOW 1800

  • Page 1 OWNER’S / OPERATOR’S MANUAL MODEL 1800 EVENFLOW Part # 290179  ...
  • Page 2 Our mission is to consistently provide high quality, reliable, safe and well-designed products and services to meet and exceed the needs of our customers. Service Centers Phone: (208)785-0480 E-Mail: spudnik@spudnik.com Website: www.spudnik.com BLACKFOOT PASCO GRAFTON 584 West 100 North 5802 North Industrial Way 1410 12th St.
  • Page 3     TABLE OF CONTENTS Description Page Introduction …………………………………………………………………………. 4  Warranty …………………………………………………………………………….. 5  Safety ……………………………………………………………………………….. Safety Practices ……………………………………………………………………. 7  Safety Labels ……………………………………………………………………….. 10  Lubrication ………………………………………………………………………….. 11  Maintenance ………………………………………………………………………… 12  Machine Operation …………………………………………………………………. 14  Machine Parts Break Down 81,86  Table of Contents …………………………………………………………………  ...
  • Page 4   INTRODUCTION Welcome to the SPUDNIK line of potato handling equipment. We appreciate your decision to make our equipment a part of your operation, and look forward to a long-term partnership. We strive to put the best quality and workmanship into each of our machines, and hope as you use your MODEL 1800, EVENFLOW, that you will find this to be true.
  • Page 5   Operator's manual MODEL 1800   FOREWORD TO THE OPERATING MANUAL This operating manual is intended to familiarize the user with the 1860 EVENFLOW and its designated use. This operating manual contains important information on how to operate the machine safely, properly and efficiently.
  • Page 6 The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limitations of this warranty in any way.
  • Page 7   Operator's manual MODEL 1800   MACHINE OPERATION The model 1800 Even Flow is designed to unload product from trucks, trailers and other equipment quickly, keeping an even flow of product moving throughout the rest of the system. The electrical control panel is located on the right side of the Even Flow. Hydraulic valves for jacks are located next to the jacks.
  • Page 8 Particular attention should be paid to the section entitled “Safety”. Any instructions which are not understood must be clarified before initial operation of the machine. In such cases, please consult your SPUDNIK agent or contact us directly.
  • Page 9   Operator's manual MODEL 1800   PRODUCT CHARACTERISTICS Manufacturer's address SPUDNIK EQUIPMENT COMPANY LLC 584 W 100 N PO Box 1045 Blackfoot, ID 83221 Phone: (208) 785-0480 Fax: (208) 785-1497 www.spudnik.com E-mail: spudnik@spudnik.com Advice concerning inquiries and orders Please quote the type designation and the machine number when ordering accessories and spare parts.
  • Page 10 The results produced by the machine must be constantly monitored and checked. 4. SPUDNIK shall not be liable for any damage to agricultural produce and other items which occurs as a result of operating and adjustment errors or other incorrect usage.
  • Page 11 SPUDNIK can have detrimental effect on the construction of the SPUDNIK machine or on its functions and hence impair the active and/or passive driven and/or operational safety (accident prevention). •SPUDNIK shall not be liable for any damage caused by the use of parts, accessories and ancillary equipment not supplied and/or approved by SPUDNIK.
  • Page 12   Operator's manual MODEL 1800   GENERAL SAFETY AND ACCIDENT PREVENTION REGULATIONS The safety advice and information given in this operating manual, the valid nation regulations concerning accident prevention and any applicable internal employment, operational and safety regulations of the operator are to be observed. 1.
  • Page 13   Operator's manual MODEL 1800   SPECIAL SAFETY INSTRUCTIONS Towed machines 1. Risk of injury when hitching up or unhitching machine to/from the tractor! 2. Never allow persons to stand between the tractor and the machine unless the tractor is secured against rolling away by means of the parking brake and/or wheel chocks! 3.
  • Page 14   Operator's manual MODEL 1800   ELECTRICAL SYSTEM, ELECTRONICS Use only original fuses with the specified current rating! Switch off the machine immediately if a fault occurs in the electrical power supply. Work on the electrical system or equipment may only be carried out by an electrician, or by specially instructed personnel under the control and supervision of an electrician, and in accordance with the applicable electrical engineering regulations.
  • Page 15   Operator's manual MODEL 1800   HYDRAULIC SYSTEM 1. The hydraulic system is under high pressure! 2. Make sure that the hydraulic system is depressurized (tractor and machine) when connecting the hydraulic hoses to the tractor’s hydraulic system. 3. Hydraulic hose lines should be inspected at regular intervals and replaced if damaged or worn! New hose lines must comply with the technical specification of the machine manufacturer! Hoses and hose couplings undergo a natural ageing process, even if stored and used correctly;...
  • Page 16   Operator's manual MODEL 1800   Warning symbols and other instruction notices on the machine SIGNAL WORDS: DANGER, WARNING, and CAUTION are signal words with messages: DANGER: An immediate and specific hazard, which WILL result in severe injury or death if proper precautions are not taken. WARNING: A specific hazard or unsafe practice, which COULD result in severe injury or death.
  • Page 17   Operator's manual MODEL 1800   Warning symbols and other instruction notices on the machine HEAVY TONGUE WEIGHT Can cause severe injury or death. Support jack and tongue securely. Min. jack rating 10,000 lbs. HIGH PRESSURE OIL Can cause severe injury or death. Do not go near leaks.
  • Page 18   Operator's manual MODEL 1800   Warning symbols and other instruction notices on the machine DANGER 240 VOLTS DANGER 480 VOLTS   Page 17...
  • Page 19 Operator's manual MODEL 1800 BELT OPTIONS ELEVATOR BELT OPTIONS CLEATED BELT ITEM # QTY DESCRIPTION PART # 1 BELT,ASSY,48"x68'6" 1"CLTD 1800 EVN,2006 261898 CHEVRON BELT ITEM # QTY DESCRIPTION PART # 1 BELT,ASSY,48"x68'6",1"CHEV 1800,EVN,2011 262007 BIN CONVEYOR BELT OPTIONS 36" BELT ITEM # QTY DESCRIPTION PART # 1 BELT,ASSY,20'EVNFLW BIN 36"x44'4"LACED...
  • Page 20 Operator's manual MODEL 1800 NEW TARP ASSEMBLY DETAIL A DETAIL B DETAIL C Page 19...
  • Page 21 Operator's manual MODEL 1800 NEW TARP ASSEMBLY Item # QTY DESCRIPTION PART # CAM LATCH,CROME FINISH,NON LOCKING 982290 EVENFLOW, TARP BOW, LOCK PLATE, 2011 175094 EVENFLOW, TARP LOCK HANDLE, LH, 2011 196449 EVENFLOW, TARP LOCK HANDLE, RH, 2011 196448 EVENFLOW, TARP, BOW LOCK, LH, 2011 196447 EVENFLOW, TARP, BOW LOCK, RH, 2011 196446...
  • Page 22 Operator's manual MODEL 1800 OLD TARP ASSEMBLY DETAIL A DETAIL C DETAIL B Page 21...
  • Page 23 Operator's manual MODEL 1800 OLD TARP ASSEMBLY NOTE: 133206 TURKEY ROOST IS OPTIONAL Item # QTY DESCRIPTION PART # INTAKE END PIN ASSEMBLY J00943 RATCHET,TARP,STRAP FOR TIE DOWN 191017 RP,7-3/4 3x6-3/4 PIPE 1" SHAFT DT 1/2 181560 TARP LIFT FRAME BOOM , EVENFLOW, 2011 196013 TARP LIFT FRAME SUPPORT, 1800, 2011 196014...
  • Page 24 Operator's manual MODEL 1800 HYDRAULIC LIFTS & JACKS Page 23...
  • Page 25 Operator's manual MODEL 1800 HYDRAULIC LIFTS & JACKS Item # QTY DESCRIPTION PART # CYL,3.00"x10",TIE ROD,22.25",REPHASE 602626 CYL,3.00"x12",TIE ROD,22.25",1.375",3/4 602621 CYL,3.00"x18",TIE ROD,28.25",1.375",3/4 602622 CYL,4.00"x18",TIE ROD,28.25",1.375",3/4 602631 VALVE,ACCESORY,STD.LEVER M8x1.25x200mm 602475 VALVE,MONOBL,1-ST,DBL-ACT,OC&CC 602839 WELD, 1800 JACK LEG 191672 WELD, 1800 JACK SLEEVE DISCHARGE END 191673 WELD, 1800 JACK SLEEVE INFEED END 191774...
  • Page 26 Operator's manual MODEL 1800 REAR DRIVE Page 25...
  • Page 27 Operator's manual MODEL 1800 REAR DRIVE Item # QTY DESCRIPTION PART # AXLE,BOLT ON,BOLTED EVEN FLOW, 2011 196256 GRBX,PLNTRY,AUBURN,WHL DRV,34:1,W/ Q.D. 571429 TIRE&RIM,10.00x15 NANKANG 14 PLY, 8 HOLE 951483 Page 26...
  • Page 28 Operator's manual MODEL 1800 FRONT AXLE Page 27...
  • Page 29 Operator's manual MODEL 1800 FRONT AXLE Item # QTY DESCRIPTION PART # BOLT,HEX,HD,5/8"-11UNC x 1-1/2" GR 5 501123 HUB,COMPLETE,6 HOLE, AFTER 1/1/2001 951359 NUT,SLOTTED,HEX,1"-14NF JAM 1/2" THICK 951098 PIN, STEERING EVNFLW, 1-5/8" DT5/8 181863 TIRE&RIM,750x16/10 NANKANG N101, 6 HOLE 951485 UHMW,1/4"...
  • Page 30 Operator's manual MODEL 1800 FRAME ASSEMBLY 24 23 SECTION A-A Page 29...
  • Page 31 Operator's manual MODEL 1800 FRAME ASSEMBLY Item # QTY DESCRIPTION PART # BRACE,PUP,HITCH,EVENFLOW UNIVERSAL,2009 174509 BULK BED, AUTO FLOW CONTROL BOX EA0249 CASE, OPERATORS MANUAL 981360 DIRT PAN BOLTED EVEN FLOW, 2011 174521 DIRT SHEAR BOLTED EVEN FLOW, 2011 174522 ENCL,12Hx12Wx6D 401901 ENCL,24Hx30Wx8D C-SD24308...
  • Page 32 Operator's manual MODEL 1800 BIN CONVEYOR ASSEMBLY SAME MOTOR ASSEMBLY SETUP ON BOTH SIDES OF CONVEYOR. SECTION A-A Page 31...
  • Page 33 Operator's manual MODEL 1800 BIN CONVEYOR ASSEMBLY Item # QTY DESCRIPTION PART # BOLT,TU,1"-5UNCx16" BULK BED/EVEN FLOW 171175 BUSHING, Q1x 2 BORE SPLIT TAPER 781218 COUPLING, EVN FLW 2"x4" 3/8 KEYWAY 181251 GRBX, PLNTRY,AUBURN, 5.05:1, 2" OUTPUT 571434 MTR,HYD,24 CU IN SPLINE OUTPUT RE2R 601299 PB BRNG, 2 BORE VPS-132 231069...
  • Page 34 Operator's manual MODEL 1800 BOOM ASSEMBLY USED WITH CLEATED BELT USED WITH CHEVRON BELT Page 33...
  • Page 35 Operator's manual MODEL 1800 BOOM ASSEMBLY Item # QTY DESCRIPTION PART # BEARING END SENSOR BRACKET,HORIZONTAL 173391 BRNG,2BOLT,FLNG,1"BORE VF2S116 BROWING 231042 BRNG,PB,1-3/4" BORE VPS-128 231083 BUSHING,Q1x1-3/4" BORE SPLIT TAPER 781057 IDLER ARM, ELEV DRIVE, EVENFLOW, 2011 195974 IDLER TAKEUP,ELEV DRIVE,EVENFLOW, 2011 195975 IDLER, 80 P, 5/8 BORE 12 TOOTH #704 881140...
  • Page 36 Operator's manual MODEL 1800 ELEVATOR 982160 TAKE UP USED WITH CLEATED BELT USED WITH CHEVRON BELT Page 35...
  • Page 37 Operator's manual MODEL 1800 ELEVATOR Item # QTY DESCRIPTION PART # BRNG,2BOLT,FLNG,1"BORE VF2S116 BROWING 231042 BRNG,PB,1-7/16",BORE,ECC LOCK COLLAR 231073 BUSHING, P1 x 1-1/4 BORE SPLIT TAPER 781056 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 HOPPER, 48",BOLT ON FRONT EVENFLOW, 2011 195983 PIN,PIVOT,LH,ELEVATOR/BOOM EVENFLOW 191653 PIN,PIVOT,RH,ELEVATOR/BOOM EVENFLOW 191652...
  • Page 38 Page 37...
  • Page 39 Page 38...
  • Page 40 Page 39...
  • Page 41 Page 40...
  • Page 42 Page 41...
  • Page 43 Page 42...
  • Page 44 Page 43...
  • Page 45 Page 44...
  • Page 46 Page 45...
  • Page 47 Page 46...
  • Page 48 Page 47...
  • Page 49 Page 48...
  • Page 50 Page 49...
  • Page 51 Page 50...
  • Page 52 Page 51...
  • Page 53 Page 52...
  • Page 54 Page 53...
  • Page 55 Page 54...
  • Page 56 Page 55...
  • Page 57 Page 56...
  • Page 58 Page 57...
  • Page 59 Page 58...
  • Page 60 Page 59...
  • Page 61 Page 60...
  • Page 62 Page 61...
  • Page 63 Page 62...
  • Page 64 Page 63...
  • Page 65 Page 64...
  • Page 66 Operator's manual MODEL 1800 Notes !! Page 65...
  • Page 71 Please fill out the letter below or email to warranty@spudnik.com to register the recently sold machine. Providing the customer name and address is optional and at your discretion. It will aid Spudnik in providing product updates to your customer should the necessity arise. The serial number and date the machine was delivered is mandatory.
