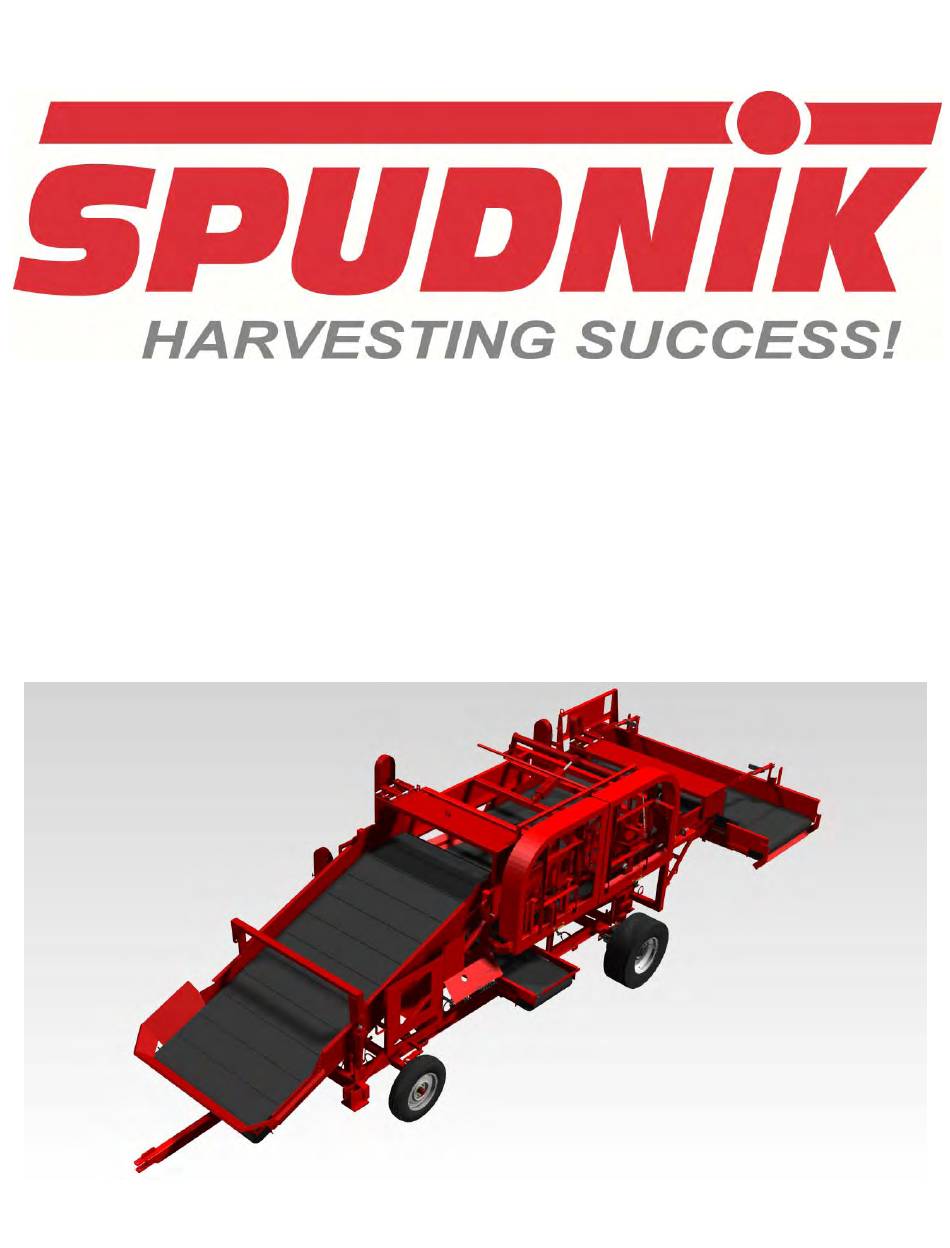

Owner/Operator Manual
Ser # 990-55-185
MODEL 990
Custom Eliminator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 990 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spudnik 990

Summary of Contents for Spudnik 990

  • Page 1 Owner/Operator Manual Ser # 990-55-185 MODEL 990 Custom Eliminator...
  • Page 2 Operator's Manual Model 990 Operating Manual Overview The purpose of this Spudnik Operating Manual is to make the user familiar with this machine and to assure the machine is used for what it has been designed to do. This Operating Manual contains important information on how to operate this machine properly and efficiently while maintaining all safety regulations.
  • Page 3 Operator's Manual Model 990 Page 2...

  • Page 4: Table Of Contents

    Operator's Manual Model 990 Table of Contents Warranty Policy ..................4 Safety ......................5 General Safety Practices ................6 Hydraulics Safety Practices ...............7 Transporting Safety Practices ..............8 Operation Safety Practices ................9 Safety Labels .....................10 Maintenance ....................12 Machine Parts Breakdown ……….……………..……………………..14 Schematics ………..................Page 3...

  • Page 5: Warranty Policy

    30 days of noticing the defect and (d) make the product available to the dealer or service center within a reasonable period of time, transportation charges prepaid. The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limitations of this warranty in any way.

  • Page 6: Safety

    When you see this symbol, be alert to the possibility of injury or death. You are responsible for the safe operation and maintenance of your Spudnik Eliminator. All operators and anyone doing work or maintenance on the Eliminator must be trained in the operation, maintenance procedures, and related SAFETY information contained in this manual.

  • Page 7: General Safety Practices

    Operator's Manual Model 990 SAFETY General Safety and Accident Prevention Regulations The primary responsibility for safe operation of the Spudnik Eliminator is with the owner/operator. OSHA (Occupational Safety and Health Administration) requires that all operator’s be trained at the time of initial assignment, and annually thereafter by the employer, in the safe operation of the machine.

  • Page 8: Hydraulics Safety Practices

    Operator's Manual Model 990 SAFETY Specific Safety Instructions Risk of injury when hitching up or unhitching machines to and from the tractor. Never allow persons to stand between the tractor and the machine unless the towing vehicle is secured against rolling away by means of the parking brake and/or chocks.

  • Page 9: Transporting Safety Practices

    Operator's Manual Model 990 SAFETY Transporting Safety Practices Check to see if all bolts on tow tongue are in good condition, in place, and secure. Remove the pin from the towable gearbox wheel drive. Release hydraulic pressure to the elevator lift cylinder.

  • Page 10: Operation Safety Practices

    Operator's Manual Model 990 SAFETY Operating Safety Practices Eliminator should be operated on a flat secure surface. When using leveling jacks, make sure that the jacks are on secure ground. Do not lift the wheels off of the ground. Do not allow anyone to climb on or under the Eliminator while in operation.

  • Page 11: Safety Labels

    Operator's Manual Model 990 SAFETY Safety Labels  Keep Safety labels and signs clean and legible at all times,  Replace Safety labels and signs that are missing or have become illegible.  When replacing parts that display a safety label, make sure that the new parts also displays the safety label.
  • Page 12 Operator's Manual Model 990 MAINTENANCE The hydraulic system used to power auxiliary functions uses AW 32 Hydraulic oil for prime mover. Hydraulic reservoir fill level should be checked at start of each season, and filled as needed. Hydraulic oil reservoir has a 5-gallon capacity.

  • Page 13: Maintenance

    Operator's Manual Model 990 OPERATING INSTRUCTIONS 1. Center any machine that feeds the Eliminator squarely to the elevator. This allows the potatoes to spread out evenly and provides better sizing and dirt elimination. 2.Adjust the elevator to the required height to eliminate drop.
  • Page 14 Operator's Manual Model 990 FA4397 990 60"x10'6" BELT ELEVATOR CLEATED Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: BELT,ASSY,9XX,60" X 25'-2" CLTD BELT 262171 RCB,60", HD,58" ROD, 1" x 64" SHT, 1" CLEAT 181490 BOLT,HINGE,36",BELT ELEV #550 5/8" x 9"...

  • Page 15: Machine Parts Breakdown

    Operator's Manual Model 990 FA4577 990 60"ELEV DRV TIPOUT ELEC VARI SPD 3HP Item # DESCRIPTION PART #: BOLT,WELD,ALL THREAD,5/8"x12" 191398 BRNG,PB,1-7/16"BORE,TTB,1/7/16,FAFNIR 231241 CHN,RLR,60 PITCH x 6.563 LNF 351005 GRBX,PAR,13.9: 1 5HP 184TC DAVID BROWN 571130 GROMMET,EPDM, 1.5" ID,1/4" WOG,2.125"OD...
  • Page 16 Operator's Manual Model 990 FA4614-9116 990 72" 12 ROLL SNGL DSCHRG SCISSOR RH Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: BAR,SLIDE,ELIM 1/4x2x84 SQ TUBE W/UHMW 131762 LINKAGE ARM ELIM SCISSOR ADJ 18 INCH 191376 BELT,FLAT,4",1/32" x 1/32" x 150# x 9.000 LNF...
  • Page 17 Operator's Manual Model 990 FA4614-9116 990 72" 12 ROLL SNGL DSCHRG SCISSOR RH 15 39 16 13 12 SECTION A-A SECTION C-C 40 45 SECTION B-B SHEET 2 OF 2 Page 16...
  • Page 18 Operator's Manual Model 990 131762-PB BAR,SLIDE,ELIM 1/4x2x84 SQ TUBE W/UHMW Item # DESCRIPTION PART #: BAR,SLIDE,ELIM 1/4x2x84 SQ TUBE 193337 UHMW,1/2" x 2" x 84" G00365 Page 17...
  • Page 19 Operator's Manual Model 990 FA4652 990 72" CYLINDER HYD SCISSOR ADJ DSCHRG ITEM #: DESCRIPTION PART #: ARM,HYD,SCSSR,ROLL,ADJUST,74" WIDE 192661 CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CPLG,HYD,STR,6400-6-8 (6MJ-8MB) 601477 CYL,3.00"x12",TIE ROD,22.25",1.375",3/4 602621 VALVE,ACCESORY,STD.LEVER M8x1.25x150mm 602474 Page 18...
  • Page 20 Operator's Manual Model 990 FA4665-9116 990 72" TRANS TABLE MOVABLE SCISOR ADJ Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: BELT,ASSY,9XX,72"x14'-8", "C" SECTION 262476 SHLD,TAKEUP,BEARING,3"x5" "L" 10 GA. 841083 BELT,FLAT,7" 1/32" x 1/32" 150#x8.375LNF 261747 SPACER,TUBE,CONDUIT, EMT 3/4" x 3-7/16"...
  • Page 21 Operator's Manual Model 990 FA4865-9116 72" SCISSOR HYD ADJ ELIM SIZING 12 ROLL Item # DESCRIPTION PART #: SHFT,ELIM,72",ELM/ELM 4/B FL D/S CMPT SS 822060 SHFT,ELIM,72",ELM/ELM FUL D/SPR CMPLT SS 821668 SHFT,ELIM,72",ELM/ELM HLF D/SPR CMPLT SS 821665 SHFT,ELIM,72"ELM/ELM D/B HF D/S CMPLT SS...
  • Page 22 Operator's Manual Model 990 822060-PB SHFT,ELIM,72",ELM/ELM 4/B FL D/S CMPT SS Item # DESCRIPTION PART #: ARM,BRNG,CNNCTNG,SS RL/TRNSTN TABLE 915 231145 BRNG,PB,1-1/4" BORE TAPPED BASE 231085 ROLL,RUBBER,ELIM,FULL,1-1/2" SQUARE BORE 981284 SHFT,SQ,72",1-1/2"x70-1/4" SOLID DBL SPRKT 821597 SPRCKT,DBL,HD60B14 1-1/4" BORE 881203 WASHER,FLAT,1-1/4" USS ZINC PLT (4/LB)
  • Page 23 Operator's Manual Model 990 821668-PB SHFT,ELIM,72",ELM/ELM FUL D/SPR CMPLT SS Item # DESCRIPTION PART #: BRNG,PB,1-1/4" BORE TAPPED BASE 231085 COLLAR,SHAFT,SET,SCREW,1-1/4" 501950 ROLL,RUBBER,ELIM,FULL,1-1/2" SQUARE BORE 981284 SHFT,SQ,72",1-1/2"x70-1/4" SOLID DBL SPRKT 821597 SPRCKT,DBL,HD60B14 1-1/4" BORE 881203 WASHER,FLAT,1-1/4" USS ZINC PLT (4/LB)
  • Page 24 Operator's Manual Model 990 821665-PB SHFT,ELIM,72",ELM/ELM HLF D/SPR CMPLT SS Item # DESCRIPTION PART #: BRNG,PB,1-1/4" BORE TAPPED BASE 231085 COLLAR,SHAFT,SET,SCREW,1-1/4" 501950 ROLL,RUBBER,ELIM,FULL,1-1/2" SQUARE BORE 981284 ROLL,RUBBER,ELIM,HALF,1-1/2" SQUARE BORE 981285 SHFT,SQ,72",1-1/2"x70-1/4" SOLID DBL SPRKT 821597 SPRCKT,DBL,HD60B14 1-1/4" BORE 881203 WASHER,FLAT,1-1/4" USS ZINC PLT (4/LB)
  • Page 25 Operator's Manual Model 990 821662-PB SHFT,ELIM,72"ELM/ELM D/B HF D/S CMPLT SS Item # DESCRIPTION PART #: BRNG,PB,1-1/4" BORE TAPPED BASE 231085 ROLL,RUBBER,ELIM,FULL,1-1/2" SQUARE BORE 981284 ROLL,RUBBER,ELIM,HALF,1-1/2" SQUARE BORE 981285 SHFT,SQ,72",1-1/2"x70-1/4" SOLID DBL SPRKT 821597 SPRCKT,DBL,HD60B14 1-1/4" BORE 881203 WASHER,FLAT,1-1/4" USS ZINC PLT (4/LB)
  • Page 26 Operator's Manual Model 990 FA6664-9116 990 72"x7' SIZING RETURN CONVEYOR 9"FS ITEM #: DESCRIPTION PART #: BELT,ASSY,9XX,72"X14'-0" C-SECTION 262373 BELT,FLAT,12" 1/32" x 1/32" 150# x 6.042 LNF 261000 BRNG,PB,1-7/16"BORE,TTB,1/7/16,FAFNIR 231241 BUSHING,P1x1-7/16" BORE SPLIT TAPER 781184 CONVEYOR,RETURN,ELIM,915,72"x7'-0" 9116-005 COVER,2-1/2" PIPE 176581...
  • Page 27 Operator's Manual Model 990 FA5131 990 HYD STEERING INTAKE END LIFT & TOW Item # DESCRIPTION PART #: 13 14 AXLE,ELIM,STEERING,60"&72" G00168 BRNG,THRUST,1-5/8"BORE TIMKEN T-163 231025 COLLAR,SHAFT,SET,SCREW,1-5/8" 501953 CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CPLG,HYD,STR,6400-6-8 (6MJ-8MB) 601477 CYL,3.00"x8",TIE ROD,20.25",1.375",3/4 602619 HUB,COMPLETE,5 HOLE #H545LBS 951029 NUT,SLOTTED,HEX,3/4"-16NF 5/8 THICK...
  • Page 28 Operator's Manual Model 990 FA6674 990 HYDRAULIC WHEEL DRIVE SINGLE AXLE MD Item # DESCRIPTION PART #: ARM,TORQUE,HYD,WHL,DRV,4 HOLE 3/8x6-1/4" 901575 AXLE,ELIM,DRIVE,60"&72" SMALL G00170 BOLT,HEX,HD,9/16"-18UNFx1-1/2" GR5*FINE* 502250 COUPLING,HYD,WHL,DRV,1" x 3" 1/2"WALL 181102 CPLG,HYD,90DEG,6801-8-10 (8MJ-10MB) 601637 CPLG,HYD,STR,6400-8-8 (8MJ-8MB) 601457 GRBX,WHL,DRV,HUB,50: 1 TOWABLE UMC#730UBT...
  • Page 29 Operator's Manual Model 990 FA5135 990 HYDRAULIC JACKS 4 EACH Item Quantity Description Part # Number CPLG,HYD,90DEG,6801-6-8 (6MJ-8MB) 601323 CPLG,HYD,STR,6400-6-8 (6MJ-8MB) 601477 CYL,3.00"x12",TIE ROD,22.25",1.375",3/4 602621 JACK,ASSEMBLY,LEVELING,ELIMINATOR 131173 PLATE,1/4" x 5" x 5" G00598 VALVE,ACCESORY,SAFETY LEVER M8x1.25x160m 602473 VALVE,ACCESORY,SAFETY LEVERBRACKET 602472...
  • Page 30 Operator's Manual Model 990 FA5073 990 CROSS CONV 24"x10' FLAT BELT Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: BELT,ASSY,9XX,24"x20'-0" FLAT BELT 261608 SHFT,SK,1-7/16"x32" (9) 050311 BELT,FLAT,7" 1/32" x 1/32" 150#x2.00 LNF 261747 SHLD,OVAL,HINGED,W/BACK,3"x9"x30" 841112 BOLT,MTR,MNT,ADJUSTMENT,1/2"x 7-1/2" 191207...
  • Page 31 Operator's Manual Model 990 FA5171 990 HYD UNIT 5 HP MTR 230V 3PH Item # DESCRIPTION PART #: Item # DESCRIPTION PART #: CPLG,HYD,90DEG,2501-8-12 (8MJ-12MP) 601317 LABEL,OPEN CENTER HYDRAULIC SYSTEM 300120 CPLG,HYD,90DEG,2501-8-6 (8MJ-6MP) 601319 LABEL,WARNING,EXPOSED,DRIVE,CAN CAUSE 300087 CPLG,HYD,90DEG,2501-8-8 (8MJ-8MP) 601370...
  • Page 32 Operator's Manual Model 990 FA5329-9116 ELIM END CROSS CONV 42"x11' C-SECT BELT Item # Description Part # Item # Description Part # BELT,ASSY,11',XCONV,42"x22'0" "C" SECT 261991 SHLD,TAKEUP BEARING,#981572 TAKEUP 841286 BOLT,MTR,MNT,ADJUSTMENT,1/2"x 7-1/2" 191207 SPRCKT,H60BS18x1-1/4" BORE x 1/4 KW 881111 BRNG,PB,1-7/16"BORE,TTB,1/7/16,FAFNIR 231241 SPRCKT,H60BS20x1-7/16"...
  • Page 33 Operator's Manual Model 990 Page 32...
  • Page 34 Operator's Manual Model 990 Page 33...
  • Page 35 Operator's Manual Model 990 Page 34...
  • Page 36 Operator's Manual Model 990 Page 35...
  • Page 37 Operator's Manual Model 990 Page 36...
  • Page 38 Operator's Manual Model 990 Page 37...
  • Page 39 Page 38...
  • Page 40 Page 39...
  • Page 41 Page 40...
  • Page 42 Page 41...
  • Page 43 Page 42...
  • Page 44 Page 43...
  • Page 49                                                                                  ...
