PARTS MANUAL

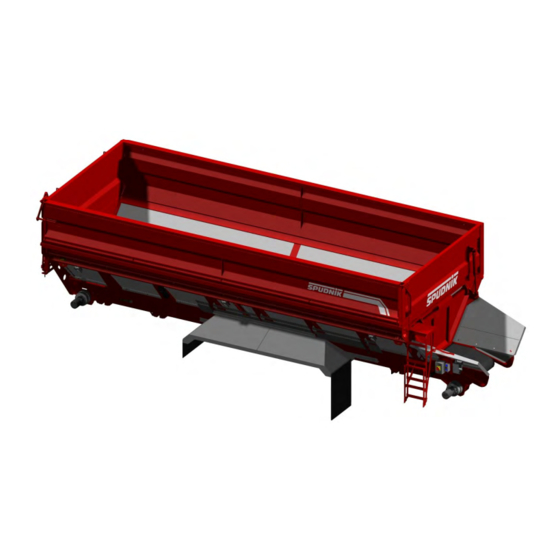

Model 4300 BULK BED
PART # 290318
Serial #: 4300-55-45
Revision: 4/18/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4300 BULK BED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spudnik 4300 BULK BED

Summary of Contents for Spudnik 4300 BULK BED

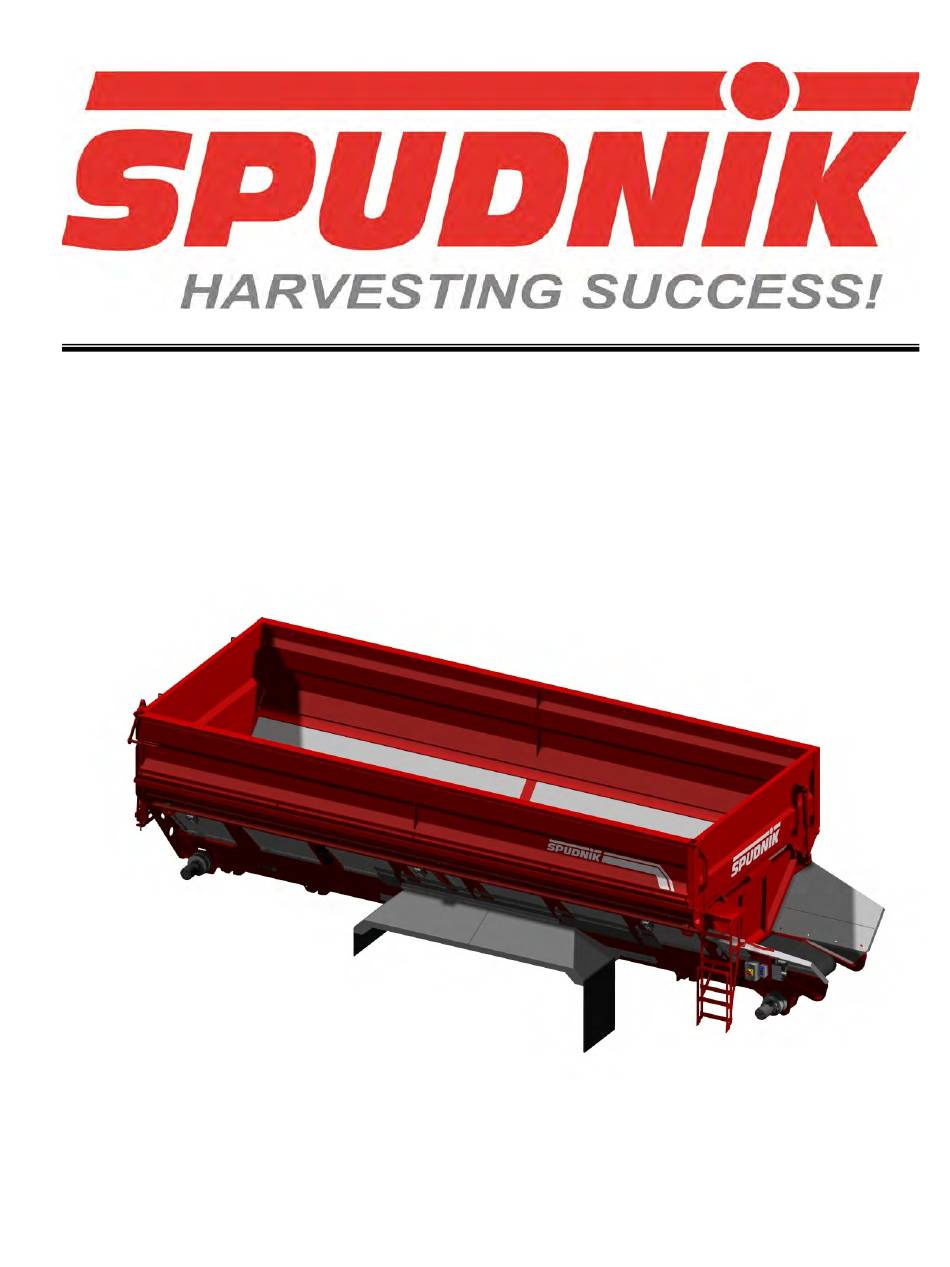

  • Page 1 PARTS MANUAL Model 4300 BULK BED PART # 290318 Serial #: 4300-55-45 Revision: 4/18/2018...
  • Page 3 Fax (701) 352-9610 Fax (207) 764-4674 Spudnik®, SimpleSep™, MultiSep™, Star Table™, AirSep®, Terra Float™, are trademarks of Spudnik Equipment Com- pany LLC. John Deere, Case, IH, Case-IH, CAT, Challenger, are trademarks of their respective trademark owners. Copyright © 2017 by Spudnik Equipment Company LLC. All rights reserved.

  • Page 4: Table Of Contents

    FB3085 - MDL 4300 REAR TOP WALL, NO DOOR OPTION ........... 32 FB3051 - PTO DRIVE 24' BBED,4300 ..................33 HA0405 - BELT DRIVE,PTO ONLY, 4300 BULK BED ............... 34 HA0441 - DRV MTR, 20'-22',50Hz,24'-26',60Hz,4300 ............... 35 FB3616 - MDL 4300 STAINLESS PTO COVER OPTION ............
  • Page 5 4300 BULK BED ARTS ANUAL Table Of Contents Attachments FB3358 - CENTER FENDER, 54", STAINLESS STEEL ............39 Tarp Types ..........................40-41 Schematics Electrical ............................. 42-53 Hydraulics ........................... 54-59 Miscellaneous Specifications & Reference Fastener Torque Guidelines ..................... 60 5.1.1 Fastener Torque Chart (SAE) ..................

  • Page 6: Introduction

    We strive to put the best quality and workmanship into each of our machines, and hope as you use your Spudnik 4300 BULK BED that you will find this to be true. This manual has been prepared to aid you in the safe operation and servicing of your machine.

  • Page 7: Foreword

    ANUAL Foreword This manual is intended to familiarize the user with the Spudnik 4300 BULK BED and its designated use. This manual contains important information on how to operate the machine safely, properly, and efficiently. Observing the instructions in this manual helps avoid dangers, reduce repair costs and down-time, and increases the reliability and service life of the machine.

  • Page 8: Limited Warranty Policy For New Spudnik Machinery

    (e) Make the product and/or failed parts available to the dealer or service center within 90 days following submittal of claim, transportation/shipping charges prepaid. The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limitations of this warranty in any way.

  • Page 9: General

    Designated use of the machine: The Spudnik 4300 BULK BED is designed exclusively for normal agricultural operations, which is its designated use. Using the machine for other purposes or exceeding its designated limits shall be considered contrary to the designated use.

  • Page 10: Product Characteristics

    The use of other parts may invalidate the liability of Spudnik for any consequences arising from such use. Please refer to the ‘Warranty Policy’ and ‘General’ section of this manual for further clarification.

  • Page 11: Safety

    These hazards constantly monitored and checked. include machine components which for functional Spudnik shall not be liable for any damage to reasons cannot be guarded. agricultural produce and other items, which occur as a WARNING: Indicates a specific hazard, or unsafe result of operating and adjustment errors or other practice, which could result in severe injury or death.

  • Page 12: Identification Of Training Requirements

    This manual provides safety advice and information 16. Replace all worn or missing bolts with SAE Grade 5 or necessary to safely operate and maintain this Spudnik greater, unless specifically directed otherwise. machine. In addition, users are encouraged to follow 17.

  • Page 13: Risks Of Ignoring Accident Prevention

    1.11. Operating Safety Practices Follow the operating instruction of the PTO shaft manufacturer. An operator’s manual is supplied with Unless specifically designed to carry the load while every PTO shaft installed on Spudnik equipment. moving, always empty machinery of product before Only shafts specified moving or transporting.

  • Page 14: Transporting/Towing Safety Practices

    4300 BULK BED ARTS ANUAL Section-1 Safety 1.11. Operating Safety Practices (Cont.) 1.12. Transporting/Towing Safety Practices Use caution when setting up or operating the proper safety practices when hitching machinery on uneven terrain, hillsides, or near ditches unhitching the machine to/from the tractor or towing to avoid the potential of overturning the equipment.

  • Page 15: Electrical System And Electronics

    4300 BULK BED ARTS ANUAL Section-1 Safety 1.14. Hydraulic Systems 1.13. Electrical System and Electronics Remove conductive jewelry, e.g. metal rings, WARNING! bracelets, watches, etc., before working on or around electrical circuits. The hydraulic system operates under high pressure. Depressurize the system before working on any Use only original fuses with the specified current component in the system.
  • Page 16 4300 BULK BED ARTS ANUAL Section-1 Safety 1.16. Maintenance and Inspection Guidelines (Cont.) 1.16. Maintenance and Inspection Guidelines (Cont.) Perform adjustment, maintenance, and inspection ac-  To avoid the risk of accidents, cover sharp edges, tivities according to the directions and schedule speci- corners, and dangerous projections on suspended fied in this manual.

  • Page 17: Acknowledgement Signature

    4300 BULK BED ARTS ANUAL Section-1 Safety Section-1 Safety 1.17. Acknowledgement Signature Anyone who will operate and/or maintain the equipment must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual. Do not operate or allow anyone else to operate this equipment until such information has been reviewed.

  • Page 18: Machine Overview

    4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.1. Safety and Information Labels Labels are placed on the machine to communicate important user safety and operational information. To ensure continued personnel safety and proper machine operation, replace any label which is damaged or becomes...

  • Page 19: Label Identification And Part Number

    Use images on following pages to identify the location Starting at the center, press the sticky portion of the for each of the labels used on the 4300 Bulk Bed. label to the machine surface. Press out any trapped air bubbles as the label is applied.

  • Page 20: Label Locations

    4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.4. Label Locations (Cont.) Part #: 290318 Revision: 4/18/2018...
  • Page 21 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.4. Label Locations (Cont.) Part #: 290318 Revision: 4/18/2018...
  • Page 22 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.4. Label Locations (Cont.) Part #: 290318 Revision: 4/18/2018...
  • Page 23 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.4. Label Locations (Cont.) Part #: 290318 Revision: 4/18/2018...
  • Page 24 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.4. Label Locations (Cont.) Part #: 290318 Revision: 4/18/2018...
  • Page 25 4300 BULK BED ARTS ANUAL This page is purposely left blank Part #: 290318 Revision: 4/18/2018...

  • Page 26: Machine Operation/Maintenance

    Section-2 Machine Overview 2.5. Machine Operation/Maintenance Pump Rotation Verification The MODEL 4300 BULK BED, has been designed to carry The hydraulic pump on Bulk Beds with “Three Phase” (3ph) motors are directionally dependent and the the product from the field to the storage area to unload the product.
  • Page 27 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.5. Machine Operation/Maintenance Belt Replacement Procedure 1. Disconnect power, and/or disengage PTO power. 2. From discharge end of the Bulk Bed, thread belt forward over the carry back rollers and around the front roller so belt is on topside of the conveyor rollers.
  • Page 28 DOWN, to the desired unloading speed. e.After the load has been discharged, return Machine Operation – The model 4300 Bulk Bed has been the speed control handle to the STOP or designed to transport farm produce to storage and market, DOWN position.
  • Page 29 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.5. Machine Operation/Maintenance SPEED CONTROL HANDLE POWER SUP- POWER SUPPLY REAR DOOR ROCK- PLY BOX SWITCH ER SWITCH SPEED CONTROL Part #: 290318 Revision: 4/18/2018...
  • Page 30 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.5. Machine Operation/Maintenance Belt Tension The rule for belt tension is as follows: The belt tension must be great enough to prevent slippage between drive pulley and belt. If there is slippage between the drive pul- ley and belt adjust the take-ups, on both sides of the pulley, equally until there is no more slippage.
  • Page 31 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.5. Machine Operation/Maintenance Side Door Latch Adjustment The side door is opened and closed hydraulically. When it is closed it is held shut by the hydraulic cylinder and by the “Side Door Latch” on the intake and the discharge.
  • Page 32 4300 BULK BED ARTS ANUAL Section-2 Machine Overview 2.5. Machine Operation/Maintenance Lubrication Points: Cleaning Instructions: 1. Clean the machine thoroughly, inside and outside. Dirt attracts moisture and leads to corrosion. The following advice should be adhered to when using high-pressure cleaning equipment to wash down the machine 2.

  • Page 33: Standard Parts Belt Lacing Options

    4300 BULK BED ARTS ANUAL Part #: 290318 Revision: 4/18/2018...

  • Page 34: Parts Manual

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 35: Ha0400 - Cylinder Functions, 4300 Bulk Bed

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 36: Fb3082 - Mainframe Group 4300

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...
  • Page 37 4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 38: Fb3356 - Bulk Bed,24 Ft, 4300 Stainless Floors

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...
  • Page 39 4300 BULK BED ARTS ANUAL Section-3 Parts Manual This page is purposely left blank Part #: 290318 Revision: 4/18/2018...

  • Page 40: Fb3346 - Bulk Bed,24 Ft, 4300 Standard Sides

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...
  • Page 41 4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 42: Fb3085 - Mdl 4300 Rear Top Wall, No Door Option

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 43: Fb3051 - Pto Drive 24' Bbed,4300

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 44: Ha0405 - Belt Drive,Pto Only, 4300 Bulk Bed

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 45: Ha0441 - Drv Mtr, 20'-22',50Hz,24'-26',60Hz,4300

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 46: Fb3616 - Mdl 4300 Stainless Pto Cover Option

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 47: Ea0761 - 4300, Cab Switch Control Sd/Rd Asmb

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 48: Fb3088 - Mdl 4300 With Tail Lights

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 49: Fb3358 - Center Fender, 54", Stainless Steel

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 50: Tarp Types

    4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...
  • Page 51 4300 BULK BED ARTS ANUAL Section-3 Parts Manual Part #: 290318 Revision: 4/18/2018...

  • Page 52: Schematics

    4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...

  • Page 53: Electrical

    4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 54 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 55 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 56 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 57 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 58 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 59 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 60 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 61 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 62 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...
  • Page 63 4300 BULK BED ARTS ANUAL Section 4 Schematics (4.1-Electrical) Part #: 290318 Revision: 4/18/2018...

  • Page 64: Hydraulics

    4300 BULK BED ARTS ANUAL Section-4 (4.2 Hydraulics) Part #: 290318 Revision: 4/18/2018...
  • Page 65 4300 BULK BED ARTS ANUAL Section-4 (4.2 Hydraulics) Part #: 290318 Revision: 4/18/2018...
  • Page 66 4300 BULK BED ARTS ANUAL Section-4 (4.2 Hydraulics) Part #: 290318 Revision: 4/18/2018...
  • Page 67 4300 BULK BED ARTS ANUAL Section-4 (4.2 Hydraulics) Part #: 290318 Revision: 4/18/2018...
  • Page 68 4300 BULK BED ARTS ANUAL Section-4 (4.2 Hydraulics) Part #: 290318 Revision: 4/18/2018...
  • Page 69 4300 BULK BED ARTS ANUAL Section-4 (4.2 Hydraulics) Part #: 290318 Revision: 4/18/2018...

  • Page 70: Miscellaneous Specifications & Reference

    4300 BULK BED ARTS ANUAL Section-5 Miscellaneous Specifications & Reference 5.1. Fastener Torque Guidelines 5.1. Fastener Torque Guidelines (Cont.) Check all nuts, bolts, and screws regularly for tightness. 5.1.3. Fastener Grade/Class Marking: Replace nut/bolt pairs with the same grade or higher than Bolt head markings, and nut surface markings, are that of the original nut/bolt.

  • Page 71: Shear Pin Guidelines

    5.3.1. Follow the tightening torques given in the table below when tightening, replacing, or repairing any Hydraulic Fit- tings. There are two methods to achieve proper ‘clamp load’ on the flare connections used on Spudnik machinery. 1. Torque: Torque hydraulic fitting using a torque wrench.

  • Page 72: Belted Chain Repair

    Repair or replace as necessary. While components vary, general procedure applies to all Spudnik belted chains.  Inspect the Web Joiners for wear. Due to the metal on metal connection in the Web Join- ers, they tend to wear more quickly than the IMPORTANT rest of the belted chain.
  • Page 73 4300 BULK BED ARTS ANUAL Section-5 Miscellaneous Specifications & Reference Section-X TBD 5.4. Belted Chain repair (Cont.) 5.4. Belted Chain repair (Cont.) connect to the mating side of the Web Joiner attached to the other end of the Belted Chain web.
  • Page 74 4300 BULK BED ARTS ANUAL Section-5 Miscellaneous Specifications & Reference 5.4. Belted Chain repair (Cont.) 5.4. Belted Chain repair (Cont.) Figure 15 Figure 17   Squeeze the Web Joiner together so it is tight Working from one side, insert the Connecting against the webbing.

  • Page 75: Lubricant Specifications

    Belted Chain. (See Figure 19) Grease: Shell Retinax EP2 multipurpose grease (or equivalent). Gearbox Lube: 80W90 gear oil. Roller Chains: Spudnik chain lubricant, PN 991707 or equivalent industrial chain spray. Hydraulic Oil: AW32 IMPORTANT AW32 hydraulic oil is for use in self hydraulic systems only.
