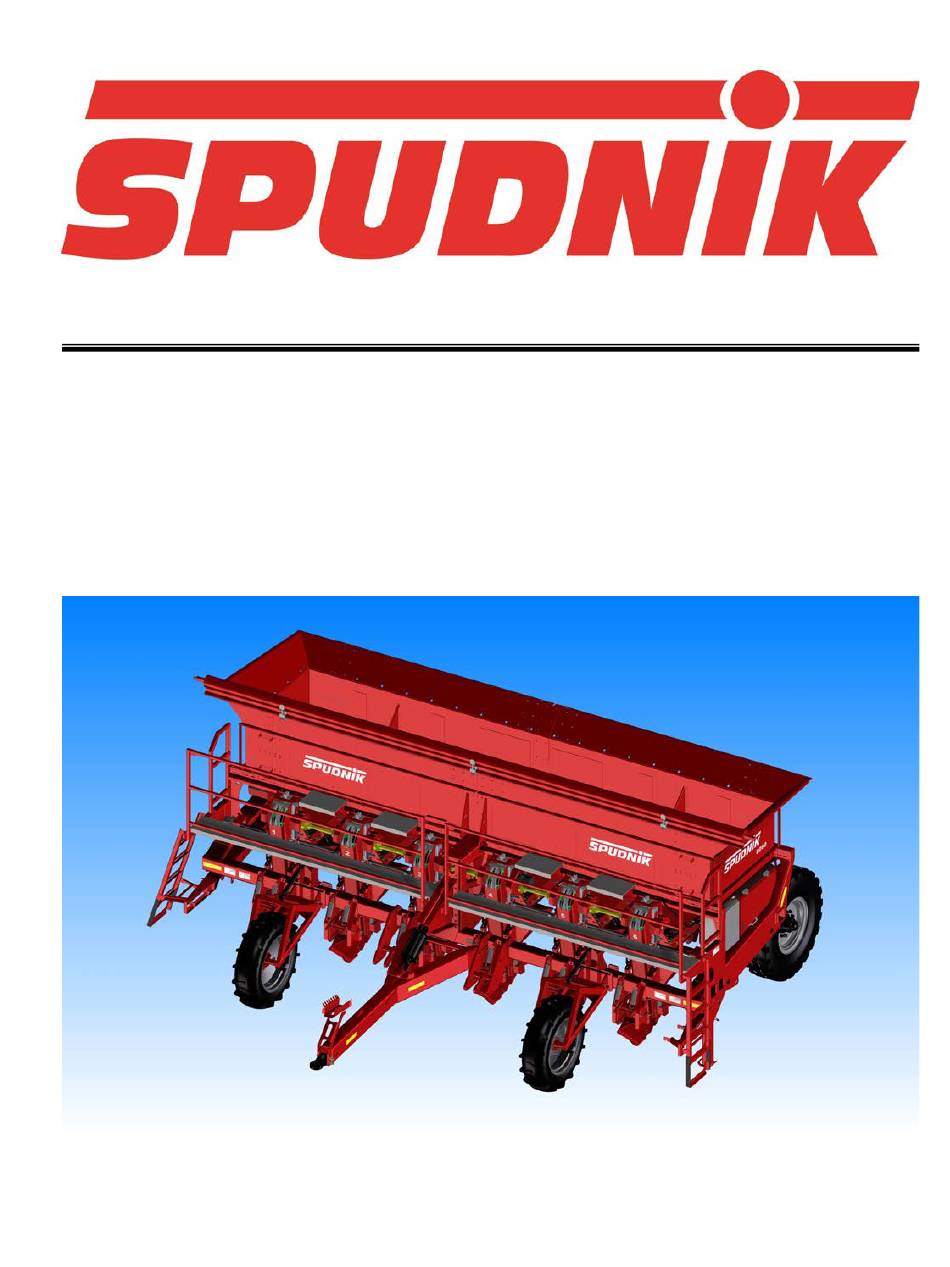

PARTS MANUAL
8060 PLANTER
PART #290286
SERIAL #8060-55-494
Revision: 2/2/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8060 and is the answer not in the manual?

Questions and answers

Related Manuals for Spudnik 8060

Summary of Contents for Spudnik 8060

  • Page 1 PARTS MANUAL 8060 PLANTER PART #290286 SERIAL #8060-55-494 Revision: 2/2/2023...
  • Page 3 Fax (208) 495-9170 Fax (701) 352-9610 Fax (207) 764-4674 Spudnik®, SimpleSep™, MultiSep™, RollerStar™, Star Table™, AirSep®, Terra Float™, are trademarks of Spudnik Equipment Company LLC. John Deere, Case, IH, Case-IH, CAT, Challenger, are trademarks of their respective trade- mark owners.

  • Page 4: Table Of Contents

    ............23 Main Frame FB7010 - MAIN FRAME 8060, WEIGH SCALE COMPATIBLE ..........24 Rear Axle FB1959 - 4 WHEEL WALKING BEAM STRBL 8060 10 HOL ..........26-28 FB1955 - 4 GALAXY MPC TIRES, 13.00-24, 10 HOLE ............30 Catwalk FA8789 - CATWALK,LOWER DRAW BAR MOUNT 8060 ............
  • Page 5 200.72214 - MECH OSCILLATING BIG SPUDNIK ..............46 200.77124 - CUP BELT SHAKER ADJUSTER ................ 48 FA5475 - NO ROW UNIT SWITCH OFF HYD DRIVE 8060 ............ 49 FB0746 - HYDRAULIC DRIVE GRIMME ROW UNIT 8060 ............. 50 FA4350 - SHAKER HYDRAULIC GRIMME ROW UNIT 8060 ..........
  • Page 6 8060 Plant er Par ts Ma nual Table Of Contents 3.2 Attachments Fertilizer FA9510 - NO DRY FERTILIZER STD DRWBR MNT8040/8060 ..........82 FB2941 - LIQUID FERT,DUAL TANKS, REAR MOUNT,80XX ..........83 Tool Bar and Tools FA3811 - TOOLBAR,FRONT,DRAWBAR 8060 34-36"SPC ............
  • Page 7 8060 PLANTER Par ts Ma nual This page intentionally left blank Part #: 290286 Revision: 2/2/2023...

  • Page 8: Introduction

    We strive to put the best quality and workmanship into each of our machines, and hope as you use your Spudnik Planter that you will find this to be true. This manual has been prepared to aid you in the safe operation and servicing of your machine.

  • Page 9: Foreword

    Par ts Ma nual Foreword This manual is intended to familiarize the user with the Spudnik 80XX Planter and its designated use. This manual contains important information on how to operate the machine safely, properly, and efficiently. Observing the instructions in this manual helps avoid dangers, reduce repair costs and down-time, and increases the reliability and service life of the machine.

  • Page 10: Warranty Policy

    (c) Make the product available to the dealer or service center within a reasonable period of time, transportation charges prepaid. The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limitations of this warranty in any way.

  • Page 11: General

    Unauthorized modification and/or the use of spare parts, accessories, and auxiliary equipment not supplied and/or not approved by Spudnik can have a detrimental effect on the structural integrity and/or functionality of the machine. Any such modification could compromise the engineered safety controls designed to prevent accidents and/or result in machine damage.

  • Page 12: Product Characteristics

    The use of other parts may invalidate the liability of Spudnik for any consequences arising from such use. Please refer to the ‘Warranty Policy’ and ‘General’ section of this manual for further clarification.

  • Page 13: Safety

    These hazards include machine components which for functional reasons Spudnik shall not be liable for any damage to cannot be guarded. agricultural produce and other items, which occur as a result of operating and adjustment errors or other WARNING: Indicates a specific hazard, or unsafe incorrect usage.

  • Page 14: Identification Of Training Requirements

    17. Keep the machine clean to avoid the risk of fire. 18. Observe applicable regulations when using public This manual provides safety advice and information necessary to safely operate and maintain this Spudnik roads. machine. In addition, users are encouraged to follow 19.

  • Page 15: Risks Of Ignoring Accident Prevention

    1.11. Operating Safety Practices Follow the operating instruction of the PTO shaft manufacturer. An operator’s manual is supplied with Unless specifically designed to carry the load while every PTO shaft installed on Spudnik equipment. moving, always empty machinery of product before Only shafts specified moving or transporting.

  • Page 16: Transporting/Towing Safety Practices

    8060 Plant er Par ts Ma nual Section-1 Safety 1.11. Operating Safety Practices (Cont.) 1.12. Transporting/Towing Safety Practices Keep safety decals, signs, and reflectors clean and proper safety practices when hitching unhitching the machine to/from the tractor or towing legible at all times.

  • Page 17: Electrical System And Electronics

    8060 Plant er Par ts Ma nual Section-1 Safety 1.14. Hydraulic Systems 1.13. Electrical System and Electronics Remove conductive jewelry, e.g. metal rings, WARNING! bracelets, watches, etc., before working on or around electrical circuits. The hydraulic system operates under high pressure.
  • Page 18 8060 Plant er Par ts Ma nual Section-1 Safety 1.16. Maintenance and Inspection Guidelines (Cont.) 1.16. Maintenance and Inspection Guidelines (Cont.) Perform adjustment, maintenance, and inspection ac- • To avoid the risk of accidents, cover sharp edges, tivities according to the directions and schedule speci- corners, and dangerous projections on suspended fied in this manual.

  • Page 19: Acknowledgement Signature

    8060 Plant er Par ts Ma nual Section-1 Safety Section-1 Safety 1.17. Acknowledgement Signature Anyone who will operate and/or maintain the equipment must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual. Do not operate or allow anyone else to operate this equipment until such information has been reviewed.

  • Page 20: Safety And Information Labels

    8060 Plant er Par ts Ma nual Section-2 Machine Overview 2.1. Safety and Information Labels Labels are placed on the machine to communicate important user safety and operational information. To ensure continued personnel safety and proper machine operation, replace any label which is damaged or becomes illegible.
  • Page 21 8060 Plant er Par ts Ma nual Section-2 Machine Overview 2.1. Safety and Information Labels (Cont.) Item#:28 Part#:300194 Item#:23 Part#:300458 Item#:29 Part#:300195 Item#:24 Part#:300552 Item#:30 Part#:300196 Item#:31 Part#:300322 Item#:25 Part#:300165 Item#:32 Part#:300325 Item#:26 Part#:300166 Item#:27 Part#:300168 Item#:33 Part#:300327 Part #: 290286...

  • Page 22: Label Identification And Part Number

    300402 TAPE,ORANGE,REFLECTIVE x 9" 300425 DECAL,SEED SPACING CHART 2012 w/CLUTCH 300458 STICKER,LAYOUT,HYD,PANEL,COMPONENTS,80XX 300552 LABEL,HYDRAULIC,COLOR,CODE,80XX 300165 STICKER,SPUDNIK,6.1" X 29.49" LG RED 300166 STICKER,SPUDNIK,6.1" X 29.49" LG WHITE 300168 STICKER,SPUDNIK,3.82"x18.49" SMALL WHITE 300194 STICKER,8040,ROW 1-4 WHITE 3.3" 300195 STICKER,8060,ROW 1-6 WHITE 3.3"...

  • Page 23: Installing Replacement Labels

    8060 Plant er Par ts Ma nual Section-2 Machine Overview 2.3. Installing Replacement Labels 2.4. Label Locations Thoroughly clean and dry the area where the label is Use table 2.2. in conjunction with Images 5 through 21 to identify the location for each of the labels used on to be installed.
  • Page 24 8060 Plant er Par ts Ma nual Section-2 Machine Overview 2.4. Label Locations (Cont.) Image 5 Image 6 Image 7 Part #: 290286 Revision: 2/2/2023...
  • Page 25 8060 Plant er Par ts Ma nual Section-2 Machine Overview 2.4. Label Locations (Cont.) Image 8 Image 9 Image 10 Part #: 290286 Revision: 2/2/2023...
  • Page 26 8060 Plant er Par ts Ma nual Section-2 Machine Overview 2.4. Label Locations (Cont.) 31 32 33 FOR MACHINE WITH MARKER ARM Image 14 Image 11 Image 12 Image 15 13 FOR MACHINE WITH WHEEL ASSIST Image 13 Part #: 290286...
  • Page 27 8060 Plant er Par ts Ma nual Section-2 Machine Overview Section-X TBD 2.4. Label Locations (Cont.) Image 16 Image 19 Image 17 Image 20 Image 18 Image 21 Part #: 290286 Revision: 2/2/2023...

  • Page 28: Parts Manual

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA3772 - STANDARD PARTS PLANTER 8060 Item # Part # Description FA7217 SKIP DETECTION, 6 ROW, 8XXX FA6543 PLANTER MISC STANDARD PARTS FA9402 PLANTER LIGHTING, 6 WORK LIGHTS FA3919 STONE FURROW WITH OPENERS 8060-2005...

  • Page 29: Fa6543 - Planter Misc Standard Parts

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA6543 - PLANTER MISC STANDARD PARTS Item # Part # Description 300401 TAPE,YELLOW,REFLECTIVE x 9" 301207 STICKER,SPUDNIK,SMALL WHITE,INCISED 2018 300250 LABEL,MAINTENANCE STICKER,SPANISH 300251 LABEL,MAINTENANCE STICKER,ENGLISH 300466 NOTICE:MODIFICATION MAY VOID WARRANTY...

  • Page 30: Fa9402 - Planter Lighting, 6 Work Lights

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA9402 - PLANTER LIGHTIN6, 6 WORK LIGHTS Item # Part # Description 403078 LGHT,LED,WORKLIGHT 20W 10-30VDC DT 177079 LIGHT,STANDOFF,8XXX-2015 FA8915 DOT LIGHTING, 80XX-2011 Part #: 290286 Revision: 2/2/2023...
  • Page 31 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA8915 - DOT LIGHTING, 80XX-2011 Item # Part # Description 197021 MOUNT,STROBE,LIGHT 175429 LIGHT,MOUNT,VERTICAL 403074 LGHT,SIGNAL,STOP,AG-LED-R4 DT 403075 LGHT,SIGNAL,STOP,AG-LED-L4 DT 403077 LGHT,STROBE,AMBER LED, STR-120LED DT Part #: 290286...

  • Page 32: Fa8916 - Toolkit,80Xx-2011

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA8916 - TOOLKIT,80XX-2011 Item # Part # Description 197014 TOOLBOX,BRACKET,80XX 981701 TOOLBOX,CRAFTSMAN,23 LH LONG #965433 Part #: 290286 Revision: 2/2/2023...

  • Page 33: Fa5683 - Drawbar Standard 80Xx 2006

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA5683 - DRAWBAR STANDARD 80XX 2006 Item # Part # Description 179075 SPACER, DRAWBAR, PIVOT POINT, 8XXX 175741 BRACE,HOSE BRACKET 80XX-2012 175740 BRACKET, HOSE 80XX-2012 177062 HOSE KEEPER,LH,8XXX-2015...

  • Page 34: Fb0355 - Drawbar Extension 8In Drop 8In

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FB0355 - DRAWBAR EXTENSION 8in DROP 8in Item # Part # Description 178566 SPACER, PLATE, PULL HITCH EXT, 8XXX 178565 TUBE,SPACER,PULL HITCH EXT,8XXX 197894 DRAWBAR EXTENSION 80XX Part #: 290286...

  • Page 35: Fa7381 - Pull,Ring,Drawbar Heavy Duty 2008

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB7381 - PULL,RING,DRAWBAR HEAVY DUTY 2008 Item # Part # Description 981963 HITCH,DRAWBAR HEAVY DUTY PIVOTING BALL Part #: 290286 Revision: 2/2/2023...
  • Page 36 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 37: Fb7010 - Main Frame 8060, Weigh Scale Compatible

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB7010 - MAIN FRAME 8060, WEIGH SCALE COMPATIBLE Item # Part # Description 192644 CHANNEL LH OR RH MAIN FRAME 8060 502446 PIN,LINCH,5/16"OD x 1-9/16"LG W/RING 300402 TAPE,ORANGE,REFLECTIVE x 9"...
  • Page 38 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 39: Fb1959 - 4 Wheel Walking Beam Strbl 8060 10 Hol

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB1959 - 4 WHEEL WALKING BEAM STRBL 8060 10 HOLE (LH) Item # Part # Description 19021583 PIVOT PIN MOUNT, BOLTON, 80X0 19021581 AXLE CARRIER STANDARD, BOLTON EASY MOUNT 984417 SEAL,NEOPRNE W/STNLSS WSHR,1/4"ID,3/4"OD...
  • Page 40 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...
  • Page 41 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB1959 - 4 WHEEL WALKING BEAM STRBL 8060 10 HOLE (LH) Item # Part # Description 19021583 PIVOT PIN MOUNT, BOLTON, 80X0 19021581 AXLE CARRIER STANDARD, BOLTON EASY MOUNT 984417 SEAL,NEOPRNE W/STNLSS WSHR,1/4"ID,3/4"OD...

  • Page 42: Fb1955 - 4 Galaxy Mpc Tires, 13.00-24, 10 Hole

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FB1955 - 4 GALAXY MPC TIRES, 13.00-24, 10 HOLE Item # Part # Description 951627 TIRE&RM,GLXY MPC,13-24,12PLY,12300#,LH 951628 TIRE&RM,GLXY MPC,13-24,12PLY,12300#,RH Part #: 290286 Revision: 2/2/2023...
  • Page 43 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD This page intentionally left blank Part #: 290286 Revision: 2/2/2023...
  • Page 44 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 45: Fa8789 - Catwalk,Lower Draw Bar Mount 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA8789 - CATWALK,LOWER DRAW BAR MOUNT 8060 Item # Part # Description 19020668 SECONDARY RAILING, LH, SCALES 19020669 SECONDARY RAILING, RH, SCALES 175602 GRIP.STRUT.SINGLE.STEP.80XX 175305 LOCKING,LINKAGE,LH 80XX-2011 175306...
  • Page 46 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 47: Fb4072 - Hopper, 6Row, 34"-38

    FILTER,HIGH PRESSURE,25 GPM,4000 PSI 192009 SIDE PANEL RIGHT MODEL 8060 196878 ADJUSTER,LONG,80XX-2011 19015574 HOPPER,LH 19015575 HOPPER,RH 19015573 HOPPER,MID 192019 HOPPER PANEL FRONT RH MODEL 8060 192111 HOPPER PANEL FRONT LH MODEL 8060 19013593 SHAFT CHAIN DRIVE HOPPER 2016 Part #: 290286 Revision: 2/2/2023...
  • Page 48 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...
  • Page 49 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD This page intentionally left blank Part #: 290286 Revision: 2/2/2023...

  • Page 50: Fa3820 - Hopper Tarp Red 8060 Planter

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA3820 - HOPPER TARP RED 8060 PLANTER Item # Part # Description 176406 LIGHT BRACKET FRONT 80XX-2013 981490 TARP,RED PLANTER 6-ROW 176075 BRACKET.REAR.LIGHT,80XX 132626 TARP ASSEMBLY 6-ROW MODEL 8060 Part #: 290286...
  • Page 51 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 132626 - TARP ASSEMBLY 6-ROW MODEL 8060 Item # Part # Description 981379 TARPSTOP,2" OFFSET BULKBED SHURCO 131980 TARP HOLDER 20' BED 173289 TARP BRACKET RH MODEL 80XX...

  • Page 52: 134522 - Row Unit Spu Assembly

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA3970 - ROW UNIT GROUP GRIMME 8060 Item # Part # Description 134522 ROW UNIT SPU ASSEMBLY Part #: 290286 Revision: 2/2/2023...
  • Page 53 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 134522 - ROW UNIT SPU ASSEMBLY Item # Part # Description 201.32626 PLANTING ELEMENT W/O C.DISK ARMS-SHAKER 502673 PIN,ROLL,10MM x 50MM 502672 BOLT,HEX,HD,M16x25MM 173514 PLANTING UNIT ROCK COVER 8011,2006...
  • Page 54 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 55: Planting Element W/O C.disk Arms-Shaker

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 201.32626 - PLANTING ELEMENT W/O C.DISK ARMS-SHAKER Item # Part # Description 200.72214 MECH OSCILLATING BIG SPUDNIK 200.77124 CUP BELT SHAKER ADJUSTER 200.77125 ROW UNIT Part #: 290286...
  • Page 56 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 57: Row Unit

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 200.77125 - ROW UNIT Item # Part # Description B96.00247 SLIDE BEARING BUSH MSM-2532-20 [x] B99.02613 SNAPR.,40X1.75, EXT., DIN471 100.43497 PULLEY [x] 060.02961 AXLE TUBE [40x6x360] 088.00514 LIMITING DISC [5x340] B99.02617...
  • Page 58 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 59: Mech Oscillating Big Spudnik

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 200.72214 - MECH OSCILLATING BIG SPUDNIK Item # Part # Description B99.02304 SPRING SLOTTED PIN DIN1481-4X2 B97.00066 PRESSURE SPRING B99.03081 PLAIN WASHER 13X26X1,25 GALU [13] B87.01001 SAFETY CHAIN -PLASTIC [x] 694.01452...

  • Page 60: Cup Belt Shaker Adjuster

    8060 Plant er Par ts Ma nual Section-3 Parts Manual 200.77124 - CUP BELT SHAKER ADJUSTER Item # Part # Description 060.05289 SPACER 15-2-3,5-11 B99.01279 MH-SCREW M12X30 DIN603-8.8-GAL [12x30] B99.03510 FORK JOINT A 10X40 DIN71751 [10x40] 099.00406 THREADED M10 061.02426 TUBE 015.60065...

  • Page 61: Fa5475 - No Row Unit Switch Off Hyd Drive 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA5475 - NO ROW UNIT SWITCH OFF HYD DRIVE 8060 Item # Part # Description 051784 SHAFT 050184 SHAFT,DRIVE,ROWUNIT,80XX,2006 050097 SHAFT,METRIC,HYD RIVE,8XXX B99.02434 LINCH PIN GAL 8X45 [8x45] B95.01225...
  • Page 62 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 63: Fb0746 - Hydraulic Drive Grimme Row Unit 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB0746 - HYDRAULIC DRIVE GRIMME ROW UNIT 8060 Item # Part # Description 19011365 ROW UNIT,DRIVE COVER,8XXX-2016 2.29 351240 CHN,RLR,50 PITCH 603513 MTR,HY,10.3CUIN,1-1/4"KEY,2-HOLE,TF-SER 881318 SPRCKT,H50 BS28x25MM BORE,1/4"KEY 351013...
  • Page 64 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 65: Fa4350 - Shaker Hydraulic Grimme Row Unit 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA4350 - SHAKER HYDRAULIC GRIMME ROW UNIT 8060 Item # Part # Description 601655 MTR,HY,3.0CUIN,1"KEY,SAE-A,TB-SERIES 601443 CPLG,HYD,90DEG,6801-8-8 (8MJ-8MB) 601749 CPLG,HYD,STR,6400-8-10 (8MJ-10MB) 603970 FLOW CONTROL VALVE DEUTSCH 5gpm 3-Way...
  • Page 66 8060 Plant er Par ts Ma nual Section-3 Parts Manual FA6647 - GREEN CUPS (MEDIUM) GRIMME ROW UNIT 8060 Item # Part # Description 200.61470 ELV WEB BELT GREEN GATE BREAKER Part #: 290286 Revision: 2/2/2023...

  • Page 67: Elv Web Belt Green Gate Breaker

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 200.61470 - ELV WEB BELT GREEN GATE BREAKER Item # Part # Description B99.03086 PLAIN WASHER 6,5X13X1 GALV (AR [6.5] 088.00909 GREEN GRID CUP B99.01806 HEXAGON NUT DIN985-M6-8-GAL [m6] 099.00187...

  • Page 68: Fa7217 - Skip Detect Grimme 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA7217 - SKIP DETECT GRIMME 8060 Item # Part # Description 179564 SKIP DETECTION,SENSOR BRACKET, ADJUSTABL B99.04210 STOPPER NUT M10 CAN115 BLK [m10] 450472 SENSOR,TX THRU-BEAM,M8-3P,TELCO TRANSMIT 179560 SKIP DECTECTION,SENSOR COVER,LH 502695 BOLT,LAG,1/4"...

  • Page 69: Fa7127 - Uhmw Inserts For Grimme Row Unit 6 Row

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA7127 - UHMW INSERTS FOR GRIMME ROW UNIT 6 ROW Item # Part # Description 174298 SHEET,BACK PLATE SPUDNIK,KIT,PLANTER 174299 SHEET,L.H. SPUDNIK KIT,PLANTER 174300 SHEET,R.H. SPUDNIK KIT PLANTER...

  • Page 70: Fa3919 - Stone Furrow With Openers 8060-2005

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA3919r6 - STONE FURROW WITH OPENERS 8060-2005 Item # Part # Description 132991 HEAVY SHOE MOUNT ASSY (NO ASSEMBLY DRAWING AVAILABLE) 132991 - HEAVY SHOE MOUNT ASSY Item # Part #...

  • Page 71: Fa9499 - Shoe, W/High Chromium Rod, 6 Row, 8Xxx

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA9499 - SHOE, W/HIGH CHROMIUM ROD, 6 ROWS Item # Part # Description 173462 SHOE,EXTENSION,80XX,2006 194815 SHOE,PLANTER,08 197651 WEARPLATE,WITH HIGH CHROMIUM ROD (PNTD) Part #: 290286 Revision: 2/2/2023...
  • Page 72 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 73: Fa9471 - 20" Serrated Cover Discs 6 Row Planter

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA9471 - 20" SERRATED COVER DISCS 6 ROW PLANTER Item # Part # Description 120374 20"SERRATED COVERING DISCS SINGLE ROW (NO ASSEMBLY DRAWING AVAILABLE) Part #: 290286 Revision: 2/2/2023...
  • Page 74 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...
  • Page 75 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD This page intentionally left blank Part #: 290286 Revision: 2/2/2023...
  • Page 76 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 77: 134654 -Covering Disc Mount Assembly

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 134654 -COVERING DISC MOUNT ASSEMBLY Item # Part # Description HEXAGON JAM NUT M16 DIN936-17H-GAL [m16] B99.01840 BUSH [35x13] 031.02755 PLAIN WASHER 31X61,5X3 GAL [31] B99.03025 SPACER, 30x10 089.00577...
  • Page 78 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 79: Fa3973 - Depth Wheels Hyd Drv Planter 80Xx-2005

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA3973 - DEPTH WHEELS HYD DRV PLANTER 80XX-2005 Item # Part # Description 951387 TIRE&RIM,RH 11.2x24 DRIVE 173807 DEPTH WHEEL MNT PLATE,80XX,2007 231156 BRNG,PB,2" BORE,ECC LOCK FAFNIR #TAK 2 501952 COLLAR,SHAFT,SET,SCREW,1-1/2"...

  • Page 80: 133432 - Control Panel Assy 80Xx

    8060 Plant er Par ts Ma nual Section-3 Parts Manual 133432 - CONTROL PANEL ASSY 80XX Item # Part # Description 175732 BACK,BRACE,HYD,PANEL,80XX,BACK 175731 BACK,BRACE,HYD,PANEL,80XX,FRONT 175753 HOSE,TIE,PLATE 175743 SHIELD,SUPPORT,YD,PANEL,80XX 197518 BRACKET,SHIELD 982254 BUMPER,RUBBER,3/4"DIAx1/2" HIGH 10-24 300458 STICKER,LAYOUT,HYD,PANEL,COMPONENTS,80XX 300097 LABEL,WARNING,HIGH,PRESSURE,OIL,CAN 300210...
  • Page 81 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD This page intentionally left blank Part #: 290286 Revision: 2/2/2023...

  • Page 82: Fa3831 - Cci/S4 Professional Controls 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA3831 - CCI/S4 PROFESSIONAL CONTROLS 8060 Item # Part # Description EA0602 8XXX,STD S4 ELEC ASSEMBLY B94.05387 TURNING SENSOR 1024 I/U,16MM ITD20 173455 ARM,ENCODER,LONG 175894 ENCODER ARM 80XX-2012 133433 SHIELD,ASSY,HYD PANEL 80XX...

  • Page 83: 133433 - Shield,Assy,Hyd Panel 80Xx

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 133433 - SHIELD,ASSY,HYD PANEL 80XX Item # Part # Description 981664 HANDLE,SHIELD,6140 NA4ZN 019.00487 HINGE,1-15/16" 019.00300 HINGE,3" 981646 CLEVIS,FORK,THREADED ENDS,M8 197517 SHIELD.CONTROL.PANEL.80XX 982253 LEVER LATCH,SOUTHCO 982000 SPRING,GAS,7.87STROKE,75# FORCE,M8THREAD...
  • Page 84 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...
  • Page 85 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD EA0602 - 8XXX,STD S4 ELEC ASM,LRG PANEL,2016 Item # Part # Description 450343 FUSE, 15A ATO BLADE FUSE 450345 FUSE, 30A ATO BLADE FUSE 450435 FUSE,3A,ATO BLADE FUSE...

  • Page 86: Fa5456 - Working Position Sensor Drawbar Placement

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA5456 - WORKING POSITION SENSOR DRAWBAR PLACEMENT Item # Part # Description 173501 SENSOR,BRACKET,DRAWBAR, 80XX,2006 Part #: 290286 Revision: 2/2/2023...

  • Page 87: Fb0749 - Kit Return To Center 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB0749 - KIT RETURN TO CENTER 8060 Item # Part # Description 603577 R_MANIFLD,2 ST,1 VLV,PARALLEL,CC/OC,2014 602367 CPLG,HYD,TEE,6602-08-08-08(MJ-FJS-MJ) 601637 CPLG,HYD,90DEG,6801-8-10 (8MJ-10MB) 602057 CPLG,HYD,90DEG 6500-8-6 (8MJ-6FJS) 601443 CPLG,HYD,90DEG,6801-8-8 (8MJ-8MB)

  • Page 88: Fb1196 - Jd Gps Without Hopper Extensions 8060-14

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FB1196 - JD GPS WITHOUT HOPPER EXTENSIONS 8060-14 Item # Part # Description 195600 GPS,RECEIVER,MOUNT Part #: 290286 Revision: 2/2/2023...

  • Page 89: Fb2166 - Mech Adj Feed Bowl Sensr,6Row,8Xxx,2016

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB2166 - MECH ADJ FEED BOWL SENSR,6ROW,8XXX,2016 Item # Part # Description 133908 FEED BOWL SENSR,MECH ADJ ASM,8XXX,2016 Part #: 290286 Revision: 2/2/2023...

  • Page 90: 133908 - Feed Bowl Sensr,Mech Adj Asm,8Xxx,2016

    133908 - FEED BOWL SENSR,MECH ADJ ASM,8XXX,2016 Item # Part # Description 450742 SENSOR VISUAL, PROGRAMMED 502631 WASHER,FLAT,3/8" (SAE) ZINC PLT 173225 BRACKET BIN SENSOR ROW UNIT 8060 175309 SLIDE,SENSOR BRACKET,SEED BOWL,W/TABS 982214 KNOB,4ARM,THREDED-HOLE 3/8"-16 61135K35 175302 BRACKET,SENSOR,ADUSTABLE Part #: 290286 Revision: 2/2/2023...

  • Page 91: Fb1693 - Cci Display And Mounts

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB1693 - CCI DISPLAY AND MOUNTS Item # Part # Description 982825 CAP, TUBE, RIBBED, 1.25" ODX 1" ID 177487 MOUNT ARM, UPPER, S4 CONTROLS 177488 MOUNT ARM, LOWER, S4 CONTROLS 981250 KNOB,CLAMPING,W/STUD 3/8"-16x1"...

  • Page 92: Ea0277 - Terminal,Kit,Cc1-200,Display

    8060 Plant er Par ts Ma nual Section-3 Parts Manual EA0277 - TERMINAL,KIT,CC1-200,DISPLAY Item # Part # Description 502753 SCREW,MACH,PAN HD,M5x16MM 982400 CCI SCREEN PROTECTOR KIT MATTE 2PC W/APP 450388 TERMINAL,CCI-200 V3.1,DISPLAY Part #: 290286 Revision: 2/2/2023...

  • Page 93: Fb1701 - Control Mount Base, Jd Tractor

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB1701 - CONTROL MOUNT BASE, JD TRACTOR Item # Part # Description 982825 CAP, TUBE, RIBBED, 1.25" ODX 1" ID 19010432 CONTROL MOUNT, POST, JOHN DEERE Part #: 290286...

  • Page 94: Fa9510 - No Dry Fertilizer Std Drwbr Mnt8040/8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA9510 - NO DRY FERTILIZER STD DRWBR MNT8040/8060 Item # Part # Description 194825 HITCH,EXTENSION 17010779 SHIM, DRAWBAR, CONNECTION, 0.0625" Part #: 290286 Revision: 2/2/2023...

  • Page 95: Fb2941 - Liquid Fert,Dual Tanks, Rear Mount,80Xx

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FB2941 - LIQUID FERT,DUAL TANKS, REAR MOUNT,80XX Item # Part # Description 029889 PLATE 196224 MOUNT,FERTILIZER 80XX-2011 Part #: 290286 Revision: 2/2/2023...
  • Page 96 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 97: Fa3811 - Toolbar,Front,Drawbar 8060 34-36"Spc

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA3811 - TOOLBAR,FRONT,DRAWBAR 8060 34-36"SPC Item # Part # Description 174275 SHAFT,TOOLBAR,FRONT PLANTER,8060,8040 501212 BOLT,HEX,HD,5/8"-11UNC x 7" GR 5 502305 BOLT,HEX,HD,5/8"-11UNC x 10" GR 5 501814 NUT,HEX,5/8"-11UNC 501935 WASHER,LOCK,SPLIT,5/8"...

  • Page 98: Fb0358 - Coil Shnk 6 Shanks Front Fits 2.5" Bar

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FB0358 - COIL SHNK 6 SHANKS FRONT FITS 2.5" BAR Item # Part # Description 133588 COIL.SHANK.LH.W.2.5in.CLAMP 133589 COIL.SHANK.RH.W.2.5in.CLAMP Part #: 290286 Revision: 2/2/2023...

  • Page 99: 133588 - Coil.shank.lh.w.2.5In.clamp

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 133588 - COIL.SHANK.LH.W.2.5in.CLAMP Item # Part # Description 502613 BOLT,PLOW,HEAD,7/16"x2-1/2" 981724 CULTIVATOR STEEL PLAIN 1/2X2X11 B89.02497 DOULBE COIL SPRING L/H [x] 133587 CLAMP,DIAMOND.ASSY.03 Part #: 290286 Revision: 2/2/2023...

  • Page 100: 133589 - Coil.shank.rh.w.2.5In.clamp

    8060 Plant er Par ts Ma nual Section-3 Parts Manual 133589 - COIL.SHANK.RH.W.2.5in.CLAMP Item # Part # Description 981724 CULTIVATOR STEEL PLAIN 1/2X2X11 502613 BOLT,PLOW,HEAD,7/16"x2-1/2" B89.02496 DOULBE COIL SPRING R/H [x] 133587 CLAMP,DIAMOND.ASSY.03 Part #: 290286 Revision: 2/2/2023...

  • Page 101: 133587 - Clamp,Diamond.assy.03

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 133587 - CLAMP,DIAMOND.ASSY.03 Item # Part # Description 198052 CLAMP,BACKING,SHANK,PLANTER 198050 CLAMP,SHANK 32MM-1-1/2",PLANTER Part #: 290286 Revision: 2/2/2023...

  • Page 102: Fa3814 - Rear Tool Bar Planter 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual FA3814 - REAR TOOL BAR PLANTER 8080 Item # Part # Description 132505 REAR TOOL BAR MODEL 8060 Part #: 290286 Revision: 2/2/2023...
  • Page 103 8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD 132505 - REAR TOOL BAR MODEL 8060 Item # Part # Description 199881 CLAMP,2.5IN TOOLBAR,2015 192359 TOOL BAR BRACKET REAR MDL 8060 196935 TOOLBAR,REAR 8060-2011 Part #: 290286...
  • Page 104 8060 Plant er Par ts Ma nual Section-3 Parts Manual Part #: 290286 Revision: 2/2/2023...

  • Page 105: Fa9318 - Drag Pipe 8060

    8060 Plant er Par ts Ma nual Section-3 Parts Manual Section-X TBD FA9318 - DRAG PIPE 8060 Item # Part # Description 351329 LINK,COUPLING,3/8"ALLOY,CHAIN,G-10-8 175760 LIFT PLATE NOSE CHAIN HOOK 197531 DRAG.PIPE.8060 352017 CHAIN,DIGGER NOSE LIFT 42" OR 36 LINKS...

  • Page 106: Schematics

    8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 107 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...

  • Page 108: Electrical

    8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 109 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 110 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 111 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 112 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 113 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 114 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 115 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 116 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 117 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 118 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 119 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 120 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Part #: 290286 Revision: 2/2/2023...
  • Page 121 8060 Plant er Par ts Ma nual Section-4 Schematics (4.1-Electrical) Section-X TBD Part #: 290286 Revision: 2/2/2023...

  • Page 122: Hydraulic

    8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 123 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 124 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 125 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 126 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 127 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 128 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 129 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 130 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 131 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 132 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 133 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 134 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 135 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 136 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 137 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 138 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 139 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 140 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 141 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 142 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 143 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 144 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 145 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 146 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 147 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 148 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 149 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 150 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 151 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...
  • Page 152 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Part #: 290286 Revision: 2/2/2023...
  • Page 153 8060 Plant er Par ts Ma nual Section-4 Schematics (4.2-Hydraulic) Section-X TBD Part #: 290286 Revision: 2/2/2023...

  • Page 154: Miscellaneous Specifications & Reference

    8060 Plant er Par ts Ma nual Section-5 Miscellaneous Specifications & Reference 5.1. Fastener Torque Guidelines 5.1. Fastener Torque Guidelines (Cont.) Check all nuts, bolts, and screws regularly for tightness. Bolt head markings, and nut surface markings, are Replace nut/bolt pairs with the same grade or higher than useful in confirming the grade/class of replacement that of the original nut/bolt.

  • Page 155: Shear Pin Guidelines

    5.3.1. Follow the tightening torques given in the table below when tightening, replacing, or repairing any Hydraulic Fit- tings. There are two methods to achieve proper ‘clamp load’ on the flare connections used on Spudnik machinery. 1. Torque: Torque hydraulic fitting using a torque wrench.

  • Page 156: Lubricant Specifications

    5.4. Lubricant Specifications 5.4.1. Fluids and Lubricants Grease: Shell Retinax EP2 multipurpose grease (or equivalent). Gearbox Lube: 80W90 gear oil. Roller Chains: Spudnik chain lubricant, PN 991707 or equivalent industrial chain spray. Hydraulic Oil: AW32 5.4.2. Storing Lubricants IMPORTANT AW32 hydraulic oil is for use in self hydraulic systems only.
  • Page 157 584 West 100 North P.O. Box 1045 Blackfoot, ID 83221 Phone (208) 785-0480 Fax (208) 785-1497 www.spudnik.com...

This manual is also suitable for:

290286

Table of Contents
