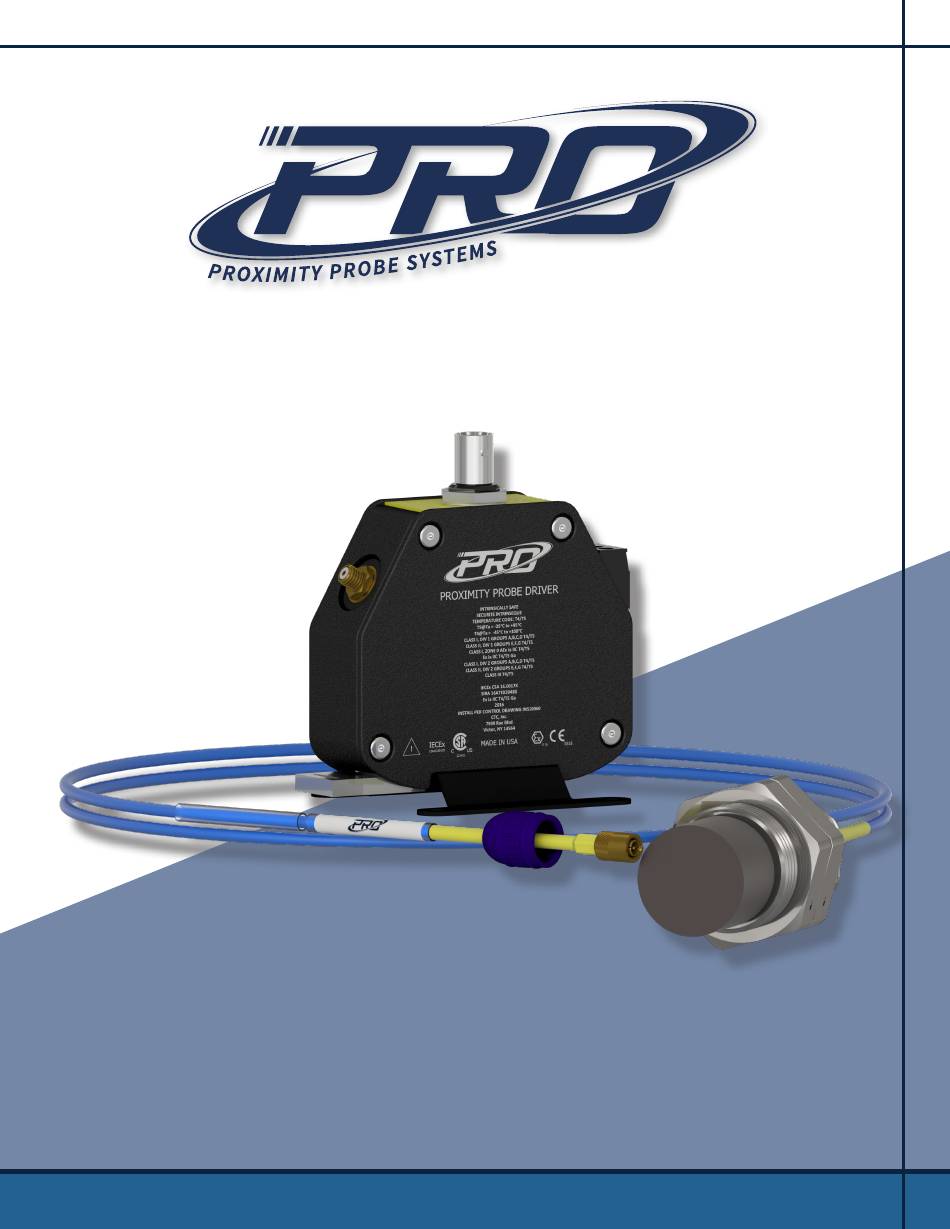

- Page 1 DP1008 25 mm Proximit y Probe Assembly DP1008 25 mm Proximit y Probe Assembly Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
Introduction This document contains information on the operation, installation and maintenance of the DP1008 / DC1008 / DD1008 series of 25 mm proximity probe products . 25mm Proximity Probe Series Overview The DP1008 / DC1008 / DD1008 series proximity probe products utilize an eddy current that produces a negative voltage that is directly proportional to the “gap”... -
Page 4: Proximity Probe Specifications
Proximity Probe Specifications PRO Model: DP1008 Series Environmental Temperature Range: -31°F (-35°C) to 350°F (177°C) Humidity Range: 0 - 95% relative, non-condensing Pressure Rating: Probe tip is designed to withstand a pressure difference from machine to ambient via a Viton®... - Page 5 Physical Materials 25mm Tip: 40% glass-filled PPS (Polyphenylene Sulfide) Threaded Case: 316L stainless steel Connector Material: 12-32 threaded gold-plated brass with Teflon® insulators Weight Probe: 2 .0 kg (4 .4 lb) maximum Cabling Coaxial Cable: FEP (Flourinated Ethylene Propylene) Cable Lengths: 1 .0, 5 .0, 9 .0 meters * All probes have length tolerance of (+30% / -0%)s S S E E C C T T I I O O N N...
-
Page 6: Proximity Probe Extension Cable Specifications
C C A A B B L L E E D D E E T T A A I I L L S S D D E E T T A A I I L L S S PRO Model: DC100854 Series Proximity Extension Cable Specifications... -
Page 7: Proximity Probe Driver Specifications
Proximity Probe Driver Specifications PRO Model: DD1008 Series Environmental Temperature Range: -31°F (-35°C) - 185°F (85°C) Humidity Range: 0 - 95% relative, non-condensing Electrical * Note: All specifications acquired through use of a AISI 4140 steel target, 1 in. diameter... - Page 8 Operating Power Input Voltage: -17 . to -30V Power Consumption: 0 .81W maximum * Note: The driver is protected against reversed polarity. Isolation Case Isolation: Isolation from all connections Physical Materials Case: Anodized/powder coated aluminum Panel/DIN Mount Hardware: Anodized/powder coated aluminum Prox Connector: 12-32 threaded gold-plated brass with Teflon®...
-
Page 9: Installation
Doing so will affect system accuracy. affect system accuracy. Note: Only PRO DP series and DC series proximity products should be used for the PRO Note: Only PRO DP series and DC series proximity products should be used DD series drivers. -
Page 10: Electrical Connections
Electrical Connections The DP100880 Probe Driver utilizes eddy current principles to produce a linear negative voltage output proportional to the displacement between the probe tip and the measured surface . The driver is a three-wire system that adheres to S S E E C C T T I I O O N N 5 5 : : I I N N S S T T A A L L L L A A T T I I O O N N API670 standards with connections for power, common, and signal output . -
Page 11: Target Surfaces
Target Surfaces The target material directly affects the output from the proximity probe system . Drivers can be calibrated for many different target materials . If the target material differs from the material the driver is calibrated to, the output will become non-linear . -
Page 12: Operation
Operation A PRO DP Probe Assembly operates in combination with a PRO DD Probe driver . The driver outputs a signal proportional to the gap between the probe tip and the target . The average gap corresponds to the DC component of the output . -
Page 13: Maintenance
Warranty & Refund Warranty The PRO line offers a full line of complete proximity probe systems . All PRO products are backed by a lifetime warranty on materials and workmanship . CTC will repair or replace any PRO products as long as the product was not subjected to misuse, neglect, natural disasters, improper installation, or modification .
