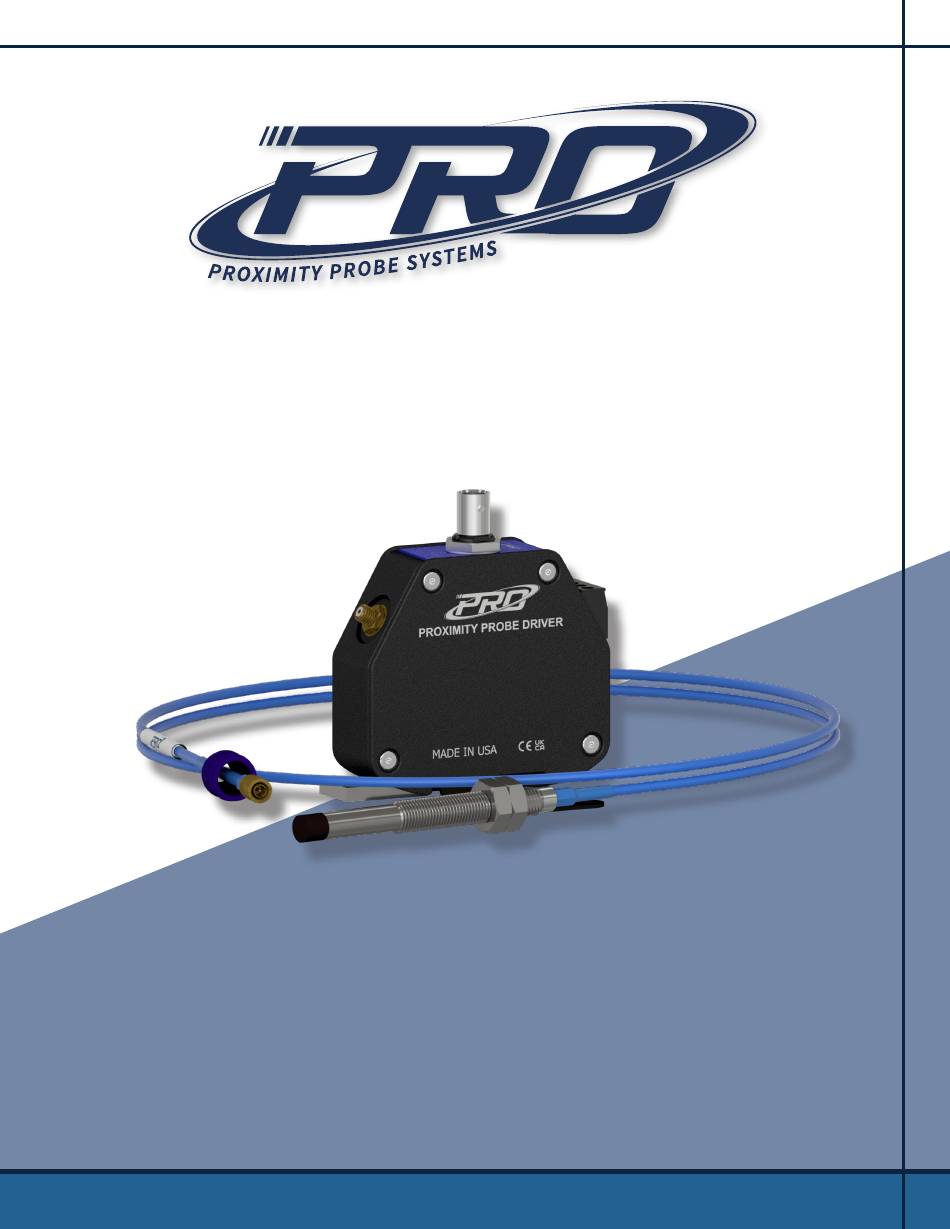

- Page 1 DP1001 8 mm Proximity Probe Assembly DP1001 8 mm Proximity Probe Assembly Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
. The driver is a three- or four-wire device with connections for power, common, and signal output, and is intended for use with a DC negative voltage power supply . CTC’s PRO proximity probe products are mutually exclusive. PRO proximity probes and drivers... -
Page 4: Proximity Probe Specifications
Proximity Probe Specifications PRO Model: DP1001 Series * Note: CTC’s PRO proximity probes are only compatible with a PRO driver. Environmental Temperature Range: -31 °F (-35 °C) to 350 °F (177 °C) Humidity Range: 0 - 95% relative, non-condensing Pressure Rating: Probe tip is designed to withstand a pressure difference from machine to ambient via a Viton®... - Page 5 -31 °F (-35 °C) - 248 °F (120 °C) 0 .5 Meter System ±3 .0 mil 1 Meter System ±3 .0 mil 5 Meter System ±3 .0 mil 9 Meter System ±6 .0 mil S S E E C C T T I I O O N N S S E E C C T T I I O O N N 2 2 : : 2 2 : :...
- Page 6 Physical Materials 8 mm Tip: 40% glass-filled PPS (Polyphenylene Sulfide) Threaded Case: 316L stainless steel Connector Material: 12-32 threaded gold-plated brass with Teflon® insulators Weight Probe: 49 g (0 .1 lb) maximum Dimensions Coaxial Cable: FEP (Flourinated Ethylene Propylene) Cable Lengths: 0 .5, 1 .0, 5 .0, 9 .0 meters * All probes have length tolerance of (+30% / -0%) Mounting Hardware...
- Page 7 S S E E C C T T I I O O N N 2 2 : : P P R R O O B B E E D D E E T T A A I I L L S S S S E E C C T T I I O O N N 2 2 : : P P R R O O B B E E...
-
Page 8: Proximity Probe Extension Cable Specifications
Proximity Probe Extension Cable Specifications PRO Model: DC100130 Series S S E E C C T T I I O O N N 3 3 : : C C A A B B L L E E D D E E T T A A I I L L S S... -
Page 9: Proximity Probe Driver Specifications
Proximity Probe Driver Specifications PRO Model: DD1001 Series * Note: CTC’s PRO proximity probe drivers are only compatible with a PRO probe. Environmental Temperature Range: -31 °F (-35 °C) - 185 °F (85 °C) Humidity Range: 0 - 95% relative, non-condensing Electrical * Note: All specifications acquired through use of a AISI 4140 steel target, 1 in. - Page 10 Operating Power Input Voltage: -17 to -30 V Power Consumption: 0 .81W maximum * Note: The driver is protected against reversed polarity. Isolation Case Isolation: Isolation from all connections Physical Materials Case: Anodized/powder coated aluminum Panel/DIN Mount Hardware: Anodized/powder coated aluminum Prox Connector: 12-32 threaded gold-plated brass with Teflon®...
-
Page 11: Installation
Note: Only PRO DP series and DC series proximity products should be used Note: Only PRO DP series and DC series proximity products should be used for the PRO for the PRO DD series drivers. DD series drivers. Only Bently™ Compatible DX series products should be used with each other. - Page 12 S S E E C C T T I I O O N N 5 5 : : I I N N S S T T A A L L L L A A T T I I O O Standard mounting blocks and bushings are also available .
-
Page 13: Electrical Connections
Electrical Connections The DP100180 Probe Driver utilizes eddy current principles to produce a linear negative voltage output proportional to the displacement between the probe S S E E C C T T I I O O N N 5 5 : : I I N N S S T T A A L L L L A A T T I I O O N N tip and the measured surface . - Page 14 The DD100170, DD100190, and DD100191 Series Proximity Probe products are four-wire devices with connections for loop power, common, and dynamic signal output . The “70” Series 4-20mA loop is directly proportional to the displacement gap between the probe tip and the measured surface . The “90” and “91” Series 4-20mA loop output is directly proportional to the selectable configured full- scale range .
-
Page 15: Target Surfaces
. Operation A PRO DP Probe Assembly operates in combination with a PRO DD Probe Driver . The driver outputs a signal proportional to the gap between the probe tip and the target . -
Page 16: Troubleshooting
Troubleshooting Problem Recommended Action -05 to -0 .6 V signal output Check probe cable/extension cable connection to driver No signal output Check power supply Maintenance There are no customer replaceable parts on the proximity probe driver . Once the proximity probe assembly has been installed, minimal maintenance will be required .
