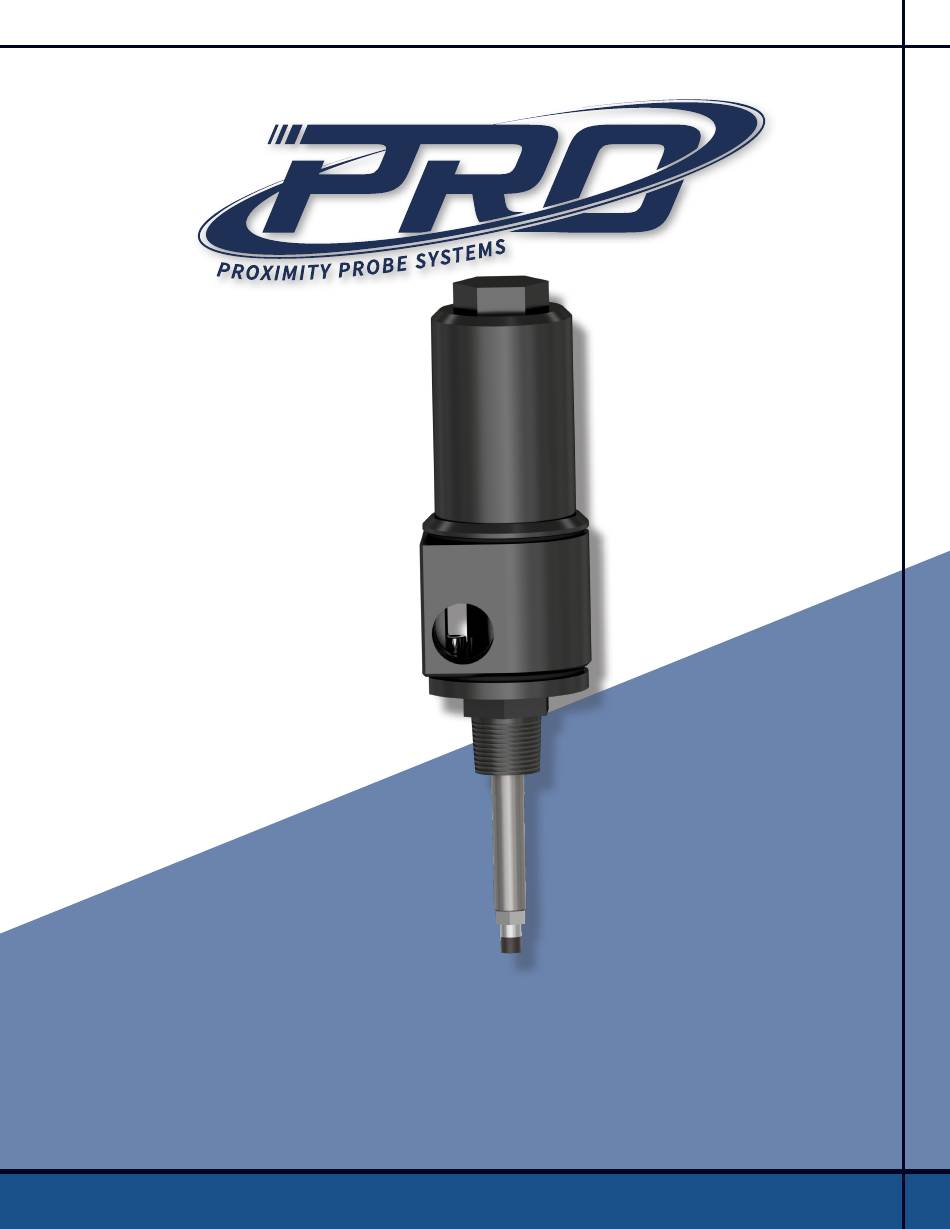

- Page 1 DM92000 Series DM92000 Series Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents: • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
Introduction DM92000 reverse mount proximity probe housing assembly is designed to protect important proximity probe instruments in harsh manufacturing conditions and easily adjust the gap between the machine shaft and probe without shutting down a machine . Product Description The DM92000 assembly has an aluminum body and seal with Viton® O-rings . The 316L stainless steel adjustable probe mounting sleeve is specifically designed to hold up against extremely harsh industrial environments . -
Page 4: Mounting Instructions
Mounting Instructions Prepare a flat surface using a spot face tool and drill a pilot hole for tapping ¾-14 NPT threading . CTC recommends our MH117 spot face kits for a 1 .25 in . face: MH117-1A, MH117-4A, MH117-6A, and MH117-11A . Mount base onto machine . - Page 5 Thread reverse mount probe into stainless steel sleeve . Insert sleeve into housing . Tighten and adjust the probe gap to desired penetration depth using the wrench flats on the sleeve . Wrench Flats Attach sleeve adjustor . Continue threading until it bottoms out on the mounting base .
-
Page 6: Operation Instructions
Tighten hex nut onto coupling nut . If using a reducer bushing, thread the cord grip onto the bushing . Then attach to the exit fitting the cabling will feed through . 10 . Attach extension cable to probe . Wrap the cable around the center diameter to keep it at the base of the housing . - Page 7 11 . Bundle extra cable and push into lid . 12 . Tighten lid onto housing . 13 . Seal the remaining NPT exit .
-
Page 8: Contact Information
Warranty and Refund Please visit www .ctconline .com to view a complete recapitulation of our warranty and refund policies . Contact Information Connection Technology Center, Inc . (CTC) 7939 Rae Blvd . Victor, NY 14564 1 .585 .924 .5900 sales@ctconline .com www .ctconline .com Mm-Dm9200/Rev C...
