The AtriCure Cryo Module
This section provides a detailed description of the ACM including its function and operating features.
• The ACM is an electro-mechanical cryogenic surgical system that delivers a Nitrous Oxide (N
source to a PROBE to create lines of ablation through tissue. The ACM includes single use PROBES, Component
and Accessories. The ACM provides controlled lesion forming temperature that is below -40°C (-40°F) with typical
operating ranges between -50°C to -70°C (-58°F to -94°F).
• In addition of the Activation Button on the front panel of the ACM, an accessory Footswitch can also be used
to activate and terminate the cryo ablation cycle.
• The ACM is designed to operate only with AtriCure's PROBES. Refer to the AtriCure's PROBE
Instruction for Use for detailed use and description.
AtriCure Cryo Module
Illustrations of the
1. Activation Button
2. N O Gas Gauge Indicator Display
2
3. N O Gas Gauge Indicator Display RESET
2
4. Ablation Timer Display
5. Ablation Timer Decrement
6. Ablation Timer Increment
7. PROBE Temperature Display
8. Future PROBE Connection
17. N O Exhaust Port
2
18. N O Manual Exhaust Knob
2
19. N O Inlet Port
2
20. N O Exhaust Switch
2
21. Activation Footswitch Connection Port
22. Heater Band Cord Receptacle
Front and Rear Panels – Illustrations and Nomenclature

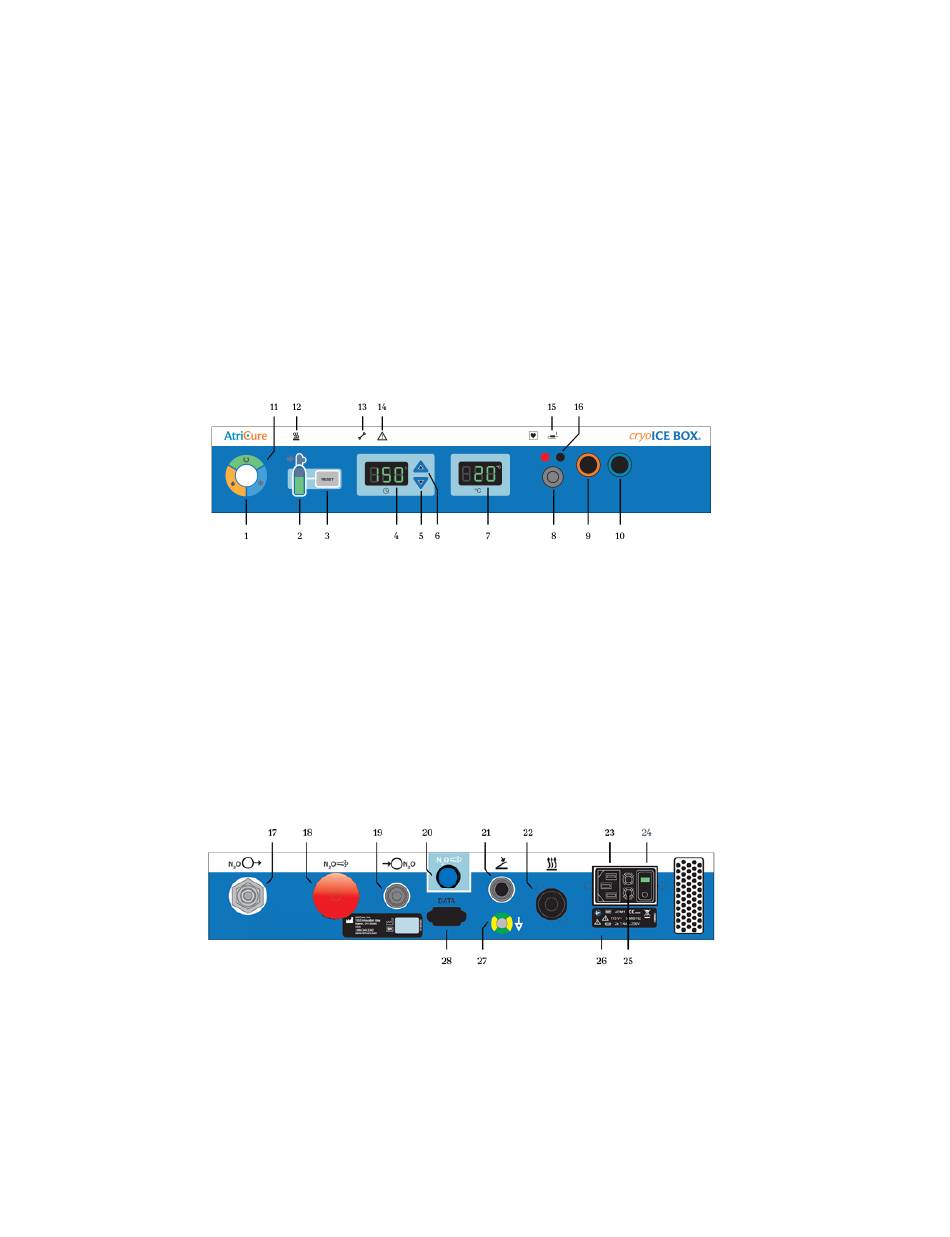

ACM front panel (Figure 2) and rear panel (Figure 3) are shown below.
Figure 2: AtriCure Cryo Module Front Panel
Figure 3: AtriCure Cryo Module System Rear Panel International
9. PROBE Gas Outlet Port
10. PROBE Gas Inlet Port
11. Ablation Status Indicator
12. Cylinder Heater Band Indicator
13. Maintenance Needed Indicator
14. System Fault Indicator
15. Thermocouple Open Indicator
16. PROBE Thermocouple Ports
23. Power Plug Receptacle
24. Power Switch
25. Mains Fuse Location
26. ACM Voltage Rating Label
27. Equipotential Terminal
28. RS232 Data Connection
3
O) cryo-genic energy
