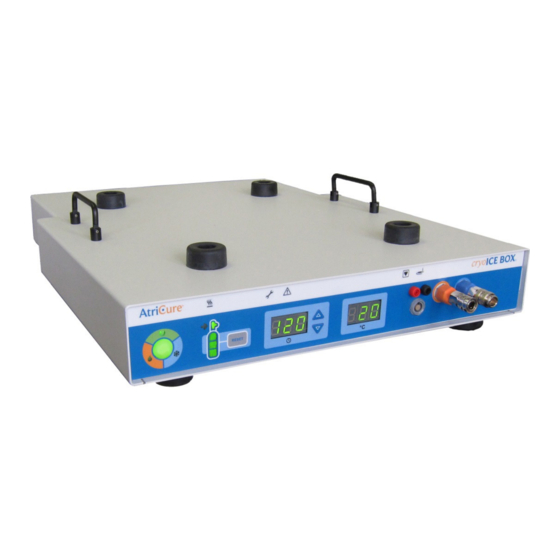

Quick Reference Guide
SOFTWARE UPGRADE V6.10 INCLUDES:
• Audible tone when probe is above 0°C (32°F)
• Gas gauge indicator based on new algorithm, measuring tank temperature and pressure
• Tank pressure reduced from 850psi(5.9MPa) to 800psi(5.5MPa)
SET UP

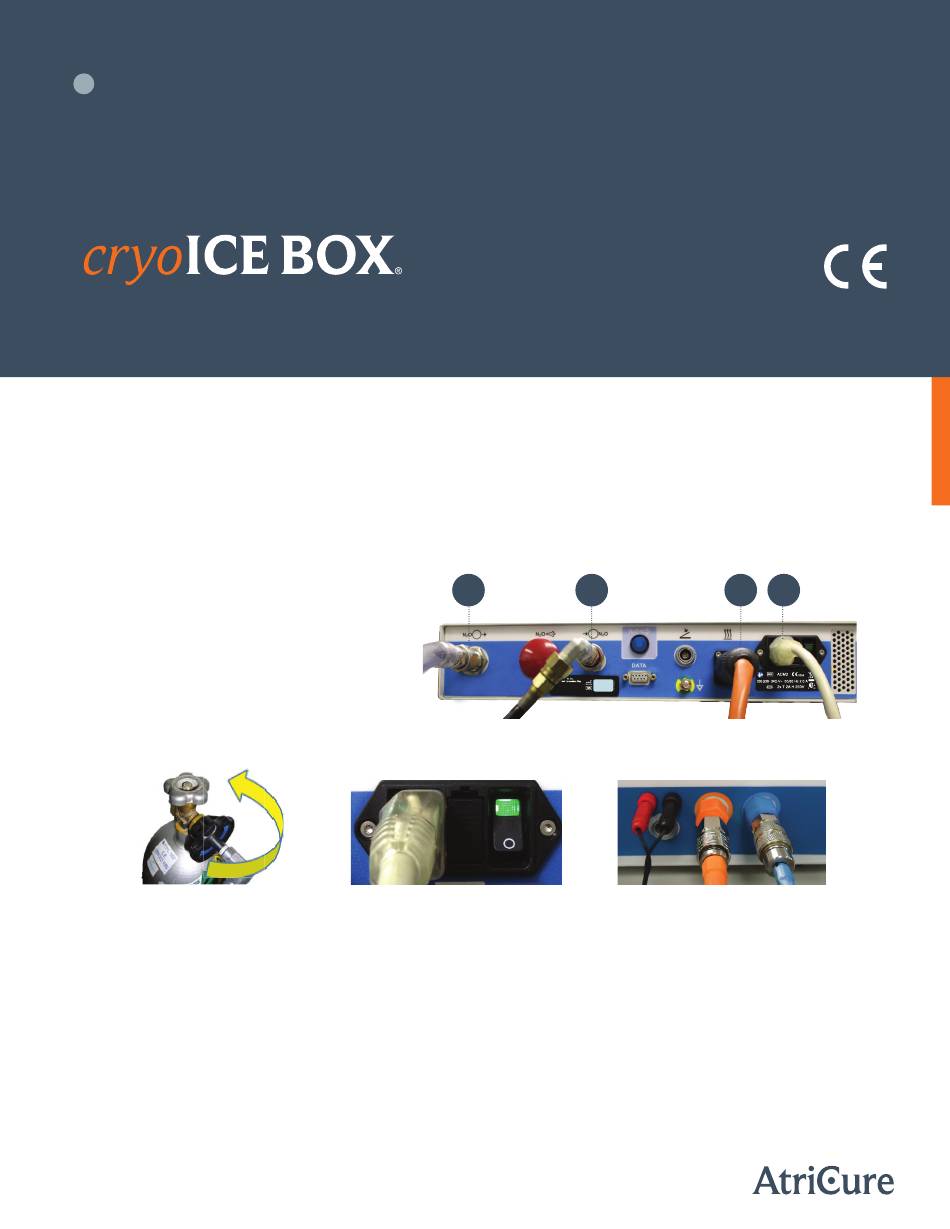

1. Check connections on back of cryoICE BOX
A ‒ Exhaust Hose: connect other side to vent
B ‒ Tank Hose
C ‒ Heater Band
D ‒ Power Cord
2. Open the N2O tank valve
• Be sure the tank valve is open in
order to activate the heater.
• Closing the valve while the unit
is on will lead to a heater band
error.
1 | EN | 2023-03 | IFU-0122.A
A
3. Turn ON the cryoICE BOX
B
C
Mason, OH 45040
USA
1.866.349.2342
www.AtriCure.com
4. Plug in probe
The probe can be plugged in at any
time.
2797
D

Advertisement

loading
Need help?

Need help?

Do you have a question about the cryoICE BOX and is the answer not in the manual?

Questions and answers

Related Manuals for AtriCure cryoICE BOX

Summary of Contents for AtriCure cryoICE BOX

  • Page 1 • Gas gauge indicator based on new algorithm, measuring tank temperature and pressure • Tank pressure reduced from 850psi(5.9MPa) to 800psi(5.5MPa) SET UP 1. Check connections on back of cryoICE BOX A ‒ Exhaust Hose: connect other side to vent B ‒ Tank Hose C ‒...
  • Page 2 CRYOICE BOX FRONT AND REAR PANELS — Illustrations and Nomenclature Illustrations of the cryoICE BOX front panel (Figure 1) and rear panel (Figure 2) are shown below. ºC ºC Figure 1: cryoICE BOX Front Panel DATA AtriCure, Inc. 7555 Innovation Way Mason, OH 45040 1.866.349.2342...
