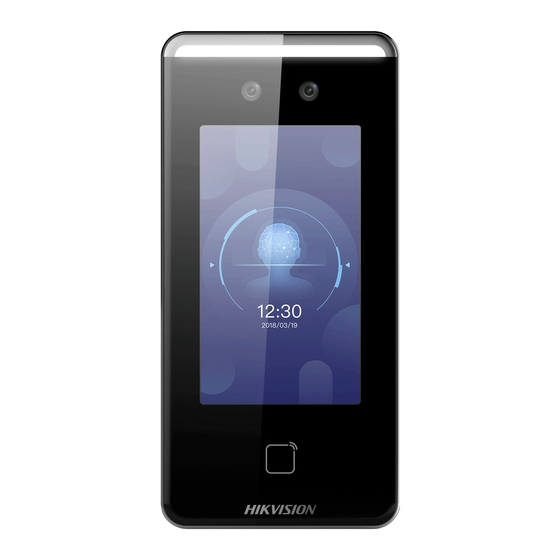

DS-K1T341A Series Face Recognition
Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T341A Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K1T341A Series

Summary of Contents for HIKVISION DS-K1T341A Series

  • Page 1 DS-K1T341A Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1T341A Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T341A Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T341A Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T341A Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T341A Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K1T341A Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K1T341AM DS-K1T341AMF Use only power supplies listed in the user instructions: Model Manufacturer Standard ADS-26FSG-12 12024EPG Shenzhen Honor Electronic Co.,Ltd MSA-C2000IC12.0-24P-DE MOSO Technology Co.,Ltd ADS-26FSG-12 12024EPB Shenzhen Honor Electronic Co.,Ltd...

  • Page 10: Table Of Contents

    DS-K1T341A Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Install with Gang Box ......................4 3.3 Install without Gang Box ......................
  • Page 11 DS-K1T341A Series Face Recognition Terminal User Manual 6.6 Set Administrator ......................... 34 Chapter 7 Basic Operation ......................37 7.1 Login ............................ 37 7.1.1 Login by Administrator ....................37 7.1.2 Login by Activation Password ..................40 7.1.3 Forgot Password ......................41 7.2 Communication Settings ......................
  • Page 12 DS-K1T341A Series Face Recognition Terminal User Manual 7.7 Set Biometric Parameters ....................63 7.8 Set Access Control Parameters .................... 66 7.9 Time and Attendance Status Settings .................. 68 7.9.1 Disable Attendance Mode via Device ................. 69 7.9.2 Set Manual Attendance via Device ................70 7.9.3 Set Auto Attendance via Device ..................
  • Page 13 DS-K1T341A Series Face Recognition Terminal User Manual 9.6.2 View Device Information ..................... 89 9.6.3 Set Time ........................90 9.6.4 Change Administrator's Password ................90 9.6.5 View Device Arming/Disarming Information .............. 91 9.6.6 Network Settings ......................91 9.6.7 Set Video and Audio Parameters ................94 9.6.8 Set Image Parameters ....................

  • Page 14: Chapter 1 Overview

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 15: Chapter 2 Appearance

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Description microUSB Interface Note USB to micro USB cable is included in the package.
  • Page 16 DS-K1T341A Series Face Recognition Terminal User Manual Description IR Light Camera Camera White Light IR Light Display Screen Fingerprint Module Note Supported by parts of the device modules. Card Presenting Area : This sticker means "Hot parts! Burned fingers when handling the parts. Wait one-half hour after switching off before handling parts."...

  • Page 17: Chapter 3 Installation

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ● The minimum bearing weight of the wall or other places should be 3 times heavier than the ●...
  • Page 18 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-1 Install Gang Box 2. Use 2 supplied screws (SC-K1M4×6-SUS) to secure the base plate on the gang box.
  • Page 19 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-2 Secure Base Plate 3. Use another 4 supplied screws (KA4×22-SUS) to secure the mounting plate on the base plate.
  • Page 20 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-3 Install Mounting Plate 4. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices' cables. 5. Align the device with the mounting plate and hang the device on the mounting plate.
  • Page 21 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-4 Hang Device 6. Use 1 supplied screw (SC-KM3X6-H2-SU) to secure the device and the mounting plate.
  • Page 22 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-5 Secure Device 7. Apply Silicone sealant among the joints between the device rear panel and the wall (except the lower side) to keep the raindrop from entering.

  • Page 23: Install Without Gang Box

    DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-6 Apply Silicone Sealant on the Side 8. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.3 Install without Gang Box...
  • Page 24 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-7 Mounting Template...
  • Page 25 DS-K1T341A Series Face Recognition Terminal User Manual 2. Drill holes on the wall or other surface according to the instructions on the mounting template. 3. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices' cables.
  • Page 26 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-9 Hang Device 6. Use one supplied screw to secure the device and the mounting plate.
  • Page 27 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-10 Secure Device 7. Apply Silicone sealant among the joints between the device rear panel and the wall (except the lower side) to keep the raindrop from entering.
  • Page 28 DS-K1T341A Series Face Recognition Terminal User Manual Figure 3-11 Apply Silicone Sealant on the Side 8. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.

  • Page 29: Chapter 4 Wiring

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND terminal with the exit button, and connect the Wiegand terminal with the Wiegand card reader or the access controller.

  • Page 30: Wire Normal Device

    DS-K1T341A Series Face Recognition Terminal User Manual Group Function Color Name Description White/Yellow Common White/Red Lock Wiring (NO) Yellow/Green SENSOR Door Contact Black Ground Yellow/Gray BUTTON Exit Door Wiring Yellow/Black Ground 4.2 Wire Normal Device You can connect the terminal with normal peripherals.

  • Page 31: Wire Secure Door Control Unit

    DS-K1T341A Series Face Recognition Terminal User Manual Note You should set the face recognition terminal's Wiegand direction as Input to connect to a ● Wiegand card reader. If connects to an access controller, you should set the Wiegand direction as Output to transmit authentication information to the access controller.
  • Page 32 DS-K1T341A Series Face Recognition Terminal User Manual Type 1 Note The fire system controls the power supply of the access control system. Figure 4-3 Wire Device Figure 4-4 Wire Secure Door Control Unit Type 2 Note The fire system (NO and COM, normally open when powering off) is connected with the lock and the power supply in series.

  • Page 33: Wiring Diagram Of Door Locked When Powering Off

    DS-K1T341A Series Face Recognition Terminal User Manual Figure 4-5 Wiring Device Figure 4-6 Wiring Secure Door Control Unit 4.4.2 Wiring Diagram of Door Locked When Powering Off Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC) Security Type: Door Locked When Powering Off...
  • Page 34 DS-K1T341A Series Face Recognition Terminal User Manual Note The Uninterpretable Power Supply (UPS) is required. ● The fire system (NC and COM, normally closed when powering off) is connected with the lock ● and the power supply in series. When an fire alarm is triggered, the door remains open. In normal times, NC and COM are open.

  • Page 35: Chapter 5 Activation

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 36 DS-K1T341A Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 37: Activate Via Web Browser

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.
  • Page 38 DS-K1T341A Series Face Recognition Terminal User Manual The following steps show how to activate a device and modify its IP address. For batch activation and IP addresses modification, refer to User Manual of SADP for details. Steps 1. Run the SADP software and search the online devices.

  • Page 39: Activate Device Via Client Software

    DS-K1T341A Series Face Recognition Terminal User Manual 5.4 Activate Device via Client Software For some devices, you are required to create the password to activate them before they can be added to the software and work properly. Steps Note This function should be supported by the device.

  • Page 40: Chapter 6 Quick Operation

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Set Password Change Type You can set the password change type as reserved email address or security questions. Once you forgot the device password, you can change the password via the selected change type.
  • Page 41 DS-K1T341A Series Face Recognition Terminal User Manual Figure 6-1 Password Change Page Change via Security Questions If you need to change password via security questions, you can tap Change to Security Questions on the right corner. Select the security questions and enter the answers. Click Next.

  • Page 42: Set Network Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual Note You can only select one type to change password. If you need, you can enter the web page to set both of the changing types. 6.2 Set Network Parameters You can set the network for the device.
  • Page 43 DS-K1T341A Series Face Recognition Terminal User Manual Figure 6-2 Select Network Note Make sure the device has connected to a network. If enable DHCP, the system will assign the IP address and other parameters automatically. If disable DHCP, you should set the IP address, the subnet mask, and the gateway.

  • Page 44: Access To Platform

    DS-K1T341A Series Face Recognition Terminal User Manual 6.3 Access to Platform Enable the function and the device can communicate via Hik-Connect. You can add the device to Hik-Connect mobile client and so on. Steps Note Parts of the device models supports function. Refers to the actual device for details.
  • Page 45 DS-K1T341A Series Face Recognition Terminal User Manual Figure 6-3 Access to Hik-Connect 2. Tap Next. 3. Optional: Tap Skip to skip the step. 4. Optional: Tap Previous to go to the previous page. Note If you tap Previous to return to the Wi-Fi configuration page, you need to tap the connected Wi-...

  • Page 46: Remote Operation Via App

    DS-K1T341A Series Face Recognition Terminal User Manual 6.4 Remote Operation via APP You can add the device to your mobile client for remote operation. Download Hik-Connect to your mobile client and run the APP. Scan the QR Code in the following picture to add the device to your mobile client for remote operation.

  • Page 47: Privacy Settings

    DS-K1T341A Series Face Recognition Terminal User Manual 6.5 Privacy Settings You should set the privacy parameters, including the picture uploading and storage. Select parameters according to your actual needs. Upload Pic. When Auth. (Upload Captured Picture When Authenticating) Upload the pictures captured when authenticating to the platform automatically.
  • Page 48 DS-K1T341A Series Face Recognition Terminal User Manual Figure 6-5 Add Administrator Page 3. Select a credential to add. Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm.
  • Page 49 DS-K1T341A Series Face Recognition Terminal User Manual : Enter the card No. or present card on the card presenting area. Click OK. 4. Click OK. You will enter the authentication page. Status Icon Description Device is armed/not armed. Hik-Connect is enabled/disabled.

  • Page 50: Chapter 7 Basic Operation

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.
  • Page 51 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face, fingerprint or card to enter the home page.
  • Page 52 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3. Optional: Tap and you can enter the device activation password for login.

  • Page 53: Login By Activation Password

    DS-K1T341A Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page.

  • Page 54: Forgot Password

    DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.1.3 Forgot Password If you forget the password during authentication, you can change the password. Steps 1. Hold the initial page for 3 s and slide to the left/right by following the gesture and log in the...

  • Page 55: Communication Settings

    DS-K1T341A Series Face Recognition Terminal User Manual 2. Optional: If you have set an administrator, tap in the pop-up admin authentication page. 3. Tap Forgot Password. 4. Select a password change type from the list. Note If you have only set 1 password change type, you will go to the corresponded password change page for further settings.
  • Page 56 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-4 Wired Network Settings 3. Set IP Address, Subnet Mask, and Gateway. - Enable DHCP, and the system will assign IP address, subnet mask, and gateway automatically. - Disable DHCP, and you should set the IP address, subnet mask, and gateway manually.

  • Page 57: Set Rs-485 Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual 7.2.2 Set RS-485 Parameters The face recognition terminal can connect external access controller, secure door control unit or card reader via the RS-485 terminal. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page.
  • Page 58 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-5 Set RS-485 Parameters 3. Enable RS-485 Settings. 4. Select an peripheral type according to your actual needs. Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2.

  • Page 59: Set Wiegand Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual 5. Tap the back icon at the upper left corner and you should reboot the device if you change the parameters. 7.2.3 Set Wiegand Parameters You can set the Wiegand transmission direction. Steps 1.
  • Page 60 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-6 Wiegand Settings 3. Enable the Wiegand function. 4. Select a transmission direction. Output: A face recognition terminal can connect an external access controller. And the two ● devices will transmit the card No. via Wiegand 26 or Wiegand 34.

  • Page 61: Set Isup Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual Note If you change the external device, and after you save the device parameters, the device will reboot automatically. 7.2.4 Set ISUP Parameters Set ISUP parameters and the device can upload data via ISUP protocol.
  • Page 62 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-7 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group.

  • Page 63: Platform Access

    DS-K1T341A Series Face Recognition Terminal User Manual Support N1 or None. ISUP Enable ISUP function and the data will be uploaded via ISUP protocol. Address Type Select an address type according to your actual needs. IP Address Set the ISUP server's IP address.

  • Page 64: User Management

    DS-K1T341A Series Face Recognition Terminal User Manual 5. Create the Verification Code, and you need to enter the verification code when you manage the devices via Hik-Connect. 7.3 User Management On the user management interface, you can add, edit, delete and search the user.

  • Page 65: Add Face Picture

    DS-K1T341A Series Face Recognition Terminal User Manual Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated. ● 4. Tap the Name field and input the user name on the soft keyboard.
  • Page 66 DS-K1T341A Series Face Recognition Terminal User Manual Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated. ● 4. Tap the Name field and input the user name on the soft keyboard.
  • Page 67 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-8 Add Face Picture 6. Look at the camera. Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate.

  • Page 68: Add Fingerprint

    DS-K1T341A Series Face Recognition Terminal User Manual After completely adding the face picture, a captured face picture will be displayed at the upper right corner of the page. 7. Tap Save to save the face picture. 8. Optional: Tap Try Again and adjust your face position to add the face picture again.

  • Page 69: Add Card

    DS-K1T341A Series Face Recognition Terminal User Manual Note The same fingerprint cannot be repeatedly added. ● Up to 10 fingerprints can be added for one user. ● You can also use the client software or the fingerprint recorder to record fingerprints.

  • Page 70: View Pin Code

    DS-K1T341A Series Face Recognition Terminal User Manual - Enter the card No. manually. - Present the card over the card presenting area to get the card No. Note The card No. cannot be empty. ● Up to 20 characters are allowed in the card No.

  • Page 71: Set Authentication Mode

    DS-K1T341A Series Face Recognition Terminal User Manual 6. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user.

  • Page 72: Data Management

    DS-K1T341A Series Face Recognition Terminal User Manual Note The employee ID cannot be edited. 7.4 Data Management You can delete data, import data, and export data. 7.4.1 Delete Data Delete user data. On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be deleted.

  • Page 73: Export Data

    DS-K1T341A Series Face Recognition Terminal User Manual picture. The format should be JPEG or JPG. The resolution should be 640 × 480 pixel or more than of 640 × 480 pixel. The picture size should be between 60 KB and 200 KB.

  • Page 74: Authenticate Via Multiple Credential

    DS-K1T341A Series Face Recognition Terminal User Manual Put the QR code in front of the device camera to authenticate via QR code. Note Authentication via QR code should be supported by the device. ● The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
  • Page 75 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-9 Basic Settings Page Sound Settings You can enable/disable the voice prompt function and adjust the voice volume. Note You can set the voice volume between 0 and 10. Time Settings Set the time zone, the device time and the DST.

  • Page 76: Set Biometric Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual Select the language according to actual needs. Supplement Light Settings Tap White Light and you can set the supplement light mode. You can select to enable or disable the supplement light, or tap Schedule to customize the supplement light's brightness, start time, and end time.
  • Page 77 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-10 Biometric Parameters Page Table 7-1 Face Picture Parameters Parameter Description Face Liveness Level After enabling face anti-​ s poofing function, you can set the matching security level when performing live face authentication.
  • Page 78 DS-K1T341A Series Face Recognition Terminal User Manual Parameter Description Note You can input the number from 1 to 10. Wide Dynamic It is suggested to enable the WDR function if installing the device outdoors. When there are both very bright and very dark areas simultaneously in the view, you can enable the WDR function to balance the brightness of the whole image and provide clear images with details.

  • Page 79: Set Access Control Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual Parameter Description Hard Hat Detection After enabling the hard hat detection, you can set the strategy. Reminder of Wearing If the person do not wear the hard hat when authenticating, the device will pop up a prompt and the door will open.
  • Page 80 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-11 Access Control Parameters The available parameters descriptions are as follows: Table 7-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode)

  • Page 81: Time And Attendance Status Settings

    DS-K1T341A Series Face Recognition Terminal User Manual Parameter Description Note Biometric recognition products are not completely applicable ● to anti-spoofing environments. If you require a higher security level, use multiple authentication modes. If you adopt multiple authentication modes, you should ●...

  • Page 82: Disable Attendance Mode Via Device

    DS-K1T341A Series Face Recognition Terminal User Manual 7.9.1 Disable Attendance Mode via Device Disable the attendance mode and the system will not display the attendance status on the initial page. Tap T&A Status to enter the T&A Status page. Figure 7-12 Disable Attendance Mode...

  • Page 83: Set Manual Attendance Via Device

    DS-K1T341A Series Face Recognition Terminal User Manual You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform. 7.9.2 Set Manual Attendance via Device Set the attendance mode as manual, and you should select a status manually when you take attendance.
  • Page 84 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-13 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 85: Set Auto Attendance Via Device

    DS-K1T341A Series Face Recognition Terminal User Manual Result You should select an attendance status manually after authentication. Note If you do not select a status, the authentication will be failed and it will not be marked as a valid attendance.
  • Page 86 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-14 Auto Attendance Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 87: Set Manual And Auto Attendance Via Device

    DS-K1T341A Series Face Recognition Terminal User Manual 6. Set the status' schedule. 1) Tap Attendance Schedule. 2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday. 3) Set the selected attendance status's start time of the day. 4) Tap Confirm.
  • Page 88 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-15 Manual and Auto Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 89: Preference Settings

    DS-K1T341A Series Face Recognition Terminal User Manual 6. Set the status' schedule. 1) Tap Attendance Schedule. 2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday. 3) Set the selected attendance status's start time of the day. 4) Tap OK.

  • Page 90: System Maintenance

    DS-K1T341A Series Face Recognition Terminal User Manual Note You can select call type from Call Room, Call Center, Call Specified Room No. and Call APP. Call Room When you tap the call button on the authentication page, you should dial a room No. to call.
  • Page 91 DS-K1T341A Series Face Recognition Terminal User Manual Figure 7-17 System Maintenance System Information You can view the device model, serial No., versions, MAC address, production data, and open source code license. Note The page may vary according to different device models. Refers to the actual page for details.

  • Page 92: Video Intercom

    DS-K1T341A Series Face Recognition Terminal User Manual All parameters, except for the communication settings, remotely imported user information, will be restored to the default settings. The system will reboot to take effect. Restore to Factory Settings All parameters will be restored to the factory settings. The system will reboot to take effect.

  • Page 93: Call Client Software From Device

    DS-K1T341A Series Face Recognition Terminal User Manual 7.12.1 Call Client Software from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts. 2. Run the client software and the control panel of the software pops up.

  • Page 94: Call Device From Client Software

    DS-K1T341A Series Face Recognition Terminal User Manual Note The device will call the main station in priority. 7.12.3 Call Device from Client Software Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts.

  • Page 95: Call Mobile Client From Device

    DS-K1T341A Series Face Recognition Terminal User Manual 7.12.5 Call Mobile Client from Device Steps 1. Get the mobile mobile client from the supplied disk or the official website, and install the software according to the prompts. 2. Run the mobile client and add the device to the mobile client.

  • Page 96: Chapter 8 Quick Operation Via Web Browser

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 8 Quick Operation via Web Browser 8.1 Time Settings Click in the top right of the web page to enter the wizard page. Device Time Display the device time in real time.

  • Page 97: Administrator Settings

    DS-K1T341A Series Face Recognition Terminal User Manual Save Pictures After Linked Capture If you enable this function, you can save the picture captured by linked camera to the device. Click Next to save the settings and go to the next parameters. Or click Skip to skip privacy settings.
  • Page 98 DS-K1T341A Series Face Recognition Terminal User Manual Set the device installed floor No. Set the device No. Note The main door station No. is 0, and the sub door station No. ranges from 1 to 16. Community No. Set the device community No.

  • Page 99: Chapter 9 Operation Via Web Browser

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 9 Operation via Web Browser 9.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. Login via Web Browser Enter the device IP address in the address bar of the web browser and press Enter to enter the login page.
  • Page 100 DS-K1T341A Series Face Recognition Terminal User Manual Function Descriptions: Door Status Click to view the device live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds.

  • Page 101: Person Management

    DS-K1T341A Series Face Recognition Terminal User Manual You can click View More to view the device name, device No., language, model, serial No., version, number of channels, IO input, IO output, lock, alarm input, alarm output, and device capacity, etc.

  • Page 102: Search Event

    DS-K1T341A Series Face Recognition Terminal User Manual Authentication Settings Click Person Management → Add to enter the Add Person page. Set the authentication type. Click Save to save the settings. 9.5 Search Event Click Event Search to enter the Search page.

  • Page 103: Set Time

    DS-K1T341A Series Face Recognition Terminal User Manual You can view and edit the device name and the device language. You can view the model, serial No., version, cameras, IO input, IO output, lock, RS-485, alarm input, alarm output, and device capacity, etc.

  • Page 104: View Device Arming/Disarming Information

    DS-K1T341A Series Face Recognition Terminal User Manual Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. 9.6.5 View Device Arming/Disarming Information View device arming type and arming IP address. Click Configuration → System → User Management → Arming/Disarming Information .
  • Page 105 DS-K1T341A Series Face Recognition Terminal User Manual 2. Check Wi-Fi. 3. Select a Wi-Fi - Click Connect of a Wi-Fi in the list and enter the password. - Click Manual Add and enter SSID and select the security mode. Click OK. Click Connect.
  • Page 106 DS-K1T341A Series Face Recognition Terminal User Manual Steps Note Parts of the device models supports function. Refers to the actual device for details. 1. Click Configuration → Network → Device Access → Hik-Connect to enter the settings page. Note Hik-Connect is an application for mobile devices. With the App, you can view live image of the device, receive alarm notification and so on.

  • Page 107: Set Video And Audio Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual 5. Click Save. 9.6.7 Set Video and Audio Parameters Set the image quality and resolution. Set Video Parameters Click Configuration → Video/Audio → Video . Set the camera name, stream type, video type, resolution, bit rate type, Max. bit rate and I Frame Interval.

  • Page 108: Access Control Settings

    DS-K1T341A Series Face Recognition Terminal User Manual LED Light Set the supplement light type and mode. You can also set the brightness. Beauty Set whiten and smooth value for the face appeared on the device live view page. Backlight Enable or disable WDR.
  • Page 109 DS-K1T341A Series Face Recognition Terminal User Manual Authentication Interval You can set the authentication interval of the same person when authenticating. The same person can only authenticate once in the configured interval. A second authentication will be failed. Alarm of Max. Failed Attempts Enable to report alarm when the card reading attempts reach the set value.
  • Page 110 DS-K1T341A Series Face Recognition Terminal User Manual Set Door Parameters Click Configuration → Access Control → Door Parameters . Click Save to save the settings after the configuration. Door Name You can create a name for the door. Open Duration Set the door unlocking duration.
  • Page 111 DS-K1T341A Series Face Recognition Terminal User Manual Set RS-485 Parameters You can set the RS-485 parameters including the peripheral, address, baud rate, etc. Click Configuration → Access Control → RS-485 . You can view the default RS-485 protocol, baud rate, date bit, stop bit, parity, flow control and communication mode.

  • Page 112: Video Intercom Settings

    DS-K1T341A Series Face Recognition Terminal User Manual Note If you change the peripheral, and after you save the device parameters, the device will reboot automatically. Set Terminal Parameters You can set terminal parameters for accessing. Click Configuration → Access Control → Terminal Parameters .
  • Page 113 DS-K1T341A Series Face Recognition Terminal User Manual Set the device No. Note If you change the No., you should reboot the device. ● The main door station No. is 0, and the sub door station No. ranges from 1 to 16.

  • Page 114: Card Settings

    DS-K1T341A Series Face Recognition Terminal User Manual Press Button to Call Steps 1. Click Configuration → Intercom → Press Button to Call to enter the settings page. 2. Check Call Indoor Station, Call Specified Indoor Station, Call Management Center or APP at your needs.

  • Page 115: Time And Attendance Settings

    DS-K1T341A Series Face Recognition Terminal User Manual Enable FeliCa Card The device can read the data from FeliCa card when enabling the FeliCa card function. Set Card No. Authentication Parameters Set the card reading content when authenticate via card on the device.
  • Page 116 DS-K1T341A Series Face Recognition Terminal User Manual Set Auto Attendance via Web Set the attendance mode as auto, and you can set the attendance status and its available schedule. The system will automatically change the attendance status according to the configured schedule.

  • Page 117: Set Privacy Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 9.6.13 Set Privacy Parameters Set the event storage type, picture upload and storage parameters, and the picture clearing parameters.

  • Page 118: Set Biometric Parameters

    DS-K1T341A Series Face Recognition Terminal User Manual Upload Picture After Linked Capture Upload the pictures captured by linked camera to the platform automatically. Save Pictures After Linked Capture If you enable this function, you can save the picture captured by linked camera to the device.
  • Page 119 DS-K1T341A Series Face Recognition Terminal User Manual Yaw Angle The maximum yaw angle when starting face authentication. Face Picture Quality Grade for Applying Set the face picture's grade. 1:1 Matching Threshold Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.
  • Page 120 DS-K1T341A Series Face Recognition Terminal User Manual If the person do not wear the face mask when authenticating, the device will pop up a prompt and the door will open. Must Wear Face Mask If the person do not wear the face mask when authenticating, the device will pop up a prompt and the door will keep closed.

  • Page 121: Preference Settings

    DS-K1T341A Series Face Recognition Terminal User Manual 9.6.15 Preference Settings Set the theme, notice publication, prompt schedule, custom prompt, and authentication result text. Set Screen Display You can set the display theme and the sleep time for the device. Click Configuration → Preference → Screen Display .
  • Page 122 DS-K1T341A Series Face Recognition Terminal User Manual Steps 1. Click Configuration → Preference → Prompt Schedule . 2. Enable the function. 3. Set the appellation. 4. Select time schedule. 5. Set the time period when authentication succeeded. 1) Click Add Time Duration.

  • Page 123: Upgrade And Maintenance

    DS-K1T341A Series Face Recognition Terminal User Manual 2. Enable Customize Authentication Result Text. 3. Enter custom texts. 4. Click Save. 9.6.16 Upgrade and Maintenance Reboot device, restore device parameters, and upgrade device version. Reboot Device Click Maintenance and Security → Maintenance → Restart .

  • Page 124: Device Debugging

    DS-K1T341A Series Face Recognition Terminal User Manual Click and select the file to import. Click Import to start import configuration file. Advanced Settings Click Advanced Settings, and enter the admin password. Face Parameter Custom Anti-spoofing Detection Anti-spoofing Detection Level After enabling face anti-spoofing function, you can set the matching security level when performing live face authentication.

  • Page 125: Log Query

    DS-K1T341A Series Face Recognition Terminal User Manual 9.6.18 Log Query You can search and view the device logs. Go to Maintenance and Security → Maintenance → Log . Set the major and minor type of the log type. Set the start time and end time for searching, and click Search.
  • Page 126 DS-K1T341A Series Face Recognition Terminal User Manual 6. Import the signed certificate. 1) In the Import Key area, select a certificate from the local, and click Import. 2) In the Import Communication Certificate area, select a certificate from the local, and click Import.

  • Page 127: Chapter 10 Other Platforms To Configure

    DS-K1T341A Series Face Recognition Terminal User Manual Chapter 10 Other Platforms to Configure You can also configure the device via iVMS-4200 Client Software or HikCentral Access Control. For details, see the platforms' user manual. iVMS-4200 Client Software Click/tap the link to view the client software's user manual.

  • Page 128: Appendix A. Tips For Scanning Fingerprint

    DS-K1T341A Series Face Recognition Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 129 DS-K1T341A Series Face Recognition Terminal User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

  • Page 130: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T341A Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 131 DS-K1T341A Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 132: Appendix C. Tips For Installation Environment

    DS-K1T341A Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.

  • Page 133: Appendix D. Dimension

    DS-K1T341A Series Face Recognition Terminal User Manual Appendix D. Dimension Figure D-1 Dimension...
  • Page 134 UD17594B-E...

This manual is also suitable for:

Ds-k1t341amDs-k1t341amf

Table of Contents
