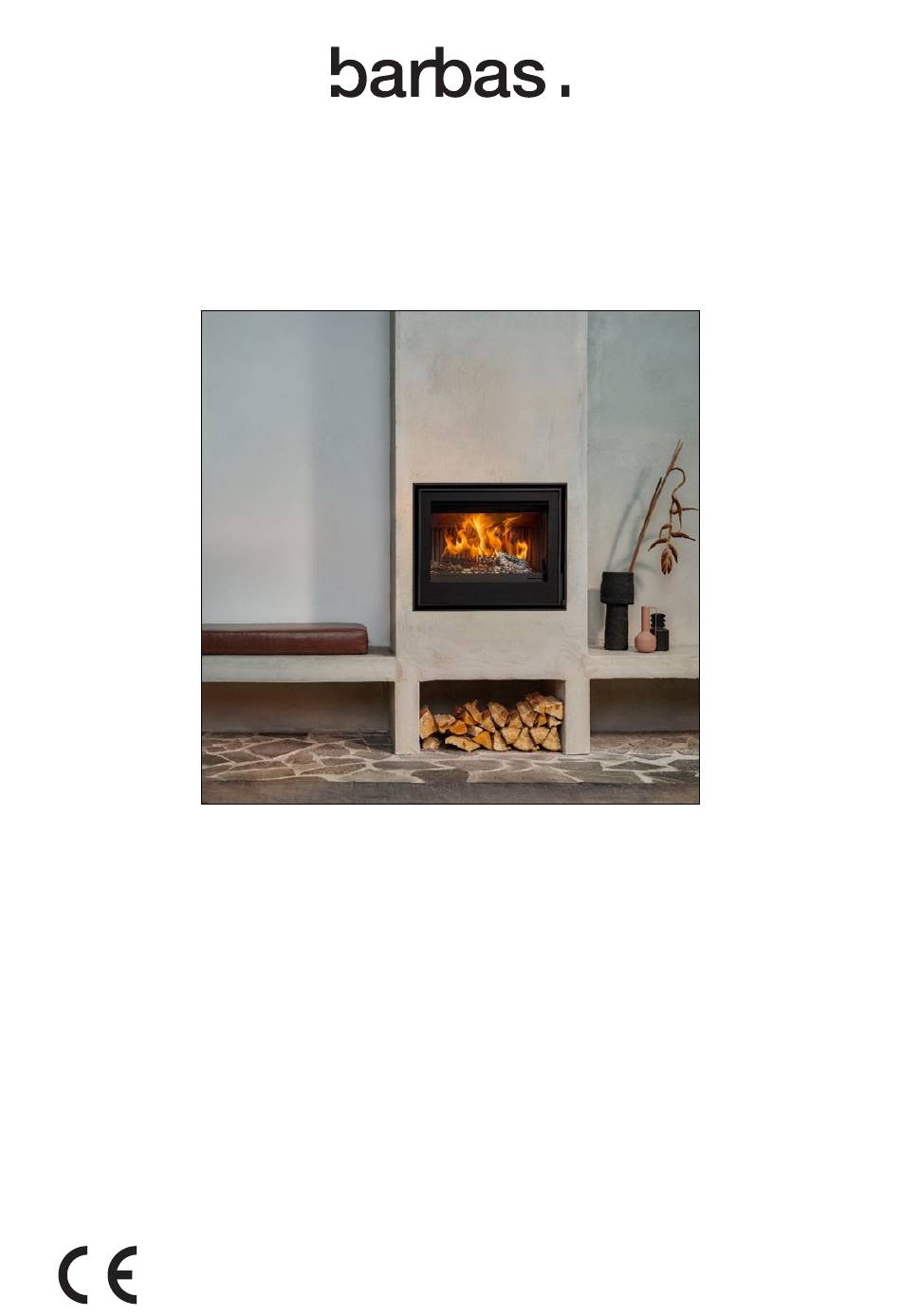

- Page 1 User manual Cuatro-7 75-60 Cuatro-7 75-60 Opti-Air Serial number: Production date:...
- Page 2 Barbas Bellfires BV.This document could contain technical inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document from time to time in thecontents thereof.
-
Page 3: Table Of Contents
Overview of the front of the appliance..................8 Overview of the Opti-Air system (option)..................8 4.2.1 General..........................8 4.2.2 Overview of the Barbas Opti-Air app.................9 4.2.3 Combustion levels in combination with a convection ventilator........11 4.2.4 Combustion levels without a convection ventilator............11 4.2.5 Combustion modes...................... - Page 4 7.3.2 Reload with fuel.......................19 7.3.3 Control the burn process ....................19 7.3.4 General firing tips......................21 Firing the appliance with the optional Barbas Opti-Air system...........21 7.4.1 Installation of the Opti-Air app ..................21 7.4.2 First load and ignition with Opti-Air................. 21 7.4.3 Reload with fuel with Opti-Air..................23 7.4.4 General firing tips......................
-
Page 5: Declaration Of Performance
Declaration of Performance Declaration of Performance Declaration of performance Cuatro-7 75-60 Opti-Air Cuatro-7 75-60... -
Page 6: About This Document
About this document About this document This document shows the necessary information to do these tasks on the Cuatro-7 75-60: • Operate the appliance • Do basic maintenance This document refers to the Cuatro-7 75-60 as 'the appliance'. This document is an essential part of your appliance.Read it carefully before you do work on the appliance. -
Page 7: How To Work With This Document
If you do not obey these instructions, there is a risk of damage to the equipment or to property. Note A note shows more information. Symbol Description Visual sign that there is a hazard Visual sign that there is a notice Related documentation • Installation and maintenance manual • User manual Cuatro-7 75-60... -
Page 8: Description
This helps you to achieve an efficient and clean combustion at all times. You can operate the Opti-Air device with the Barbas Opti-Air app on your mobile device. With this app you have the possibility to choose different combustion levels or the possibility to control the room temperature. -
Page 9: Overview Of The Barbas Opti-Air App
• With the Barbas Opti-Air system it is not possible to manually control the amount of combustion air into the appliance. 4.2.2 Overview of the Barbas Opti-Air app... - Page 10 • Change the name of the appliance. • Select which parameters are shown on the homescreen. Note: Since the Barbas Opti- Air system does not have a lambda sensor, the advice is to deselect "Lambda". Advanced Settings Only available for qualified service engi- neers.
-
Page 11: Combustion Levels In Combination With A Convection Ventilator
The appliance was not reloaded with fuel within 45 mi- Cooling down nutes after Refill notice . Cooling downmode is active. Note: With the Barbas Opti-Air system it is not possible to manually control the amount of combustion air into the appliance. Cuatro-7 75-60... -
Page 12: Intended Use
The appliance is intended for intermittent use and is not intended for continuous use. The appliance is intended to heat the room by direct heating. It is not allowed to connect the appliance to a central-heating installation. Cuatro-7 75-60... -
Page 13: Safety
Note: • Do inspect and clean the appliance, the chimney and the external combustion air supply by a Barbas dealer minimum every year. • Do not use the appliance continuously. The intended use is as intermittent appliance. -
Page 14: Safety Instructions With Regard To The Environment
Dispose of ceramic heat-resistant glass as household waste. Do not dispose of ceramic heat-resistant glass in a glass recycling container. • Dispose of an obsolete appliance according to instructions of the authorities or the fitter. • Obey the local regulations. Cuatro-7 75-60... -
Page 15: Fuel
Approximately 30 cm Approximately 30 cm Outline Approximately 25 cm Approximately 25 cm The above listed amount burns for approximately 45 minutes. This time can be different, dependent on the chimney draught and the position of the combustion air valve. Cuatro-7 75-60... -
Page 16: Fuel Amount (With Opti-Air)
Use wood logs or wood briquettes (without binder) with a length of approximately 30 cm and an outline of approximately 25 cm. The above listed amount burns for approximately 45 minutes. This time can be different, dependent on the chimney draught and the position of the combustion air valve. Cuatro-7 75-60... -
Page 17: Operation
Make sure that all package material, stickers, etc, have been removed from the vicinity of the appliance after installation. If applicable, download and install the Barbas Opti-Air app. Refer to section 7.4.1 detailed instructions. First use of the appliance Caution: •... - Page 18 Put a layer of small wood pieces and 2 firestarter cubes on top of the wood logs. Put some kindling wood above the firestarter cubes. Light the firestarter cubes with a lighter or a match. Close the door of the appliance. Cuatro-7 75-60...
-
Page 19: Reload With Fuel
Note: If the appliance has the Opti-Air option refer to section instructions on the control of the burn process. Control the burn process with the control lever. This lever controls the amount of primary combustion air and both the secondary combustion air and airwash amount. Cuatro-7 75-60... - Page 20 Never close the air inlets when the fuel is burning. Always keep the secondary air inlet and air wash inlet open by setting the control lever somewhere in-between the center position and the far left position. Cuatro-7 75-60...
-
Page 21: General Firing Tips
If the appliance has the optional Opti-Air system, the appliance automatically controls the amount of combustion air. With the Barbas Opti-Air app for Android and iOS it is possible to select from 5 different combustion levels or to select room temperature control. - Page 22 When present, open the chimney valve completely. Open the door of the appliance. Put 6 wood logs crosswise on the floor of the combustion chamber. Put a layer of small wood pieces and 2 firestarter cubes on top of the wood logs. Cuatro-7 75-60...
-
Page 23: Reload With Fuel With Opti-Air
If there are too few embers in the fire bed, add suitable kindling to prevent excessive smoke. Note: The procedure hereunder is a general description. The Barbas Opti-Air app indicates when a reload with wood logs is necessary. The Opti-Air system works best with closed door during operation. -
Page 24: General Firing Tips
OFF position 7.5.2 Convection ventilator with Opti-Air system The ventilator speed is dependent on the chosen combustion level. Refer to section 4.2.3 for more information. Note: The ventilation set-up function in the Barbas Opti-Air app is not active. Cuatro-7 75-60... -
Page 25: Maintenance
Clean the glass on both sides with a soft cloth, a sponge or paper. Use glass cleaner or ceramic hob cleaner. Make sure that the glass is dry. Water droplets can leave a mark on the glass. Note: Damaged or broken glass must be replaced before the appliance can be used again. Cuatro-7 75-60... -
Page 26: Opti-Air System
Replace the 9 V battery and close the battery holder. Put the battery holder and ventilation air inlet grate back. Post requirements • Change the 9 V back-up battery every year. Cuatro-7 75-60... -
Page 27: Troubleshooting
The chimney draught is too Contact your installer. high • Do the recommended ignition Excessive smoke escapes procedure. Refer to section The chimney draught is too when the door of the combus- 7.3.1 tion chamber is open • Contact your installer. Cuatro-7 75-60... -
Page 28: Troubleshooting On Opti-Air System
The amount of fuel is insuffi- Use the recommended amount of change to Burning after Refill. cient. fuel. Refer to section 6.2.2 section 7.4.3. Notification Sensor error in the Defect of one of the sen- Contact your dealer. app. sors. Cuatro-7 75-60... -
Page 29: Technical Data
Technical data Technical data Name Barbas Cuatro-7 75-60 Model Cuatro-7 75-60 Opti-Air EN 13229:2001-A2:2004 EN 16510-1 annex D, E, F Tested in accordance with BS 3841-2:1994 Energy efficiency index (according EU 2015/1186) Energy efficiency class • Wood logs Fuel •... -
Page 30: Warranty Terms
Warranty Terms Warranty Terms To make a claim under the warranty, it is important to register the Barbas appliance after purchase via www.barbasbellfires.com. Barbas Bellfires Warranty Terms Barbas Bellfires B.V. guarantees the quality of the supplied Barbas appliance and the quality of the materials used. - Page 31 Article 5: Warranty period This warranty will only be granted during the warranty period. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase. For other parts of the Barbas appliance, a similar warranty applies from the moment of purchase for a period of two years.
- Page 32 Your Barbas dealer 001 - 28.06.2022 - 352570 - 273-001...
