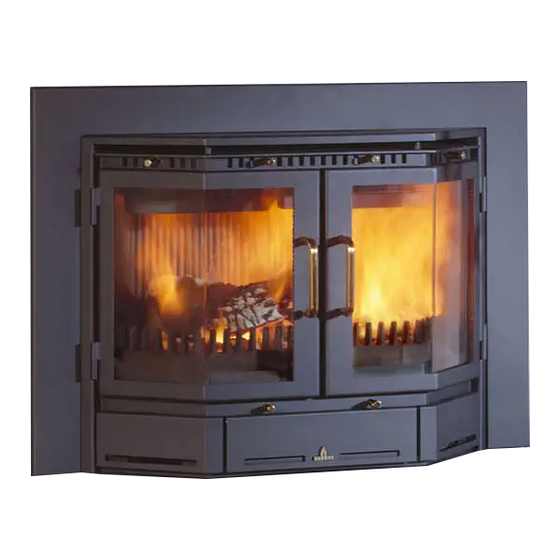

barbas PANOLUX 65 Directions For Use And Instructions For Installation
  1. Manuals
  2. Brands
  3. barbas Manuals
  4. Indoor Fireplace
  5. PANOLUX 65
  6. Directions for use and instructions for installation

barbas PANOLUX 65 Directions For Use And Instructions For Installation

Hide thumbs
Table of Contents

Advertisement

Quick Links

DIRECTIONS FOR USE
PANOLUX
NAME
Panolux 52
Panolux 65
EN - 13229
52 / 65
OUTPUT
6.0 kW
8.0 kW
INSTALLATION INSTRUCTIONS
DESCRIPTION
Fitted fi replace
Fitted fi replace

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANOLUX 65 and is the answer not in the manual?

Questions and answers

Related Manuals for barbas PANOLUX 65

Summary of Contents for barbas PANOLUX 65

  • Page 1 DIRECTIONS FOR USE INSTALLATION INSTRUCTIONS PANOLUX 52 / 65 NAME OUTPUT DESCRIPTION Panolux 52 6.0 kW Fitted fi replace Panolux 65 8.0 kW Fitted fi replace EN - 13229...

  • Page 3: Table Of Contents

    PANOLUX 52 PANOLUX 65 TABLE OF CONTENTS Page 1. Introduction 1.1 Preface................ 1.2 Safety................2. Location................3. Installation instructions............4. Operation of the fi tted fi replace..........5. Stoking up for the fi rst time........... 6. Use 6.1 Ventilation..............6.2 Getting the fi re going.............
  • Page 4 PANOLUX 52 PANOLUX 65...

  • Page 5: Introduction

    1.1. PREFACE We would like to congratulate you on your purchase of this modern BARBAS fi tted fi replace. This quality product will give you years of heating pleasure as you enjoy the play of the fl ames and the cosy glow of the fi re.
  • Page 6 PANOLUX 52 PANOLUX 65 Ÿ Avoid chimney fi res! Have your chimney swept at least once per year - more often if you use your fi re a lot. Prevent excessive deposits of soot inside the chimney by not burning freshly-cut wood. Instead, burn clean, dry chopped wood.
  • Page 7 PANOLUX 52 PANOLUX 65 Ÿ Prevent over-fi ring (white glow) by charging up the fi re with primary air (through the grid) over an extended period. Cast-iron components (grid, fi re cladding) may become overheated and be damaged as a consequence.

  • Page 8: Location

    Check all functions of the fi replace before fi tting. Barbas can provide scale drawings for fi tting a fi replace for each of the models it produces. Never work on the basis of other information such as folders etc.

  • Page 9: Installation Instructions

    PANOLUX 52 PANOLUX 65 3. INSTALLATION INSTRUCTIONS 3.1. FITTING THE FIREPLACE When fi tting one of these fi tted fi res local and/or national regulations relating to fi re safety must be followed. In case of doubt, consult the fi re safety department of the local fi...
  • Page 10 PANOLUX 52 PANOLUX 65 3.3. FITTING A fi tted fi replace can be fi tted in the newly-built or existing chimney breast of an open fi re. When fi tting, both fi re safety and operational safety must be safeguarded. The fi tter is responsible for this.
  • Page 11 PANOLUX 52 PANOLUX 65 3.3.2. Fitting in an existing chimney breast Ÿ Remove the existing fi re basket or stoking stones and remove the shut-off fl ap. The chimney must be intact and must not be damaged during fi tting. The chimney breast opening must be big enough for a gap of 1 - 3 cm to be left all round the appliance.
  • Page 12 PANOLUX 52 PANOLUX 65 3.4. HEAT TRANSFER WITH BUILT-IN FANS The heat transfer can be amplifi ed by transporting the heat with fans. With this system, hot air is blown into the room. The fans only cut in at the point that the fi re...

  • Page 13: Operation Of The Fi Tted Fi Replace

    PANOLUX 52 PANOLUX 65 OPERATION OF THE FITTED FIREPLACE Figure 1: Operation Smoke outlet Convection air-supply slide Convection air escape opening Wood rack Ceramic heat-proof glass Ridling grill handle Handle 10 Primary air-supply slide Secondary air-supply slide 11 Temperature switch holder Ash drawer 12 Cast-iron fi...

  • Page 14: Stoking Up For The Fi Rst Time

    PANOLUX 52 PANOLUX 65 5. STOKING UP FOR THE FIRST TIME If you have had your chimney breast modifi ed or newly built, fi rst allow your home to dry properly. Walls which have not been allowed to dry properly are a magnet for dust such as any smoke particles created when stoking up the fi...

  • Page 15: Use

    PANOLUX 52 PANOLUX 65 6.1. VENTILATION Air is a vital component of the combustion process. Ensure that there is a suffi cient supply of fresh air. For each kilo of wood that you put on the fi re (door closed), 10 - 15 m of extra air is needed.
  • Page 16 PANOLUX 52 PANOLUX 65 When loading the stove with fuel, two blocks measuring 32 cm long and 32 cm in diameter is suffi cient. Do not add more fuel until the previous fuel has burned down to the charcoal stage. Do not leave the door open longer than necessary.

  • Page 17: Heating Economically

    PANOLUX 52 PANOLUX 65 Stoking up the fi re when the primary air slide is open and the fi re is blazing will have the effect of making the fi re rage in white heat, which can cause damage to the grate and other cast-iron parts of the stove.

  • Page 18: General Hints

    PANOLUX 52 PANOLUX 65 7. GENERAL HINTS 7.1. TIPS Ÿ Burn dry wood only. Damp wood not only burns poorly, it causes more pollution in the appliance (window), the chimney, your room (when opening the door of the appliance, for instance) and the environment. Wood can only be classifi...

  • Page 19: Output

    PANOLUX 52 PANOLUX 65 7.2. OUTPUT In practice, combustion is all about loss. This entails: Ÿ Loss through excess heat leaving the chimney, rather than going into the room. Ÿ Loss through insuffi cient combustion, such as CO (carbon monoxide) and soot particles.

  • Page 20: Fuel

    PANOLUX 52 PANOLUX 65 8. FUELS 8.1. WOOD Suitable fuels are: Ÿ All sorts of clean wood (forested). The wood must have been dried for at least two years. Well-dried wood has a humidity percentage between 10 and 20%. Ÿ Compressed wood blocks without binder.

  • Page 21: Amount Of Fuel

    fi re, the hotter it will become and overheating may even occur. If this happens, there is a risk of fi re. It may also damage your appliance and chimney. BARBAS will not assume liability for damage caused by overheating.
  • Page 22 PANOLUX 52 PANOLUX 65 9.2. HEAT RADIATION The table below shows the temperatures which can theoretically be achieved by burning wood. Heat radiation Sort of fuel kWh/kg Dry wood (average) The heating value of wood (18.7 MJ/kg at 0% humidity) is not affected by the sort of wood.

  • Page 23: Regular Maintenance

    Ÿ Slides/fl aps Check function annually Ÿ Convection channels Clean annually Ÿ Paint Annually, if necessary touch up with BARBAS heat-resistant paint (do not use with open fi res) Ÿ Parts Individual parts for replacement/ accessories are available from your BARBAS dealer Use only original parts Ÿ...

  • Page 24: Replacement Parts

    PANOLUX 52 PANOLUX 65 REPLACEMENT PARTS...
  • Page 25 PANOLUX 52 PANOLUX 65 PANOLUX 52 Replacement parts Item no Description Number Body Cast-iron fi ns 3, 4, 5, 6 Base stones Wood rack Ridling grill container Ridling grill rosette Ridling pin Ridling-pin knob Ash drawer Ash drawer knob Ash drawer cord...
  • Page 26 PANOLUX 52 PANOLUX 65...
  • Page 27 PANOLUX 52 PANOLUX 65 PANOLUX 65 Replacement parts Item no Description Number Body Cast-iron fi ns 3, 4, 5 Base stones Wood rack Ridling grill container Ridling grill rosette Ridling pin Ridling-pin knob Ash drawer Ash drawer knob Ash drawer cord...

  • Page 28: Technical Parts

    PANOLUX 52 PANOLUX 65 TECHNICAL DATA Type: PANOLUX 52 Dimensions (hxbxd) 0.59 x 0.76 x 0.46 m Weight 110 kg Combustion: Nominal output 6.0 kW Measured in compliance with DIN 18895 (Bauart 1-D) / EN - 13229 Smoke output 5.2 g/s (for chimney calculation) measured at a smoke temperature of 349°C...
  • Page 29 PANOLUX 52 PANOLUX 65 Type: PANOLUX 65 Dimensions (hxbxd) 0.64 x 0.88 x 0.46 m Weight 131 kg Combustion: Nominal output 8.0 kW Measured in compliance with DIN 18895 (Bauart 1-D) / EN - 13229 Smoke output 12.1 g/s (for chimney calculation) measured at a smoke temperature of 343°C...

  • Page 30: Frequently Asked Questions

    PANOLUX 52 PANOLUX 65 FREQUENTLY ASKED QUESTIONS How often should I have my chimney swept? At least once a year. If you use your fi re more than three times a week on average, have your chimney swept more often. Have the chimney swept by a recognised company.
  • Page 31 Can a wood-burning stove/fi tted fi re be connected to a central heating installation? The Barbas range does not have any stoves/fi res that can be connected to central heating installations. We do not advise attempting it!! At what temperature does/do the convection fan(s) cut in? Wood-burning stoves are not fi...
  • Page 32 PANOLUX 52 PANOLUX 65 What is wrong with a smoking chimney? A seriously smoking chimney means that combustion is less than optimum. There may be a number of reasons for this. If the fi re has only just caught on, or has recently been topped up, some smoke is normal.
  • Page 33 PANOLUX 52 PANOLUX 65 The wood burns up too quickly. What should I do? Ensure that air cannot get in underneath the fuel. Close the primary air slides, ash drawer and ridling grill. Under these conditions, the layer of ash should no longer burn bright orange/white but red.
  • Page 34 PANOLUX 52 PANOLUX 65 What happens when wood is burnt? The combustion process. The combustion of wood involves the following steps. Drying The fi rst step is that the fuel (wood) dries out. Even at low temperatures (<100°C), any moisture still in the wood will evaporate. This drying procedure implies a signifi...
  • Page 35 PANOLUX 52 PANOLUX 65...
  • Page 36 INTERFOCOS B.V. HALLENSTRAAT 17 5531 AB BLADEL NEDERLAND E-mail: info@barbas.nl Internet: www.barbas.com 02 - 010706 - 303524...
