DIRECTIONS FOR USE

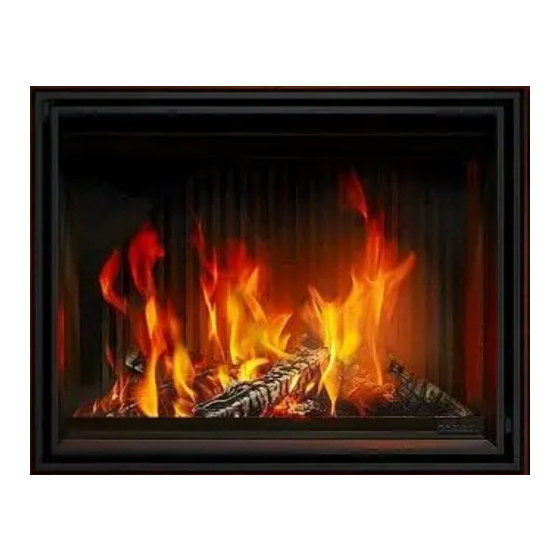

ENERGA 70-55 Tunnel
NAME
Energa 70-55 Tunnel
EN -13229
INSTALLATION INSTRUCTIONS
OUTPUT
23.0 kW
DESCRIPTION
Fireplace insert

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENERGA 70-55 TUNNEL and is the answer not in the manual?

Questions and answers

John look Archer
April 28, 2025

Where can I buy spare parts

0

Subscribe to Our Youtube Channel

Related Manuals for barbas ENERGA 70-55 TUNNEL

Summary of Contents for barbas ENERGA 70-55 TUNNEL

  • Page 1 DIRECTIONS FOR USE INSTALLATION INSTRUCTIONS ENERGA 70-55 Tunnel NAME OUTPUT DESCRIPTION Energa 70-55 Tunnel 23.0 kW Fireplace insert EN -13229...
  • Page 3 ENERGA 70-55 TUNNEL ENERGA 70-55 TUNNEL...
  • Page 4 ENERGA 70-55 TUNNEL...
  • Page 5 ENERGA 70-55 TUNNEL BARBAS ENERGA WOOD-BURNING BUILT-IN FIRE WITH THE FOLLOWING CHARACTERISTICS: - High effi ciency - Energy saving - Low fl ue gas emissions - Fitted with a ceramic particulate fi lter (Patent pending) - Very low particulate exhaust...
  • Page 6 ENERGA 70-55 TUNNEL...
  • Page 7 Built-in wood fi re fi red by solid fuels for space heating in residential buildings. - Name: Barbas - Model: ENERGA 70-55 Tunnel - Types of fuel: Wood logs and briquettes (= pressed wood blocks without binding agent) Fire safety: (risk to adjacent elements/objects)
  • Page 8 ENERGA 70-55 TUNNEL...

  • Page 9: Table Of Contents

    ENERGA 70-55 TUNNEL TABLE OF CONTENTS Page Introduction Foreword..................Safety and installation instructions..........Placing Included..................Preparation for positioning............Accessories................... Basic requirements for positioning built-in fi res......Construction requirements............Heat-insulating materials............... Chimney..................Installation instructions Requirements relating to the use of existing chimneys....
  • Page 10 ENERGA 70-55 TUNNEL...

  • Page 11: Introduction

    INTRODUCTION 1.1 FOREWORD We would like to congratulate you on your purchase of this modern Barbas built-in wood fi re. This quality product will give you years of heating pleasure as you enjoy the play of the fl ames and the cosy glow of the fi re.
  • Page 12 ENERGA 70-55 TUNNEL • Follow the instructions issued by your local fi re brigade. The fi re can be taken in operation if national and local regulations are satisfi ed. The required constructive adaptations should be satisfi ed as well.

  • Page 13: Included

    ENERGA 70-55 TUNNEL LOCATION INCLUDED Documentation Warranty Manual Attributes Glove (Heat resistant up to max. 95°C) Operating hook / Poker Carrying brackets (2x) N.B. If any part is missing, please contact your dealer. 2.2 PREPARATION FOR POSITIONING Check all functions of the built-in fi re before fi tting.
  • Page 14 ENERGA 70-55 TUNNEL • Check the operation and setting of the fl ue gas fl ap and the particulate fi lter. Locking slider (inside door) Pin for fl ue gas fl ap Combustion air-supply slider Locking slider all the way to the left (closed): Flue gas fl...
  • Page 15 ENERGA 70-55 TUNNEL • Check whether the retardant plate (brake plate) is located correctly in the supports. See Chapter 7.6. • Check the operation of the slider for the regulation of the combustion air intake (middle below the window). • Check whether the ashtray is completely empty.
  • Page 16 ENERGA 70-55 TUNNEL • Report any defects immediately to your dealer. • Remove enclosed documents and components from the built-in fi re. • Open the connection openings for the convection air outlet and the convection air supply. • Important: •...
  • Page 17 ENERGA 70-55 TUNNEL • Connecting convection air intake - at the side of the appliance. ° Using a hammer, open at least one of the two convection air intake openings on the side of the appliance !! • Ventilation casing / fi replace.

  • Page 18: Accessories

    2.3 ACCESSORIES The following accessories can be supplied by your dealer: Part no Accessorie 330171 3-Sided 35 mm frame Energa 70-55 / Energa 70-55 Tunnel 330172 4-Sided 35 mm frame Energa 70-55 / Energa 70-55 Tunnel 312829 Convection set General: (for convection air extraction) 302188 •...
  • Page 19 ENERGA 70-55 TUNNEL Built-in fi res must not be used in: • Staircases, except in buildings with no more than two apartments. • Entrances providing general access. • Rooms in which highly infl ammable or explosive substances are processed or manufactured.
  • Page 20 ENERGA 70-55 TUNNEL The casing / fi replace • The casing may not be directly connected to the built-in fi re, but must be constructed so that it is self-supporting; a mantle iron or lintel should be used for this. The covering in the area must be of non-fl...
  • Page 21 ENERGA 70-55 TUNNEL Figure 1: Use of convection set. Ventilation and combustion air intake via the chimney breast. • When building in the appliance you can, if you wish, use a convection set (option) to connect the convection openings to the warm air exit grills in the chimney breast...

  • Page 22: Construction Requirements

    ENERGA 70-55 TUNNEL • Connecting convection set (option) to the convection air escape openings on the top of the appliance: ° Place the collar rings (2x or 4x) on the convection openings. ° The convection air pipes must be made of non-fl ammable material which cannot be distorted.
  • Page 23 ENERGA 70-55 TUNNEL Insulation Delivered Heat Max user Density material in ... conductivity temperature Can be Sort Form ºC kg/m³ delivered as Mineral fi bre Strips Mats (1) Glass fi bre Individual fi bres Mats (2) Stone fi bre Granular fi...

  • Page 24: Chimney

    ENERGA 70-55 TUNNEL CHIMNEY Every fi re needs its own chimney. Multiple connections to one main chimney is not per- mitted. Ensure that any existing chimney is completely air-tight and in good condition. It must be suitable to accommodate the appliance in question. Make sure your chimney has a proper cap to prevent rain getting in and birds nesting on it.

  • Page 25: Installation Instructions

    ENERGA 70-55 TUNNEL INSTALLATION INSTRUCTIONS 3.1 REQUIREMENTS RELATING TO THE USE OF EXISTING CHIMNEYS The adapter material for the connection with the chimney must be made of at least 2 mm thick sheet steel and must be insulated with a heat-resistant material 3 cm in thickness.
  • Page 26 ENERGA 70-55 TUNNEL Construction parts containing fl ammable substances or material and fi tted furniture outside the radiation area of the fi tted fi replace There must be a distance of at least 5 cm between the outside surfaces of the chimney breast/casing/fi...

  • Page 27: Fitting The Fi Replace

    ENERGA 70-55 TUNNEL FITTING THE FIREPLACE 4.1 PREPARATION / INSPECTION OF FUNCTION • Check the operation of the combustion air supply slider • Check the operation of fl ue gas fl ap • Check whether the convection holes Ø125 mm (2x or 4x) on the top side are open •...
  • Page 28 ENERGA 70-55 TUNNEL The space between the fi replace (hearth surround/brick work) and the fi re itself should be left completely open so that there is an empty space. At least 20 mm of free space should be left on both sides of the fi re. Ventilate the fi replace, by placing ventilation openings at the top and bottom of the chimney breast.
  • Page 29 ENERGA 70-55 TUNNEL The combustion air supply The combustion air supply connection is located on the under side of the appliance. Combustion air supply connection on the under side of the appliance Always ensure that there is suffi cient Note open space under the appliance for the combustion air supply.
  • Page 30 ENERGA 70-55 TUNNEL • Insert a piece of pipe (Ø125 mm) between the pipe and the external air supply opening in the wall with, if required, a movable damper, in such a way that the pipe with operating knob is fi tted so that the damper can be opened and shut from the living area.
  • Page 31 ENERGA 70-55 TUNNEL • Cover the top and side of the appliance to the front edge with c. 10 cm thick insulating material (T ≥ 700°C) (Class A1 according to DIN 4102 (= EN 13501)). Leave a few centimetres clearance between the front of the chimney breast and the appliance.
  • Page 32 ENERGA 70-55 TUNNEL Available grids (option) for ventilating the fi replace: COLOUR DIMENSION (cm) CLEAR OPENING (cm White 13.5 x 13.5 (incl. fi tting box) White 27.0 x 13.5 (incl. fi tting box) White 43.0 x 22.0 • If the fi re is to be placed against a bearing wall or against a wall containing fl...
  • Page 33 ENERGA 70-55 TUNNEL Energa 70-55 Tunnel built into chimney breast Combustion air supply via grate in outside wall Inlet opening (grate) (chimney breast) combustion and convection air Inlet opening (appliance) combustion air Inlet opening (appliance) convection air (2x side) Natural convection in the chimney breast...
  • Page 34 ENERGA 70-55 TUNNEL Energa 70-55 Tunnel with convection set (option) built into chimney breast Combustion air supply directly from outside Combustion air supply via grate in outside wall Inlet opening (grate) (chimney breast) convection air Inlet opening (appliance) combustion air...

  • Page 35: Operation Of The Fi Replace

    ENERGA 70-55 TUNNEL OPERATION OF THE BUILT-IN FIRE Figure 3: Operation Energa 70-55 Tunnel 1 Flue outlet Combustion air-supply slider 2 Convection air escape opening (4x) (Combined operation for the primary 3 Operating pin fl ue gas fl ap and secondary combustion air-supply)

  • Page 36: Stoking Up For The Fi Rst Time

    ENERGA 70-55 TUNNEL STOKING UP FOR THE FIRST TIME If you have had your chimney breast modifi ed or newly built, fi rst allow your home to dry properly. Walls which have not been allowed to dry properly are a magnet for dust such as any smoke particles created when stoking up the fi...

  • Page 37: Use

    ENERGA 70-55 TUNNEL 7.1 VENTILATION Air is a vital component of the combustion process. Ensure that there is a suffi cient supply of fresh air. For each kilo of wood that you put on the fi re (door closed), 10 - 15 m of extra air is needed.

  • Page 38: Instructions While Stoking

    ENERGA 70-55 TUNNEL When setting the fi re, move the locking slider all the way to the right. If necessary, leave the door ajar for 10 minutes. Do not open the door wide, as the window will remain cold. If the door is shut during this time, smoke will condense on the glass and form soot.
  • Page 39 When loading the fi re, the following quantity of wood is suffi cient. Energa 70-55 Tunnel : 4 blocks c. 26 cm long and 30 cm perimeter Do not add more fuel until the previous fuel has burned down to the charcoal stage.

  • Page 40: Heating Economically

    ENERGA 70-55 TUNNEL 7.4 HEATING ECONOMICALLY The most environmentally-friendly and economic way of heating with wood is to have your fi re hot but calm. The ash should appear to glow a soft red-orange and should not glow like a blacksmith’s fi re. Fires like that burn quickly and intensely, leaving little time for complete combustion.

  • Page 41: Removing And Returning The Holder With The Particulate Fi Lter

    ENERGA 70-55 TUNNEL 7.6 REMOVING AND RETURNING THE HOLDER WITH THE PARTICULATE FILTER, FLUE GAS FLAP AND RETARDANT PLATE (BRAKE PLATE) Before sweeping the chimney, the holder with the particulate fi lter and the fl ue gas fl ap must be removed.
  • Page 42 ENERGA 70-55 TUNNEL Removing the holder with the particulate fi lter • First slide the holder with particulate fi lter as far forward as possible. Then remove this by fi rst lifting it on the left and taking it out downwards to the right.

  • Page 43: Replacing The Particulate Fi Lter

    ENERGA 70-55 TUNNEL • Remove the retardant plate by tilting it upwards slightly, sliding it backwards and removing it diagonally to one side. (Original position of retardant plate is between the 4 spacers.) REPLACING THE PARTICULATE FILTER • Remove the holder from the appliance •...

  • Page 44: Adjusting The Fl Ue Gas Fl Ap

    ENERGA 70-55 TUNNEL • After installation: Slide the holder, on the supports, completely to the back. Bottom view from the combustion chamber. ADJUSTING THE FLUE GAS FLAP • Check whether the door depresses the operating pin suffi ciently to close completely the fl...
  • Page 45 ENERGA 70-55 TUNNEL 2. Check by using the door if the fl ue gas fl ap goes past the mark. 3. If necessary, adjust the operating pin with an Allen key and open-end wrench. 4. Remove the mark.

  • Page 46: General Hints

    ENERGA 70-55 TUNNEL GENERAL HINTS 8.1 TIPS • Burn dry wood only. Damp wood not only burns poorly, it causes more pollution in the appliance (window), the chimney, your room (when opening the door of the appliance, for instance) and the environment. Wood can only be classifi ed as dry if it has been stored under a Dutch barn for at least two years (not covered with plastic).

  • Page 47: Output

    ENERGA 70-55 TUNNEL 8.2 OUTPUT In practice, combustion is all about loss. This entails: • Loss through excess heat leaving the chimney, rather than going into the room. • Loss through insuffi cient combustion, such as CO (carbon monoxide) and soot particles.

  • Page 48: Fuel

    Suitable fuels are: • All sorts of clean wood (forested). The wood must have been dried for at least two years. Well-dried wood has a humidity percentage between 10 and 20%. Recommended dimensions: • Energa 70-55 Tunnel: length: c. 26 cm outline: c.

  • Page 49: Amount Of Fuel

    If this happens, there is a risk of fi re. It may also damage your appliance and chimney. BARBAS will not assume liability for damage caused by overheating. Burning one layer of wood can lead to varying outputs. When used correctly, one load will burn in around 45 minutes.

  • Page 50: Heat Radiation

    ENERGA 70-55 TUNNEL 10.2 HEAT RADIATION The table below shows the temperatures which can theoretically be achieved by burning wood. Heat radiation Sort of fuel kWh/kg Dry wood (average) Briquettes (average) The heating value of wood (18.7 MJ/kg at 0% humidity) is not affected by the sort of wood.

  • Page 51: Regular Maintenance

    • Sliders/dampers Check function annually • Convection channels Clean annually • Paint Annually, if necessary touch up with BARBAS heat-resistant paint (do not paint when the fi re is in use!) • Parts Individual parts for replacement/accessories are available from your BARBAS dealer Use only original parts •...

  • Page 52: Replacement Parts

    ENERGA 70-55 TUNNEL REPLACEMENT PARTS 12.1 ENERGA 70-55 TUNNEL Number Item no Description replacements parts Energa 70-55 Tunnel Body Panel side, left/right (vermiculite plate) Panel bottom (vermiculite plate) Panel bottom, front/rear (vermiculite plate) Grate Ashtray Door Glass Operating pin (for fl ue gas fl ap) Flue gas fl...

  • Page 53: Dimensions

    ENERGA 70-55 TUNNEL DIMENSIONS 13.1 ENERGA 70-55 TUNNEL * Combustion air supply connection Ø125 mm...
  • Page 54 ENERGA 70-55 TUNNEL 13.1.1 ENERGA 70-55 Tunnel 3 sided 35 mm frame * Combustion air supply connection Ø125 mm...
  • Page 55 ENERGA 70-55 TUNNEL 13.1.2 ENERGA 70-55 Tunnel 4 sided 35 mm frame * Combustion air supply connection Ø125 mm...

  • Page 56: Technical Data

    ENERGA 70-55 TUNNEL TECHNICAL DATA ENERGA 70-55 Tunnel Combustion: Measured in compliance with EN 13229 : 2001 / EN 13229 - A2 : 2004 / EN 13229 : 2011 Fuel Wood Output; min. - max. 10 - 25 kW Nominal output 23 kW Effi...
  • Page 57 ENERGA 70-55 TUNNEL ENERGA 70-55 Tunnel • Handle for opening the door Operation: • Combustion air supply slider Single combined slide for controlling the primary, secondary and tertiary air supply Ash collection: Ashtray with grate Combustion air supply: At least...

  • Page 58: Frequently Asked Questions

    Can a wood-burning stove/built-in fi re be connected to a central heating installation? The Barbas range does not have any stoves/fi res that can be connected to central heating installations. We do not advise attempting it !! How do I know if I’m heating correctly? Follow the instructions in this manual.
  • Page 59 ENERGA 70-55 TUNNEL What is wrong with a smoking chimney? A seriously smoking chimney means that combustion is less than optimum. There may be a number of reasons for this. If the fi re has only just caught on, or has recently been topped up, some smoke is normal.
  • Page 60 ENERGA 70-55 TUNNEL Do I have to take any extra measures if the room I am heating has an extractor fan (mechanical ventilation)? If the combustion air comes from the living-room: A fl ue gas fan is required for permanent extraction of the area in which the fi replace is placed.
