REFRIGERATOR
OWNER'S MANUAL
PTB 1132

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTB 1132 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PTB 1132

Summary of Contents for Philco PTB 1132

  • Page 1 REFRIGERATOR OWNER’S MANUAL PTB 1132...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2019, Fast ČR, a. s. Revision 05/2019...

  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY INFORMATION........................3 PART 2: DESCRIPTION OF THE APPLIANCE ....................9 Main configuration .................................... 9 PART 3: UNPACKING YOUR FREEZER ......................10 PART 4: CLEANING BEFORE USE ........................10 PART 5: SPACE REQUIREMENTS ........................10 PART 6: ELECTRICAL REQUIREMENT ......................11 Recommended Earthing Method ..............................11 PART 7: LEVELING ............................11 PART 8: USE OF THE APPLIANCE ........................12 Temperature Control (optional) ..............................12...
  • Page 4 Dear customer: Thank you for buying this refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

  • Page 5: Part 1: Safety Information

    PART 1: SAFETY INFORMATION WARNING: RISK OF FIRE / FLAMMABLE MATERIALS THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS; FARM HOUSES AND BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE ENVIRONMENTS;...
  • Page 6 WARNING! KEEP VENTILATION OPENINGS, IN THE APPLIANCE ENCLOSURE OR IN THE BUILT-IN STRUCTURE, CLEAR OF OBSTRUCTION. WARNING! DO NOT USE MECHANICAL DEVICES OR OTHER MEANS TO ACCELERATE THE DEFROSTING PROCESS, OTHER THAN THOSE RECOMMENDED BY THE MANUFACTURER. WARNING! DO NOT DAMAGE THE REFRIGERANT CIRCUIT. WARNING! THE COOLING SYSTEM CONTAINS REFRIGERANT UNDER HIGH PRESSURE.
  • Page 7 WARNING! DO NOT LOCATE MULTIPLE PORTABLE SOCKET- OUTLETS OR PORTABLE POWER SUPPLIES AT THE REAR OF THE APPLIANCE. WARNING! IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE AN APPLIANCE WITH THE SUPPLY CABLE DAMAGED.
  • Page 8 REFRIGERANT REFRIGERANT AND CYCLOPENTANE FOAMING MATERIAL USED FOR THE REFRIGERATOR ARE FLAMMABLE. THEREFORE, WHEN THE REFRIGERATOR IS SCRAPPED IT SHALL BE KEPT AWAY FROM ANY FIRE SOURCE AND BE RECOVERED BY A SPECIAL RECOVERING COMPANY WITH CORRESPONDING QUALIFICATION OTHER THAN BE DISPOSED BY COMBUSTION, SO AS TO PREVENT DAMAGE TO THE ENVIRONMENT OR ANY OTHER HARM.
  • Page 9 TO AVOID CONTAMINATION OF FOOD, PLEASE RESPECT THE FOLLOWING INSTRUCTIONS: – OPENING THE DOOR FOR LONG PERIODS CAN CAUSE A SIGNIFICANT INCREASE OF THE TEMPERATURE IN THE COMPARTMENTS OF THE APPLIANCE. – CLEAN REGULARLY SURFACES THAT CAN COME IN CONTACT WITH FOOD AND ACCESSIBLE DRAINAGE SYSTEMS.
  • Page 10 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; – APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; – APPLIANCES USED IN BED AND BREAKFAST FACILITIES; –...

  • Page 11: Part 2: Description Of The Appliance

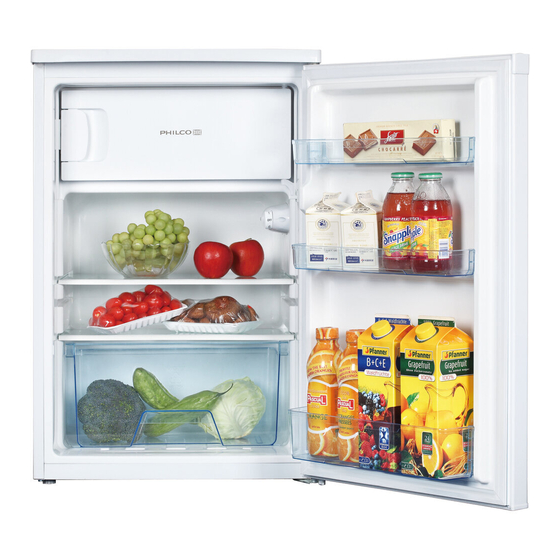

    PART 2: DESCRIPTION OF THE APPLIANCE This type of refrigerator is widely used in places such as hotels ,offices, student dormitories and houses. It is mostly suitable for preserving foods such as fruits and beverage. It enjoys the advantages of small size, lightweight, low electric consumption and easy use.

  • Page 12: Part 3: Unpacking Your Freezer

    PART 3: UNPACKING YOUR REFRIGERATOR WARNING! Use two or more people to move refrigerator. Failure to do so can result in back or other injury. • Remove tape and any labels from your refrigerator before using (except the rating label). •...

  • Page 13: Part 6: Electrical Requirement

    PART 6: ELECTRICAL REQUIREMENT WARNING! DO NOT REMOVE GROUND PRONG. DO NOT USE AN ADAPTOR. DO NOT USE EXTENSION CORD. Failure to follow these instructions can result in death, fire or electrical shock. Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

  • Page 14: Part 8: Use Of The Appliance

    PART 8: USE OF THE APPLIANCE To obtain the best possible results form your refrigerator, it is important that you operate it properly. Temperature Control (optional) Controls for the refrigerator and freezer are located at the fop shelf of the refrigerating compartment. When you first install your refrigerator, set the Thermostat knob at 3.

  • Page 15: Frozen Food Storage

    Frozen Food Storage The freezer compartment is designed for storing frozen food and for freezing food at home. Successful freezing depends on the correct packaging. When you close and seal the package you must not allow air or moisture in or out. If you do, you could have food odor and taste transfer throughout the refrigerator, and also dry out frozen food.

  • Page 16: Cleaning

    Cleaning 1. Cleaning the Interior and the Exterior of the Unit • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. • The interior of the refrigerator should be cleaned regularly to avoid odor. • Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers, etc. • Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

  • Page 17: Part 10: Troubleshooting

    PART 10: TROUBLESHOOTING In case of malfunction, you can solve many common problems easily. Problem Check if / Solution Your Refrigerator will not - The power supply cord is unplugged. operate. - The thermostat knob is set to OFF position. The light so not work. - The power supply cord is unplugged.

  • Page 18: Part 11: Refrigerator Door Install Guidelines About Swapping Left&Right (Optional)

    PART 11: REFRIGERATOR DOOR INSTALL GUIDELINES ABOUT SWAPPING LEFT&RIGHT (OPTIONAL) 1 Disassemeble the screws behind the fixed roof with cross-slot screwdriver and remove the cover from the refrigerator. 2 Remove the screws fixed the top-hinge with cross-slot screwdriver. The screws fixed the top-hinge EN - 16 Copyright ©...
  • Page 19 3 Replace the top-hinge and the door limit block and the door bearing bush to the other side A replace the top-hinge. B replace the door bearing bush and the limit block. EN - 17 Copyright © 2019, Fast ČR, a. s. Revision 05/2019...
  • Page 20 4 Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver and replace the hinge to the other side then fix it with screws. NOTE! The refrigerator incline angle less 45°. EN - 18 Copyright © 2019, Fast ČR, a. s. Revision 05/2019...
  • Page 21 The screws fixed the bottom-hinge 5 Replace the leveler to the other side and adjust it to make sure the cabinet level EN - 19 Copyright © 2019, Fast ČR, a. s. Revision 05/2019...
  • Page 22 6 Set the door right position,fix the top-hinge and then the roof cover. Ensure the Appliance is unplugged and empty. Adjust the two leveling feet to their highest position. We recommend you have someone to assist you. NOTE! To take the door off it is necessary to tilt the Appliance backward. You should rest the Appliance on something solid e.g.a chair just below the top panel.

  • Page 23: Energy Saving Tips

    Energy Saving Tips • The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight. • Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. • Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. • Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. • Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

  • Page 24: Part 12: Information Sheet

    PART 12: INFORMATION SHEET INFORMATION SHEET: Philco Philco brand: Brand Philco Product number PTB 1132 Type of appliance Energy efficiency class (A… low electricity consumption to G… high electricity consumption) Energy consumption over a 365 day period (kWh) Total available volume (l)
  • Page 25 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 27 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from SK - 24 Electrolux Home Products., Inc. Copyright © 2019, Fast ČR, a. s. Revision 05/2019...
