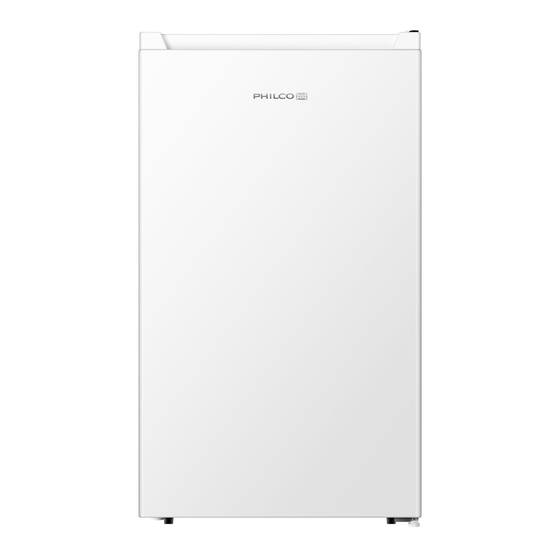

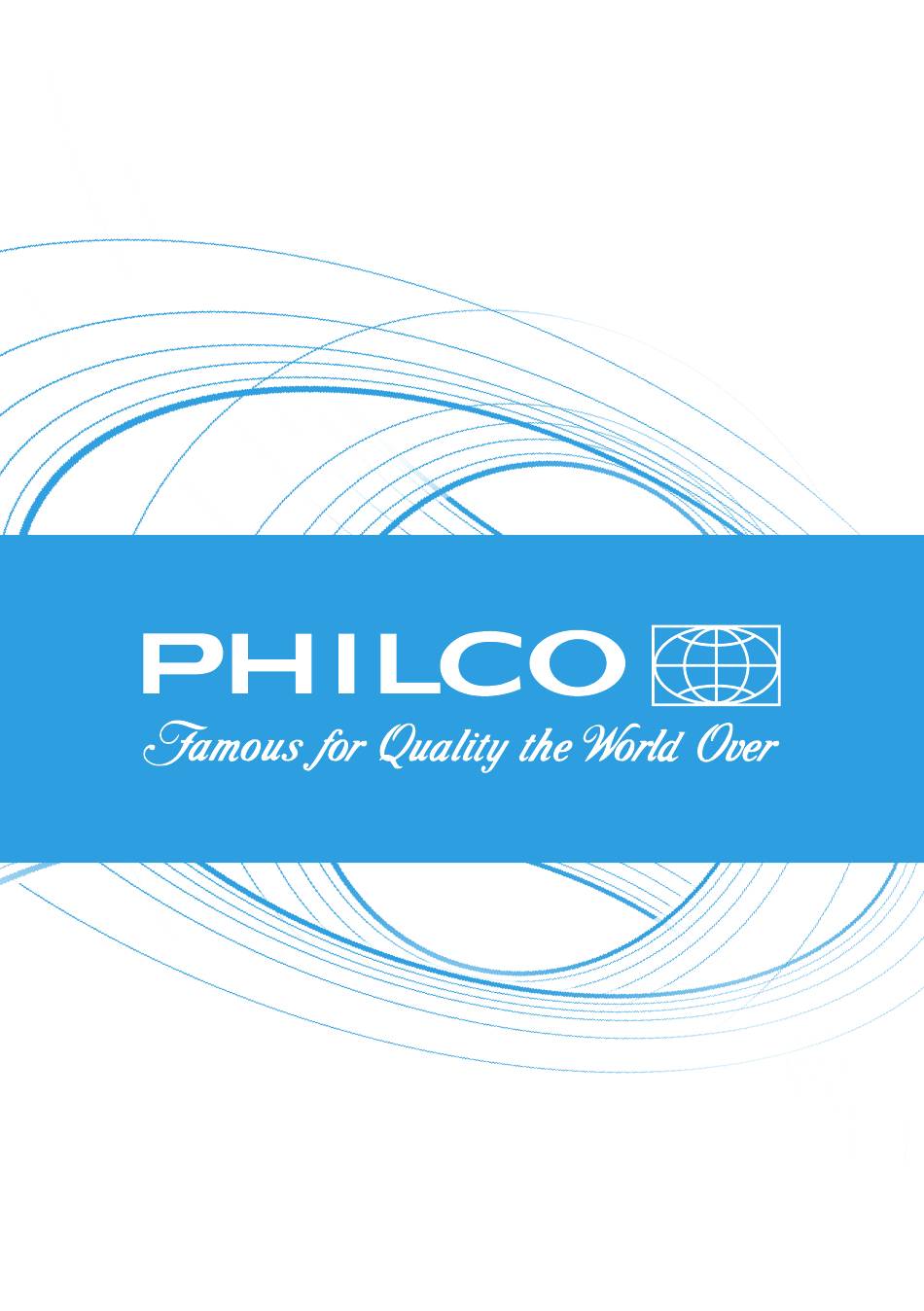

- Page 1 REFRIGERATOR OWNER’S MANUAL PTB 94 FW PTB 94 FX...
- Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2019, Fast ČR, a. s. Revision 03/2022...
-
Page 3: Table Of Contents
CONTENTS PART 1: SAFETY INFORMATION........................2 PART 2: PARTS AND FEATURES ........................10 VIEW OF THE APPLIANCE ................................10 PART 3: INSTALLING YOUR NEW APPLIANCE .....................11 CLEANING BEFORE USE ................................11 INSTALLATION POSITIONING ..............................11 LEVELING ......................................12 ELECTRICAL CONNECTION................................12 PART 4: REVERSING THE DOOR ........................13 PART 5: CONTROL PANEL ..........................15 STARTING UP AND TEMPERATURE REGULATION .......................15 PART 6: USING YOUR APPLIANCE ........................16... -
Page 4: Part 1: Safety Information
PART 1: SAFETY INFORMATION FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES. - Page 5 ● IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED. ● WARNING: THE VENTILATION OPENINGS IN THE APPLIANCE HOUSING OR IN ITS CONSTRUCTION MUST BE KEPT FREE.
- Page 6 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS: – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; –APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; –APPLIANCES USED IN BED-ANDBREAKFAST FACILITIES; –APPLIANCES USED IN CATERING AND OTHER SIMILAR NON- VENDING ENVIRONMENTS.
- Page 7 WARNING: RISK OF FIRE / FLAMMABLE MATERIALS CONTAINS COOLING GAS ISOBUTANE R600A REFRIGERANT THE REFRIGERANT ISOBUTENE (R600A) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.
- Page 8 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED: - AVOID OPENING FLAMES AND SOURCES OF IGNITION. - THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED. IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.
- Page 9 5. IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE. 6. YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE INTERIOR LIGHTING LAMP COVER. 7. THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF SINGLE PHASE ALTERNATING CURRENT OF 220~240V/50HZ.
- Page 10 ● DO NOT PLACE CARBONATED OR FIZZY DRINKS IN THE FREEZER COMPARTMENT AS IT CREATES PRESSURE ON THE CONTAINER,WHICH MAY CAUSE IT TO EXPLODE,RESULTING IN DAMAGE TO THE APPLIANCE. ● FROZEN FOOD CAN CAUSE FROST BURNS IF CONSUMED STRAIGHT FROM THE FREEZER COMPARTMENT. ●...
- Page 11 INSTALLATION IMPORTANT! ● FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. ● DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT.
-
Page 12: Part 2: Parts And Features
PART 2: PARTS AND FEATURES View of the appliance Flip door Door seal Upper shelf Middle shelf Lower shelf Supporting leg Crisper drawer Crisper box cover Glass shelve Temperature regulator Evaporating dish Note: Features may vary depending on model. Not all models will have features listed. Note: To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above. -
Page 13: Part 3: Installing Your New Appliance
PART 3: INSTALLING YOUR NEW APPLIANCE Cleaning before use • Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and neutral soap in order to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. Installation Positioning Before installing, read the instruction carefully for your safety and the correct operation of appliance. • Position the appliance away from sources of heat such as stoves, radiators, direct sunlight, etc. -
Page 14: Leveling
Leveling • The appliance should be level in order to eliminate vibration. To make the appliance level, it should be upright and both adjusters should be in stable contact with the floor. You can also adjust the level by unscrewing the appropriate level adjustment in the front (use your fingers or a suitable spanner). Electrical connection CAUTION Any electrical work required to install this appliance should be carried out by qualified or authorized personnel. WARNING This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed. -
Page 15: Part 4: Reversing The Door
PART 4: REVERSING THE DOOR The side at which the door opens can be changed from the right side (as supplied) to the left side, if the installation site requires. Tools you will need: 8mm socket driver Cross-shaped screwdriver Putty knife or thin-blade screwdriver Before you start lay the refrigerator on it’s back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the refrigerator. Open the appliance door and unhinge and remove all fittings from inside the appliance. Unscrew the 2 screws (10). (Refrigerator with cover panel) Take off the cover panel (11) and set it down on a soft surface. (Refrigerator with cover panel) Remove the upper hinge cap (7). (Refrigerator without cover panel) Remove the two screws blot (6) that connect the upper hinge (5) on the right side of the cabinet top. Carefully lift the door and place it on a padded surface to prevent scratching. Remove the plug (9) and transfer it to the uncovered hole on the right side of the unit. Be sure to press the button firmly into the hole. (Refrigerator without cover panel) Remove the two screws (1) that hold the lower hinge (2) on the right side of the unit. Remove the screw-type leveling front leg (4) and transfer it to the right side as shown in the adjacent figure. - Page 16 Refrigerator without cover panel Refrigerator with cover panel Screw Low Hinge Adjustable Low Foot Adjustable High Foot Upper Hinge Screw Bolt Upper Hinge Cap Shaft Sleeve Plug Screw Cover panel EN - 14 Copyright © 2019, Fast ČR, a. s. Revision 03/2022...
-
Page 17: Part 5: Control Panel
PART 5: CONTROL PANEL Starting up and temperature regulation • Insert the plug of the connection lead into the plug socket with a protective grounding contact. • The temperature selector knob is located on the RH side of the refrigerator compartment. Setting “0” means: Clockwise rotate the knob to turn on the appliance. Setting “1” means: Highest temperature, warmest setting. Setting “7” (end-stop) means: Lowest temperature, coldest setting. Important! • Normally we advise you select a setting of 4, if you want the temperature warmer or colder please turn the knob to lower or higher setting accordingly. When you turn the knob to a lower setting, this can lead to more energy saving. Otherwise, it would result high consumption of energy. Note: High temperature setting will accelerate food waste. -
Page 18: Part 6: Using Your Appliance
PART 6: USING YOUR APPLIANCE Accessories Movable shelves/trays • Various glass or plastic storage shelves or wire trays are included with your appliance different models have different combinations and different models have different quality. • The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Positioning the door shelves • To permit the storage of food packages of various sizes, the door shelves can be placed at different heights. • To make these adjustments proceed as follows gradually pull the shelf in the direction of the arrows until it comes free, then repositions as required. Vegetable Drawer • The drawer is suitable for storing fruit and vegetables. To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems. -
Page 19: Part 7: Helpful Hints And Tips
PART 7: HELPFUL HINTS AND TIPS Noises during Operation The following noises are characteristic of refrigeration appliances: Clicks Whenever the compressor switches on or off, a click can be heard. Humming As soon as the compressor is in operation, you can hear it humming. Bubbling When refrigerant flows into thin tubes, you can hear bubbling or splashing noises. Splashing Even after the compressor has been switched off, this noise can be heard for a short time. -
Page 20: Part 8: Cleaning And Care
PART 8: CLEANING AND CARE For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly. The fridge should be cleaned and maintained at least every two months. WARNING Electrical Shock Hazard The appliance should not be connected to the mains during cleaning. Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. -
Page 21: Defrosting In Fresh Food Storage Compartment
Defrosting in fresh food storage compartment • It is automatically controlled by switching the temperature regulator on or off so that there is no need of operation of defrosting. Water from defrosting will be drained into an drip tray through a drain pipe at the back of the fridge automatically. Go out of use for a long time • Remove all refrigerated packages. • Switch off the appliance by turning the temperature regulator to position “0”. • Remove the mains plug or switch off or disconnect the electricity supply. -
Page 22: Part 9: Troubleshooting
PART 9: TROUBLESHOOTING WARNING Before trouble shooting, disconnect the power supply. Only a qualified electrician of competent person must carry out the trouble shooting that is not in the manual. Important! Repairs to refrigerators/freezers may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or your local Service Center. PROBLEM POSSIBLE CAUSE(S) SOLUTION Appliance is not switched on. Switch on the appliance. Mains plug is not plugged in or is Insert mains plug. - Page 23 Appliance is not level. Readjust the feet. The appliance is touching the wall or Move the appliance slightly. other objects. Unusual noises. A component, e.g. a pipe, on the rear If necessary, carefully bend the of the appliance is touching another component out of the way.
-
Page 24: Storage Instructions
Storage instructions To avoid contamination of food, please respect the following instructions - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - Page 25 Chill -2 ~ +3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C). Fresh Food 0 ~ +4 Fresh pork,beef,fish,chicken,cooked food,etc.
-
Page 26: Part 10: Information Sheet
Energy efficiency class Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - 24 Copyright © 2019, Fast ČR, a. s. - Page 27 Energy efficiency class Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - 25 Copyright © 2019, Fast ČR, a. s.
-
Page 28: Technical Information
Model name and serial number can be found on the rating plate. Position of rating plate can be changed without notice. The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis. Subject to change without notice. EN - 26 Copyright © 2019, Fast ČR, a. s. Revision 03/2022... -
Page 29: Instructions And Information Regarding The Disposal Of Used Packaging Materials
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of... - Page 30 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
- Page 31 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
- Page 32 Výrobce/Manufacturer: Fast ČR, a.s. U Sanitasu 1621 Říčany 251 01, CZECH REPUBLIC Distributor: FAST PLUS, a.s. Na pántoch 18 831 06 Bratislava, SLOVAKIA Distributor: FAST POLAND Sp. z o. o. Kwietniowa 36 05-090 Wypędy, POLAND Distributor: FAST HUNGARY Kft. H-2310 Szigetszentmiklós Kántor utca 10, HUNGARY is a pending or registered trademark of Electrolux Home Products, Inc.
