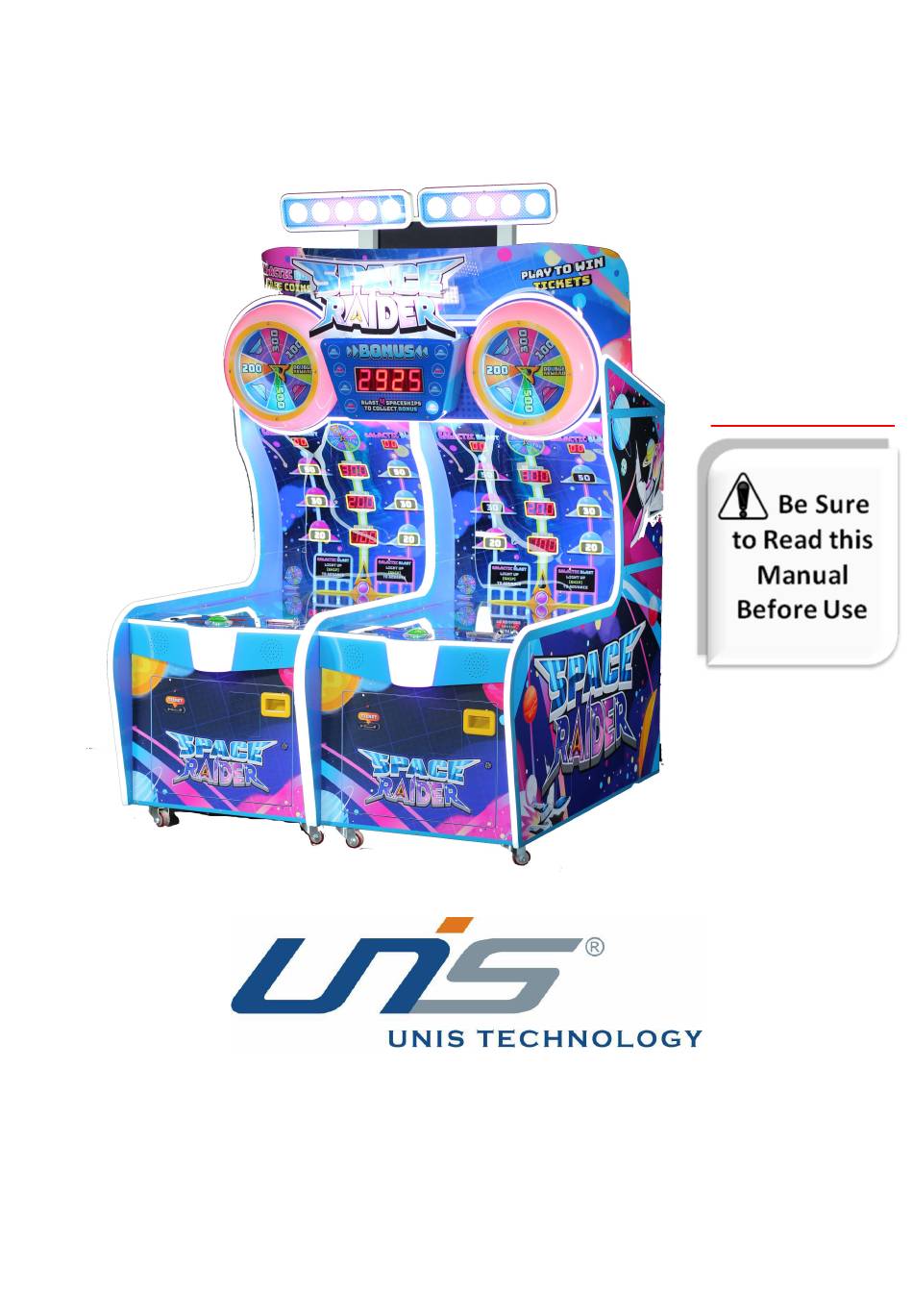

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Space Raider Prototype Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com 07/05/2022...

  • Page 3: Table Of Contents

    Space Raider Prototype Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 22 6.

  • Page 4: Important Safety Instructions

    Space Raider Prototype Manual Thank you for purchasing Space Raider. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Space Raider Prototype Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Space Raider Prototype Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz (It is subject to the nameplate on the back of the machine.) Min. Power consumption: 500W Max. Power consumption: 600W Dimension:H90.35×W60.51×D63.03 in H2295×W1537 ×D1601 mm Weight：Approximately 771 lb/ 350kg...

  • Page 7: Contents Of The Accessory Kit

    Space Raider Prototype Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Name/SPEC Picture Manual Power cord Coin door key Service door key NOTE: Part models are subject to change without notice.

  • Page 8: Part Name

    Space Raider Prototype Manual 3. PART NAME Key Components Marquee Display Turntable Play field Play instruction Button 07/05/2022...

  • Page 9: Set Up & Installation

    Space Raider Prototype Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Space Raider Prototype Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 500 mm Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Space Raider Prototype Manual 4.4 Machine Installation Step 1 Locate Bottom cabinet. Loosen screws on the upper side. Step 2 Place Upper cabinet to the Bottom cabinet. Utilize screws to secure. Upper cabinet Screw Bottom cabinet 07/05/2022...
  • Page 12 Space Raider Prototype Manual Step 3 Route these connectors to the bottom cabinet through the hole. Connect the connectors as shown below. Step 4 Place Side fixing plate to the Cabinet. Utilize screws to secure. Note: It is the same installation(Step 1-4) of the other side.
  • Page 13 Space Raider Prototype Manual Step 5 Place L&R cabinet together. R cabinet L cabinet Step 6 Open the front door. Utilize screws to secure L&R cabinet. Screw 07/05/2022...
  • Page 14 Space Raider Prototype Manual Step 7 Utilize screws to secure L&R cabinet. Screw Screw Step 8 Route the R cabinet connector to the L cabinet. Connect the connectors as shown below. Connectors Connectors 07/05/2022...
  • Page 15 Space Raider Prototype Manual Step 9 Install L&R side upper plate to the top of the cabinet. Utilize fixing plate and screws to secure. L&R side upper plate Screws L&R side upper plate Screws 07/05/2022...
  • Page 16 Space Raider Prototype Manual Step 10 Route the connector to the cabinet inside through the hole. Connect the connector. Connector Step 11 Locate Bonus Marquee. Install Fixing plate to the Bonus assembly. Bonus assembly Fixing plate Step 12 Install LOGO marquee,POP plate and fixing plate to the Bonus assembly. Connect the connector.
  • Page 17 Space Raider Prototype Manual Step 13 Install Bonus assembly fixing plate to the top of the cabinet. Utilize screws to secure a bit.(DO NOT TIGHTEN) Bonus assembly fixing plate Step 14 Install Bonus assembly to the Cabinet. Secure the Bonus assembly fixing plate.
  • Page 18 Space Raider Prototype Manual Step 15 Connect the Bonus assembly connectors. Bonus assembly connectors Step 16 Locate Back PC decal. Install Back PC decal fixing plate(V&H) together. Fixing plate(H) Fixing plate(V) 07/05/2022...
  • Page 19 Space Raider Prototype Manual Step 17 Install Back PC decal to the Back PC decal fixing plate(V&H). Back PC decal Step 18 Install Back plate to the fixing plate. Fixing plate Back plate Step 19 Install Back PC decal to the back of the Bonus assembly. Utilize screws to secure.
  • Page 20 Space Raider Prototype Manual Step 20 Install Top light plate to the back of the Marquee. Utilize screws to secure. Top light plate Step 21 Utilize screws to secure L&R top light plate. Screws 07/05/2022...
  • Page 21 Space Raider Prototype Manual Step 22 Connect the connectors. Connectors Connectors Finish! 07/05/2022...
  • Page 22 Space Raider Prototype Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage. Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize this wiring for Card reader installation.

  • Page 23: How To Play

    Space Raider Prototype Manual 5. HOW TO PLAY 5.1 Insert coins/Tap card to play. 1 Coins for 2 Gold coins to play. 5.2 Rotate to aim and Tap button to blast the Gold coin. 5.3 Gold coins hit the slot to win tickets and light up the letter.
  • Page 24 Space Raider Prototype Manual 5.6 Gold coins hit the middle slot will give the Shield reward. Win Shield reward 3 times to activate Turntable. 5.7 Win 4 Spaceships in turntable can win the ultimate prize Bonus! 07/05/2022...

  • Page 25: Game Option

    Space Raider Prototype Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Options Description Settings/options Enter Setting menu/Select options/Confirm Exit Exits Setting menu/Back to game...
  • Page 26 Space Raider Prototype Manual 6.2 Setting menu Options Description Game Settings Press settings to enter. Audit Bookkeeping. Press Audit to enter Test Machine Test. Press Testing to enter Exit Back to game 6.2.1 Game Settings Options Adjustable Meanings Default Note...
  • Page 27 Space Raider Prototype Manual 6.2.1.1 Ticket Pattern Pattern 1 (about 30 tickets per coin) Blue spaceship side Red spaceship side Galactic Blast Time:10 seconds Galactic Blast Time: 10 seconds Turntable bonus Level 3 bonus: 50 tickets Level 3 bonus: 50 tickets...
  • Page 28 Space Raider Prototype Manual Pattern 4 (about 45 tickets per coin) Blue spaceship side Red spaceship side Galactic Blast Time:10 seconds Galactic Blast Time: 10 seconds Turntable bonus Level 3 bonus: 50 tickets Level 3 bonus: 50 tickets Shield 3 Bonus: 300...

  • Page 29: Troubleshooting

    Space Raider Prototype Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 30 Space Raider Prototype Manual Display Meanings Possible Cause Recommended action Coins enter the hole, which Replace the hole The hole sensor is faulty. cannot be detected. sensor. The hole flash automatically There is a coin stuck in Open the back door to and tickets out.

  • Page 31: Maintenance & Inspection

    Space Raider Prototype Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 32 FUSE1 FUSE1 FUSE1...
