Summary of Contents for Blue-White F-410

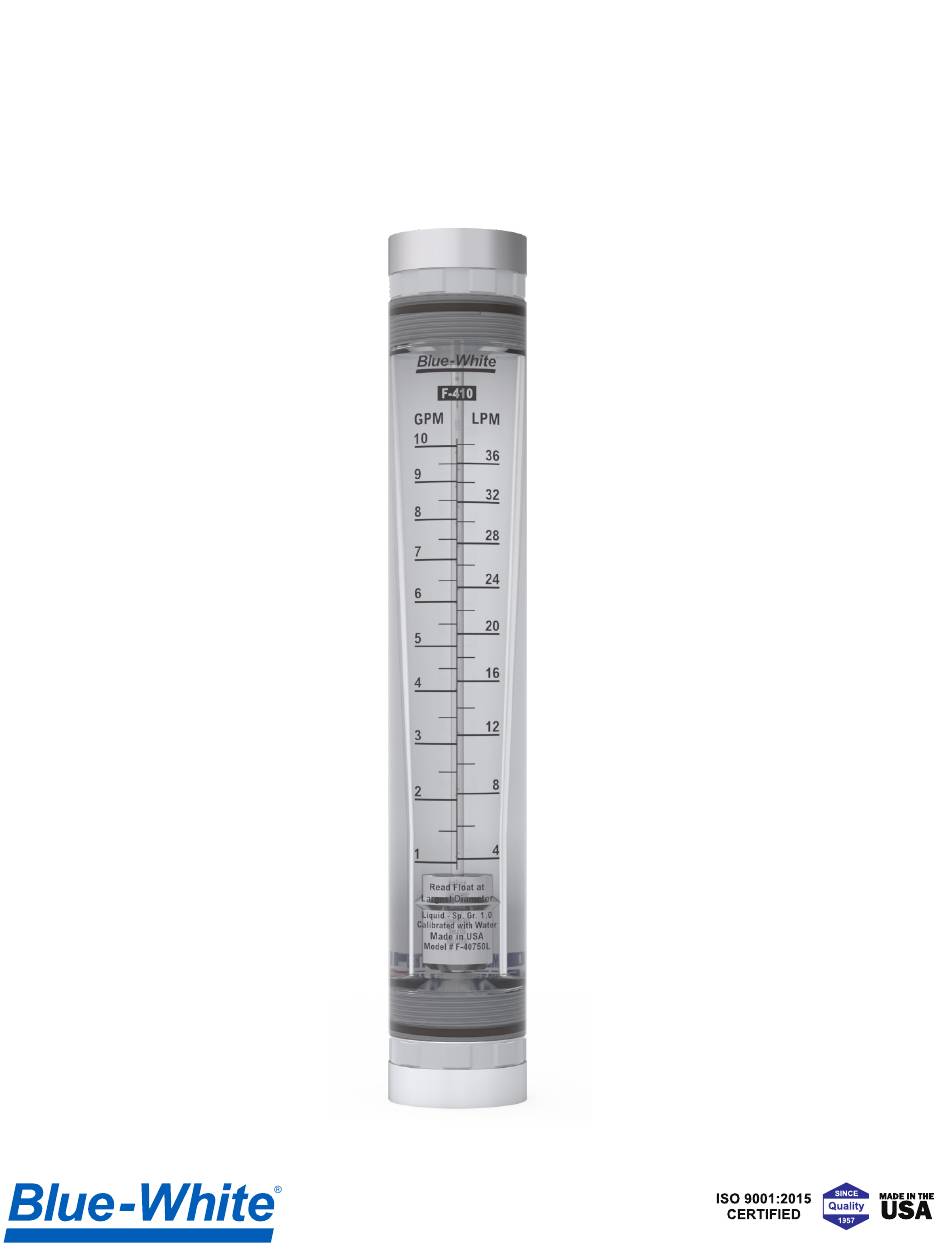

- Page 1 Operating Manual F-410 Flow Meter...
- Page 2 READ THE ENTIRE OPERATING MANUAL PRIOR TO INSTALLATION AND USE. +1 (714) 893 - 8529 sales@blue-white.com customerservice@blue-white.com 5300 Business Drive Huntington Beach, CA 92649...
-
Page 3: Table Of Contents
Table of Contents 1.0 Introduction 1.1 What’s in the box 1.2 Features 1.3 Application Notes 1.4 Ordering Information / Product Matrix 2.0 Engineering Specifications 2.1 Flow Meter Specifications 2.2 Materials of Construction 2.3 Flow vs. Pressure Graph 2.4 Flow Specifications 2.5 Dimensions 3.0 Installation 3.1 Installation Requirements... -
Page 4: Safety Information
SAFETY INFORMATION Please read this manual completely before unpacking, installing, and operating this equipment. In particular, pay attention to all dangers, warnings, and precau- tions, otherwise, it may cause serious injury to the operator or damage to the equipment. Note: When in doubt regarding your electrical installation, contact a licensed electrician. -
Page 5: Introduction
• Upward flow, vertical installation only 1.3 Application Notes Although meters may be suitable for other chemicals, Blue-White cannot guarantee their suitability. It is the responsibility of the user to determine the suitability of the flow meter in their application. Flow meters are tested and... -
Page 6: Ordering Information / Product Matrix
F-410 1.4 Ordering Information / Model Number Matrix Model Number Matrix F-410 Model Number Flow Meter Scale 40750 1-10 gpm (4 - 38 lpm) 316SS Float 41000 2-20 gpm (8 - 80 lpm) 316SS Float Guide-Wire Material 316 Stainless steel rod Adapter .75”... -
Page 7: Materials Of Construction
F-410 2.2 Materials of Construction Wetted Components: Meter Body Cast acrylic rod, Annealed Adapters Polypropylene O-ring Seals Viton (optional EP) ® Float 316SS Guide Rod 316SS 2.3 Temperature vs. Pressure Graph Maximum Temperature vs. Pressure 150 F (66 C) 134 F (57 C) -
Page 8: Dimensions
27.9 1-3/4” 3.0 Installation 3.1 Installation Requirements Before beginning installation, review your system flow and pressure to ensure your F-410 is proper for your system parameters. Pipe Requirements: • The flow meter is designed to work best when installed in a perfectly vertical pipe system. -
Page 9: Installation Instructions
High pressure and temperature will damage the meter. (see temperature VS pressure chart) 4.0 Reading your F-410 Flow Meter Avoid imposing a sudden burst of flow to the meter. Solenoid valves may cause the float to impact the top float stop with destructive force. Always read float at its widest point, or... -
Page 10: Maintenance And Troubleshooting
5.0 Maintenance and Troubleshooting • The F-410 Flow Meter requires very little maintenance. However, the flow meter may become clogged due to excess debris in the water. If this happens, simply shut of the process pump or valve and remove any pressure from the piping. If isolation valves are installed, shut these to minimize the amount of water that may leak. -
Page 11: Warranty
Blue-White is pleased to assist in this effort but does not guarantee the suitability of any particular product for any specific application as Blue-White does not have the same degree of familiarity with the application that the customer/end user has. - Page 12 P.N. 80000-611 F-410 Flow Meter REV 4 20250117 5300 Business Drive, Huntington Beach, CA 92649 TEL 714-893-8529 | FAX 714-894-9492 | www.blue-white.com | sales@blue-white.com...
