Blue-White F-440NEA Installation Instructions Manual

F-440N F-440NE
B
B
A

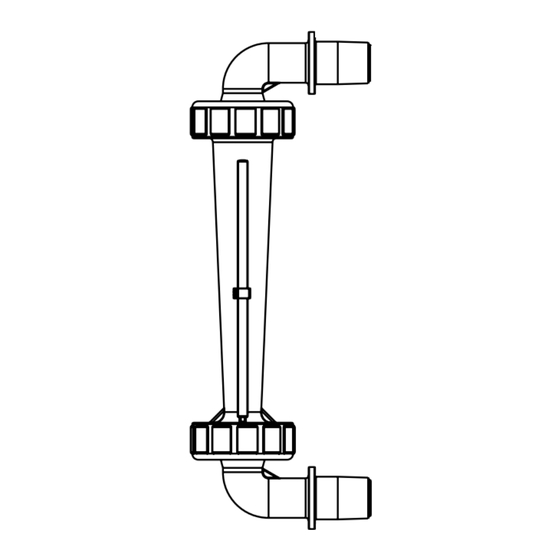

F-440NEA
B
Inspection of the Flowmeter and Compatibility
!
Carefully inspect the meter for any damage that may have occurred during shipping.
!
Remove the plastic tubing that has been inserted during packaging for shipping
reasons.
!
Make sure your pressure, temperature, fluid and other requirements are compatible
with the meter before installation.
!
The maximum temperature capability decreases as the pressure increases. The max
PSI decreases as the temperature increases. See the chart on the following page.
!
Although the meter may be suitable for other chemicals, Blue-White cannot guarantee
their suitability. It is the responsibility of the user to determine the suitability of the
flowmeter in their application. Flowmeters are tested and calibrated for water only.
! Blue-White warranties the flowmeter for use with water only. ®
Installation Instructions
F-440N
Model No.
F-44250
F-44375
F-44376
C
F-44500
F-44750
F-44250E
F-44375E
F-44376E
F-44500E
A
F-44750E
D
F-44250EA
F-44375EA
F-44376EA
F-44500EA
F-44750EA
Meter Body: Polysulfone
Float:
Guide rod:
Adapters:
C O-Rings:
Scale:
Max. PSIg:
Max. Temp: 212°F / 100°C at 0 pressure
Accuracy:
Your Blue-White F-440 Series
A
D !
Your Blue-White flowmeter was designed to be
easy to install.
!
Please read the Instruction Guideline on the next
page before installing your flowmeter.
!
This flowmeter is an instrument, special care
should be taken when handling and installing.
®
Dim A Dim B
6-3/16" 1-11/16"
157mm 43mm
7-1/2" 2"
191mm 51mm
7" 3 ½"
178mm 76mm
8-1/8" 3 3/8"
206mm 76mm
7" 5"
178mm 127mm
8 1/8" 5"
203mm 127mm
316SS, or PVDF (based on model)
# 316 Stainless
Polysulfone
Viton (optional EP)
Permanent, dual scale silkscreen (black ink)
175 PSIG / 12 BAR at 70°F/21°C
± 4% of full scale reading
®
®
80000-440 Rev 3
Dim C Dim D
N/A N/A
N/A N/A
1-11/16" 5-15/16"
43mm 151mm
2" 6-13/16"
51mm 173mm
1-11/16" 6"
43mm
152mm
2" 6-13/16"
51mm 173mm
®
20230327
