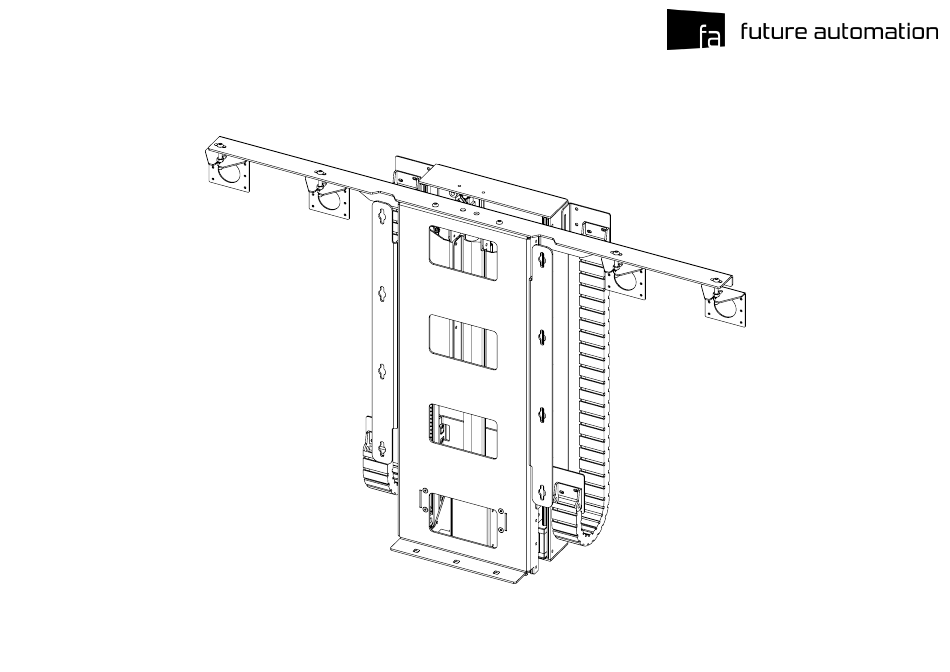

- Page 1 TSLM-MO-2 MARINE OUTDOOR TELESCOPIC SCREEN LIFT TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 002 FUTUREAUTOMATION SHEET 1...
-
Page 2: Specification
TSLM-MO-2 MARINE OUTDOOR TELESCOPIC SCREEN LIFT SPECIFICATION MEASUREMENTS Product Dimensions 742mm (29 3/16") x 1280mm (50 3/8") x 240mm (9 7/16") Minimum Screen Height 695mm (27 3/8") Maximum Screen Height 875mm (34 7/16") Minimum Screen Width 1280mm (50 3/8") - (Lower Width option available apon request) -
Page 3: General Information
TSLM-MO-2 MARINE OUTDOOR TELESCOPIC SCREEN LIFT GENERAL INFORMATION LID and ENCLOSURE - To be made by VESA 400 wide mounting others. Total allowable weight for all pattern covered. Brackets timber work and the screen 75Kg. have full height adjustment . - Page 4 TSLM-MO-2 MARINE OUTDOOR TELESCOPIC SCREEN LIFT CABINET SIZING All sizing calculations are based off a 20mm [0.79"] Internal Cabinet Depth = Screen Depth + 230 [9 1/16"] box enclosure panel thickness. Any increases in this thickness will increase the required space.
- Page 5 TSLM-MO-2 MARINE OUTDOOR TELESCOPIC SCREEN LIFT BOX ENCLOSURE DETAILING The Screen, Enclosure, Lid and the Trim panel must weigh no more than 75Kg. Blocks to locate lid. Fixing Brackets Optional ventilation 25 3/16" 44 7/8" 1140 26" 22 1/16" 11 13/16"...
-
Page 6: Install Instructions
TSLM-MO-2 MARINE OUTDOOR TELESCOPIC SCREEN LIFT INSTALL INSTRUCTIONS • Check that the cabinet, enclosure, lid and the trim panel are made to the details shown on the previous pages. • You can stand the mechanism up on its base to test it before putting in the cabinet.
