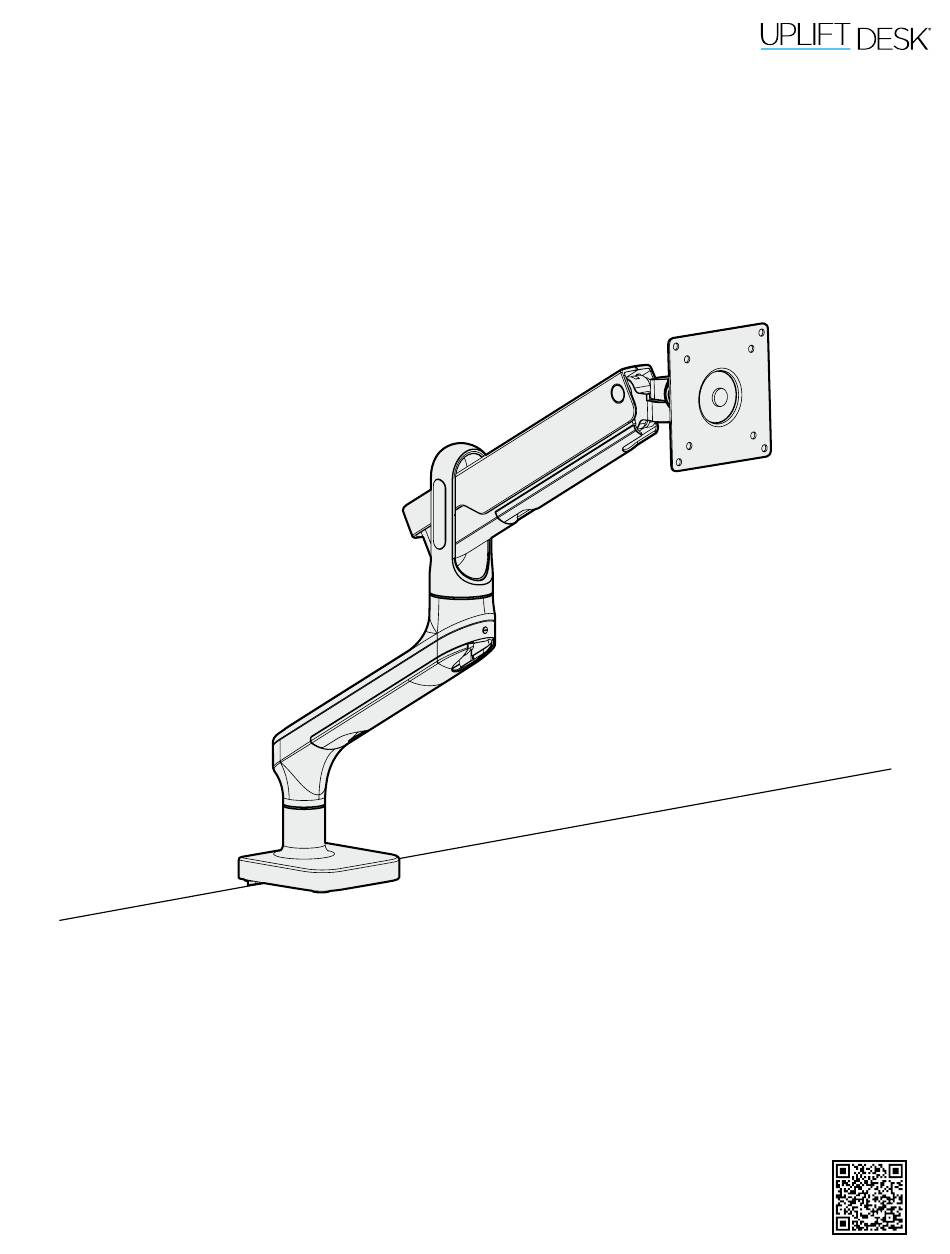

- Page 1 Enfield Single Monitor Arm MON041 Scan QR code for product webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email info@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved...
- Page 2 Safety and Warnings CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in damage or personal injury. Retain manual for future reference. Warning: This product contains a spring mechanism that can cause injury. Be careful when removing monitors as the arm can spring up when the weight of the monitor is removed.
- Page 3 Step 2 (Clamp Method) Align the Upper Clamp with the Base in the orientation shown and attach it using the three M6 x 12 Flathead Screws and the 4mm Allen Wrench. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 Step 3 (Clamp Method) A. There are two sets of holes in the Upper Clamp to use for different desktop thicknesses. • There are two screws pre-installed in the top two holes of the Upper Clamp. Leave the screws in those holes if your desktop is between 0.4’’...
- Page 5 Lower Arm with the flathead end of the 4mm Allen Wrench (or a small flat head screwdriver). This will secure the Lower Arm to the Base and keep it from becoming separated during adjustment. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Step 10 Warning, Pinch Point: Pay attention! When handling the Upper Arm, keep hands and fingers clear of the Upper Arm’s pivot location when moving, installing, and making adjustments to the Enfield Monitor Arm. A. Slide the post of the Upper Arm into the hole at the top of the Lower Arm until it is fully seated.
- Page 7 Upper Arm where shown with the 4mm Allen Wrench. B. Once the monitor is at your preferred viewing angle, re-tighten the screw with the Allen Wrench to hold the monitor in place. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 8: Height Adjustment
Step 16 A. To use the arm’s wire management, first remove the built-in wire covers. B. There are two wire covers the arm, one located under the Upper Arm and the other under the Lower Arm. They are removed by gripping the sides of the cover and sliding it forward (toward the monitor) to unlock and remove. -
Page 9: Monitor Rotation
180˚ to allow only a range of 180° (See Step 8). Note: We do not recommend swiveling the Monitor past the back of the desk as this may cause instability. 360˚ © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 10 Notes...
- Page 11 Notes © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
